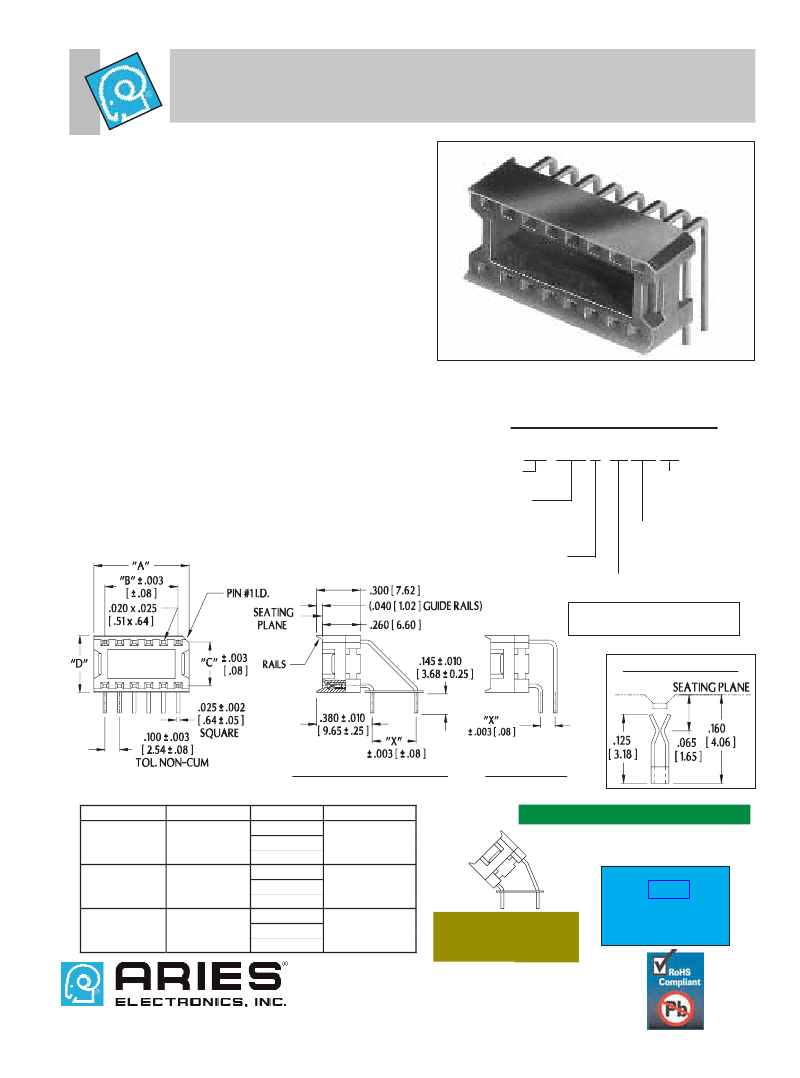

Series 800 Vertisockets
™
Horizontal Mounting with Bifurcated Contacts
FEATURES:
• Aries offers a full line of Vertisockets
TM
for DIP packaging of LEDs, incandescent
lamps, DIP switches, test points, etc. The variations of mounting position and pin
configuration provide exceptional design freedom.
• Restricted entry for contact protection.
•Accepts standard LEDs and incandescent displays as well as .500 [12.70] and .600
[15.24] high large displays.
SPECIFICATIONS:
• Standard body material is black UL 94V-0 4/6 Nylon.
• Bifurcated contacts are Grade A spring-tempered Phosphor Bronze per QQ-B-750.
• Standard contact plating is 10μ [.25μm] min. Gold per MIL-G-45204 over 50μ” min.
Nickel per QQ-N-290.
Plating Options:
-T= 200μ” min Matte Tin per ASTM B545-97 over 50μ” min. Nickel per QQ-N-290.
-TL= 200μ” min Bright 90/10 Tin/Lead per MIL-T-10727 Type 1 over 50μ” min.
Nickel per QQ-N-290.
• Spacer = Fishpaper.
• Contact current rating=1.5 Amps.
• Operating temperature=221 °F [105°C] Tin & Tin/Lead plating,
=257°F [125°C] Gold plating.
• Insertion Force=110 grams/pin average; Withdrawal Force=75 grams/pin average.
• Accepts flat leads up to .014 [.36] thick and .020 [.51] wide; round leads up to .020
[.51] in diameter.
• Accepts lead lengths: .075-.160 [1.91-4.06].
MOUNTING CONSIDERATIONS:
• Suggested PCB hole size=.044 ± .002 [1.12 ± .05] dia.
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
XX-X82X-90XXXX
No. of pins
(see table)
Series:
282: “C”=.200 [5.08]
82: “C”=.300 [7.62]
682: “C”=.600 [15.24]
0: “X”=.100 [2.54]
2: “X”=.200 [5.08]
3: “X”=.300 [7.62]
Optional suffix:
WR=Without
rails
T=Tin plating
TL=Tin/Lead plating
No suffix=Gold plating
Display angle
“A”=(NO. OF PINS PER ROW X .100 [2.54]) + .050 [1.27]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
All tolerances ± .005 [.13]
unless otherwise specified
90° ± 2°
CONTACT DETAIL
“X”=.300 [7.62] & .200 [5.08]
(angled bend w/spacer)
Centers “C ”
.200 [5.08]
Dim. “D”
.290 [7.37]
Dim. “X ”
.100 [2.54]
.200 [5.08]
.300 [7.62]
.100 [2.54]
.200 [5.08]
.300 [7.62]
.100 [2.54]
.200 [5.08]
300 [7 62]
Available Sizes
8, 10
“X”=.100 [2.54]
(straight bend)
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
.300 [7.62]
.390 [9.91]
8, 14 thru 20
.600 [15.24]
.690 [17.53]
8 thru 40, 48
Consult factory for
sizes not shown and
other display angles
Consult Data Sheet
No. 13002 for
Vertical Mounting
Vertisockets
TM
with
bifurcated contacts.
13001
http://www.arieselec.com • info@arieselec.com
REV.D
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
NORTH AMERICA
Frenchtown, NJ USA
TEL:(908) 996-6841
FAX:(908) 996-3891
