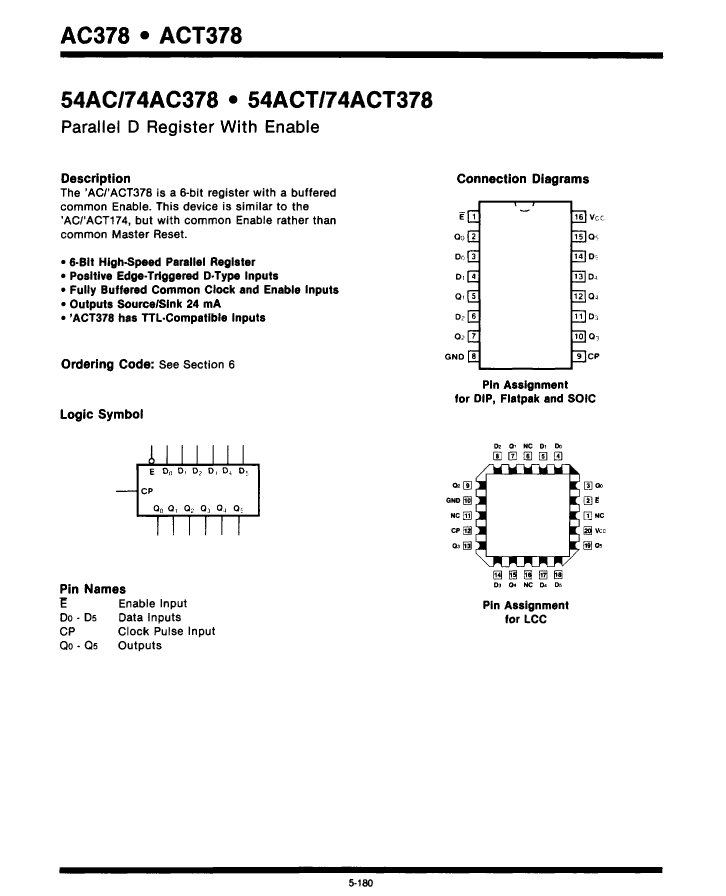

74AC378FCXR Overview

D Flip-Flop, AC Series, 1-Func, Positive Edge Triggered, 6-Bit, True Output, CMOS, CDFP16, CERAMIC, FP-16

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	DFP
package instruction	DFP,
Contacts	16
Reach Compliance Code	unknown
Other features	WITH HOLD MODE
series	AC
JESD-30 code	R-CDFP-F16

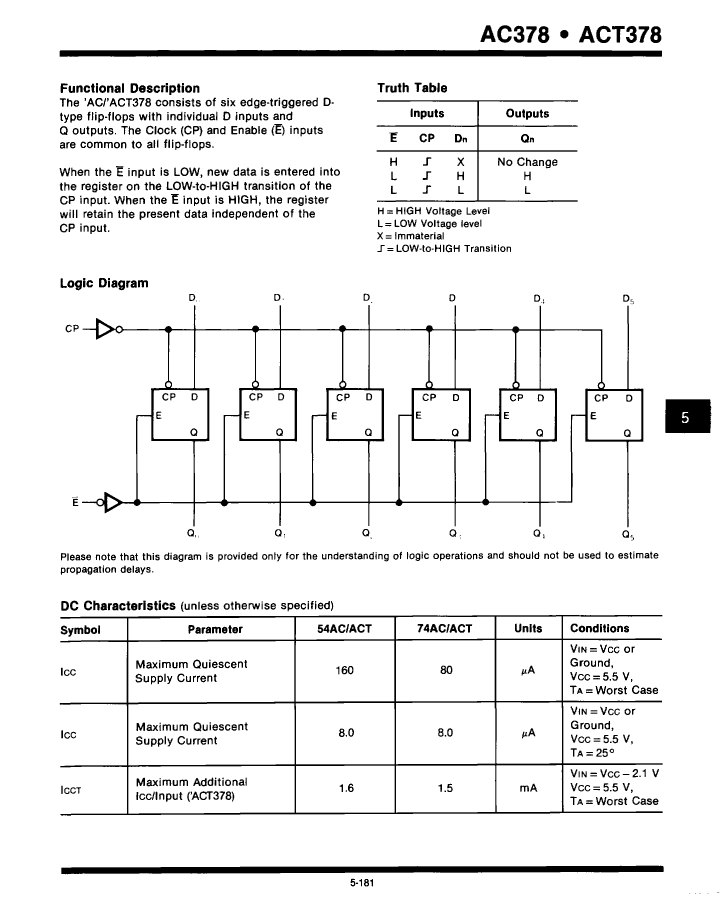

Logic integrated circuit type	D FLIP-FLOP
Number of digits	6
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK

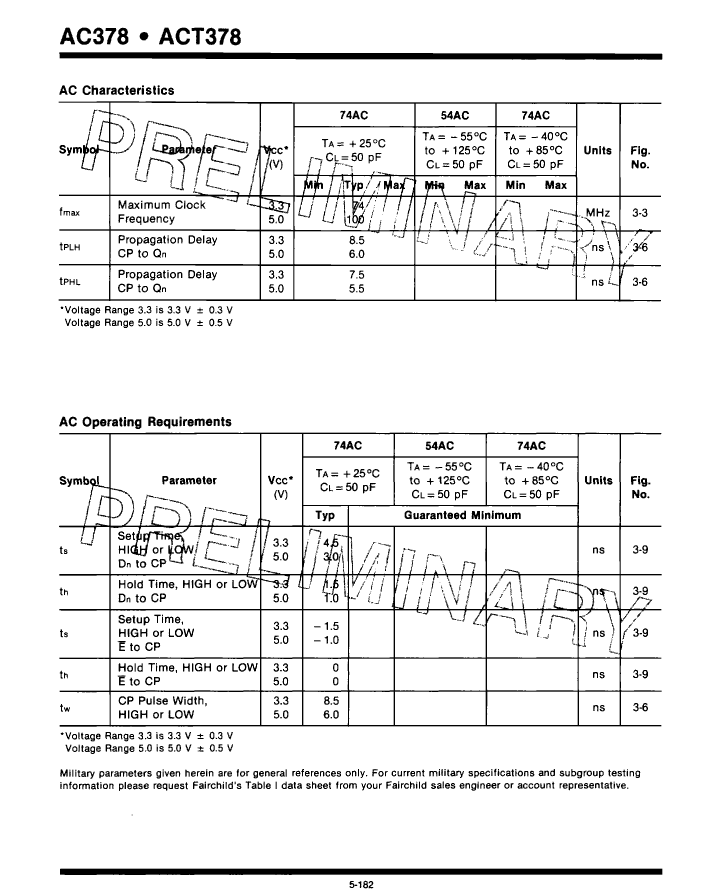

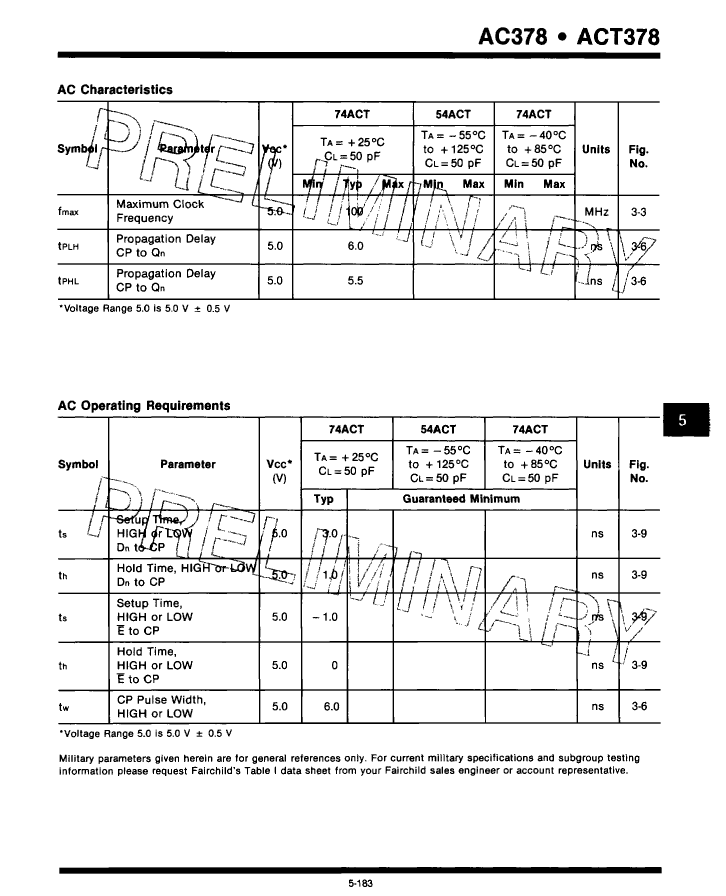

propagation delay (tpd)	7.5 ns
Certification status	Not Qualified
Maximum seat height	2.159 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	6.731 mm
minfmax	100 MHz
Base Number Matches	1
