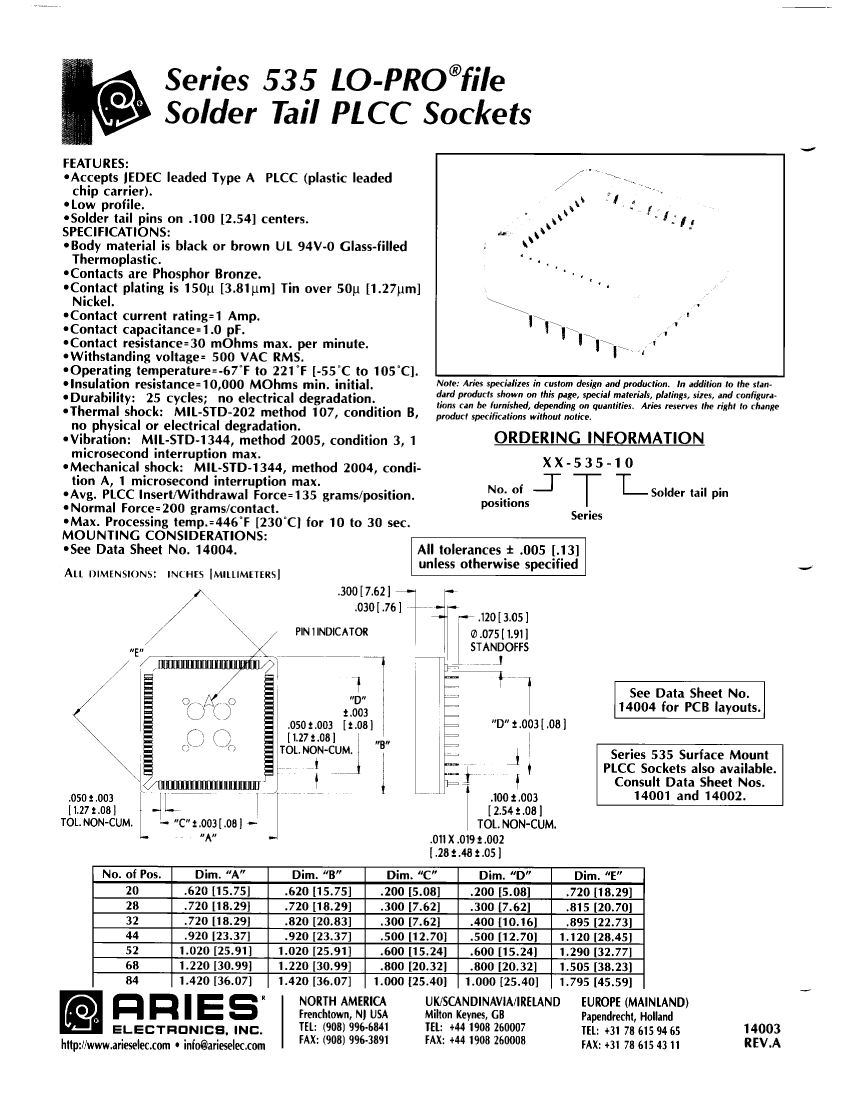

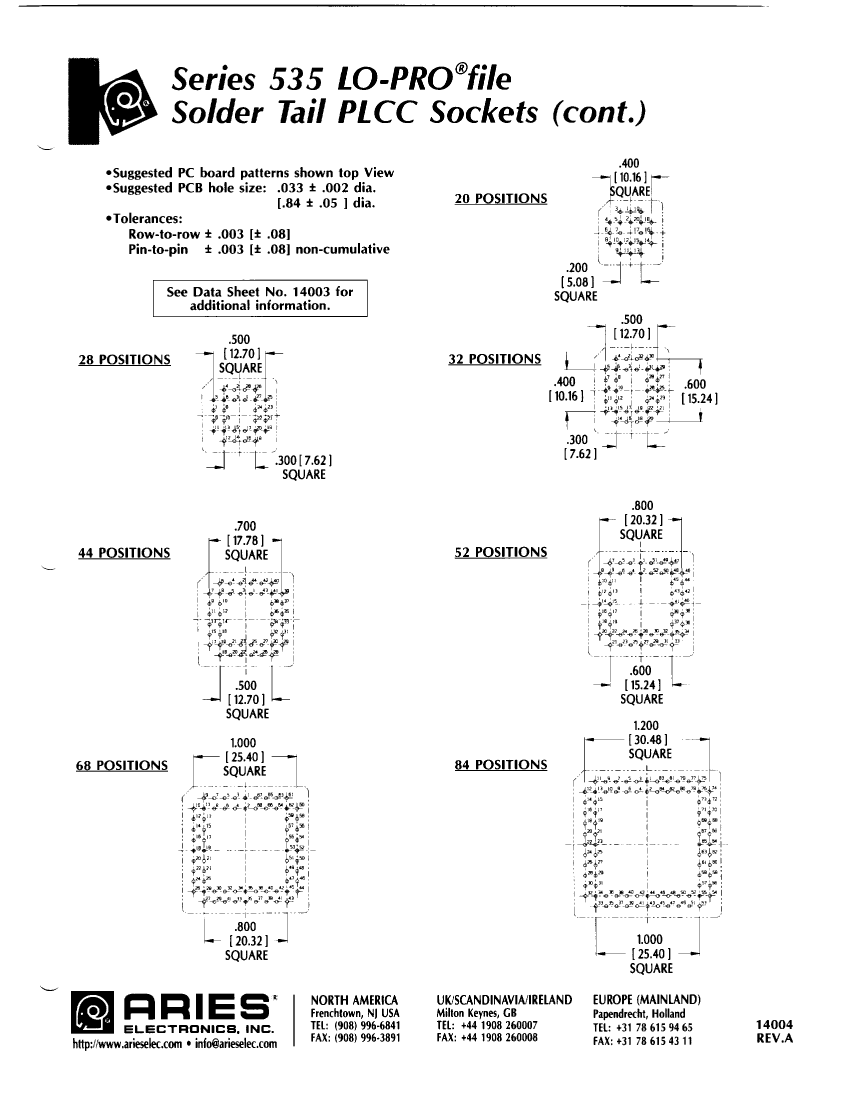

IC Socket, PLCC84, 84 Contact(s), Solder,
| Parameter Name | Attribute value |
| Maker | Aries Electronics |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Other features | JEDEC TYPE A |
| body width | 1.42 inch |
| subject depth | 0.3 inch |
| body length | 1.42 inch |
| Contact structure | 21X21 |
| Contact to complete cooperation | SN-PB ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact material | P-CUSN |
| Contact style | BELLOWED TYPE |
| current rating | 1 A |
| Device slot type | IC SOCKET |
| Type of equipment used | PLCC84 |
| Dielectric withstand voltage | 500VAC V |
| Shell material | PLASTIC |
| Insulation resistance | 1000000000 Ω |
| JESD-609 code | e3 |
| Installation method | STRAIGHT |
| Number of contacts | 84 |
| Maximum operating temperature | 110 °C |
| Minimum operating temperature | -55 °C |
| Termination type | SOLDER |
| Base Number Matches | 1 |
| 84-535-10 | 28-535-10 | 20-535-10 | 44-535-10 | 32-535-10 | 68-535-10 | 52-535-10 | |
|---|---|---|---|---|---|---|---|
| Description | IC Socket, PLCC84, 84 Contact(s), Solder, | IC Socket, PLCC28, 28 Contact(s), Solder | IC Socket, PLCC20, 20 Contact(s), Solder, | IC Socket, PLCC44, 44 Contact(s), Solder, | IC Socket, PLCC32, 32 Contact(s), Solder, | IC Socket, PLCC68, 68 Contact(s), Solder | IC Socket, PLCC52, 52 Contact(s), Solder, |
| Reach Compliance Code | compliant | compli | compli | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Other features | JEDEC TYPE A | JEDEC TYPE A | JEDEC TYPE A | JEDEC TYPE A | JEDEC TYPE A | JEDEC TYPE A | JEDEC TYPE A |
| body width | 1.42 inch | 0.72 inch | 0.62 inch | 0.92 inch | 0.72 inch | 1.22 inch | 1.02 inch |
| subject depth | 0.3 inch | 0.3 inch | 0.3 inch | 0.3 inch | 0.3 inch | 0.3 inch | 0.3 inch |
| body length | 1.42 inch | 0.72 inch | 0.62 inch | 0.92 inch | 0.82 inch | 1.22 inch | 1.02 inch |
| Contact structure | 21X21 | 7X7 | 5X5 | 11X11 | 7X9 | 17X17 | 13X13 |
| Contact to complete cooperation | SN-PB ON NI | SN-PB ON NI | SN-PB ON NI | SN-PB ON NI | SN-PB ON NI | SN-PB ON NI | SN-PB ON NI |
| Contact completed and terminated | TIN OVER NICKEL | TIN OVER NICKEL | TIN OVER NICKEL | TIN OVER NICKEL | TIN OVER NICKEL | TIN OVER NICKEL | TIN OVER NICKEL |
| Contact material | P-CUSN | P-CUSN | P-CUSN | P-CUSN | P-CUSN | P-CUSN | P-CUSN |
| Contact style | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE | BELLOWED TYPE |
| current rating | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A |
| Device slot type | IC SOCKET | IC SOCKET | IC SOCKET | IC SOCKET | IC SOCKET | IC SOCKET | IC SOCKET |
| Type of equipment used | PLCC84 | PLCC28 | PLCC20 | PLCC44 | PLCC32 | PLCC68 | PLCC52 |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V | 500VAC V |
| Shell material | PLASTIC | PLASTIC | PLASTIC | PLASTIC | PLASTIC | PLASTIC | PLASTIC |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω | 1000000000 Ω |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT |
| Number of contacts | 84 | 28 | 20 | 44 | 32 | 68 | 52 |
| Maximum operating temperature | 110 °C | 110 °C | 110 °C | 110 °C | 110 °C | 110 °C | 110 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Termination type | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER | SOLDER |
| Maker | Aries Electronics | - | - | - | Aries Electronics | Aries Electronics | Aries Electronics |
| JESD-609 code | e3 | - | e3 | e3 | e3 | - | e3 |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | - |
