85801-2063 datasheet, PDF - EEWORLD Datasheet

85801-2063: DescriptionBoard Connector, 30 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, Plug; CategoryThe connector; File Size142KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

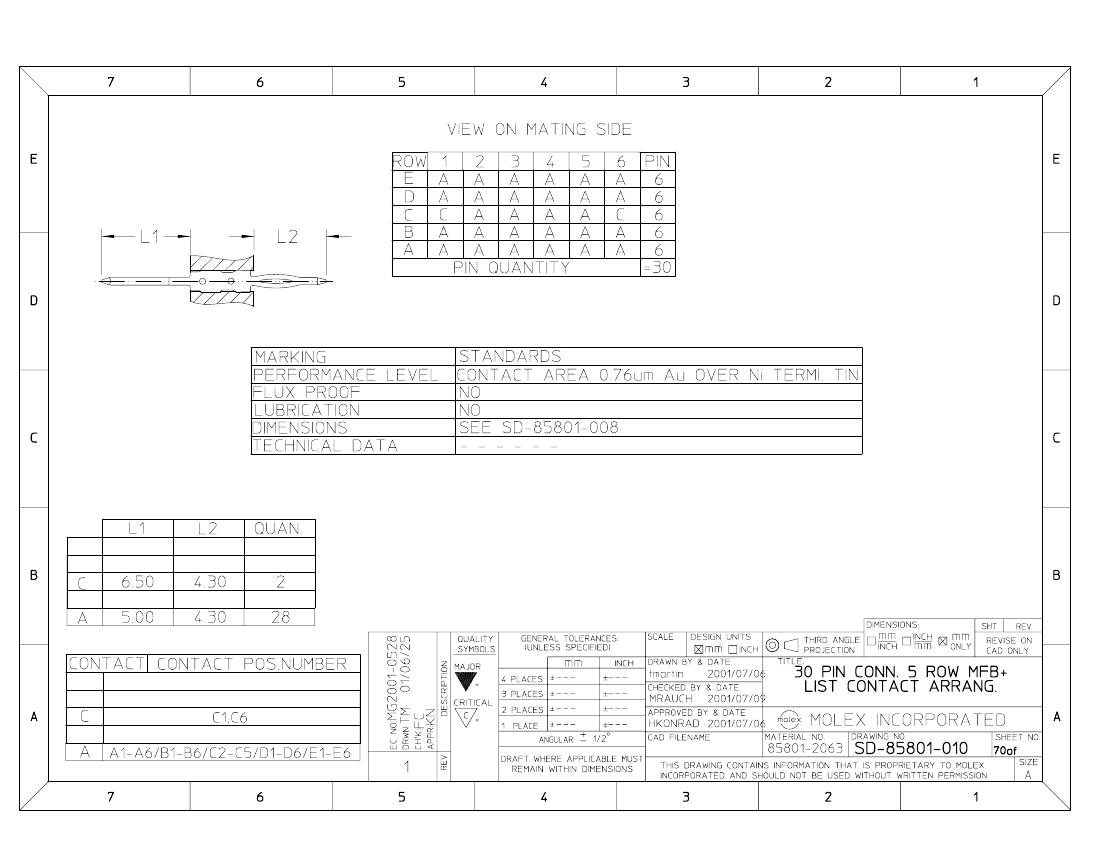

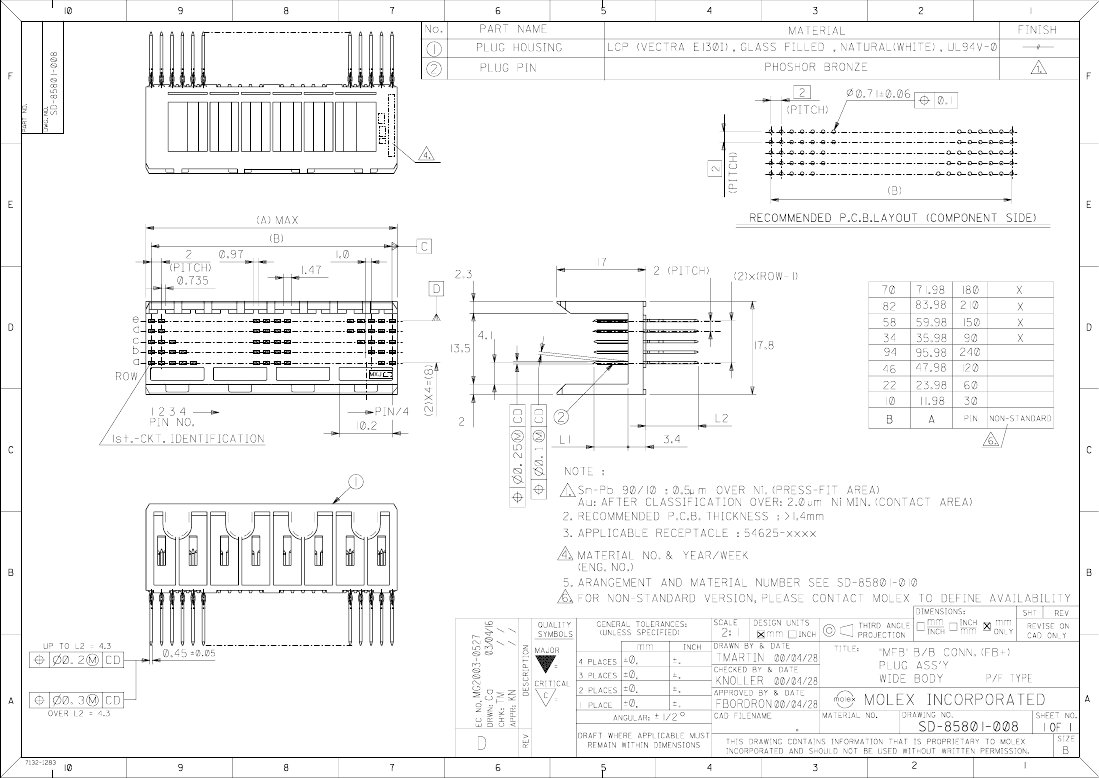

85801-2063 Overview

Board Connector, 30 Contact(s), 5 Row(s), Male, Straight, Press Fit Terminal, Plug

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	85801
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	30
UL Flammability Code	94V-0
Base Number Matches	1
