Datasheet> All Categories > The connector> 5-87964-4

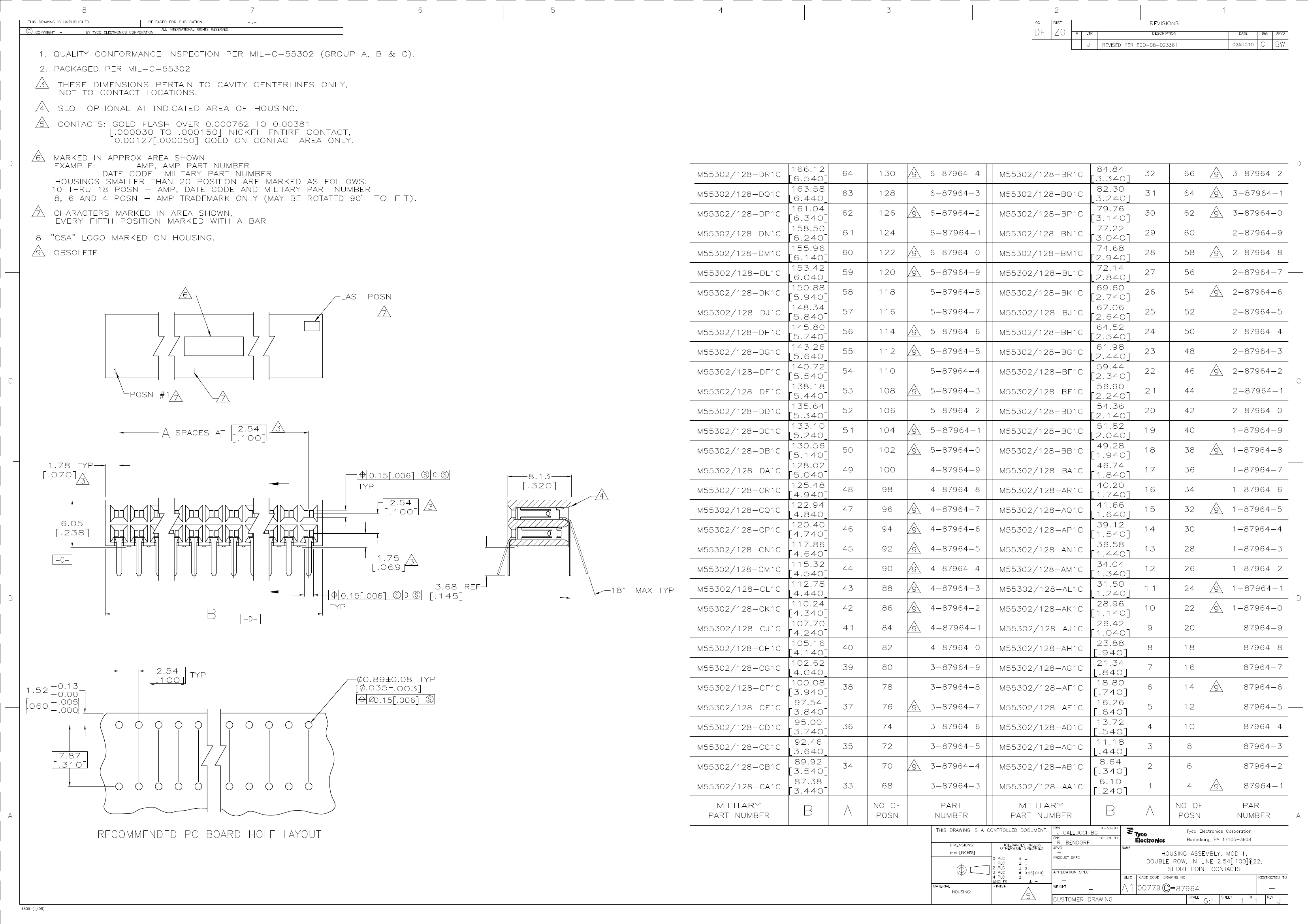

Preview

5-87964-4: Description110 MODII HORZ DR CE 100CL/145; CategoryThe connector; File Size237KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-87964-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-87964-4	-	-	View	Buy Now

5-87964-4 Overview

110 MODII HORZ DR CE 100CL/145

5-87964-4 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	12 weeks
Other features	STANDARD: MIL-C-55302
body width	0.238 inch
subject depth	0.32 inch
body length	5.54 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold Flash (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	12 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1050VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.224 N
Insulation resistance	5000000000 Ω
Insulator color	NATURAL
insulator material	POLYPHENYLENE SULPHIDE
MIL compliance	YES
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.874 mm
Plating thickness	50u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.115 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	110
Evacuation force-minimum value	.278 N
Base Number Matches	1

Preview

Download Datasheet

View All

5-87964-4 Related Products

	5-87964-4	4-87964-9	3-87964-4
Description	110 MODII HORZ DR CE 100CL/145	100 MODII HORZ DR CE 100CL/145	70 MODII HORZ DR CE 100CL/145
Brand Name	AMP	AMP	AMP
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant
Factory Lead Time	12 weeks	12 weeks	5 weeks
Other features	STANDARD: MIL-C-55302	STANDARD: MIL-C-55302	STANDARD: MIL-C-55302
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	Gold Flash (Au) - with Nickel (Ni) barrier	Gold Flash (Au) - with Nickel (Ni) barrier	Gold Flash (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	YES	YES	YES
Mixed contacts	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
Number of rows loaded	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	110	100	70
ECCN code	EAR99	EAR99	-
body width	0.238 inch	0.238 inch	-
subject depth	0.32 inch	0.32 inch	-
body length	5.54 inch	5.04 inch	-
Body/casing type	RECEPTACLE	RECEPTACLE	-
contact mode	RECTANGULAR	RECTANGULAR	-
Contact resistance	12 mΩ	12 mΩ	-
Contact style	SQ PIN-SKT	SQ PIN-SKT	-
Dielectric withstand voltage	1050VAC V	1050VAC V	-
Durability	200 Cycles	200 Cycles	-
maximum insertion force	2.224 N	2.224 N	-
Insulation resistance	5000000000 Ω	5000000000 Ω	-
Insulator color	NATURAL	NATURAL	-
insulator material	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	-
Plug contact pitch	0.1 inch	0.1 inch	-
Match contact row spacing	0.1 inch	0.1 inch	-
Installation option 1	LOCKING	LOCKING	-
PCB row number	2	2	-
Maximum operating temperature	125 °C	125 °C	-
Minimum operating temperature	-65 °C	-65 °C	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	-
PCB contact row spacing	7.874 mm	7.874 mm	-
Plating thickness	50u inch	50u inch	-
Rated current (signal)	3 A	3 A	-
Guideline	UL, CSA	UL, CSA	-
reliability	COMMERCIAL	COMMERCIAL	-
Terminal length	0.115 inch	0.115 inch	-
Evacuation force-minimum value	.278 N	.278 N	-
Base Number Matches	1	1	-
