QCC570R12-50.000MHZ

Description
HCMOS Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN
Categoryoscillator
File Size176KB,4 Pages
ManufacturerQ-TECH Corporation
Environmental Compliance
Download Datasheet Parametric Compare View All

QCC570R12-50.000MHZ Overview

HCMOS Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN

QCC570R12-50.000MHZ Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerQ-TECH Corporation
package instructionROHS COMPLIANT, MINIATURE, CERAMIC, SMD, 4 PIN
Reach Compliance Codecompliant
Other featuresTRISTATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time6 ns
Frequency Adjustment - MechanicalNO
frequency stability100%
Manufacturer's serial numberQCC570
Installation featuresSURFACE MOUNT
Nominal operating frequency50 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Oscillator typeHCMOS
Output load15 pF
physical size7.0mm x 5.0mm x 1.7mm
longest rise time6 ns
Maximum supply voltage1.98 V
Minimum supply voltage1.62 V
Nominal supply voltage1.8 V
surface mountYES
maximum symmetry45/55 %
Terminal surfaceGold Flash (Au) - with Nickel (Ni) barrier
Base Number Matches1
QCC570 SERIES
Q-TECH
CORPORATION
LOW PROFILE 5 x 7mm MINIATURE SMD CRYSTAL OSCILLATORS
1.8 to 5.0Vdc - 1MHz to 220.000MHz
Description
Q-Tech’s surface-mount QCC570 oscillators consist of an IC
5Vdc, 3.3Vdc, 2.5Vdc, 1.8Vdc clock square wave generator
and a miniature strip A quartz crystal built in a low profile
T
ceramic package with gold plated contact pads.
Features
ECCN: EAR99
Broad frequency range from 1MHz to 220.000MHz
Small footprint
LVHCMOS, HCMOS, and TTL compatible
5.0Vdc, 3.3Vdc, 2.5Vdc, 1.8Vdc supply
Able to meet 36000G shock per ITOP 1-2-601
Operating temperature -40ºC to +85ºC
Tri-State Output Standard
Hermetically sealed ceramic package
Fundamental and 3rd Overtone designs
Full or partial military screening tests available
Tape and reel packaging
RoHS compliant

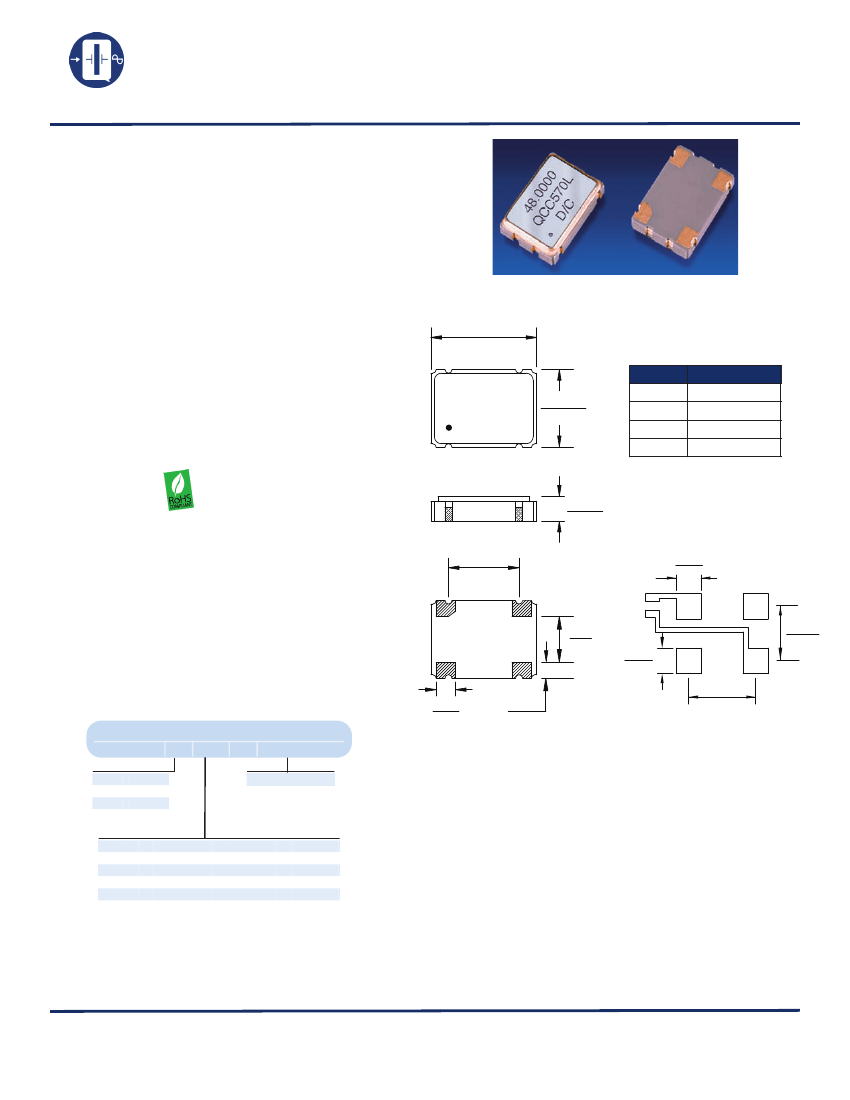

Package Specifications and Outline
0.275±.008
(7.0±0.2)
4
3
Pin No.
48.0000
QCC570L
D/C
0.2±.008
(5.0±0.2)
Function
TRISTA
TE
GND/CASE
OUTPUT
VDD
1
2
3
4
2
1
Applications
• Designed to meet today’s requirements for low voltage
applications
• Gun launched munitions and systems
• Smart munitions
• Instrumentation
• Navigation
• Avionics
• Microprocessor clock
0.067max.
(1.7)
0.2±.008
(5.08±0.2)
0.071
(1.8)
C BYPASS
1
4
2
3
.102
(2.6)
0.079
(1.8)
0.2
(0.165)
(4.2)
Ordering Information
Sample part number
0.055
(1.4)
0.040
(1.0)
(5.08)
Q CC570L14-50.00 0M H z
QCC570 L
14
-
50.000MHz
Blank= 5.0Vdc
L= 3.3Vdc
N= 2.5Vdc
R= 1.8Vdc
N/A
5
12
14
15
=
=
=
=
=
±
±
±
±
±
50ppm
25ppm
100ppm
20ppm
25ppm
at
at
at
at
at
Output frequency
An external bypass capacitor 0.01µF is
required between Vdd and GND
Dimensions are in inches (mm)
Marking Information:
Line 1: XX.XXXX (Frequency in MHz)
Line 2: P/N
(QCC570 or QCC570L)
Line 3: Dot + Stability code + Date code (Month Year)
Date Code Format:
A - L : Month Jan-Dec
0
: 2010
1
: 2011
-40ºC
-20ºC
-40ºC
-20ºC
-40ºC
to
to
to
to
to
+85ºC
+70ºC
+85ºC
+70ºC
+85ºC
Frequency stability vs. temperature codes may not be available in all frequencies.
For Non-Standard requirements, contact Q-Tech Corporation at Sales@Q-Tech.com
Package Information
• Package material: AL2O3
• Termination pads (4x), Electro nickel plating 1.27µm ~ 8.89µm typ.,
with gold 0.3µm ~ 1.0µm flash plate
• Weight: 0.15g typ., 2.0g max.
Other Options Available For An Additional Charge
• Hot Solder Dip Sn60 per MIL-PRF 55310
Specifications subject to change without prior notice.
Q-TECH Corporation - 10150 W. Jefferson Boulevard, Culver City 90232 - Tel: 310-836-7900 - Fax: 310-836-2157 - www.q-te ch.com
QCC570 (Revision F, August 2010) (ECO# 9912)

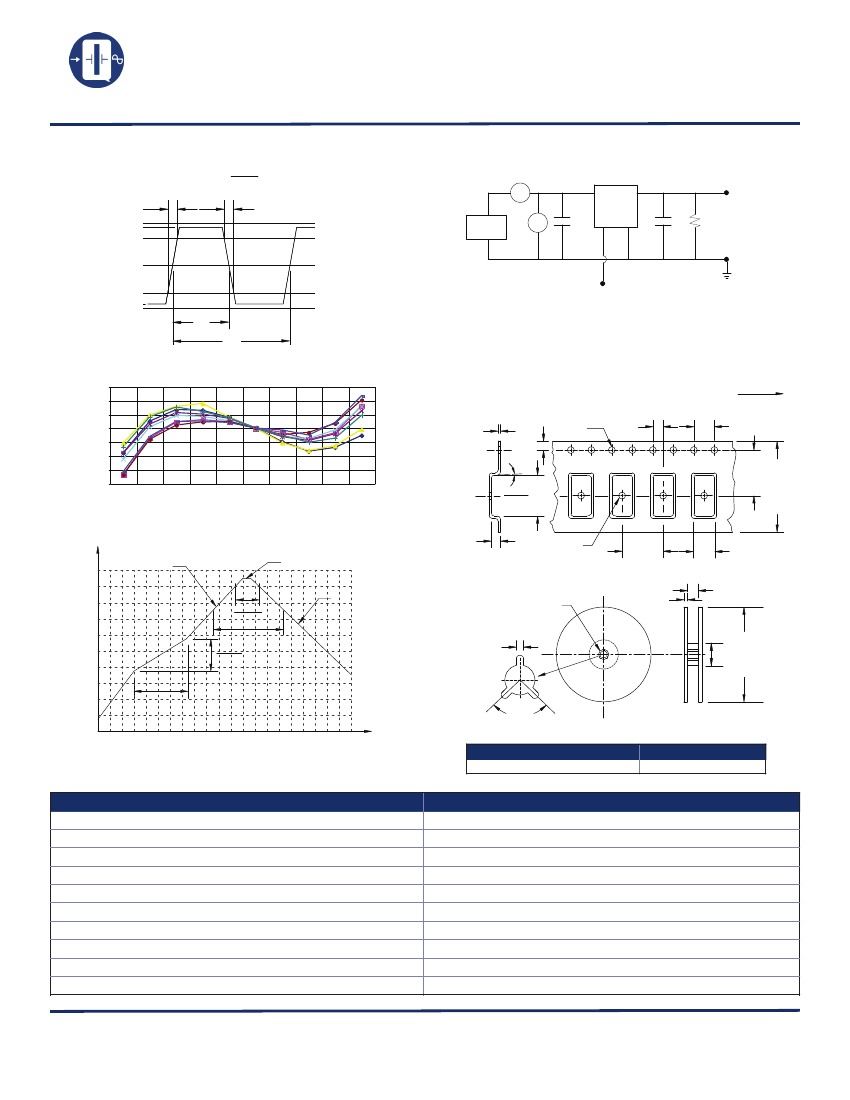

1
