Precision Stamped Terminals (Tabs)
A
UTO
T
AB
-A
UTO
L
UG

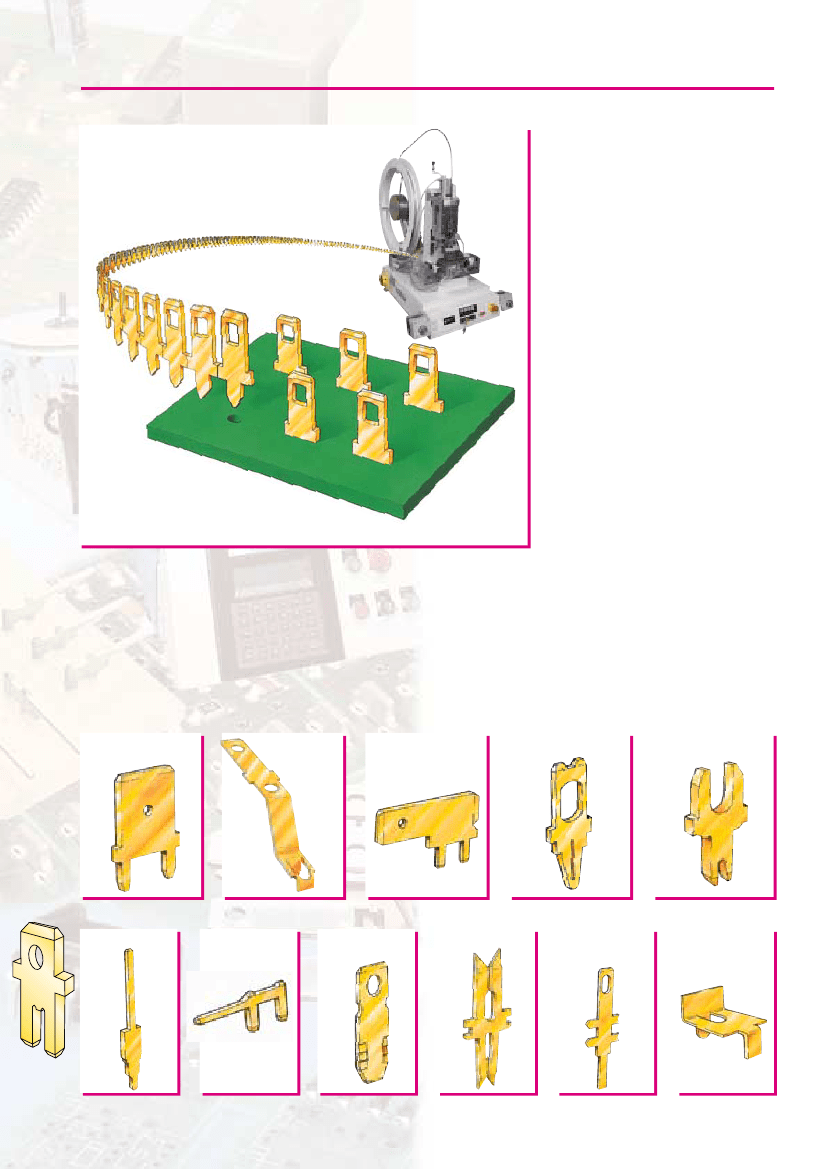

The AutoTab system automatically
inserts pre-stamped terminals directly
into printed circuit boards, bobbins,
housings or other substrates.
Autosplice insertion systems feed,
cut and install the terminals in one
simultaneous operation which
typically generates no scrap.
Autosplice offers several standard
platforms of assembly equipment to
meet all levels of production.
Standard Products
AutoTab
®
terminals are stamped
from a continuous strip of material
with the use of precision, progressive
dies and then post plated to provide
optimum solderability and corrosion
resistance. The terminal is then
reeled ready for machine insertion.
Autosplice offers a family of
standard parts. Products are
designed for use in the automotive,
electrical, telecommunications and
electronics industries.
AutoTab-Terminals
AutoTab (I+II) terminals are fed into
the machine horizontally, whereas
AutoLug terminals are fed
vertically.
Tab Product Examples
Vertical Male
Tabs
Automotive
Tabs
Horizontal Male
Tabs
Standoffs
Test Points
Vertical Posts
Horizontal
Posts
Bobbin Posts
IOC
Transformer
Terminals
Special
Terminals
5.1
Telephone: +49 9102 99 57 0 Fax: +49 9102 99 57 19 E-Mail: ase@autosplice.com Web: www.autosplice.com
Precision Stamped Terminals (Tabs)
Terminal Specifications
Alloys and plating of terminals in
catalog are: CuZn 30 with 0.0030
[.00012] tin/lead plating over 0.0013
[.00005] nickel plating (solderability in
accordance with MIL/STD 202F).
Alloys such as phosphor bronze,
aluminum, cupro nickel, and stainless
steel are available on special order.
Platings such as gold are also
available. Terminals are packaged
end to end on single reels.
Individual terminals available on
special order.
A
UTO
T
AB
-A
UTO
L
UG
Important Dimensions
for Orders
All the listed terminals can be
delivered from existing stamping
tools. Custom designs entail one time
tool costs. Send us your enquiry.
Terminals are supplied as pre-
stamped continuous material on
reels.
We can produce terminals according
to your design - send us your drawing
specifying the following dimensions:

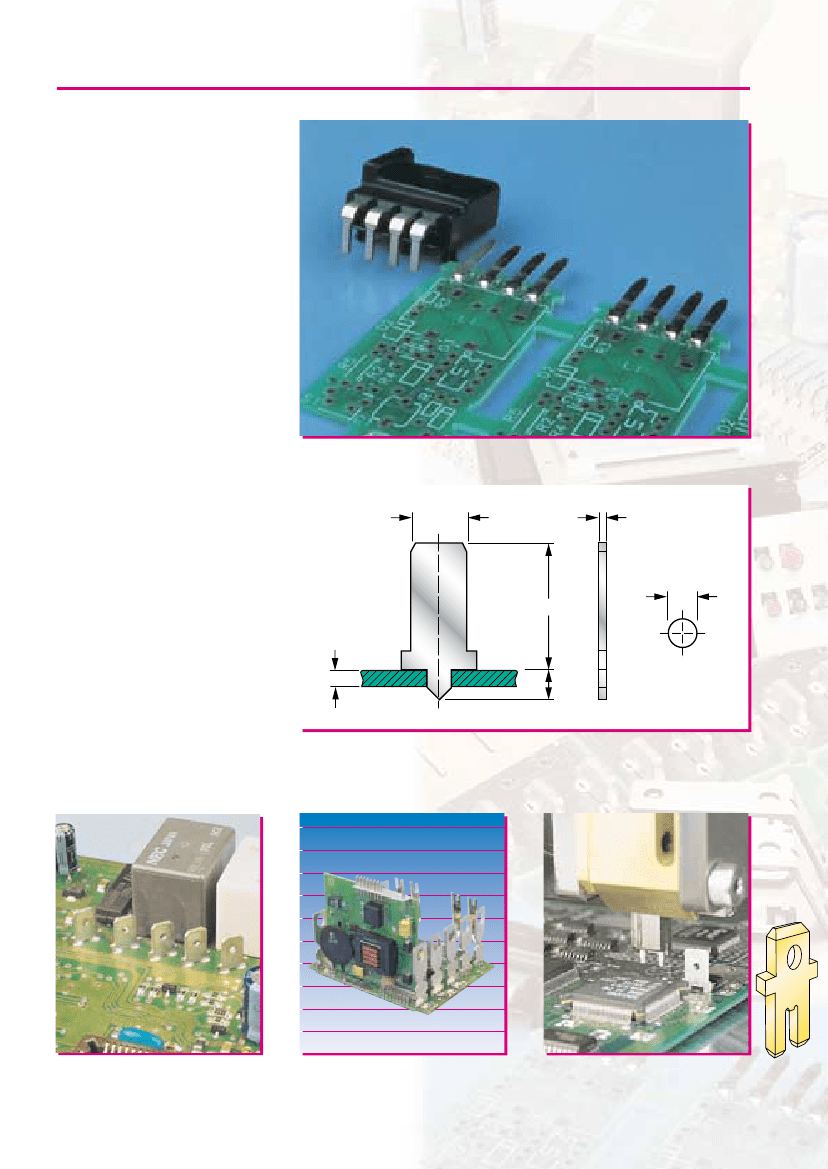

Hole Diameter
Typical Applications
Terminals Inserted with 45º
Rotation
AutoTab Tooling Head Inserting
Quick Disconnect Terminal
Telephone: +49 9102 99 57 0 Fax: +49 9102 99 57 19 E-Mail: ase@autosplice.com Web: www.autosplice.com
5.2
Precision Stamped Terminals (Tabs)
A
UTO
T
AB
-A
UTO
L
UG
7-22720-8
6.35
[.250]
Part Number
7.92
[.312]
15.00
[.592]
25.40
[1.000]
9.14
[.360]
2.30
[.091]

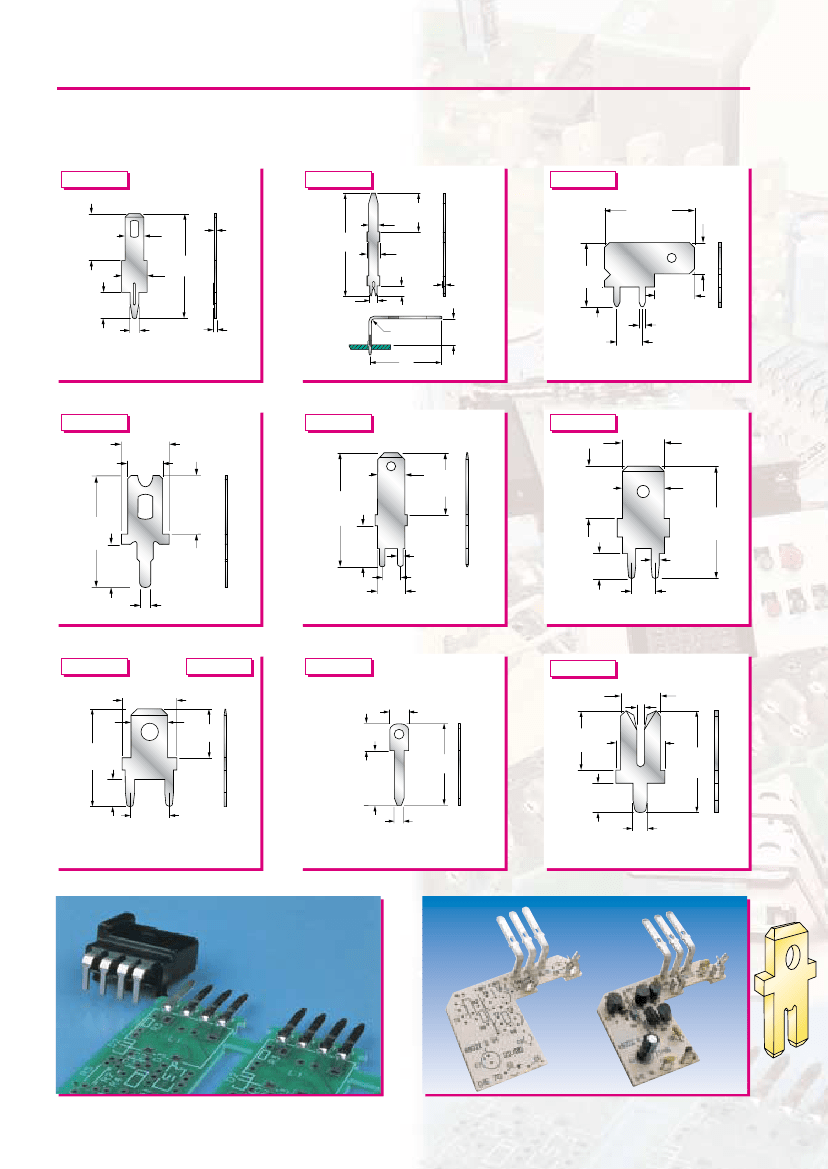

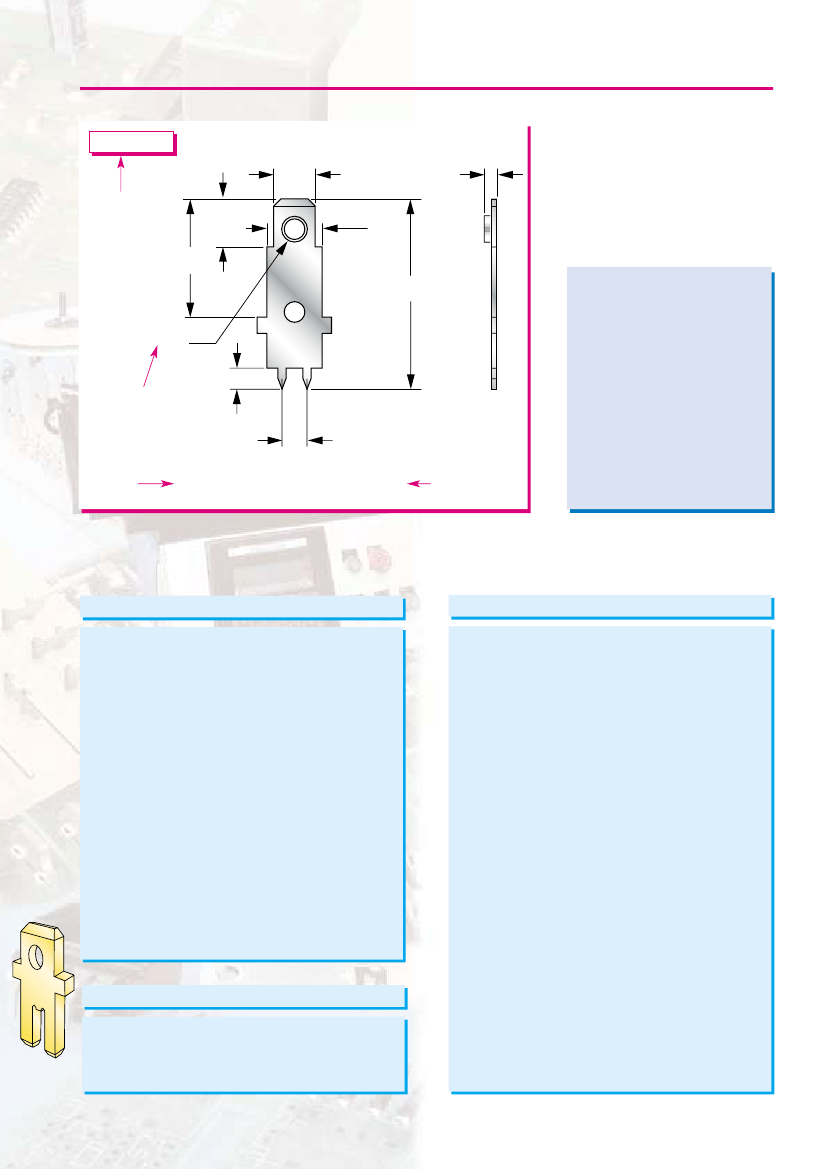

How to Read the Tab
Illustrations
This catalogue contains standard
tab terminal illustrations, as shown
on pages.
Custom and special terminals can
also be produced.
q
Part Number
(First Number) -
7-series are horizontally-fed tabs.
6-series are vertically-fed lugs.
q
Thicknes-TH.:
0.8mm [.032]
- The last number of the part
number denotes thickness in
0.1 [0.40]. All dimensions shown
in millimetres, (inches shown in
brackets).
q
Material Hole Size M.H.S.
(Finished) For tin/lead plated
through holes in 1.6mm thick FR 4 PC
is shown in millimetres and inches
q
Secondary Operation
The hole
in this illustration is threaded
(6-32 TAB).
6-32TAB
3.10
[.122]
Secondary
Operation
5.08
[.200]
Thickness
TH.: 0.8 [.032] M.H.S.: 1.17 [.046]
Material Hole Size

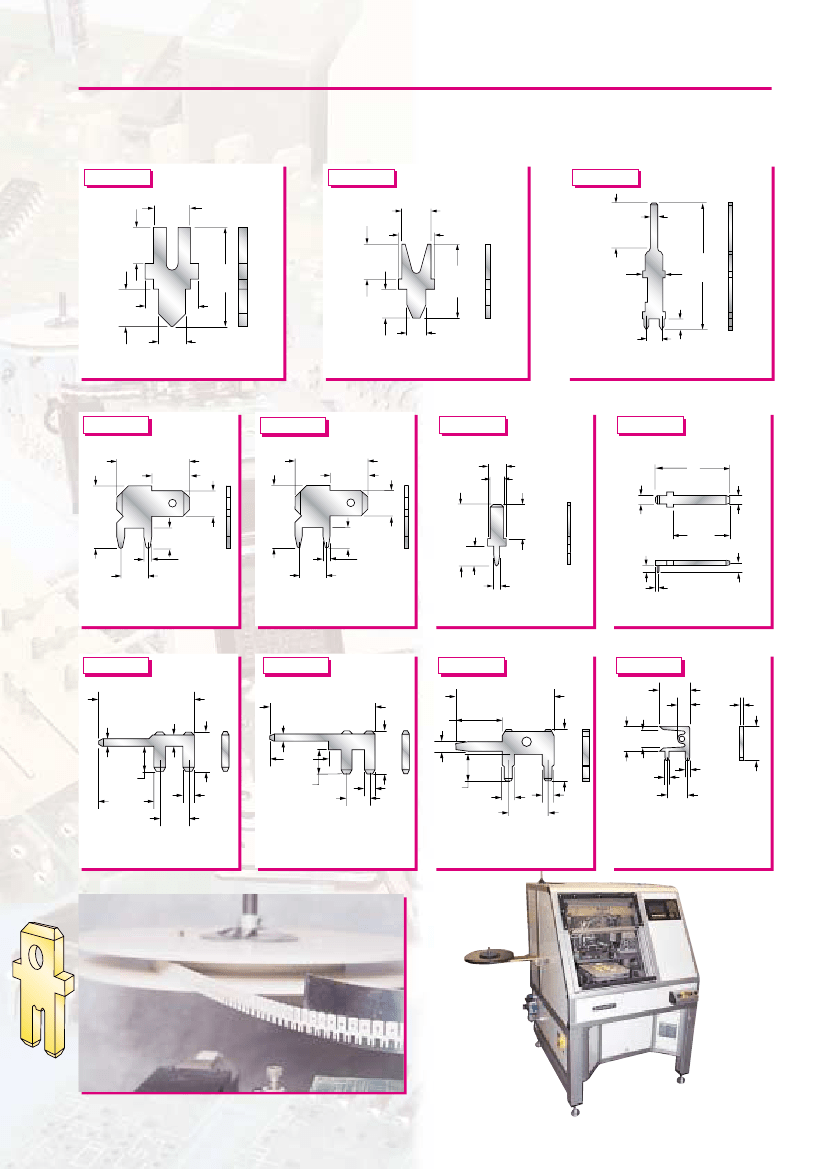

Tab & Lug Index
Code B: Allow 7 - 12 weeks for delivery
Code A: Items available at short notice
Post Terminal TAB Code A
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
08040 - 5
08150 - 5
08150 - 8
13330 - 8
1334A - 8
22550 - 8
23220 - 8
23250 - 8
23260 - 4
23270 - 6
24070 - 4
24101 - 8
24160 - 6
24161 - 6
24170 - 8
24440 - 8
24460 - 8
24470 - 8
Horizontal post terminal 2.8 [0.11]
Vertical post terminal 2.8 [0.11]
Vertical post terminal 2.8 [0.11]
Vertical post terminal 6.3 [0.25]
Vertical post terminal 4.8 [0.19]
Horizontal post terminal 6.3 [0.25]
Horizontal post terminal 6.3 [0.25]
Vertical post terminal 4.8 [0.19]
Vertical post terminal 6.3 [0.25]
Solder post 2.8 [0.11]
Vertical post terminal 6.0 [0.24]
Vertical post terminal 6.3 [0.25]
Vertical post terminal 1.7 [0.07]
Vertical post terminal 1.0 [0.04]
Vertical post terminal 1.5 [0.06]
Vertical post terminal 4.8 [0.19]
Vertical post terminal 6.3 [0.25]
Vertical post terminal 2.8 [0.11]
Post Terminal TAB Code B
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
7
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
04910 - 8
07570 - 5
0815A - 8
1334A - 5
1334B - 5
1334B - 8
15780 - 8
16150 - 8
20610 - 8
20630 - 6
21120 - 8
21270 - 5
21820 - 8
21880 - 8
22080 - 8
22461 - 5
22461 - 8
22490 - 8
22830 - 8
22870 - 5
22950 - 8
22960 - 8
24050 - 8
24100 - 8
Horizontal post terminal 6.3 [0.25]
Solder post 2.8 [0.11]
Horizontal post terminal
Vertical post terminal 4.8 [0.19]
Vertical post terminal 4.8 [0.19]
Vertical post terminal 4.8 [0.19]
Vertical post terminal 5.9 [0.23]
Solder post 2.8 [0.11]
Vertical post terminal 6.3 [0.25]
Solder post 2.3 [0.09]
IDC contact
Solder post 2.4 [0.09]
Solder post 3.3 [0.13]
Vertical post terminal 2.1 [0.08]
Solder post 2.8 [0.11]
Solder post 2.6 [0.10]
Solder post 2.6 [0.10]
Horizontal post terminal 4.8 [0.19]
Horizontal post terminal 4.8 [0.19]
Vertical post terminal 2.8 [0.11]
Horizontal post terminal
Horizontal post terminal 2.8 [0.11]
Vertical post terminal 5.0 [0.20]
Vertical post terminal 6.3 [0.25]
Post Terminal LUG Code B
6
6
6
6
-
-
-
-
15090
15410
22290
24620
-
-
-
-
8B
6B
6B
6B
Horizontal post terminal
Horizontal post terminal
Horizontal post terminal
Fuse holder ø5 [0.20]
5.3
Telephone: +49 9102 99 57 0 Fax: +49 9102 99 57 19 E-Mail: ase@autosplice.com Web: www.autosplice.com
Precision Stamped Terminals (Tabs)
Code B
7-22870-5
7-22960-8
13.0
2.79
[.110] [.512]
0.5
[.020]
33.73
[1.328]
A
UTO
T
AB
-A
UTO
L
UG
7-04910-8
18.0
[.710]
6.98
[.275]
2.79
[.110]
15.7
[.617]
3.81
[.150]
2.2
[.087]
Installed
1.2
[.049]
.71
[.028]
3.81
[.150]
.99
[.039]
13.0
[.511]
8.03
[.316]
3.98
[.157]
1.2
[.047]
5.08
[.200]
6.30
[.248]
3.99
[.157]
3.00
[.118]
R. .76
[030]
9.35
[.368]
TH.; .5 [.020] M.H.S.; 1.12 [.044]
21.5
[.847]
TH.; .8 [.031] M.H.S.; 2.1 [.08] x .8 [.031]
TH.; .8 [.031] M.H.S.; 1.22 [.048]
7-07570-5
3.81
[.150]
2.79
[.110]
7-15780-8
7-20610-8
7.92
[.312]
5.99
[.236]
13.6
[.535]
7.92
[.312]
6.35
[.250]
17.1
[.672]
4.70
[.185]
8.99
[.354]
3.50
[.138]
1.3
[.051]
TH.; .8 (.032] M.H.S.; 1.32 (.049]
TH.; .5 [.020] M.H.S.; 1.17 [.046]
25.0
[.984]
3.99
[.157]
1.2
[.047]
3.99
[.157]
3.81
[.150]
3.56
[.140]
1.2
[.047]
7.01
[.276]
TH.; .8 [.032] M.H.S.; 1.25 [.049]
7-1334B-5
.2.81
[7.14]
7-1334B-8
7-16150-8
2.79
[.110]
7-21120-8
.56
[.022]
18.0
[.180]
4.75
[.187] 6.86
(.270]
13.2
[.520]
4.30
[.169]
11.8
[.465]
.511
[13.0]
3.43
[.135]
6.35
[.250]
.140
[3.56]
5.08
[.200]
P/N -5 TH.; .5 [.020]
P/N -8 TH.; .8 [.032]
P/N -5 M.H.S.; 1.07 ([.042]
P/N -8 M.H.S.; 1.20 [.047]
7.51
REF.
[.296]
2.4
[.094]
1.3
[.052]
TH.; .8 [.032] M.H.S.; 1.32 [.052]
1.7
[.068]
TH.; .8 [.031] M.H.S.; 1.35 [.053]
Telephone: +49 9102 99 57 0 Fax: +49 9102 99 57 19 E-Mail: ase@autosplice.com Web: www.autosplice.com
5.4
Precision Stamped Terminals (Tabs & Lugs)
A
UTO
T
AB
-A
UTO
L
UG
Code B
7-21270-8
2.4
[.093]
7-21820-8
3.30
[.130]
4.06
[.160]
3.94
[.155]
8.38
[.330]
3.30
[.130]
7-21880-8
2.1
[.083]
14.0
[.551]
2.3
[.091]
6.35
[.250]
2.4
[.094]
3.43
[.135]
6.50
[.256]
3.18
[.125]
36.04
[1.419]
1.7
[.068]
TH.; .8 [.032] M.H.S.; 1.68 [.066]
2.1
[.084]
TH.; .8 [.032] M.H.S.; 2.06 [.081]
4.39
[.173]
TH.; .8 [.032] M.H.S.; 1.39 [.055]
7-22490-8
13.5
[.531]
7.01
[.276]
4.75
[.187]
3.81
[.150]
1.47
[.058]
5.08
[.200]
7-22830-8
13.5
[.531]
7.01
[.276]
4.75
[.187]
3.81
[.150]
1.2
[.049]
5.08
[.200]
7-0815A-8
3.81
[.150]
2.79
[.110]
7-22950-8
16.4
[.646]
11.6
[.457]
11.6
[.457]
3.81
[.150]
12.5
[.492]
3.99
[.157]
1.25
[.049]
TH.; .8 [.032] M.H.S.; 1.25 [.049]
6.98
[.275]
13.0
[.512]
3.00
[.118]
5.08
[.200]
2.79
[.110]
1.47
[.058]
TH.; .8 [.031] M.H.S.; 1.47 [.058]
TH.; .8 [.031] M.H.S.; 1.27 [.050]
TH.; .8 [.031] M.H.S.; 2.1 [.083] X .80 [.031]
6-15090-8
.414
[10.5]
.84
[.033]
6-15410-6
7-22290-6
10.8
[.427]
5.16
[.203]
.185
[4.70]
1.10
[.042]
5.74
[.226]
6-24620-6
8.00
[0.31]
4.85
[0.19]
6.60
[0.26]
1.20
[0.05]
5.40
[0.21]
P/N -6 TH.; .025 [.6]
P/N -X TH.; .022 [.56]
P/N -6 M.H.S.; .039 [.99]
P/N -X M.H.S.; .038 [.97]
3.45
[0.13]
0.60
.[0.02]
1.20
[.048]
.025
[.64]
.453
[11.5]
4.32
[.170]
2.79
[.110]
6.17
[.243]
3.17
[.125]
1.20
[.046]
9.10
[0.36]
.255
(6.48]
.108
[2.74]
.100
[2.54]
.040
[1.0]
3.00
[.118]
1.00
[0.04]
1.30
[.053]
4.39
[.173]
1.20
[.049]
TH.; .8 [.032] M.H.S.; 1.17 [.046]
TH.; .032 [.8] M.H.S.; .046 [1.17]
TH.; .6 [.025] M.H.S.; 1.27 [.050]
5.5
Telephone: +49 9102 99 57 0 Fax: +49 9102 99 57 19 E-Mail: ase@autosplice.com Web: www.autosplice.com
