V-7213ES-LF-571.200MHZ datasheet, PDF

Datasheet> All Categories > oscillator> V-7213ES-LF-571.200MHZ

V-7213ES-LF-571.200MHZ: DescriptionSine Output Oscillator, 571.2MHz Nom; Categoryoscillator; File Size180KB，5 Pages; ManufacturerKvg Quartz Crystal Technology; Environmental Compliance

Download Datasheet Parametric View All

V-7213ES-LF-571.200MHZ Overview

Sine Output Oscillator, 571.2MHz Nom

V-7213ES-LF-571.200MHZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kvg Quartz Crystal Technology
Reach Compliance Code	unknown
Maximum control voltage	3 V
Minimum control voltage	0.3 V
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	30%
linearity	10%
Installation features	SURFACE MOUNT
Nominal operating frequency	571.2 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Oscillator type	SINE
Output impedance	50 Ω
Output level	0.632 V

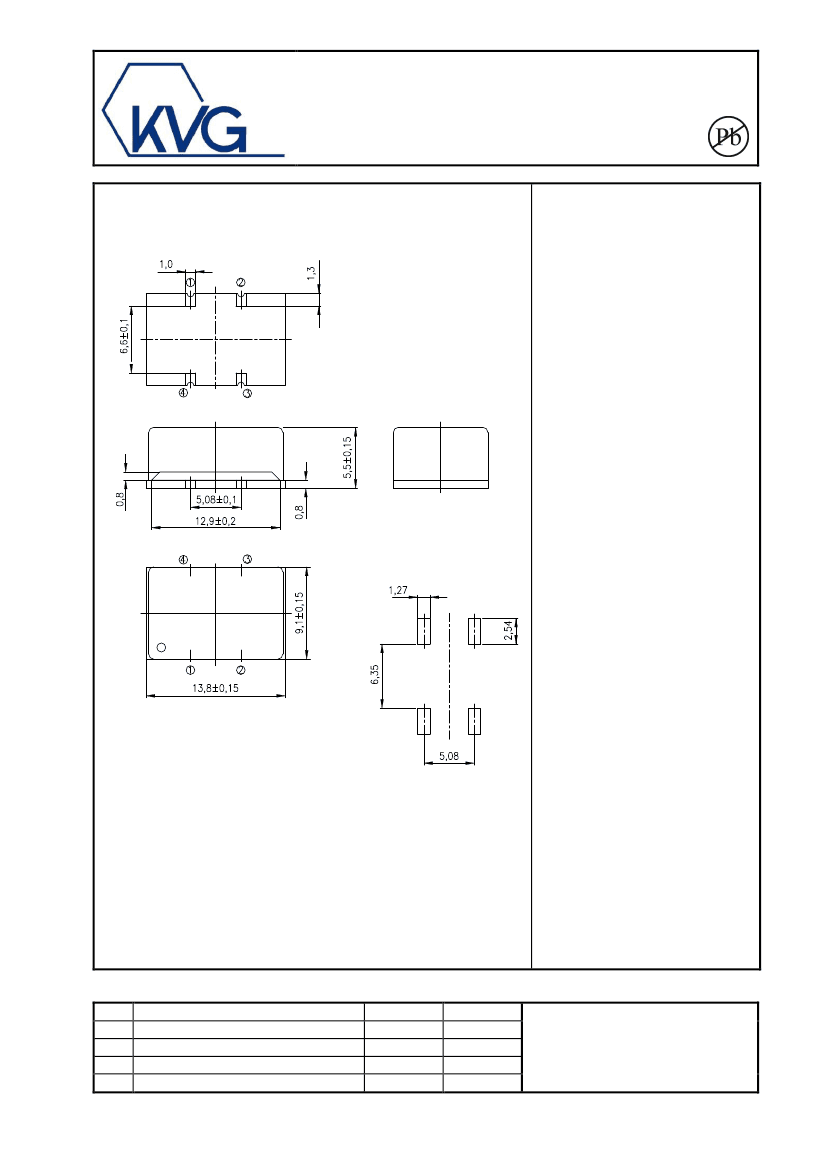

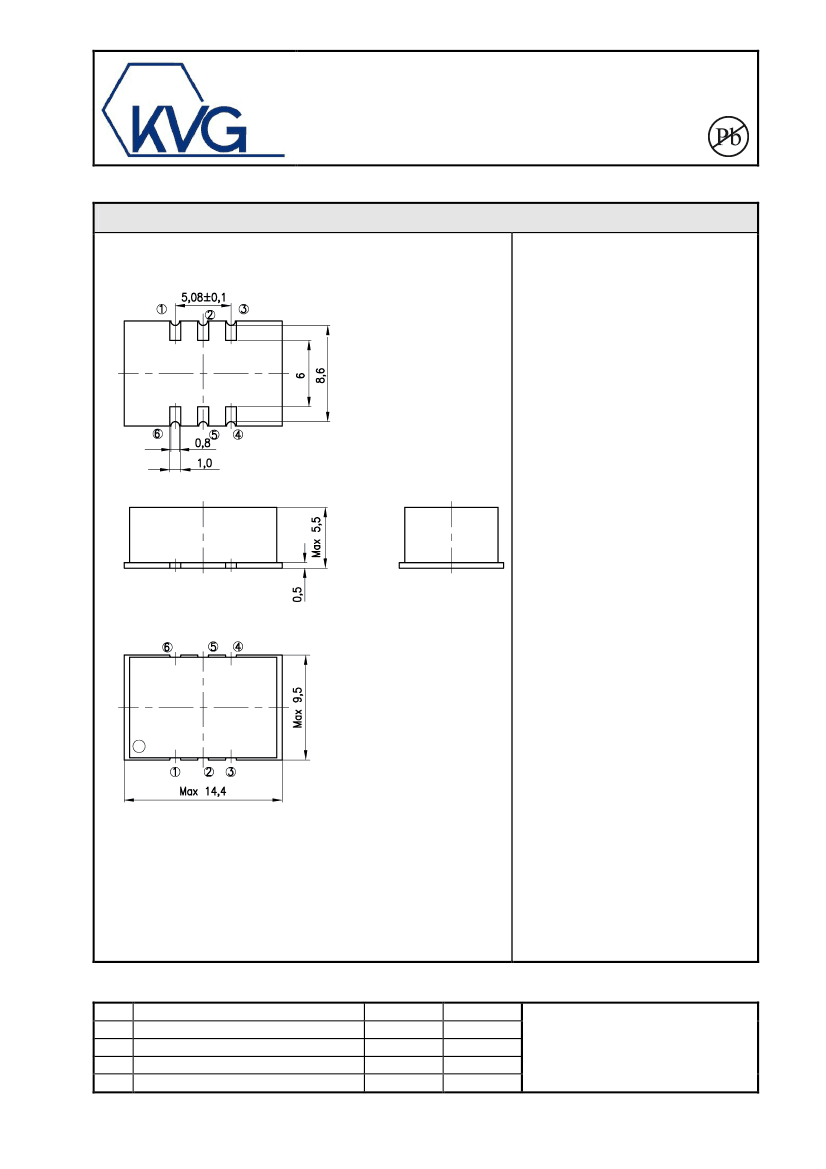

physical size	13.8mm x 9.1mm x 5.5mm
Nominal supply voltage	3.3 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

ROHS-Compliant Product

V-7000 Serie

1. Specification

Type:

Frequency range:

Supply voltage V

(nominal values ± 5%):

+5.0 V:

+3.3 V:

Initial frequency tolerance @ T

= +25 °C,

= +2.5 V for

= 1; V

= +1.65 V for

= 2

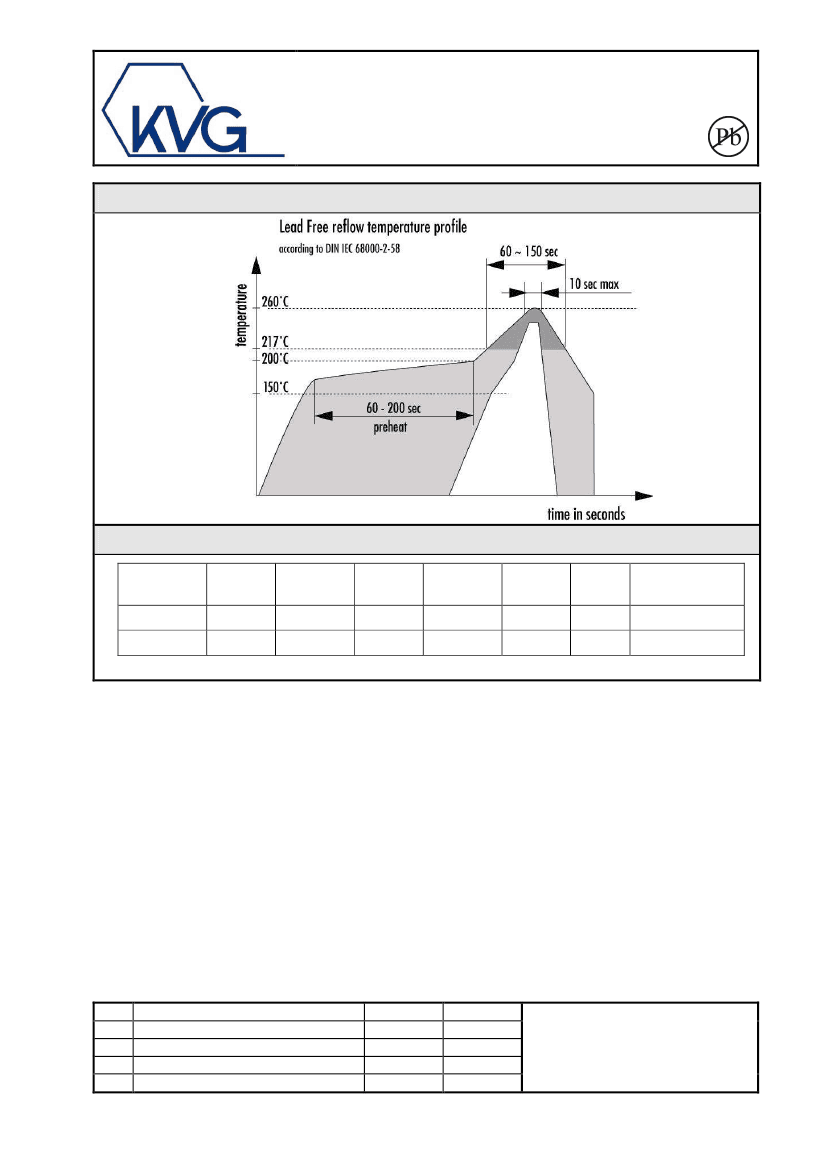

24 h after reflow (T

peak

= +260 °C for 10 sec max):

Temperature range options:

–10 °C to +60 °C:

–20 °C to +70 °C:

–40 °C to +85 °C:

Frequency stability options:

< ± 10 ppm (for temp. range options 1, 2):

< ± 20 ppm:

< ± 30 ppm:

Frequency stability

vs. supply voltage changes V

5 %:

vs. load changes

10 %:

RMS Phase Jitter (12 kHz to 20 MHz):

(LV)HCMOS output 50 MHz

(LV)HCMOS output 100 MHz:

LVDS output 250 MHz

LVPECL output 622 MHz:

Aging @ +25 °C

1 year:

following years:

Frequency Pulling Options :

> ± 60 ppm :

> ±100 ppm :

> ±xx ppm :

For custom specific requirements, please contact factor

V-7XYZ

2.0 … 800.0 MHz

< ±15 ppm

< +3.0 ppm

< +1.0 ppm

typical

< 1 ps rms

< 0.5 ps rms

< 0.3 ps rms

< 0.1 ps rms

< +3.0 ppm

< +2.0 ppm/a

Control voltage range V

V-71xx (+5 V):

V-72xx (+3.3 V):

Transfer function / Linearity:

Control voltage input impedance:

+0.5 V to +4.5 V

+0.3 V to +3.0 V

positive / 10 %

> 50 kOhm

Description

V-7000.DOC

Subject to technical modification

Jitter amended

08.10.2012

20.01.2011

Date

Rudolph

Zupan

KVG Quartz Crystal Technology GmbH

P.O. Box 61

D-74924 Neckarbischofsheim

Tel. +49 (0) 7263 / 648-0

Fax. +49 (0) 7263 / 6196

Sheet 1 of 5

Name

V-7000 Series
