534258-3

Description
HEADER CONNECTOR,PCB MNT,RECEPT,93 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL
CategoryThe connector
File Size32KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric Compare View All

534258-3 Overview

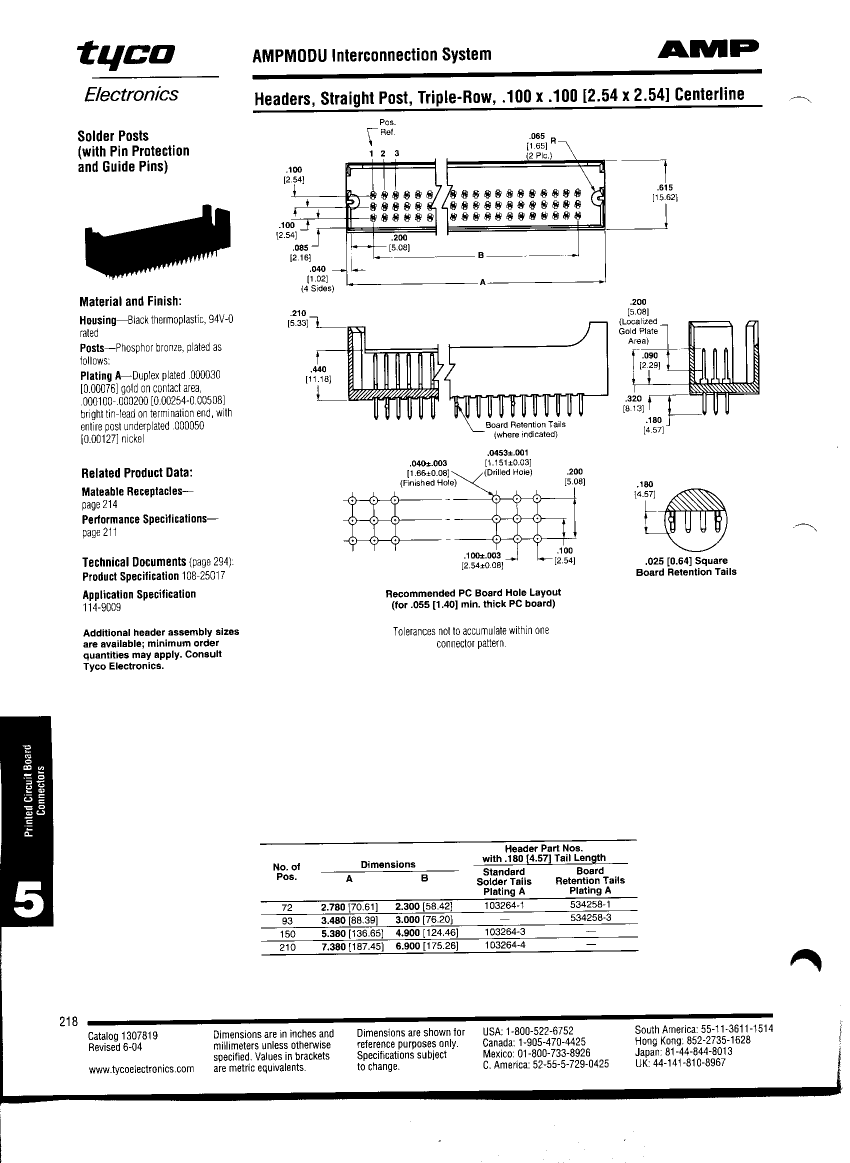

HEADER CONNECTOR,PCB MNT,RECEPT,93 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL

534258-3 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerTE Connectivity
Reach Compliance Codeunknown
body width0.615 inch
subject depth0.65 inch
body length3.48 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance12 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage250VAC V
Durability200 Cycles
maximum insertion force1.112 N
Insulation resistance103000000 Ω
insulator materialGLASS FILLED THERMOPLASTIC
Manufacturer's serial number534258
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number3
Number of rows loaded3
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness30u inch
Rated current (signal)2 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.18 inch
Terminal pitch2.54 mm
Termination typeSOLDER KINKED LEADS
Total number of contacts93
Evacuation force-minimum value.2085 N
Base Number Matches1

534258-3 Related Products

534258-3 103264-4 534258-1
Description HEADER CONNECTOR,PCB MNT,RECEPT,93 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL HEADER CONNECTOR,PCB MNT,RECEPT,210 CONTACTS,PIN,0.1 PITCH,PC TAIL TERMINAL HEADER CONNECTOR,PCB MNT,RECEPT,72 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL
Is it Rohs certified? incompatible incompatible incompatible
Reach Compliance Code unknown unknown unknown
body width 0.615 inch 0.615 inch 0.615 inch
subject depth 0.65 inch 0.65 inch 0.65 inch
body length 3.48 inch 7.38 inch 2.78 inch
Body/casing type RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation AU ON NI AU ON NI AU ON NI
Contact point gender MALE MALE MALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR RECTANGULAR
Contact resistance 12 mΩ 12 mΩ 12 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
Dielectric withstand voltage 250VAC V 250VAC V 250VAC V
Durability 200 Cycles 200 Cycles 200 Cycles
maximum insertion force 1.112 N 1.112 N 1.112 N
Insulation resistance 103000000 Ω 103000000 Ω 103000000 Ω
insulator material GLASS FILLED THERMOPLASTIC GLASS FILLED POLYETHYLENE GLASS FILLED THERMOPLASTIC
Plug contact pitch 0.1 inch 0.1 inch 0.1 inch
Match contact row spacing 0.1 inch 0.1 inch 0.1 inch
Installation method STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD
Number of connectors ONE ONE ONE
PCB row number 3 3 3
Number of rows loaded 3 3 3
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 2.54 mm 2.54 mm 2.54 mm
Plating thickness 30u inch 30u inch 30u inch
Rated current (signal) 2 A 2 A 2 A
Guideline UL, CSA UL, CSA UL, CSA
Terminal length 0.18 inch 0.18 inch 0.18 inch
Terminal pitch 2.54 mm 2.54 mm 2.54 mm
Termination type SOLDER KINKED LEADS SOLDER SOLDER KINKED LEADS
Total number of contacts 93 210 72
Evacuation force-minimum value .2085 N .2085 N .2085 N
Maker TE Connectivity - TE Connectivity
Manufacturer's serial number 534258 - 534258
reliability COMMERCIAL - COMMERCIAL
Base Number Matches 1 - 1
