STTB1206D datasheet, PDF - EEWORLD Datasheet

STTB1206D: DescriptionTURBOSWITCH⑩"B".ULTRA-FAST HIGH VOLTAGE DIODE; CategoryDiscrete semiconductor diode; File Size491KB，7 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

STTB1206D Overview

TURBOSWITCH⑩"B".ULTRA-FAST HIGH VOLTAGE DIODE

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	STMicroelectronics
Reach Compliance Code	_compli
ECCN code	EAR99
Other features	SOFT FACTOR IS 0.9, SNUBBER DIODE, HIGH PERFORMANCE
application	HIGH VOLTAGE ULTRA FAST SOFT RECOVERY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V
JEDEC-95 code	TO-220AC
JESD-30 code	R-PSFM-T2
JESD-609 code	e3
Maximum non-repetitive peak forward current	420 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	12 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum power dissipation	24 W
Certification status	Not Qualified
Guideline	CECC
Maximum repetitive peak reverse voltage	600 V
Maximum reverse recovery time	0.1 µs
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

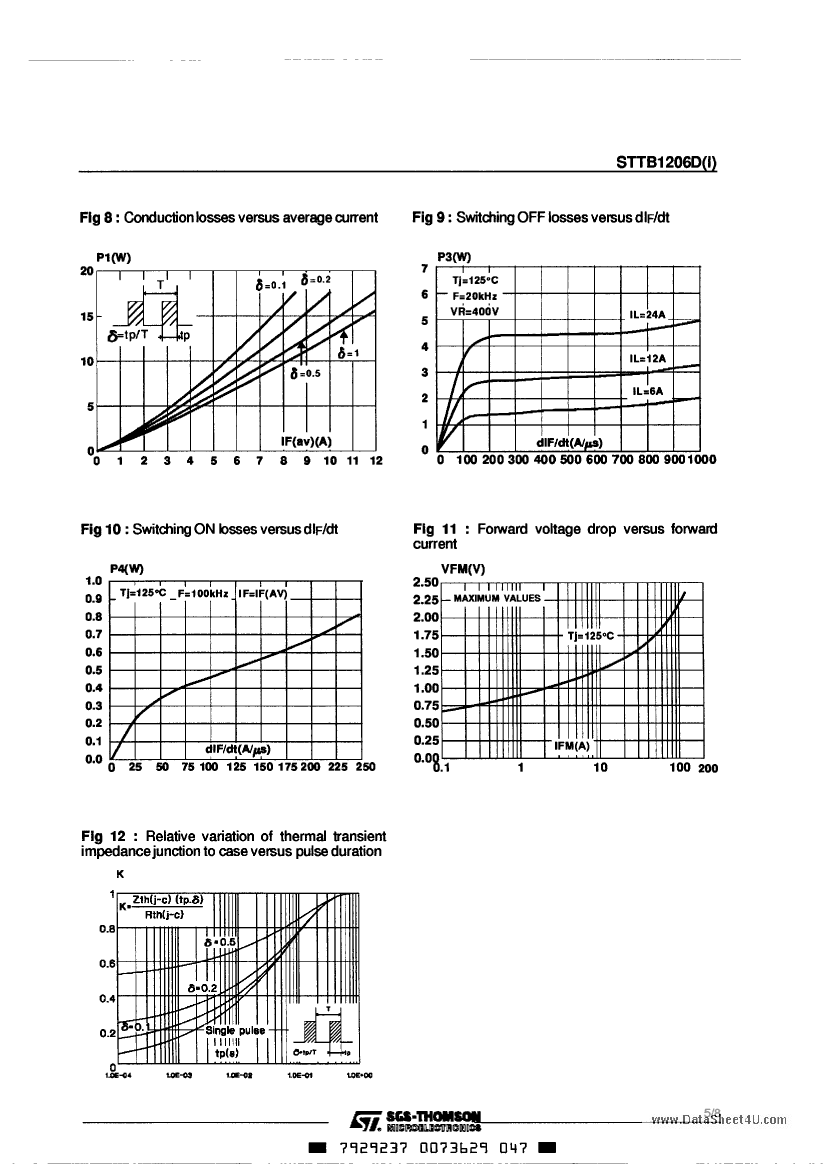

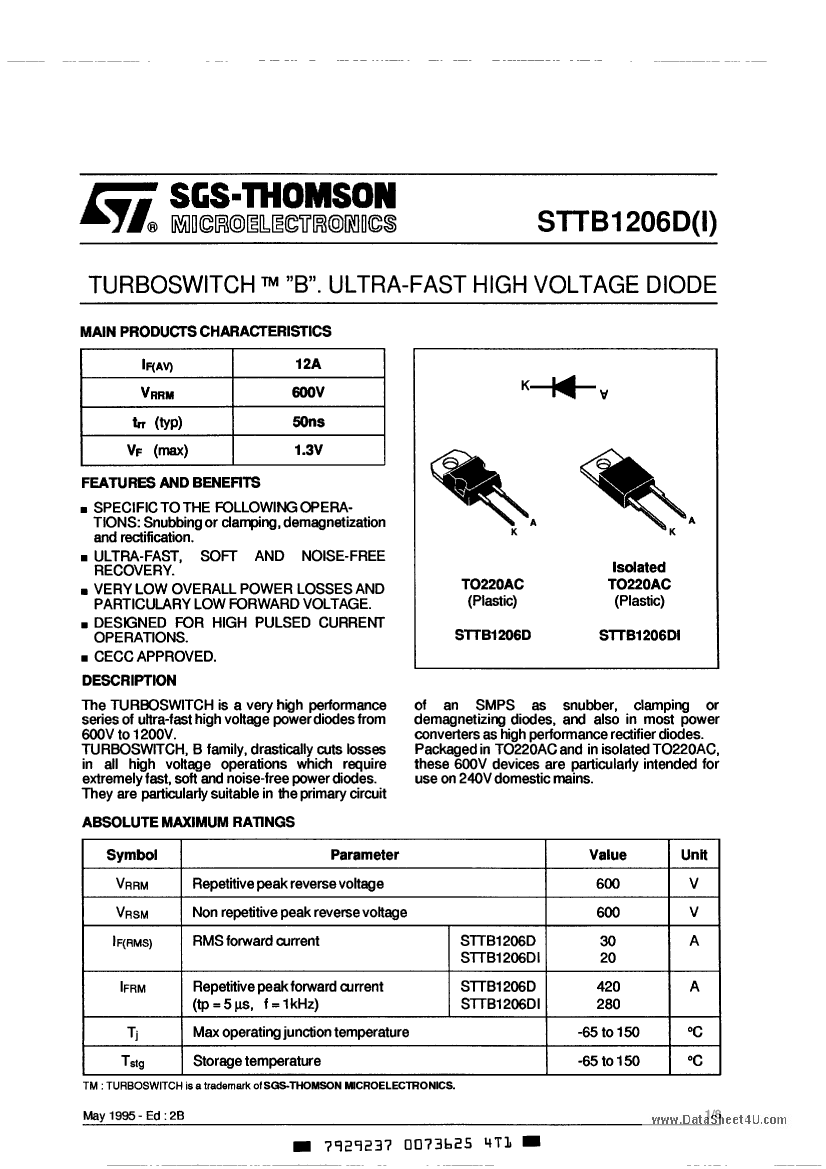

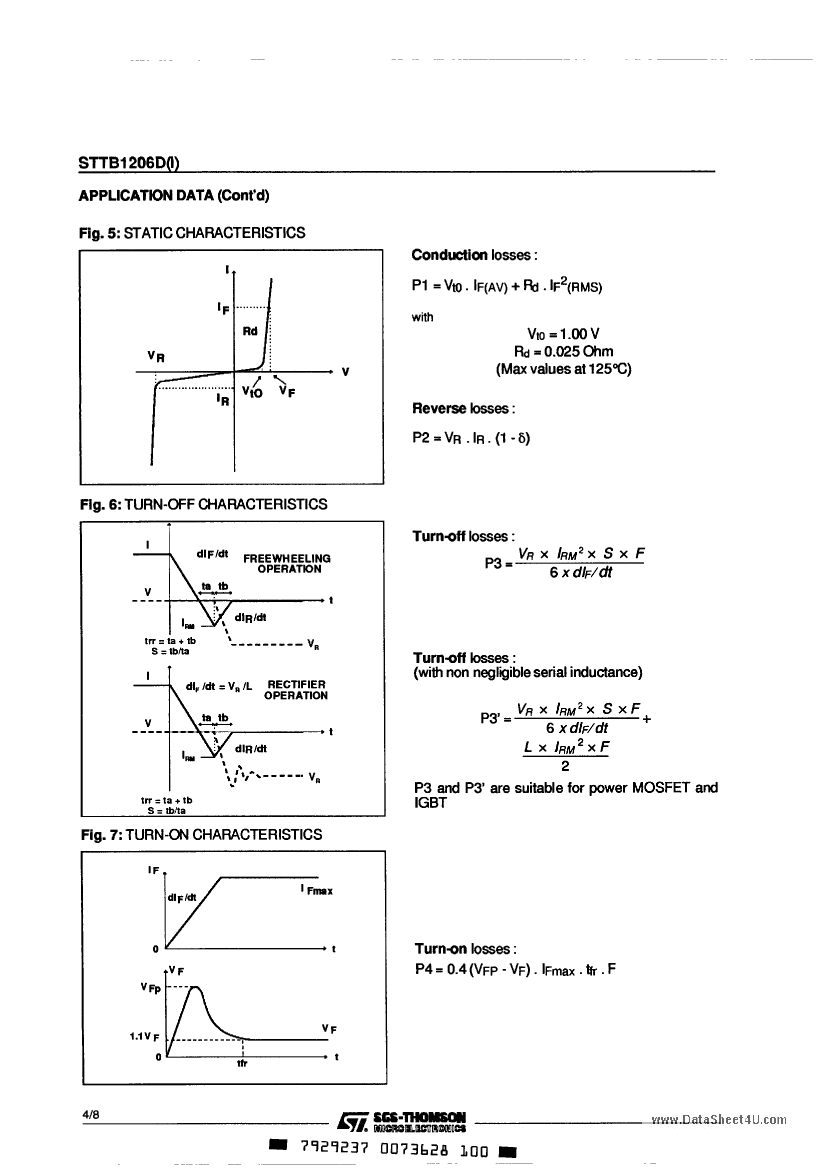

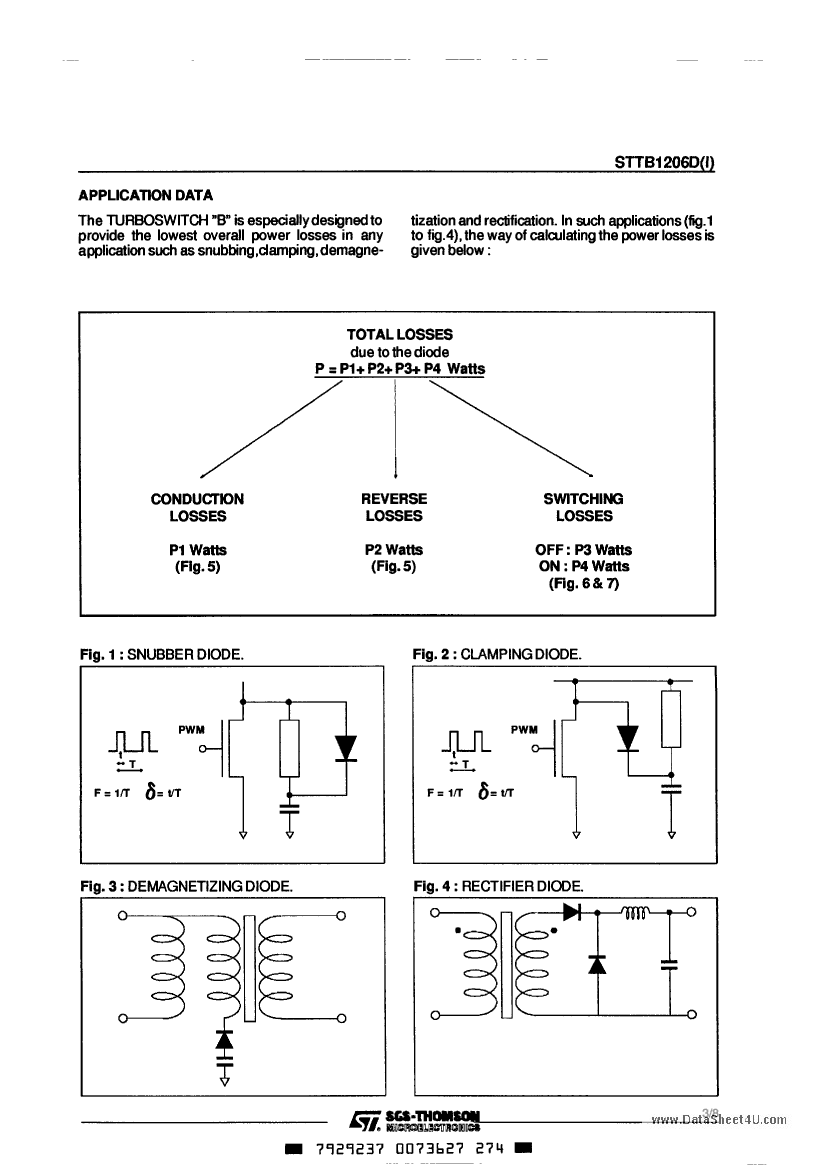

www.DataSheet4U.com

	STTB1206D	STTB1206DI
Description	TURBOSWITCH⑩"B".ULTRA-FAST HIGH VOLTAGE DIODE	TURBOSWITCH⑩"B".ULTRA-FAST HIGH VOLTAGE DIODE
Is it Rohs certified?	conform to	conform to
Maker	STMicroelectronics	STMicroelectronics
Reach Compliance Code	_compli	_compli
ECCN code	EAR99	EAR99
Other features	SOFT FACTOR IS 0.9, SNUBBER DIODE, HIGH PERFORMANCE	SOFT FACTOR IS 0.9, SNUBBER DIODE, HIGH PERFORMANCE
application	HIGH VOLTAGE ULTRA FAST SOFT RECOVERY	HIGH VOLTAGE ULTRA FAST SOFT RECOVERY
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.4 V	1.4 V
JESD-30 code	R-PSFM-T2	R-PSFM-T2
JESD-609 code	e3	e3
Maximum non-repetitive peak forward current	420 A	280 A
Number of components	1	1
Phase	1	1
Number of terminals	2	2
Maximum operating temperature	150 °C	150 °C
Maximum output current	12 A	12 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Maximum power dissipation	24 W	24 W
Certification status	Not Qualified	Not Qualified
Guideline	CECC	CECC
Maximum repetitive peak reverse voltage	600 V	600 V
Maximum reverse recovery time	0.1 µs	0.1 µs
surface mount	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
