52205-3017 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 52205-3017

52205-3017: DescriptionCard Edge Connector, 30 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal; CategoryThe connector; File Size571KB，8 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

52205-3017 Overview

Card Edge Connector, 30 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal

52205-3017 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	STAGGERED CONFIGURATION
Connector type	FFC/FPC CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.25 mm
Termination type	SURFACE MOUNT
Total number of contacts	30
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

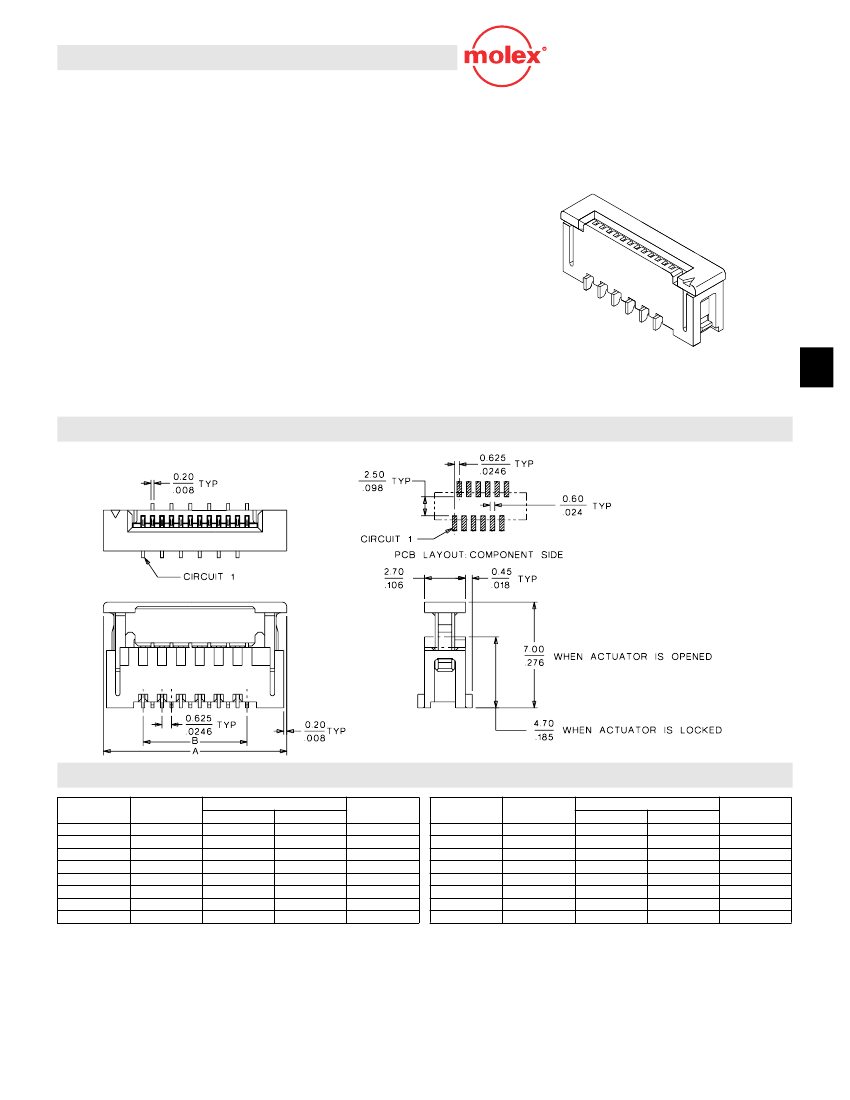

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 6 to 30 circuits

For 0.20mm thick FFC/FPC

Metal solder tabs provide PCB hold-down

and strain relief for SMT tails

Reference Information

Packaging: Embossed tape

Designed In: Millimeters

Electrical

Voltage: 50V

Current: 0.2A

Contact Resistance: 20m

Ω

max.

Dielectric Withstanding Voltage: 250V AC/1 min.

Insulation Resistance: 50 M

Ω

min.

Physical

Housing: 4/6 nylon, UL 94V-0

Actuator: PPS, UL 94V-0

Contact: Phosphor Bronze

Plating: Tin

Operating Temperature: -20 to +85˚C

0.625mm (.0246") Pitch

FPC Connector

52205

Vertical, SMT, ZIF

FFC/FPC Connectors

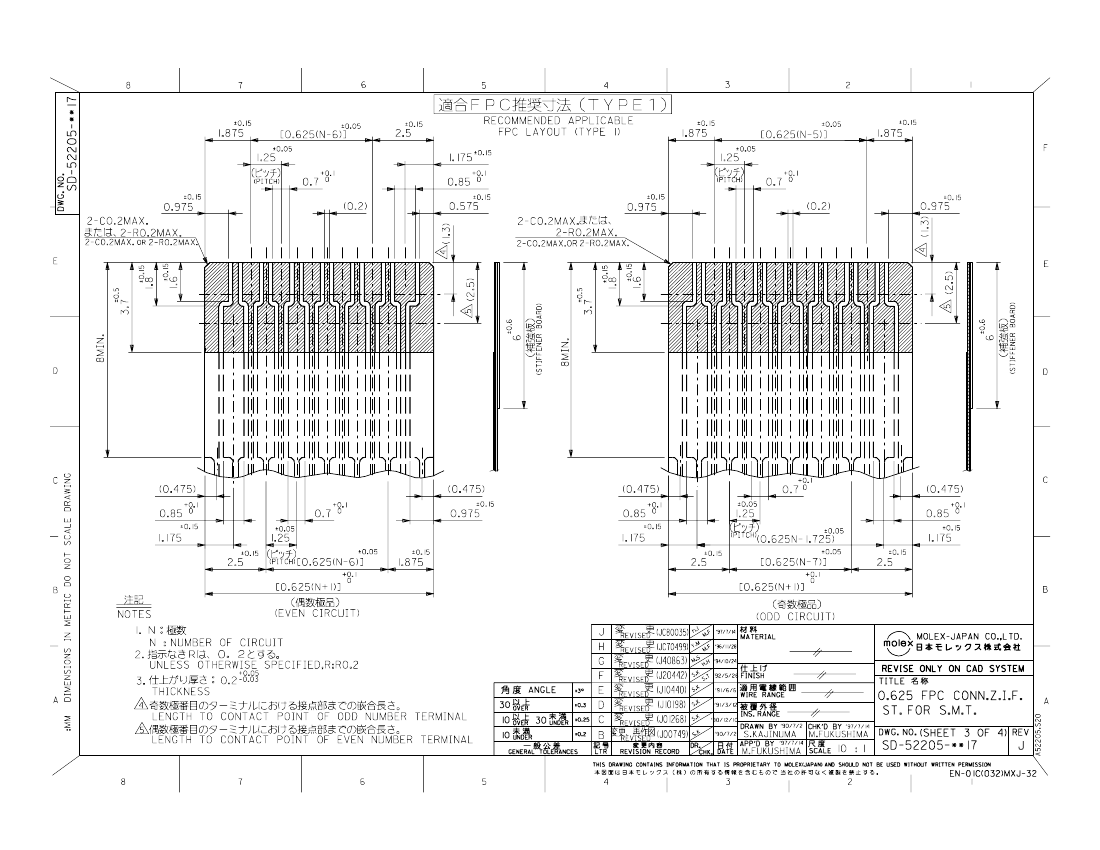

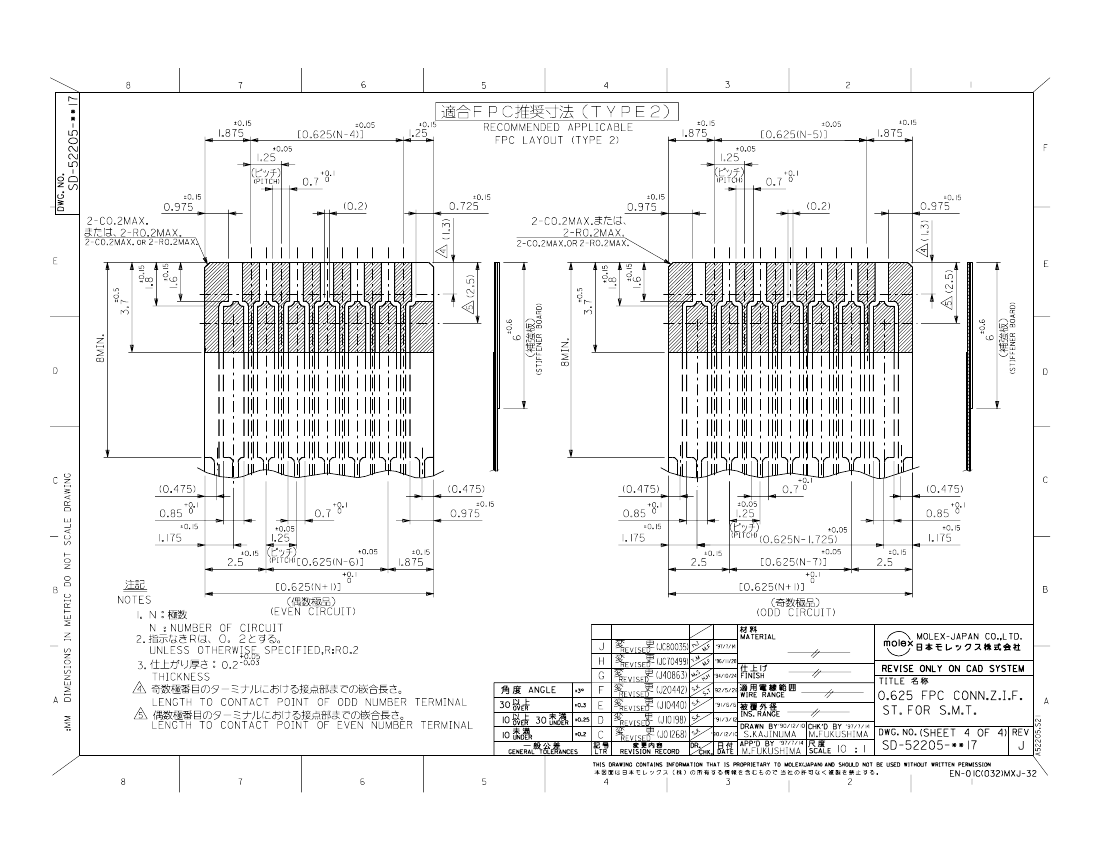

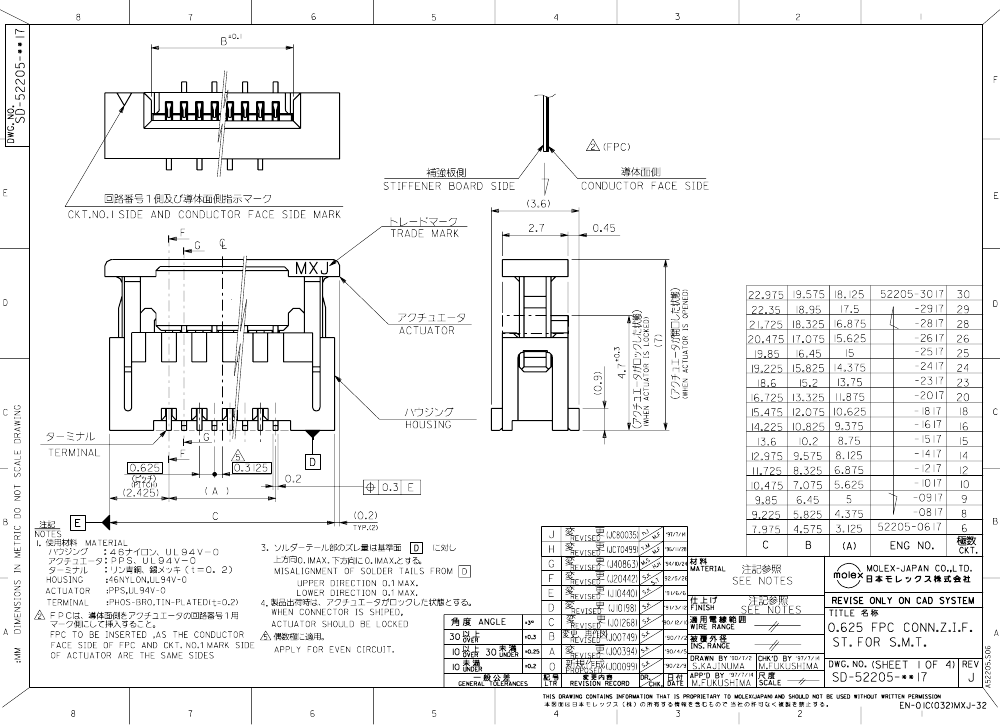

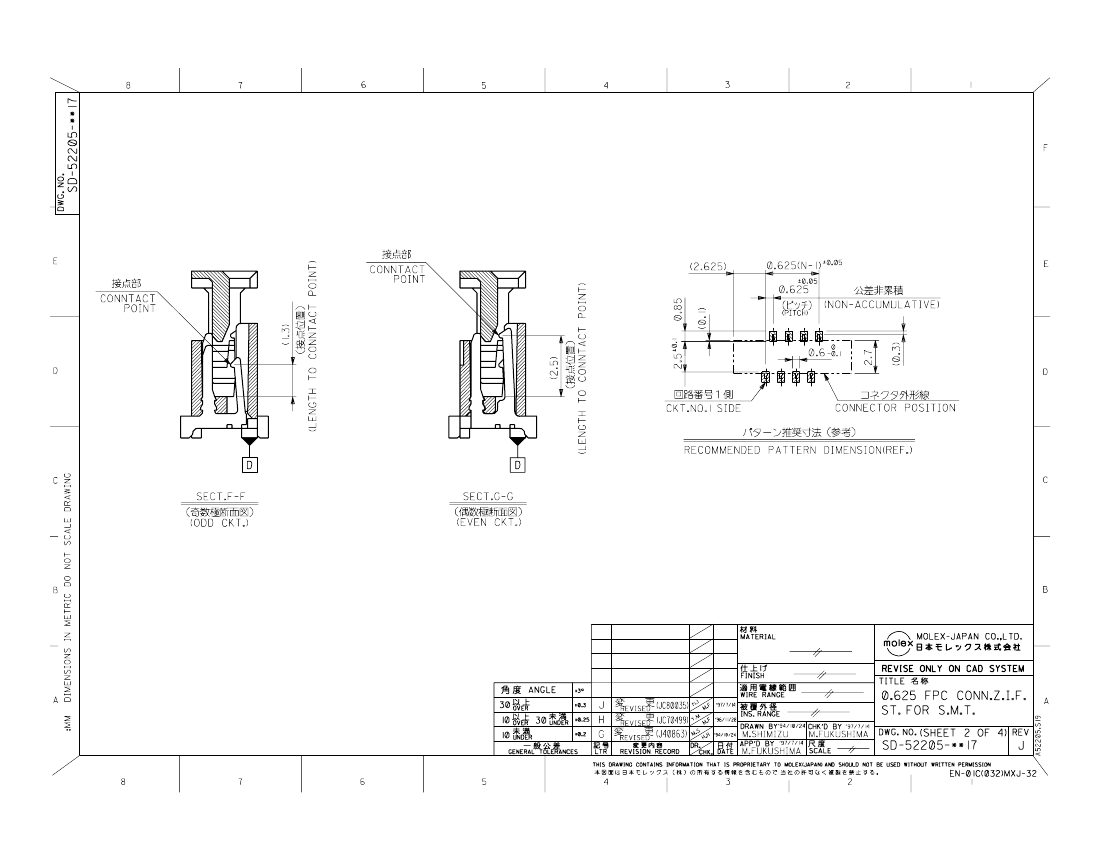

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

52205-0690

52205-0890

52205-0990

52205-1090

52205-1290

52205-1490

52205-1590

52205-1890

Dimension

7.975 (.313)

9.225 (.363)

9.850 (.387)

10.475 (.412)

11.725 (.461)

12.975 (.510)

13.600 (.535)

15.475 (.609)

3.125 (.123)

4.375 (.172)

5.000 (.196)

5.625 (.221)

6.875 (.270)

8.125 (.319)

8.750 (.344)

10.625 (.418)

Carrier

Tape Width

24.000

32.000

(.945)

(1.260)

Circuits

Order No.

52205-2090

52205-2390

52205-2490

52205-2590

52205-2690

52205-2890

52205-2990

52205-3090

Dimension

16.725 (.658)

11.875 (.467)

18.600 (.732)

13.750 (.541)

19.225 (.756)

14.375 (.565)

19.850 (.781)

15.000 (.590)

20.475 (.806)

15.625 (.615)

21.725 (.855)

16.875 (.664)

22.350 (.879)

17.500 (.688)

22.975 (.904)

18.125 (.713)

Carrier

Tape Width

32.000

44.000

(1.260)

(1.732)

Note: For cable speciﬁcation dimensions, see cable pages at end of section

MX01

G-21
