BG1111C: DescriptionSingle Color LED, Green, Milky White, 1.2mm, 1.60 X 0.80 MM, 0.70 MM HEIGHT, ROHS COMPLIANT PACKAGE-2; Categoryphotoelectric; File Size18KB，1 Pages; ManufacturerStanley Electric Co; Environmental Compliance

Download Datasheet Parametric Compare View All

BG1111C Overview

Single Color LED, Green, Milky White, 1.2mm, 1.60 X 0.80 MM, 0.70 MM HEIGHT, ROHS COMPLIANT PACKAGE-2

BG1111C Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Stanley Electric Co
package instruction	1.60 X 0.80 MM, 0.70 MM HEIGHT, ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
color	GREEN
color@wavelength	Green
Configuration	SINGLE
Maximum forward current	0.025 A
Maximum forward voltage	2.8 V
Lens type	MILKY WHITE
Nominal luminous intensity	2.4 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED
total height	0.7 mm
method of packing	TAPE AND REEL
peak wavelength	555 nm
Maximum reverse voltage	4 V
shape	RECTANGULAR
size	1.2 mm
surface mount	YES
Terminal pitch	1.6 mm
perspective	146 deg
Base Number Matches	1

Preview

Download Datasheet

View All

DESCRIPTION OF PART NUMBER AND STRUCTURAL DRAWING

■

Description of SMT Part Number

BR 1 1 1 1 C

Chip element

(GaAIAs

Red)

(GaAsP

Orange)

(GaAsP

Yellow)

(GaP

Yellow-Green)

(GaP

Green)

(GaP

Pure Green)

(AlInGaP

Red)

Orange)

(AlInGaP

Yellow)

(InGaN/SiC

Green)

(InGaN/SiC Bluish-Green)

(InGaN/SiC

Blue)

Taping

TR: Standard Mount

RR: Reverse Mount

Shape Number

Chip

Type

of chips

1 : 1chip

2 : 2chips

Package Additional Shape

Color

0 : Water Clear

1 : Milky White

number of

Shape

C: Ultra compact type

H: Compact type

R: Reverse mounting type

F: Right angle type

W: Standard type

B: Bath Tub (PLCC-2) type

■

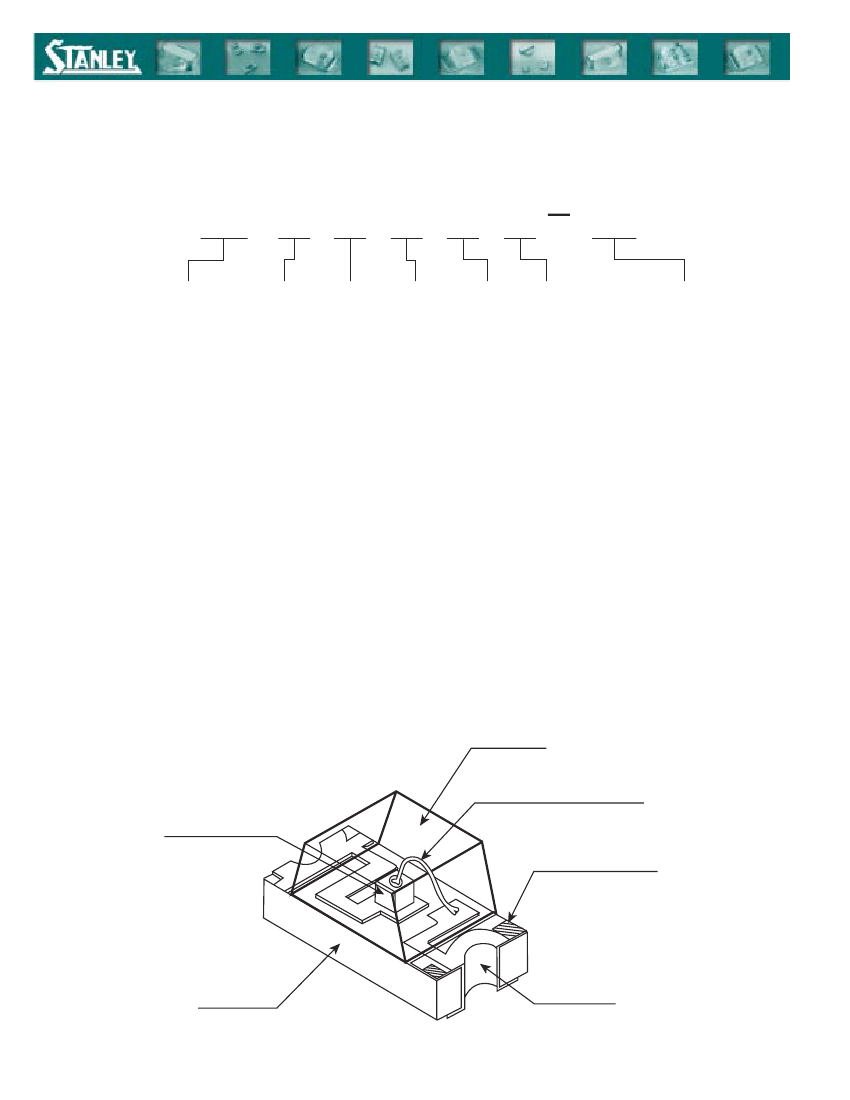

Structure of SMT Type LED

Epoxy

Bonding wire

LED chip

Cathode mark

Substrate

Electrode

BG1111C Related Products

	BG1111C	AY1111C
Description	Single Color LED, Green, Milky White, 1.2mm, 1.60 X 0.80 MM, 0.70 MM HEIGHT, ROHS COMPLIANT PACKAGE-2	Single Color LED, Yellow, Milky White, 1.2mm, 1.60 X 0.80 MM, 0.70 MM HEIGHT, ROHS COMPLIANT PACKAGE-2
Is it lead-free?	Lead free	Lead free
Is it Rohs certified?	conform to	conform to
Maker	Stanley Electric Co	Stanley Electric Co
package instruction	1.60 X 0.80 MM, 0.70 MM HEIGHT, ROHS COMPLIANT PACKAGE-2	1.60 X 0.80 MM, 0.70 MM HEIGHT, ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant	unknown
color	GREEN	YELLOW
Configuration	SINGLE	SINGLE
Maximum forward current	0.025 A	0.025 A
Lens type	MILKY WHITE	MILKY WHITE
Nominal luminous intensity	2.4 mcd	3.4 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1
Number of terminals	2	2
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED
total height	0.7 mm	0.7 mm
method of packing	TAPE AND REEL	TAPE AND REEL
peak wavelength	555 nm	580 nm
shape	RECTANGULAR	RECTANGULAR
size	1.2 mm	1.2 mm
surface mount	YES	YES
Terminal pitch	1.6 mm	1.6 mm
perspective	146 deg	137 deg
Base Number Matches	1	1
