51747-LF1: DescriptionTelecom Transformer, ROHS COMPLIANT; Categorytransformer; File Size127KB，2 Pages; ManufacturerWurth Elektronik; Environmental Compliance

Download Datasheet Parametric Compare View All

51747-LF1 Overview

Telecom Transformer, ROHS COMPLIANT

51747-LF1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Wurth Elektronik
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMPATIBLE WITH AC7; 7122/23A; AR7; 7300
Certification	IEC
high	12.7 mm
length	13.97 mm
Manufacturer's serial number	51747
Installation features	THROUGH HOLE MOUNTED
physical size	L13.97XB13.97XH12.7 (mm)
main impedance	100 OHMS
surface mount	NO
Transformer type	TELECOM TRANSFORMER
width	13.97 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Digital

Telecom

Texas Instruments ADSL recommendations

EP13-SMD

Features

•

RoHS compatible versions available

•

Designed for Texas Instruments’

chipsets

•

Good total harmonic distortion

characteristics

•

Optimized for size and performance

•

Customization available

•

For IC approval status, contact

Midcom

EP13-TH

EP10-SMD

EP7-SMD

Part Number

50811R

50810

51552R

51432R

51574R

51205R

51137

51219R

51319R

51747

51943R

TNETD4000

TNETD5000

AC5

AC7, 7122/23A

AR7, 7300

AC7, 7122/23A

AR7, 7300

Application

CPE

CPE ISDN

CPE

CO POTS

CO ISDN

CPE Annex A&C

CO Annex A,B&C

CPE Annex A&C

CO Annex A,B&C

IEC950

Supplementary

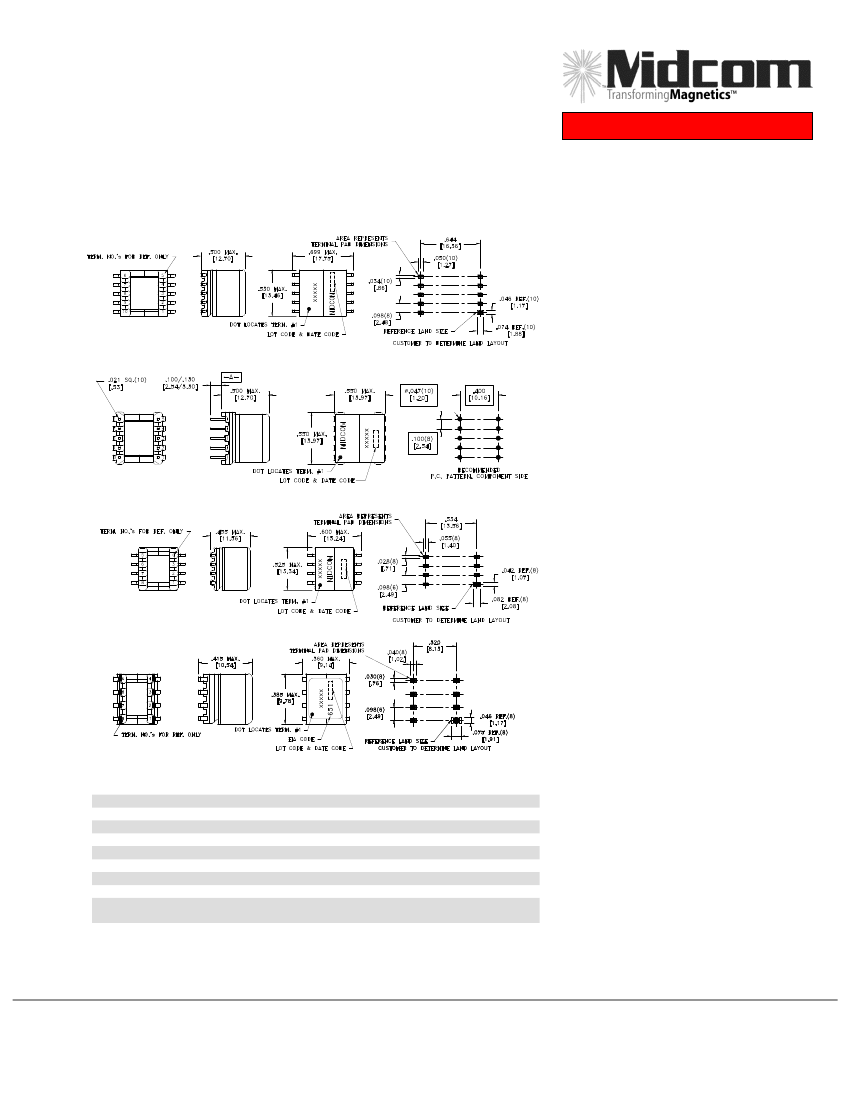

Mechanical

EP13-SMD

EP13-TH

EP7-SMD

EP13-SMD

EP7-SMD

EP13-SMD

EP13-TH

EP10-SMD

EP13-TH

EP13-SMD

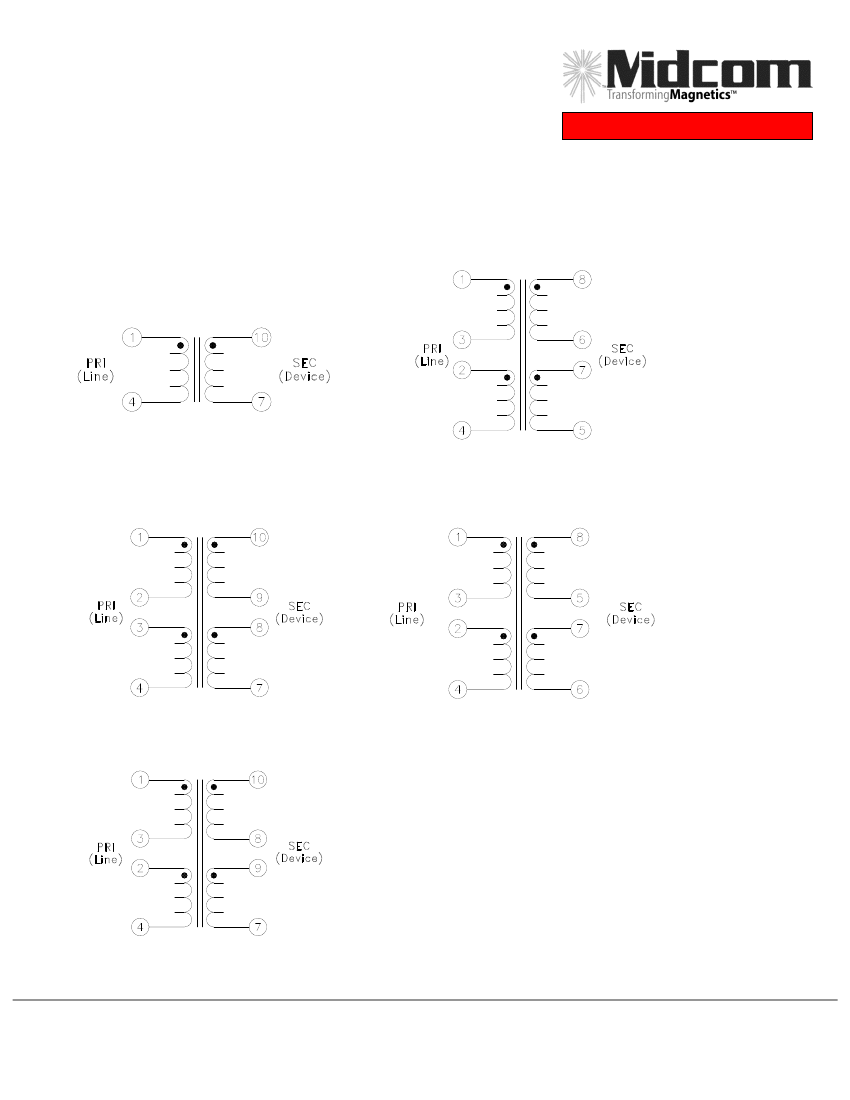

Schematic

Details subject to change. Contact your Midcom sales representative for additional information. Dimensions: in/mm. All tolerances are

±.010/0,25

and electrical specifications are @25°C unless otherwise specified.

Midcom, Inc. USA

121 Airport Drive – PO Box 1330

Watertown, SD 57201

T: 605.886.4385 ~ F: 605.886.4486

www.midcom-inc.com ~ email:sales@midcom-inc.com

Midcom, Inc. China

10/F Spectrum Tower 53 Hung to Road

Kwun Tong, Kowloon, HK

T: 852.2320.4221 ~ F: 852.2352.3272

email: asiasales@midcom-inc.com

6/5/2008

1/2

51747-LF1 Related Products

	51747-LF1	51943R	51943R-LF1	51432R	51574R	50811R	51137	51205R	51219R-LF1	51319R
Description	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer	Telecom Transformer, ROHS COMPLIANT	Telecom Transformer
Is it lead-free?	Lead free	Contains lead	Lead free	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Lead free	Contains lead
Is it Rohs certified?	conform to	incompatible	conform to	incompatible	incompatible	incompatible	incompatible	incompatible	conform to	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	COMPATIBLE WITH AC7; 7122/23A; AR7; 7300	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO, COMPATIBLE WITH AC7; 7122/23A; AR7; 7300	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO, COMPATIBLE WITH AC7; 7122/23A; AR7; 7300	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO, COMPATIBLE WITH TEXAS INSTRUMENTS TNETD4000 CHIP SET	BREADTH & HEIGHT DIM INCLUDE TERMINAL ALSO, COMPATIBLE WITH TNETD5000	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO, COMPATIBLE WITH TEXAS INSTRUMENTS TNETD4000 CHIP SET	COMPATIBLE WITH AC5	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO, COMPATIBLE WITH AC5	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO, COMPATIBLE WITH AC5	LENGTH & HEIGHT DIM INCLUDE TERMINAL ALSO, COMPATIBLE WITH AC5
high	12.7 mm	12.7 mm	12.7 mm	12.7 mm	10.54 mm	12.7 mm	12.7 mm	12.7 mm	11.56 mm	11.56 mm
length	13.97 mm	17.75 mm	17.75 mm	17.75 mm	9.78 mm	17.75 mm	13.97 mm	17.75 mm	15.24 mm	15.24 mm
Installation features	THROUGH HOLE MOUNTED	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	THROUGH HOLE MOUNTED	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
physical size	L13.97XB13.97XH12.7 (mm)	L17.75XB13.46XH12.7 (mm)	L17.75XB13.46XH12.7 (mm)	L17.75XB13.46XH12.7 (mm)	L9.78XB9.14XH10.54 (mm)	L17.75XB13.46XH12.7 (mm)	L13.97XB13.97XH12.7 (mm)	L17.75XB13.46XH12.7 (mm)	L15.24XB13.34XH11.56 (mm)	L15.24XB13.34XH11.56 (mm)
surface mount	NO	YES	YES	YES	YES	YES	NO	YES	YES	YES
Transformer type	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER	TELECOM TRANSFORMER
width	13.97 mm	13.46 mm	13.46 mm	13.46 mm	9.14 mm	13.46 mm	13.97 mm	13.46 mm	13.34 mm	13.34 mm
Maker	Wurth Elektronik	-	-	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik	Wurth Elektronik
Certification	IEC	-	-	-	IEC	IEC	IEC	IEC	IEC	IEC
