2206002P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 2206002P

2206002P: DescriptionFAST BLOW ELECTRIC FUSE, 2A, 300VAC, 35A (IR), THROUGH HOLE; CategoryCircuit protection Circuit protection; File Size103KB，1 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric Compare View All

2206002P Overview

FAST BLOW ELECTRIC FUSE, 2A, 300VAC, 35A (IR), THROUGH HOLE

2206002P Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Fusing characteristics	FAST
body height	14.48 mm
Body length or diameter	4.7 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Manufacturer's serial number	2206P
Installation features	THROUGH HOLE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	TAPE AND REEL
physical size	4.7mm x 14.48mm
Rated breaking capacity	35 A
Rated current	2 A
Rated voltage (AC)	300 V
Guideline	CE; CSA; UL
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	PIN WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

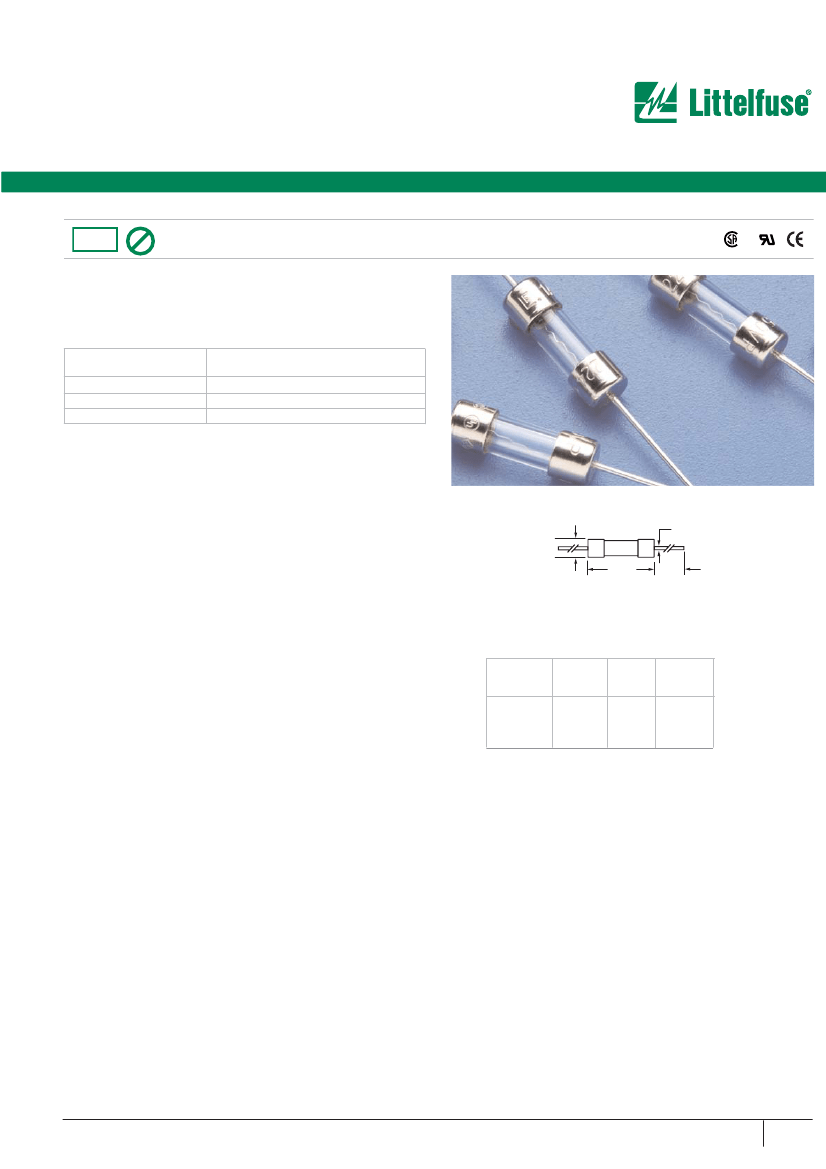

Axial Lead and Cartridge Fuses

Subminiature Glass Body

RoHS

2AG

Fast-Acting Fuse 2206P Series

The 2AG Fast-Acting fuses are available with axial leads. Axial leaded

fuses are board washable. 2AG fuses provide the same performance

characteristics as their 3AG counterpart, while

occupying one-third the space.

ELECTRICAL CHARACTERISTICS:

% of Ampere

Rating

100%

135%

200%

CSA.

Opening

Time

4 hours,

Minimum

1 hour,

Maximum

1 second,

Maximum

AGENCY APPROVALS:

All ratings are Listed by UL and Certified by

AGENCY FILE NUMBERS:

UL E10480, CSA LR 29862.

INTERRUPTING RATINGS:

0.75–3.0A

10,000 amperes at 125VAC

35 amperes at 250VAC

2206

000P

Series

4.7 (.184")

0.635

(.025")

PACKAGING OPTIONS:

2206P Series available on Tape and Reel

per EIA-296. 2206 series available in bulk packaging. For 1000 pieces

bulk, add packaging suffix MXP.

ENVIRONMENTAL SPECIFICATIONS:

Operating Temperature:

–55°C to 125°C.

Shock:

MIL-STD-202, Method 213, Test Condition I

(100 G’s peak for 6 milliseconds).

Vibration:

MIL-STD-202, Method 201 (10–55 Hz, 0.06 inches

total excursion).

Salt Spray:

MIL-STD-202 Method 101, Test Condition B (48 hours).

Insulation Resistance (After Opening): MIL-STD-202, Method 302,

Test Condition B.

Resistance to Soldering Heat:

(Axial Leaded Fuses):

MIL-STD-202, Method 210A, Test Condition B (260°C, 3 Seconds).

Thermal Shock:

MIL-STD-202, Method 107,

Test Condition B (–65°C to 125°C).

Moisture Resistance:

MIL-STD-202, Method 106

(90-98% RH, 65°C).

Solderability:

(Axial Leaded Fuses): MIL-STD-202,

Method 208.

14.48

(.57")

38.1

(1.50") TYP.

Axial Lead Material: Tin coated copper.

ORDERING INFORMATION:

Axial Lead

Catalog

Number

2206.750P

2206

001P

2206

002P

2206

003P

Ampere

Rating

.750

Voltage

Rating

300

Nominal

Resistance

Cold Ohms

0.340

0.210

0.0699

0.0505

Nominal

Melting I

Sec.

2.95

5.64

30.0

50.0

PHYSICAL SPECIFICATIONS:

Materials:

Glass Body, Nickel-Plated Brass Fuse Caps.

(Insulating sleeve option available).

SOLDERING PARAMETERS:

Wave solder — 500°F (260°C), 3 seconds Max.

Reflow solder — Not recommended.

PHYSCIALSPECIFICATIONS:

Materials:

Glass Body, Nickel-Plated Brass Fuse Caps

SOLDERING PARAMETERS:

Wave solder- 500˚F(260˚C), 3 seconds Max.

Reflow solder- Not recommended

w w w. l i t t e l f u s e . c o m
