EVERLIGHT ELECTRONICS CO., LTD.
MODEL NO: ITR9702
■

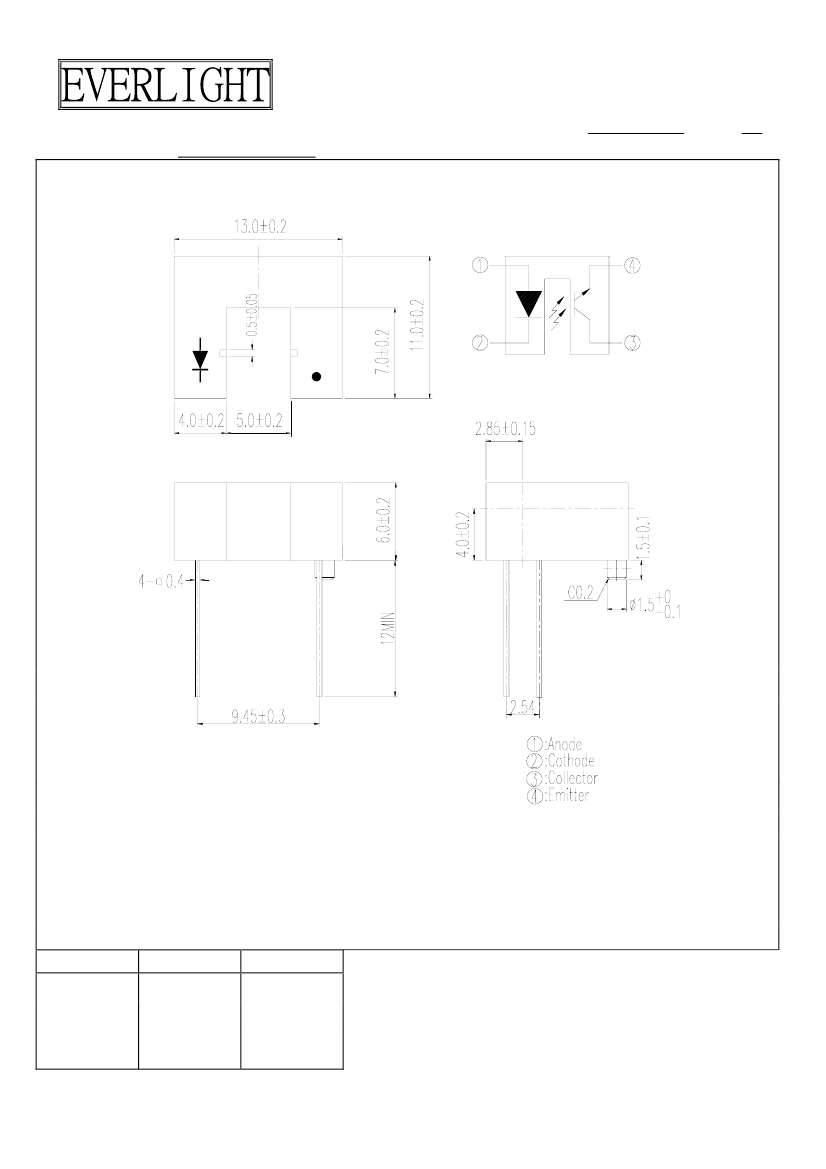

Package Dimensions :
Device Number: DRX-702-049 REV: 1.0
Ecn:
Page:1of8
Unit:mm
DESIGNER CHECKER APPROVED
Office: NO 25,Lane 76,Chung Yang Rd,,Sec.3
Tucheng, Taipei 236,Taiwan, R.O.C.
TEL: 886-2-2267-2000,2267-9936(22Lines)
FAX: 886-2-2267-6189
04/08/05 09:12 AM
1
9702-F23.DOC
EVERLIGHT ELECTRONICS CO., LTD.
MODEL NO: ITR9702
◎Notes：
Device Number: DRX-702-049 REV: 1.0
Ecn:
Page:2of8
1.All dimensions are in millimeter.
2.General Tolerance:±0.2mm
3.Lead spacing is measured where the lead emerge from the package.
4.Above specification may be changed without notice. EVERLIGHT will
reserve authority on material change for above specification.
5.These specification sheets include materials protected under
copyright of EVERLIGHT corporation. Please don’t reproduce or
cause anyone to reproduce them without EVERLIGHT’s consent.
6.When using this product , please observe the absolute maximum
ratings and the instructions for use outlined in these
specification sheets. EVERLIGHT assumes no responsibility
for any damage resulting from use of the product which does not
comply with the absolute maximum ratings and the instructions
included in these specification sheets.
■
Descriptions:
The ITR9702/F23(Slot Optical Switch) is a gallium arsenide infrared
emitting diode which is coupled with a silicon photo transistor
in a plastic housing. The packaging system is designed to optimizes
the mechanical resolution, coupling efficiency, and insulates
ambient light. The slot in the housing a provides a means of
interrupting the signal with printer, scanner, copier, or other
opaque material, switching the output from an ” ON” to” OFF”
state.
■
Features:
．Wide
gap between light emitter and detector(5.0mm)
．High
sensing accuracy
．PWB
mounting type package
Pb free
■
Applications:
．Copier
．Printer
．Facsimile
．Ticket
vending machine
．Opto-electronic
switch
04/08/05 09:12 AM
2
9702-F23.DOC
EVERLIGHT ELECTRONICS CO., LTD.
MODEL NO: ITR9702
■
Absolute Maximum Ratings (Ta=25℃)
Parameter
Power Dissipation at(or below)
25℃ Free Air Temperature
Reverse Voltage
Input
Forward Current
Peak Forward Current
Pulse width
≦100μs,
Duty cycle=1%
Device Number: DRX-702-049 REV: 1.0
Ecn:
Page:3of8
Symbol
Pd
V
R
I
F
I
FP
P
C
I
C
V
CEO
V
ECO
Topr
Tstg
Tsol
Ratings
75
5
50
1
75
20
30
5
-25~+85
-40~+85
260
Unit
mW
V
mA
A
mW
mA
V
V
℃
℃
℃
Collector Power Dissipation
Collector Current
Output
Collector-Emitter Voltage
Emitter-Collector Voltage
Operating Temperature
Storage Temperature
Lead Soldering Temperature
(1/16 inch from body for 5 seconds)
■
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Reverse Current
Input
Peak Wavelength
View angle
Output
Collector Dark
Current
C-E Saturation
Voltage
Symbol Min. Typ. Max. Unit
V
F
I
R
λ
P
2θ1/2
I
CEO
V
CE
(sat)
I
C
(ON)
t
r
t
f
-
-
-
-
-
-
0.5
-
-
1.2
-
940
60
-
-
-
15
15
1.5
10
-
-
100
V
μA
nm
Deg
nA
Condition
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
Collector Current
Transfer
Characteristic
Rise time
Fall time
V
CE
=20V
Ee=0mW/cm
2
I
C
=0.5mA
0.4
V
Ee=10mW/cm
2
V
CE
=5V
-
mA
I
F
=20mA
-
μsec
V
CE
=5V
I
C
=1mA
-
μsec
R
L
=1KΩ
04/08/05 09:12 AM
3
9702-F23.DOC
