SAW Components
SAW Rx Filter
Trunked Radio
Series/type:
Ordering code:
Date:
Version:
B5046
B39821B5046U510
March 13, 2007
2.0
©
EPCOS AG 2007. Reproduction, publication and dissemination of this data sheet, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
SAW Components
SAW Rx Filter
Data Sheet
Application
Low-loss filter (RX) for Trunked Radio
Usable bandwidth 19 MHz
No matching required for operation at 50
Ω
Unbalanced to unbalanced or unbalanced to bal-
anced operation
s
Filter impedance 50
Ω
s
s
s
s
B5046
815.5 MHz
Features
s
s
s
s
s
s
s
s
Package size 3.0 x 3.0 x 1.1 mm
3
Package code DCC6D
Approx. weight 0.037 g
Package for
Surface Mount Technology
(SMT)
Hermetically sealed ceramic package
RoHS compliant
Ni, gold-plated
Electrostatic Sensitive Device
(ESD)
Pin configuration
s
s
s
s
2
6
4
1, 3, 5
Input
Output / Output balanced
Output ground / Output balanced
Input ground / Case ground
Please read
cautions and warnings and
important notes
at the end of this document.
2
March 13, 2007
SAW Components
SAW Rx Filter
Data Sheet
Characteristics
Temperature range for specification:
Terminating source impedance:
Terminating load impedance:
T = -30 to +70˚C
Z
S
= 50
Ω
Z
L
= 50
Ω
(balanced)
min.
Center frequency
Maximum insertion attenuation
806.0 ... 825.0
Amplitude ripple
(p-p)
806.0 ...
Input VSWR
806.0
Output VSWR
806.0
Attenuation
0.1
663.0
789.0
850.0
900.0
1600.0
2313.0
3500.0
Amplitude balance
806.0
Phase balance
...
...
...
...
...
...
...
...
...
663.0
789.0
796.0
900.0
1600.0
2313.0
3500.0
4000.0
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
...
825.0
MHz
α
44
30
13
20
30
24
20
7
47
39
32
26
33
27
23
23
—
—
—
—
—
—
—
—
dB
dB
dB
dB
dB
dB
dB
dB
—
1.3
2.0
...
825.0
MHz
—
1.3
2.0
f
C
α
max
MHz
∆α
825.0
MHz
—
0.9
2.5
2)
dB
—
2.6
4.5
1)
dB
—
typ.
@ 25 ˚C
815.5
max.
—
MHz
B5046
815.5 MHz
(|S
31
/S
21
|)
825.0
MHz
—
-0.1 /
+1.0
-0.8 /
+1.2
dB
(φ(S
31
)−φ(S
21
)+180˚)
806.0 ... 825.0 MHz
TC
f
—
—
-/+ 3
-36
-/+ 10
—
˚
ppm/K
Temperature coefficient of frequency
1)
2)
3.5 dB at +15 to +35 ˚C.
1.5 dB at +15 to +35 ˚C.
Please read
cautions and warnings and
important notes
at the end of this document.
3
March 13, 2007
SAW Components
SAW Rx Filter
Data Sheet
B5046
815.5 MHz
Maximum ratings
Operable temperature range
Storage temperature range
DC voltage
ESD voltage
Input Power at
806.0 ... 825.0 MHz
1)
T
T
stg
V
DC
V
ESD
P
IN
-40 / +85
-40 / +85
5
100
1)
15
˚C
˚C
V
V
dBm
machine model, 10 pulses
continuous wave
acc. to JESD22-A115A (machine model), 10 negative & 10 positive pulses.
Please read
cautions and warnings and
important notes
at the end of this document.
4
March 13, 2007
SAW Components
SAW Rx Filter
Data Sheet

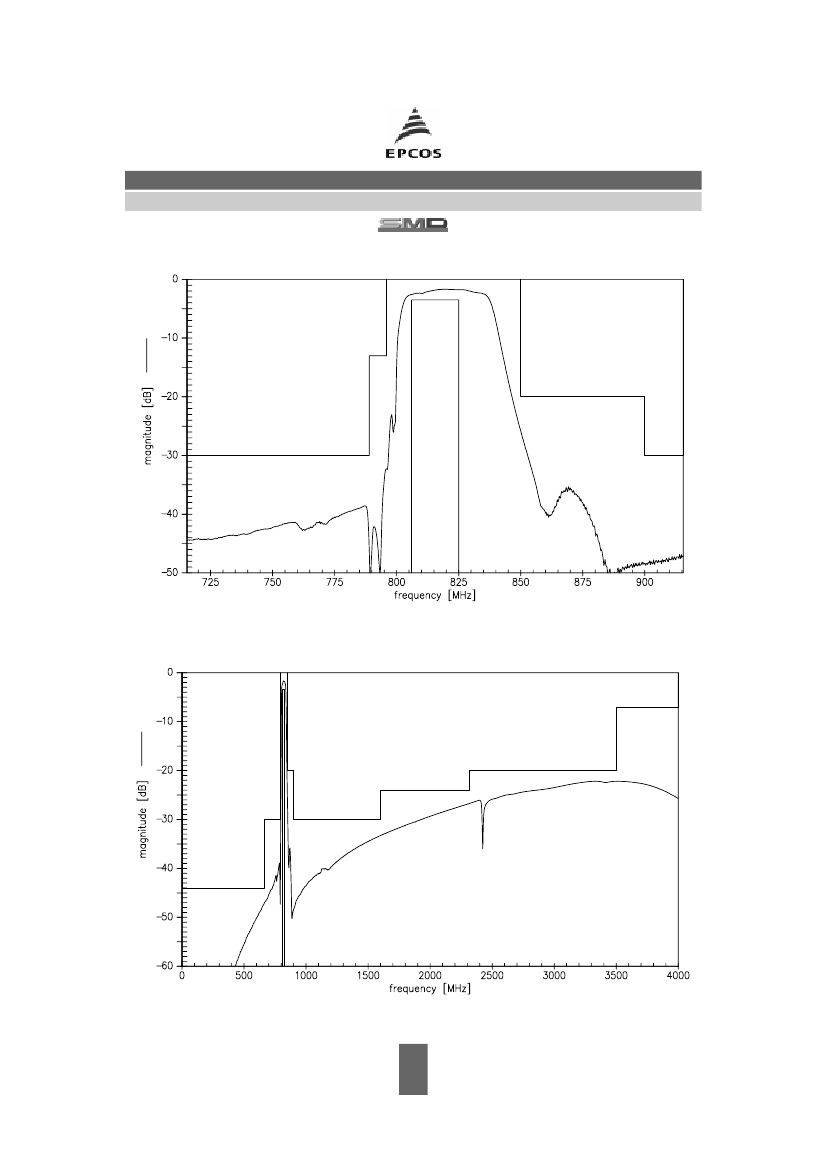

Transfer function
(narrowband)
B5046
815.5 MHz
Transfer function
(wideband)
Please read
cautions and warnings and
important notes
at the end of this document.
5
March 13, 2007
