581L147X2HTT

Description
HCMOS Output Clock Oscillator
CategoryPassive components    oscillator
File Size275KB,3 Pages
ManufacturerCTS
Environmental Compliance
Download Datasheet Parametric View All

581L147X2HTT Overview

HCMOS Output Clock Oscillator

581L147X2HTT Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerCTS
Reach Compliance Codecompliant
Other featuresTR, 7 INCH
Ageing3 PPM/20 YEAR
maximum descent time6 ns
Frequency Adjustment - MechanicalNO
frequency stability0.28%
Installation featuresSURFACE MOUNT
Nominal operating frequency14.7456 MHz
Maximum operating temperature60 °C
Minimum operating temperature-10 °C
Oscillator typeHCMOS
Output load15 pF
physical size5.0mm x 3.2mm x 1.65mm
longest rise time6 ns
Maximum supply voltage3.465 V
Minimum supply voltage3.135 V
Nominal supply voltage3.3 V
surface mountYES
maximum symmetry55/45 %
Terminal surfaceGold Flash (Au) - with Nickel (Ni) barrier
Base Number Matches1

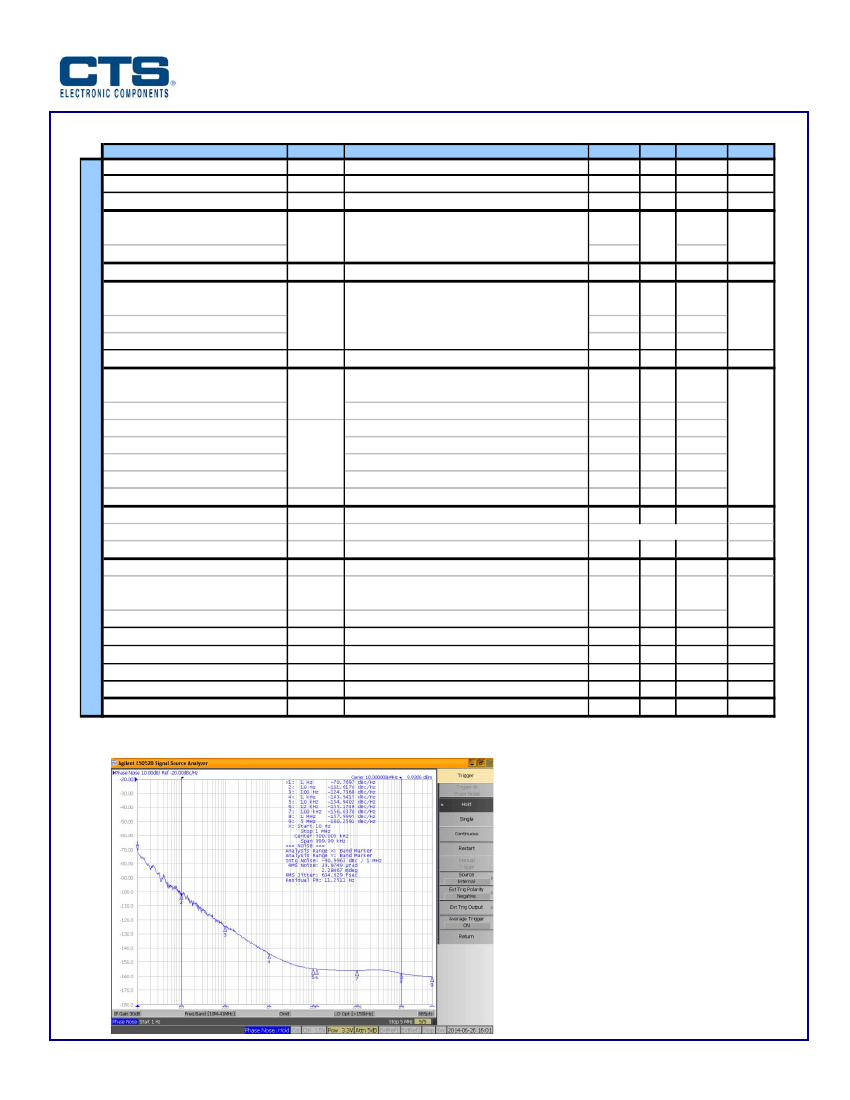

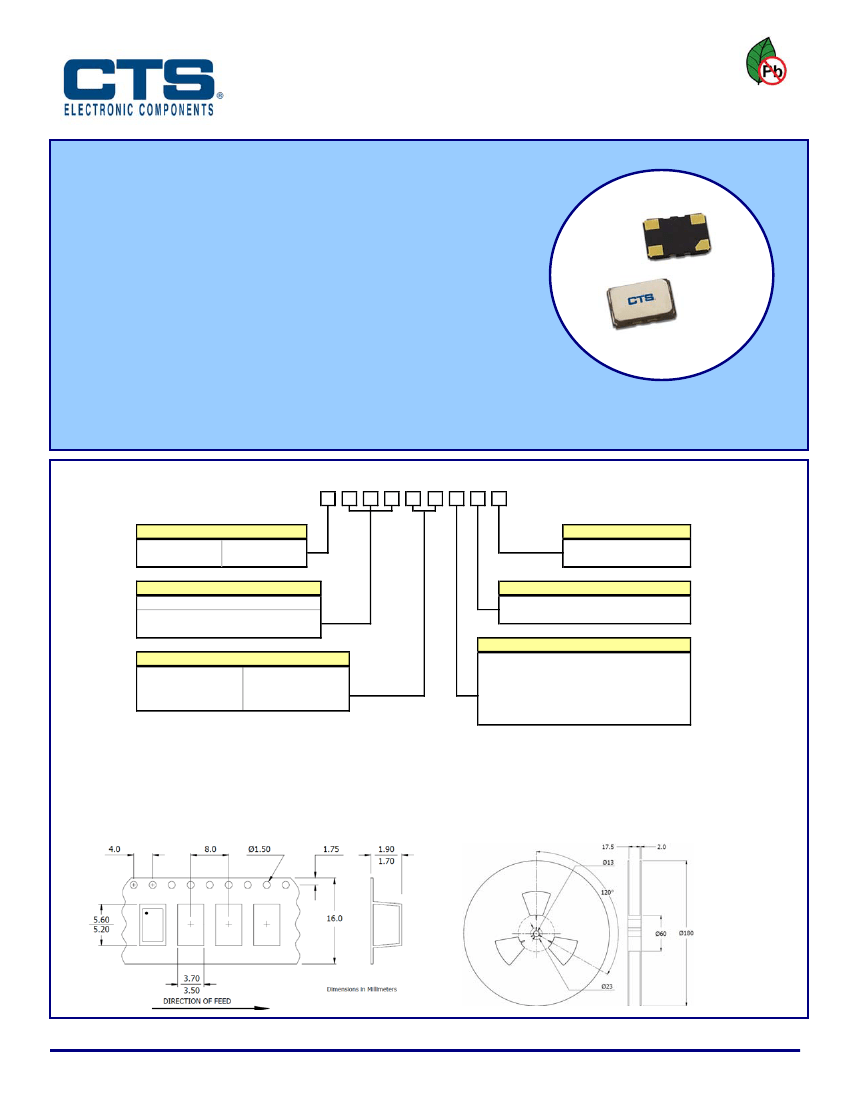

Model 581
Stratum 3 Performance
Temperature Compensated Crystal Oscillator
FEATURES
HCMOS Output
Optional Voltage Control for Frequency Tuning [VCTCXO]

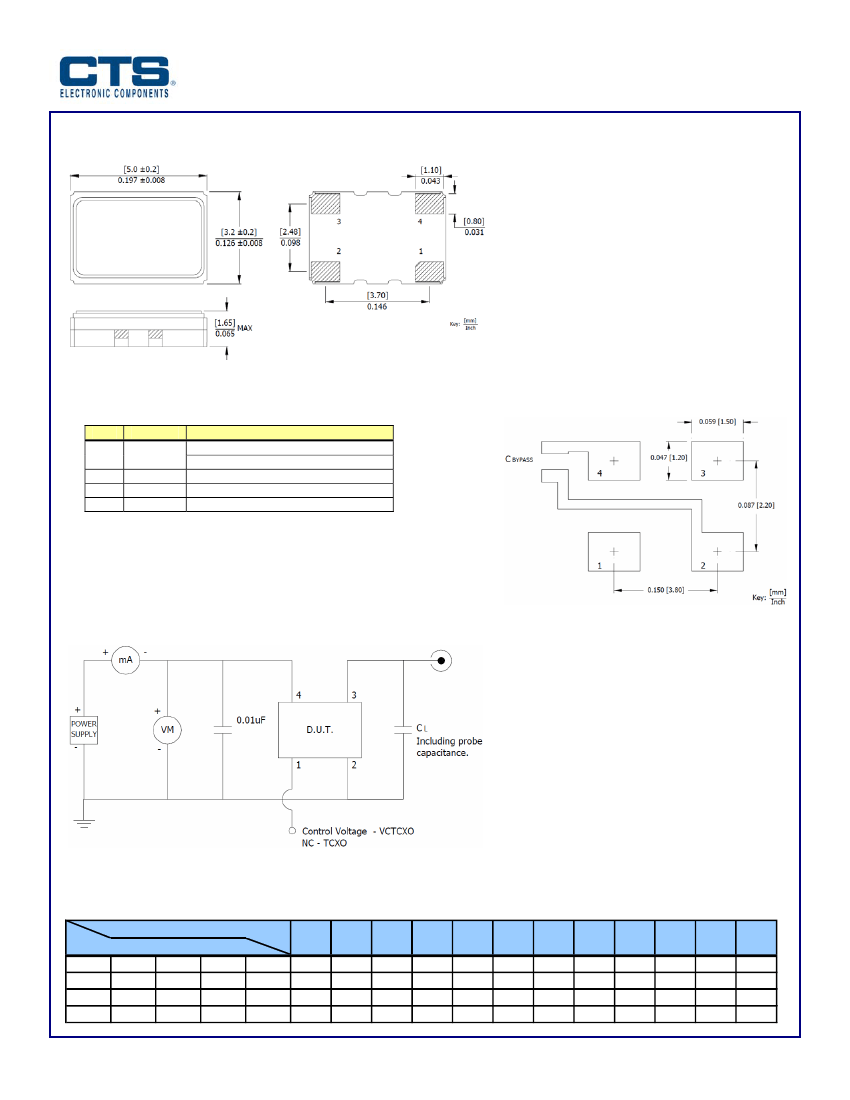

5.0mm x 3.2mm Surface Mount Package
Frequency Range 5 – 52 MHz
Fundamental Crystal Design
Operating Voltage, +3.3Vdc or +5.0Vdc
Overall Frequency Stability ±4.6ppm
Operating Temperature to -40°C to +85°C
Tape & Reel Packaging Standard, EIA-418
RoHS/Green Compliant [6/6]
APPLICATIONS
The Model 581 is a quartz based analog TCXO with a HCMOS output and optional frequency tuning.
M581 is suitable for applications requiring Stratum 3 performance such as base stations, small cells, 1588 and
Synchronous Ethernet timing, wireless communications, test and measurement.
ORDERING INFORMATION
581
SUPPLY VOLTAGE
R = +3.0Vdc
S = +5.0Vdc
L = +3.3Vdc
FREQUENCY
Product Frequency Code
[3 digits]
Refer to document 016-1454-0, Frequency
Code Tables.
PACKAGING OPTIONS
T - 1k pcs./reel
FREQUENCY TUNING [AFC]
T = No AFC [TCXO]
A = ±5ppm - ±8ppm [VCTCXO]
OPERATING TEMPERATURE RANGE
FREQUENCY STABILITY *
X5 = ±0.05ppm
01 = ±0.10ppm
02 = ±0.20ppm
1
2
X2 = ±0.28ppm
05 = ±0.50ppm
* Frequency vs. Temperature Only
1] Only available with temperature range codes "W" and "H".
2] Only available with temperature range codes "W", "H" and "C".
W = 0°C to +55°C
H = -10°C to +60°C
C = -20°C to +70°C
D = -30°C to +85°C
I = -40°C to +85°C
Not all performance combinations and frequencies may be available.
Contact your local CTS Representative or CTS Customer Service for availability.
PACKAGING INFORMATION
[reference]
Device quantity is 1k pcs. maximum per 180mm reel.
Document No. 008-0541-0
Page 1 - 3
Rev. A
