Features
I
I
I
I
I
Applications
Electronic equipment
I
Portable electronics
I
Security systems
I
Control systems
I
Single pole/double throw
Compatible with most surface mount
manufacturing processes
50 or 2000 cycle rotational life
Tape and reel packaged
Withstands 245° soldering heat

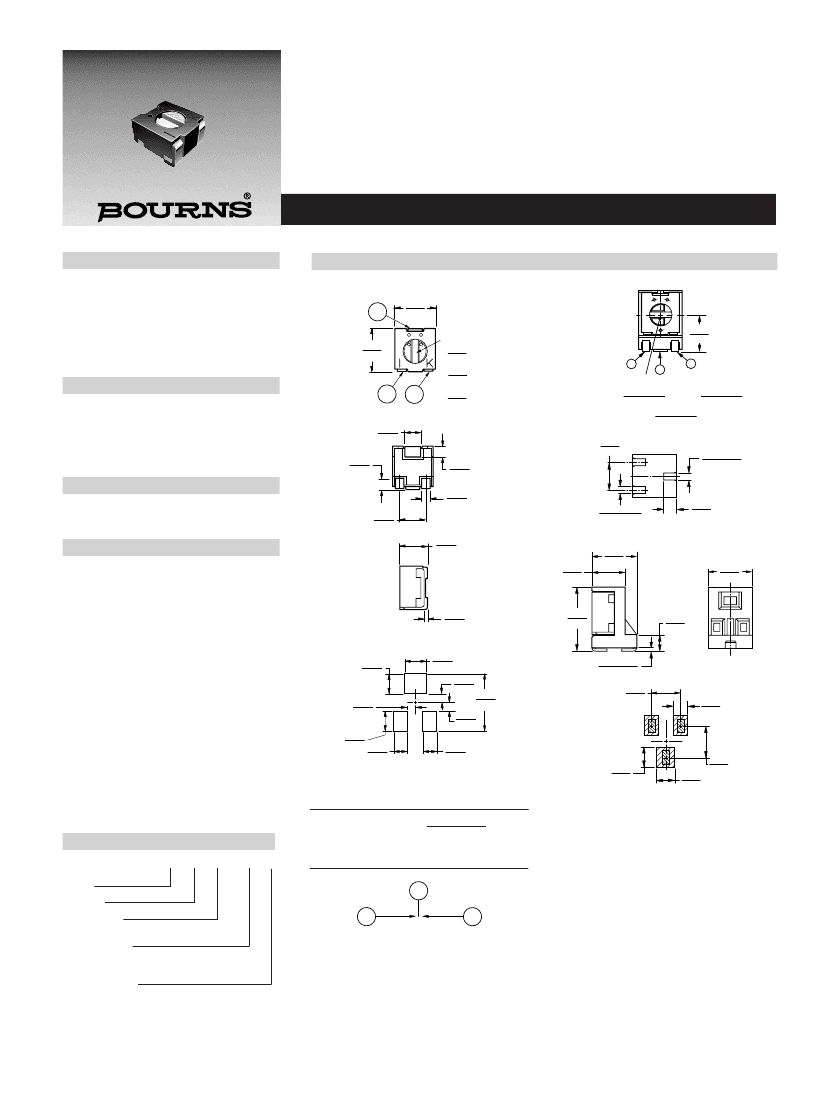

7813 SMD 3mm Square Sealed Rotary Switch
U.S. Patent No. 5043695
Electrical Characteristics
Contact Rating
Maximum Current ............100mA max.
Maximum Voltage ..........................16V
Contact Timing...................Non-shorting
Contact Resistance ............2 ohms max.
Insulation Resistance
..............................100 megohms min.
Dielectric Strength ....................250 VAC
General Characteristics
Switch Type ...................................SPDT
Operating Temperature Range
..................................-55°C to +125°C
Storage Temperature Range
..................................-55°C to +125°C
Seal Test ........................85°C Fluorinert*
Mechanical Characteristics
Positions ...............................................2
Adjustment Torque........... .5 N-cm max.
Stop Strength ...................1.8 N-cm min.
Environmental Characteristics
Shock ...............................................20G
0.1 ms max. discontinuity
Vibration .........................................100G
0.1 ms max. discontinuity
Thermal Shock .........................(5 cycles)
-55°C to +125°C
Humidity
Insulation Resistance
................................10 megohms min.
Rotational Life
-051 ......................................50 Cycles
-023 ..................................2000 Cycles
Max. Soldering Heat ....................245°C,
5 seconds
Standard Packaging
J ...................................1,000 pcs./reel
S ......................................200 pcs./reel
Product Dimensions
7813J
C
3.5
(.138)
7813S
3.5
(.138)
ADJUSTMENT SLOT
0.51
WIDE
(.020)
1.93
X
LONG
(.076)
CCW
X
0
3
K
3.02
(.119)
CW
0.51
DEEP
(.020)
1.3
(.051)
0.9
(.035)
2 PLCS
0.9
(.035)
0.65
2 PLCS
(.026)
2.25
(.089)
2.2
(.087)
1
2
ADJUSTMENT SLOT
1.93
±
0.03 LONG X 0.52
±
0.03
(.076
±
.001)
(.021
±
.001)
0.51
±
0.06
WIDE X
DEEP
(.020
±
.002)
2.39
(.094)
0.71
±
0.20
(.028
±
.008)
0.61
±
0.20
(.024
±
.008)
TYP
3.71
(.146)
1.15
TYP
(.045)
2.77
(.109)
3.61
(.142)
0.15
(.006)
5.35
(.211)
1.30
(.051)
1.6
(.063)
0.6
(.024)
1.6
(.063) 1.1
(.043)
1.6
(.063)
0.65
(.026)
0.65
(.026)
1.1
(.043)
4.5
(.177)
0.15
±
0.03
(.006
±
.001)
2.39
(.094)
1.12
2 PLCS
(.044)
1.57
(.062)
3 PLCS
1.57
(.062)
RECOMMENDED
LAND PATTERN
2.62
(.103)
DIMENSIONS ARE:
How to Order
MM
(INCHES)
TOLERANCES: ±.2 EXCEPT WHERE NOTED.
7813 J - 1 - 051 E
C
Model
Terminal
Switch Type
1 = SPDT
Rotational Life
-051 = 50 Cycles
-023 = 2000 Cycles
Embossed Tape
E = 1000 Pcs./180mm Reel (J Style)
200 Pcs./180mm Reel (S Style)
CCW 3
2
1 CW
Specifications are subject to change without notice.
