74ACTQ373QSCQR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> 74ACTQ373QSCQR

74ACTQ373QSCQR: DescriptionD Latch, 1-Func, 8-Bit, CMOS, PDSO20,; Categorylogic; File Size589KB，12 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

74ACTQ373QSCQR Overview

D Latch, 1-Func, 8-Bit, CMOS, PDSO20,

74ACTQ373QSCQR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	SSOP, SSOP20,.25
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	D LATCH
MaximumI(ol)	0.024 A
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP20,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
power supply	5 V
Prop。Delay @ Nom-Sup	9 ns
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
Base Number Matches	1

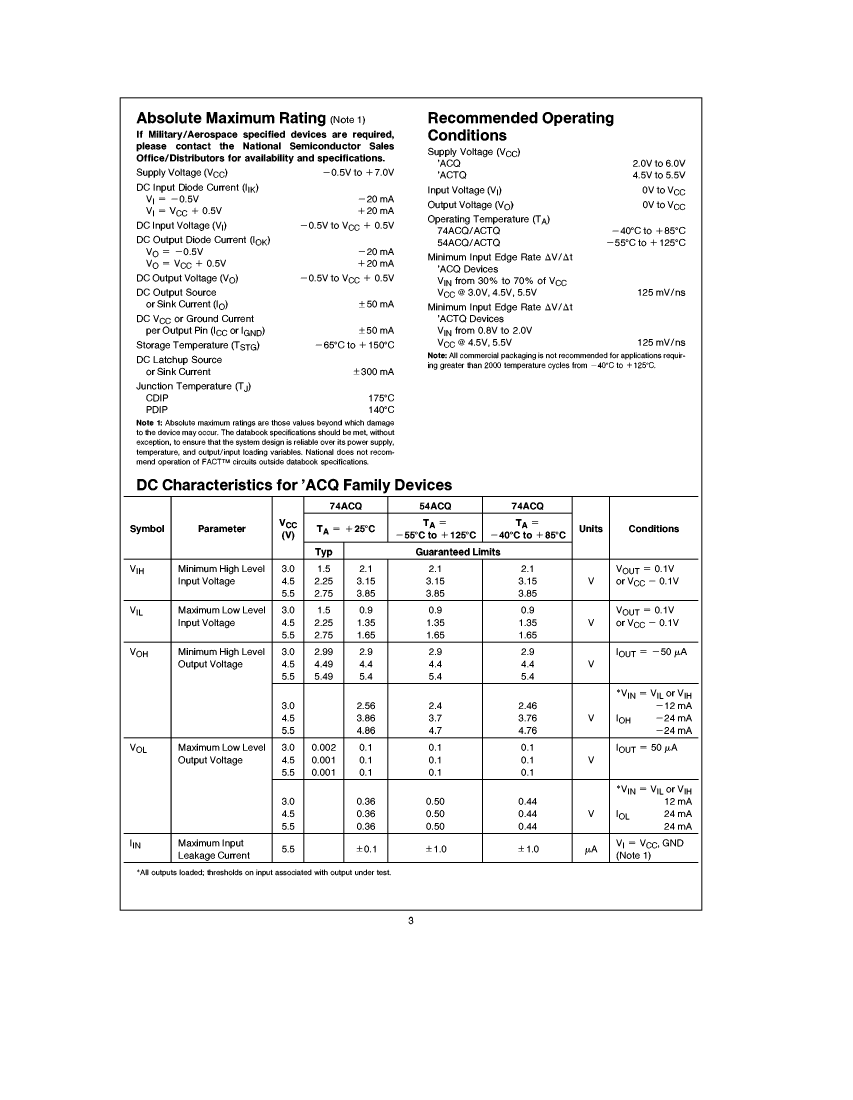

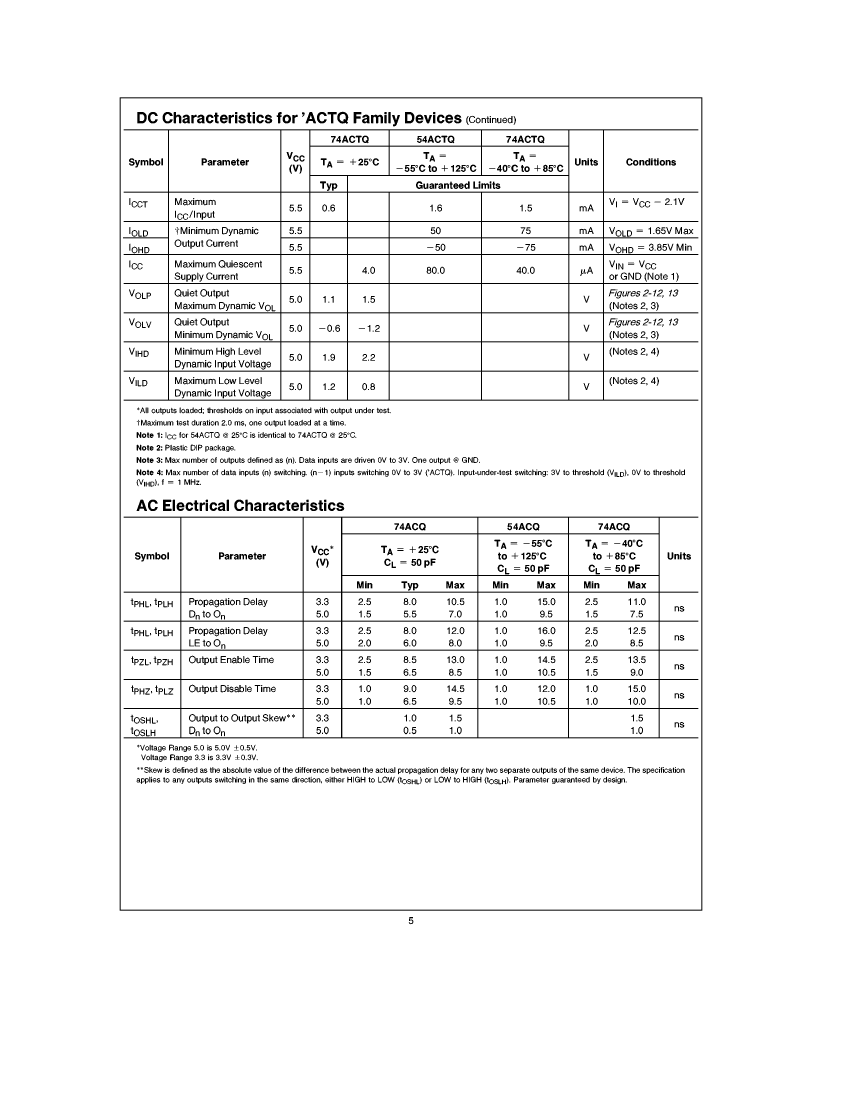

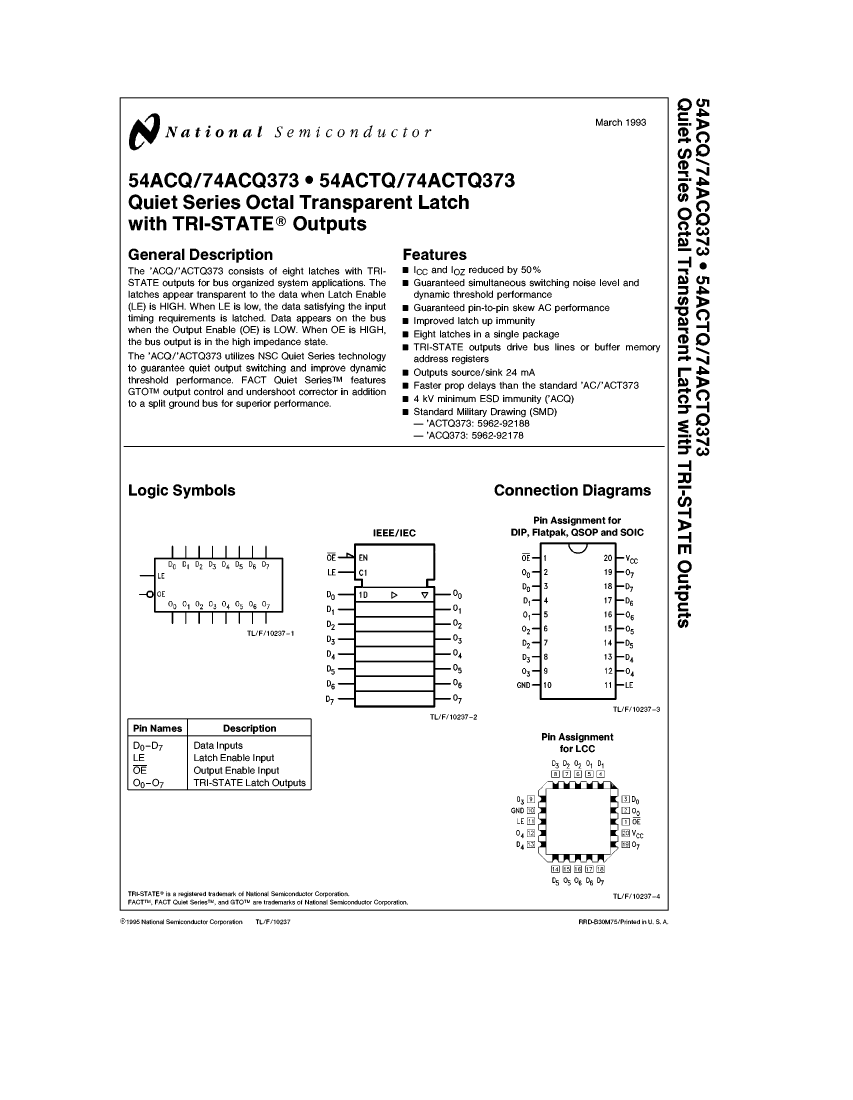

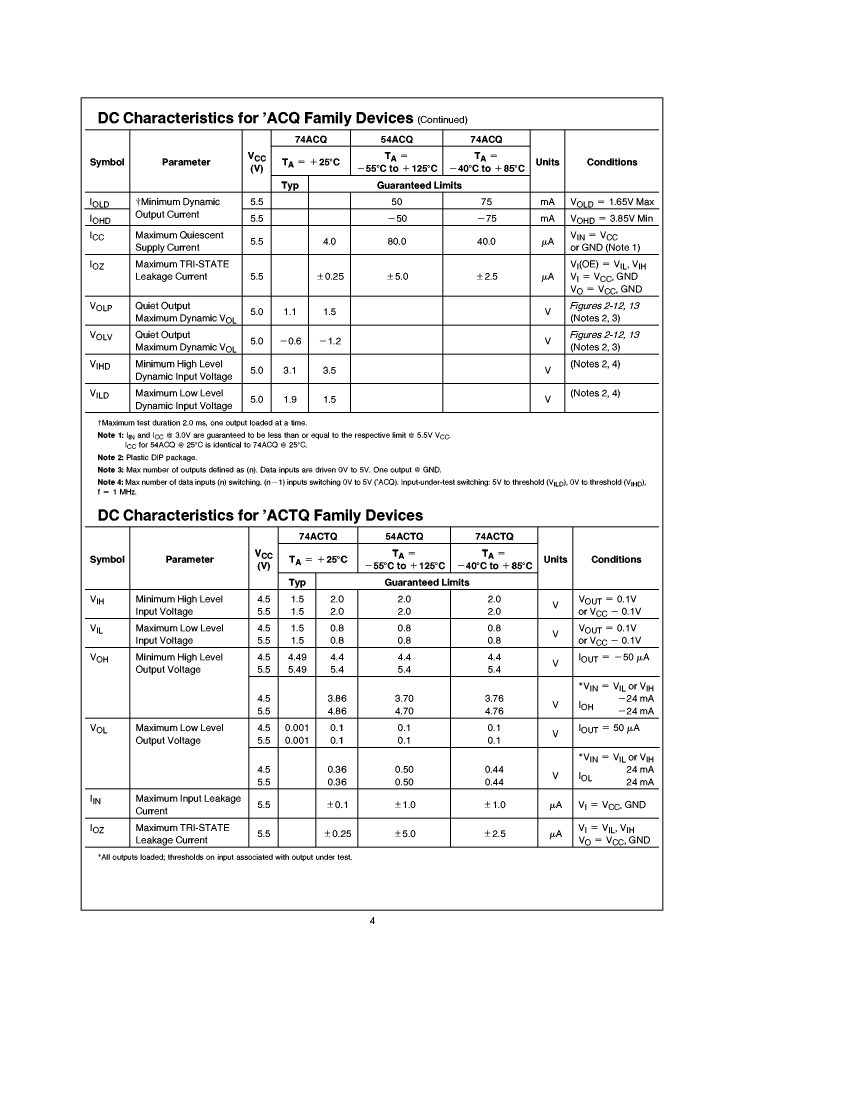

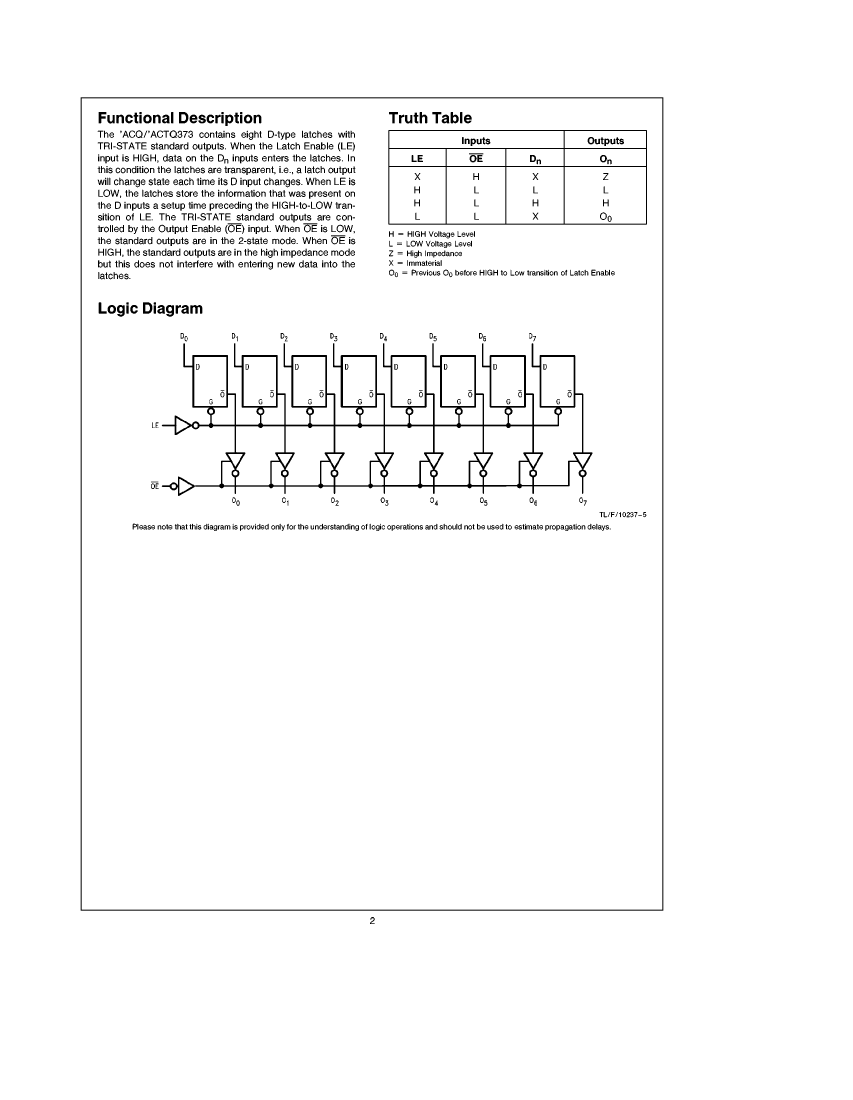

Preview

Download Datasheet

View All

74ACTQ373QSCQR Related Products

	74ACTQ373QSCQR	54ACTQ373DMQB	54ACQ373FMQB	54ACTQ373LMQB	54ACQ373DMQB	54ACTQ373FMQB	74ACTQ373PCQR	74ACQ373PCQR	74ACQ373QSC	74ACQ373QSCQR
Description	D Latch, 1-Func, 8-Bit, CMOS, PDSO20,	D Latch, 1-Func, 8-Bit, CMOS, CDIP20	D Latch, 1-Func, 8-Bit, CMOS, CDFP20	D Latch, 1-Func, 8-Bit, CMOS, CQCC20	D Latch, 1-Func, 8-Bit, CMOS, CDIP20	D Latch, 1-Func, 8-Bit, CMOS, CDFP20	D Latch, 1-Func, 8-Bit, CMOS, PDIP20	D Latch, 1-Func, 8-Bit, CMOS, PDIP20	D Latch, 1-Func, 8-Bit, CMOS, PDSO20	D Latch, 1-Func, 8-Bit, CMOS, PDSO20,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	SSOP, SSOP20,.25	DIP, DIP20,.3	DFP, FL20,.3	QCCN, LCC20,.35SQ	DIP, DIP20,.3	DFP, FL20,.3	DIP, DIP20,.3	DIP, DIP20,.3	SSOP, SSOP20,.25	SSOP, SSOP20,.25
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PDSO-G20	R-XDIP-T20	R-XDFP-F20	S-XQCC-N20	R-XDIP-T20	R-XDFP-F20	R-PDIP-T20	R-PDIP-T20	R-PDSO-G20	R-PDSO-G20
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH
MaximumI(ol)	0.024 A	0.024 A	0.012 A	0.024 A	0.012 A	0.024 A	0.024 A	0.012 A	0.012 A	0.012 A
Number of digits	8	8	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	20	20	20	20	20	20	20	20	20	20
Maximum operating temperature	85 °C	125 °C	125 °C	125 °C	125 °C	125 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	DIP	DFP	QCCN	DIP	DFP	DIP	DIP	SSOP	SSOP
Encapsulate equivalent code	SSOP20,.25	DIP20,.3	FL20,.3	LCC20,.35SQ	DIP20,.3	FL20,.3	DIP20,.3	DIP20,.3	SSOP20,.25	SSOP20,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH	IN-LINE	FLATPACK	CHIP CARRIER	IN-LINE	FLATPACK	IN-LINE	IN-LINE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH
power supply	5 V	5 V	3.3/5 V	5 V	3.3/5 V	5 V	5 V	3.3/5 V	3.3/5 V	3.3/5 V
surface mount	YES	NO	YES	YES	NO	YES	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	FLAT	NO LEAD	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	0.635 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Prop。Delay @ Nom-Sup	9 ns	-	15 ns	11.5 ns	15 ns	11.5 ns	9 ns	11 ns	11 ns	11 ns
Base Number Matches	1	1	1	1	1	1	1	1	-	-
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified	-
