TECHNICAL DATA
KK74HC253A
Dual 4-Input Data Selector/Multiplexer
with 3-State Otputs
High-Performance Silicon-Gate CMOS
The KK74HC253A is identical in pinout to the LS/ALS253. The
device inputs are compatible with standard CMOS outputs; with pullup
resistors, they are compatible with LS/ALSTTL outputs.
The Address Inputs select one of four Data Inputs from each
multiplexer. Each multiplexer has an active-low Output Enable control
and a three-state noninverting output.
•
Outputs Directly Interface to CMOS, NMOS, and TTL
•
Operating Voltage Range: 2.0 to 6.0 V
•
Low Input Current: 1.0
µA
•
High Noise Immunity Characteristic of CMOS Devices
ORDERING INFORMATION
KK74HC253AN Plastic
KK74HC253AD SOIC
T
A
= -55° to 125° C for all packages
LOGIC DIAGRAM
PIN ASSIGNMENT
FUNCTION TABLE
Inputs
A1
X
L
PIN 16 =V
CC
PIN 8 = GND
L
H
H
A0
X
L
H
L
H
OE
H
L
L
L
L
Output
Y
Z
D0
D1
D2
D3
D0,D1...D3=the level of the respective
Data Input
Z = high impedance
X = don’t care
1
KK74HC253A
MAXIMUM RATINGS
*
Symbol
V
CC
V
IN
V
OUT
I
IN
I
OUT
I
CC
P
D
Tstg
T
L
*
Parameter
DC Supply Voltage (Referenced to GND)
DC Input Voltage (Referenced to GND)
DC Output Voltage (Referenced to GND)
DC Input Current, per Pin
DC Output Current, per Pin
DC Supply Current, V
CC
and GND Pins
Power Dissipation in Still Air, Plastic DIP+
SOIC Package+
Storage Temperature
Lead Temperature, 1 mm from Case for 10 Seconds
(Plastic DIP or SOIC Package)
Value
-0.5 to +7.0
-1.5 to V
CC
+1.5
-0.5 to V
CC
+0.5
±20
±25
±50
750
500
-65 to +150
260
Unit
V
V
V
mA
mA
mA
mW
°C
°C
Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
+Derating - Plastic DIP: - 10 mW/°C from 65° to 125°C
SOIC Package: : - 7 mW/°C from 65° to 125°C
RECOMMENDED OPERATING CONDITIONS
Symbol
V
CC
V
IN
, V
OUT
T
A
t
r
, t
f
Parameter
DC Supply Voltage (Referenced to GND)
DC Input Voltage, Output Voltage (Referenced to GND)
Operating Temperature, All Package Types
Input Rise and Fall Time (Figure 1)
V
CC
=2.0 V
V
CC
=4.5 V
V
CC
=6.0 V
Min
2.0
0
-55
0
0
0
Max
6.0
V
CC
+125
1000
500
400
Unit
V
V
°C
ns
This device contains protection circuitry to guard against damage due to high static voltages or electric fields.
However, precautions must be taken to avoid applications of any voltage higher than maximum rated voltages to this
high-impedance circuit. For proper operation, V
IN
and V
OUT
should be constrained to the range GND≤(V
IN
or
V
OUT
)≤V
CC
.
Unused inputs must always be tied to an appropriate logic voltage level (e.g., either GND or V
CC
). Unused
outputs must be left open.
2
KK74HC253A
DC ELECTRICAL CHARACTERISTICS
(Voltages Referenced to GND)
V
CC
Symbol
Parameter
Test Conditions
V
Guaranteed Limit
25
°C
to
-55°C
1.5
3.15
4.2
0.3
0.9
1.2
1.9
4.4
5.9
3.98
5.48
0.1
0.1
0.1
0.26
0.26
±0.1
±0.5
≤85
°C
1.5
3.15
4.2
0.3
0.9
1.2
1.9
4.4
5.9
3.84
5.34
0.1
0.1
0.1
0.33
0.33
±1.0
±5.0
≤125
°C
1.5
3.15
4.2
0.3
0.9
1.2
1.9
4.4
5.9
3.7
5.2
0.1
0.1
0.1
0.4
0.4
±1.0
±10
µA
µA
V
Unit
V
IH
Minimum High-
Level Input Voltage
Maximum Low -
Level Input Voltage
Minimum High-
Level Output Voltage
V
OUT
=0.1 V or V
CC
-0.1 V
⎢I
OUT
⎢≤
20
µA
V
OUT
=0.1 V or V
CC
-0.1 V
⎢I
OUT
⎢ ≤
20
µA
V
IN
=V
IH
or V
IL
⎢I
OUT
⎢ ≤
20
µA
V
IN
=V
IH
or V
IL
⎢I
OUT
⎢ ≤
4.0 mA
⎢I
OUT
⎢ ≤
5.2 mA
2.0
4.5
6.0
2.0
4.5
6.0
2.0
4.5
6.0
4.5
6.0
2.0
4.5
6.0
4.5
6.0
6.0
6.0
V
V
IL
V
V
OH
V
V
OL
Maximum Low-
Level Output Voltage
V
IN
=V
IH
or V
IL
⎢I
OUT
⎢ ≤
20
µA
V
IN
=V
IH
or V
IL
⎢I
OUT
⎢ ≤
4.0 mA
⎢I
OUT
⎢ ≤
5.2 mA
I
IN
I
OZ
Maximum Input
Leakage Current
Maximum Three-
State Leakage
Current
Maximum Quiescent
Supply Current
(per Package)
V
IN
=V
CC
or GND
Output in High-Impedance
State
V
IN
= V
IL
or V
IH
V
OUT
=V
CC
or GND
V
IN
=V
CC
or GND
I
OUT
=0µA
I
CC
6.0
8.0
80
160
µA
3
KK74HC253A
AC ELECTRICAL CHARACTERISTICS
(C
L
=50pF,Input t
r
=t
f
=6.0 ns)
V
CC
Symbol
Parameter
V
Guaranteed Limit
25
°C
to
-55°C
140
28
24
175
35
30
150
30
26
100
20
17
75
15
13
10
15
≤85°C
≤125°C
Unit
t
PLH
, t
PHL
Maximum Propagation Delay, Data to
Output Y (Figures 1 and 3)
Maximum Propagation Delay , Address to
Output Y (Figures 1 and 3)
Maximum Propagation Delay ,Output Enable to
Output Y (Figures 2 and 4)
Maximum Propagation Delay ,Output Enable to
Output Y (Figures 2 and 4)
Maximum Output Transition Time, Any Output
(Figures 1 and 3)
Maximum Input Capacitance
Maximum Three-State Output Capacitance
(Output in High-Impedance State)
Power Dissipation Capacitance (Per Muliplexer)
2.0
4.5
6.0
2.0
4.5
6.0
2.0
4.5
6.0
2.0
4.5
6.0
2.0
4.5
6.0
-
-
175
35
30
220
44
37
190
38
33
125
25
21
95
19
16
10
15
210
42
36
265
53
45
225
45
38
150
30
26
110
22
19
10
15
ns
t
PLH
, t
PHL
ns
t
PLZ
, t
PHZ
ns
t
PZL
, t
PZH
ns
t
TLH
, t
THL
ns
C
IN
C
OUT
pF
pF
Typical @25°C,V
CC
=5.0 V
31
pF
C
PD
Used to determine the no-load dynamic power
consumption:
P
D
=C
PD
V
CC2
f+I
CC
V
CC
Figure 1. Switching Waveforms
Figure 2. Switching Waveforms
4
KK74HC253A

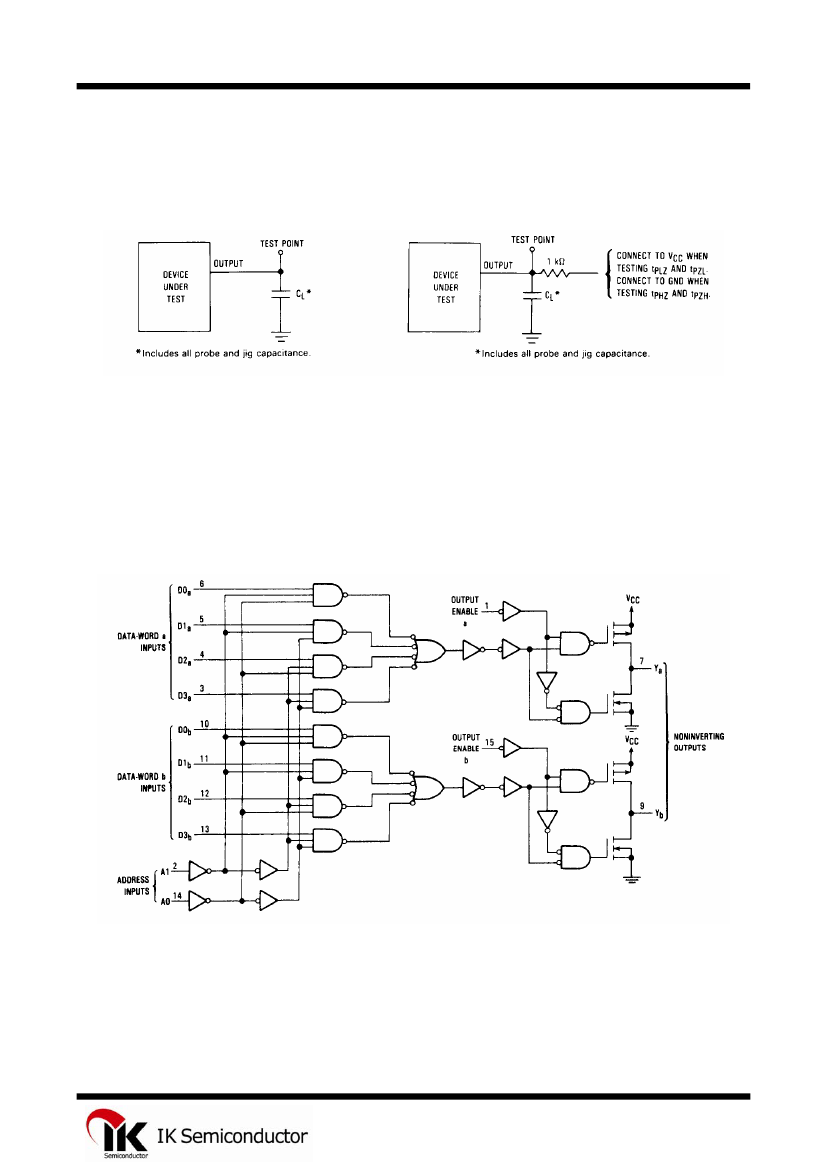

Figure 3. Test Circuit
Figure 4. Test Circuit
EXPANDED LOGIC DIAGRAM
5
