TECHNICAL DATA
KK74HC4015A
Dual 4-Bit Shift Register
High-Performance Silicon-Gate CMOS
The device inputs are compatible with standard CMOS outputs; with
pullup resistors, they are compatible with LS/ALSTTL outputs.
This device consists of two identical independent 4-stage serial-
input/parallel-output registers. Each register has independent Clock and
Reset inputs as well as a single serial Data input. “Q” outputs are
available from each of the four stages on both registers. All register stages
are D-type, master-slave flip-flops. The logic level present at the Data
input is transferred into the first register stage and shifted over one stage
at each positive-going clock transition. Resetting of all stages is
accomplished by a high level on the reset line.
•
Outputs Directly Interface to CMOS, NMOS, and TTL
•
Operating Voltage Range: 2.0 to 6.0 V
•
Low Input Current: 1.0
µA
•
High Noise Immunity Characteristic of CMOS Devices
ORDERING INFORMATION
KK74HC4015AN Plastic
KK74HC4015AD SOIC
T
A
= -55° to 125° C for all packages

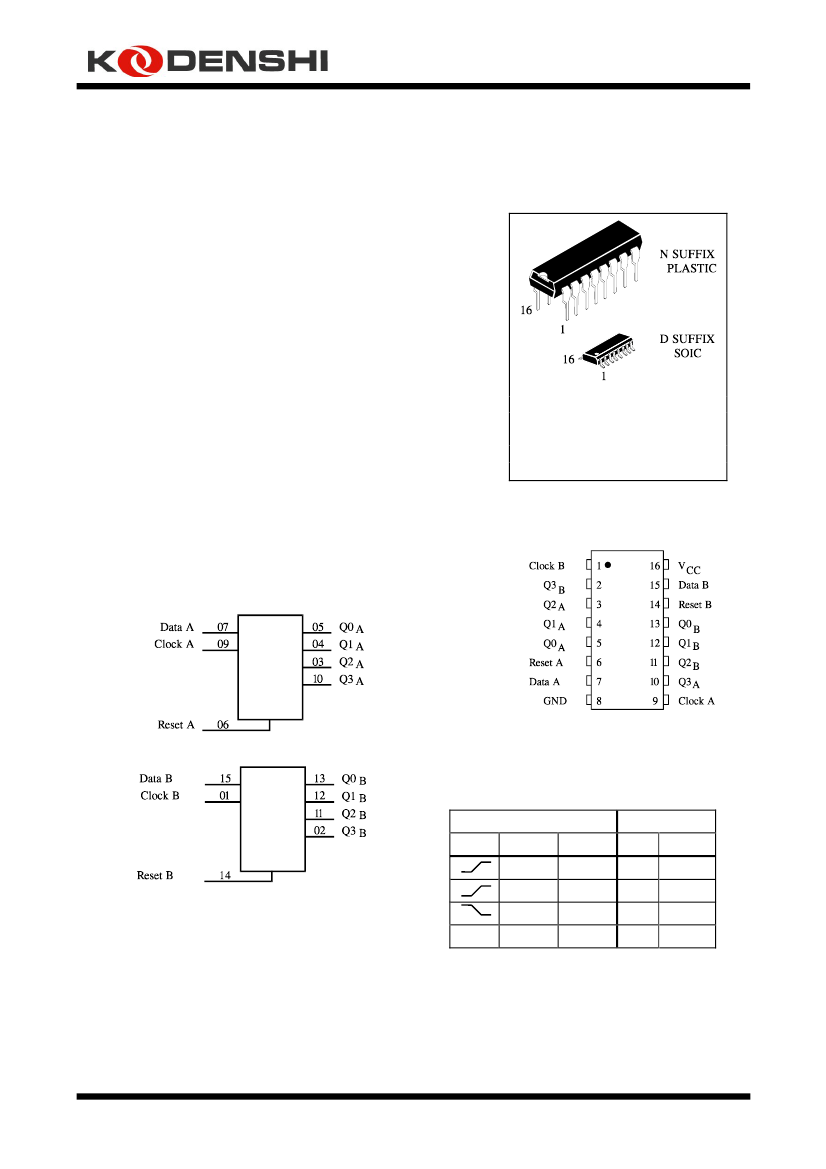

PIN ASSIGNMENT
LOGIC DIAGRAM
FUNCTION TABLE
Inputs
Clock
Data
L
PIN 16 = V
CC
PIN 8 = GND
X
*
Outputs
Reset
L
L
L
H
Q
0
L
H
Q
0*
L
Q
n
Q
n-1
Q
n-1
Q
n*
L
H
X
X
= No Change
X = don’t care
1
KK74HC4015A
MAXIMUM RATINGS
*
Symbol
V
CC
V
IN
V
OUT
I
IN
I
OUT
I
CC
P
D
Tstg
T
L
*
Parameter
DC Supply Voltage (Referenced to GND)
DC Input Voltage (Referenced to GND)
DC Output Voltage (Referenced to GND)
DC Input Current, per Pin
DC Output Current, per Pin
DC Supply Current, V
CC
and GND Pins
Power Dissipation in Still Air, Plastic DIP+
SOIC Package+
Storage Temperature
Lead Temperature, 1 mm from Case for 10 Seconds
(Plastic DIP or SOIC Package)
Value
-0.5 to +7.0
-1.5 to V
CC
+1.5
-0.5 to V
CC
+0.5
±20
±25
±50
750
500
-65 to +150
260
Unit
V
V
V
mA
mA
mA
mW
°C
°C
Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
+Derating - Plastic DIP: - 10 mW/°C from 65° to 125°C
SOIC Package: : - 7 mW/°C from 65° to 125°C
RECOMMENDED OPERATING CONDITIONS
Symbol
V
CC
V
IN
, V
OUT
T
A
t
r
, t
f
Parameter
DC Supply Voltage (Referenced to GND)
DC Input Voltage, Output Voltage (Referenced to GND)
Operating Temperature, All Package Types
Input Rise and Fall Time (Figure 1)
V
CC
=2.0 V
V
CC
=4.5 V
V
CC
=6.0 V
Min
2.0
0
-55
0
0
0
Max
6.0
V
CC
+125
1000
500
400
Unit
V
V
°C
ns
This device contains protection circuitry to guard against damage due to high static voltages or electric fields.
However, precautions must be taken to avoid applications of any voltage higher than maximum rated voltages to this
high-impedance circuit. For proper operation, V
IN
and V
OUT
should be constrained to the range GND≤(V
IN
or
V
OUT
)≤V
CC
.
Unused inputs must always be tied to an appropriate logic voltage level (e.g., either GND or V
CC
). Unused
outputs must be left open.
2
KK74HC4015A
DC ELECTRICAL CHARACTERISTICS
(Voltages Referenced to GND)
V
CC
Symbol
Parameter
Test Conditions
V
Guaranteed Limit
25
°C
to
-55°C
1.5
3.15
4.2
0.3
0.9
1.2
1.9
4.4
5.9
3.98
5.48
0.1
0.1
0.1
0.26
0.26
±0.1
8.0
≤85
°C
1.5
3.15
4.2
0.3
0.9
1.2
1.9
4.4
5.9
3.84
5.34
0.1
0.1
0.1
0.33
0.33
±1.0
80
≤125
°C
1.5
3.15
4.2
0.3
0.9
1.2
1.9
4.4
5.9
3.7
5.2
0.1
0.1
0.1
0.4
0.4
±1.0
160
µA
µA
V
Unit
V
IH
Minimum High-
Level Input Voltage
Maximum Low -
Level Input Voltage
Minimum High-
Level Output Voltage
V
OUT
= 0.1 V or V
CC
-0.1 V
⎢I
OUT
⎢≤
20
µA
V
OUT
=0.1 V or V
CC
-0.1 V
⎢I
OUT
⎢ ≤
20
µA
V
IN
=V
IH
or V
IL
⎢I
OUT
⎢ ≤
20
µA
V
IN
= V
IH
or V
IL
⎢I
OUT
⎢ ≤
4.0 mA
⎢I
OUT
⎢ ≤
5.2 mA
2.0
4.5
6.0
2.0
4.5
6.0
2.0
4.5
6.0
4.5
6.0
2.0
4.5
6.0
4.5
6.0
6.0
6.0
V
V
IL
V
V
OH
V
V
OL
Maximum Low-
Level Output Voltage
V
IN
=V
IH
or V
IL
⎢I
OUT
⎢ ≤
20
µA
V
IN
= V
IH
or V
IL
⎢I
OUT
⎢ ≤
4.0 mA
⎢I
OUT
⎢ ≤
5.2 mA
I
IN
I
CC
Maximum Input
Leakage Current
Maximum Quiescent
Supply Current
(per Package)
V
IN
=V
CC
or GND
V
IN
=V
CC
or GND
I
OUT
=0µA
3
KK74HC4015A
AC ELECTRICAL CHARACTERISTICS
(C
L
=50pF,Input t
r
=t
f
=6.0 ns)
V
CC
Symbol
f
max
Parameter
Maximum Clock Frequency (50% Duty Cycle)
(Figure 2)
Maximum Propagation Delay, Clock to Q
(Figures 2 and 5)
Maximum Propagation Delay, Reset to Q
(Figures 1 and 5)
Maximum Output Transition Time, Any Output
(Figures 3 and 5)
Maximum Input Capacitance
Power Dissipation Capacitance (Per Latch)
C
PD
Used to determine the no-load dynamic power
consumption: P
D
=C
PD
V
CC2
f+I
CC
V
CC
V
2.0
4.5
6.0
2.0
4.5
6.0
2.0
4.5
6.0
2.0
4.5
6.0
-
Guaranteed Limit
25
°C
to
-55°C
6
30
35
175
35
30
205
41
35
75
15
13
10
≤85°C
4.8
24
28
220
44
37
255
51
43
95
19
16
10
≤125°C
4
20
24
265
53
45
310
62
53
110
22
19
10
Unit
MHz
t
PLH
, t
PHL
ns
t
PHL
ns
t
TLH
, t
THL
ns
C
IN
pF
Typical @25°C,V
CC
=5.0 V
140
pF
TIMING REQUIREMENTS
(C
L
=50pF,Input t
r
=t
f
=6.0 ns)
V
CC
Symbol
t
su
Parameter
Minimum Setup Time, D to Clock
(Figure 4)
Minimum Hold Time, Clock to D
(Figure 4)
Minimum Recovery Time, Reset to
Clock (Figure 1)
Minimum Pulse Width, Reset (Figure
1)
Minimum Pulse Width, Clock
(Figure 4)
Maximum Input Rise and Fall Times
(Figure 1)
V
2.0
4.5
6.0
2.0
4.5
6.0
2.0
4.5
6.0
2.0
4.5
6.0
2.0
4.5
6.0
2.0
4.5
6.0
Guaranteed Limit
25
°C
to
-55°C
50
10
9.0
5
5
5
5
5
5
80
16
14
80
16
14
1000
500
400
≤85°C
65
13
11
5
5
5
5
5
5
100
20
17
100
20
17
1000
500
400
≤125°C
75
15
13
5
5
5
5
5
5
120
24
20
120
24
20
1000
500
400
Unit
ns
t
h
ns
t
rec
ns
t
w
ns
t
w
ns
t
r
, t
f
ns
4
KK74HC4015A

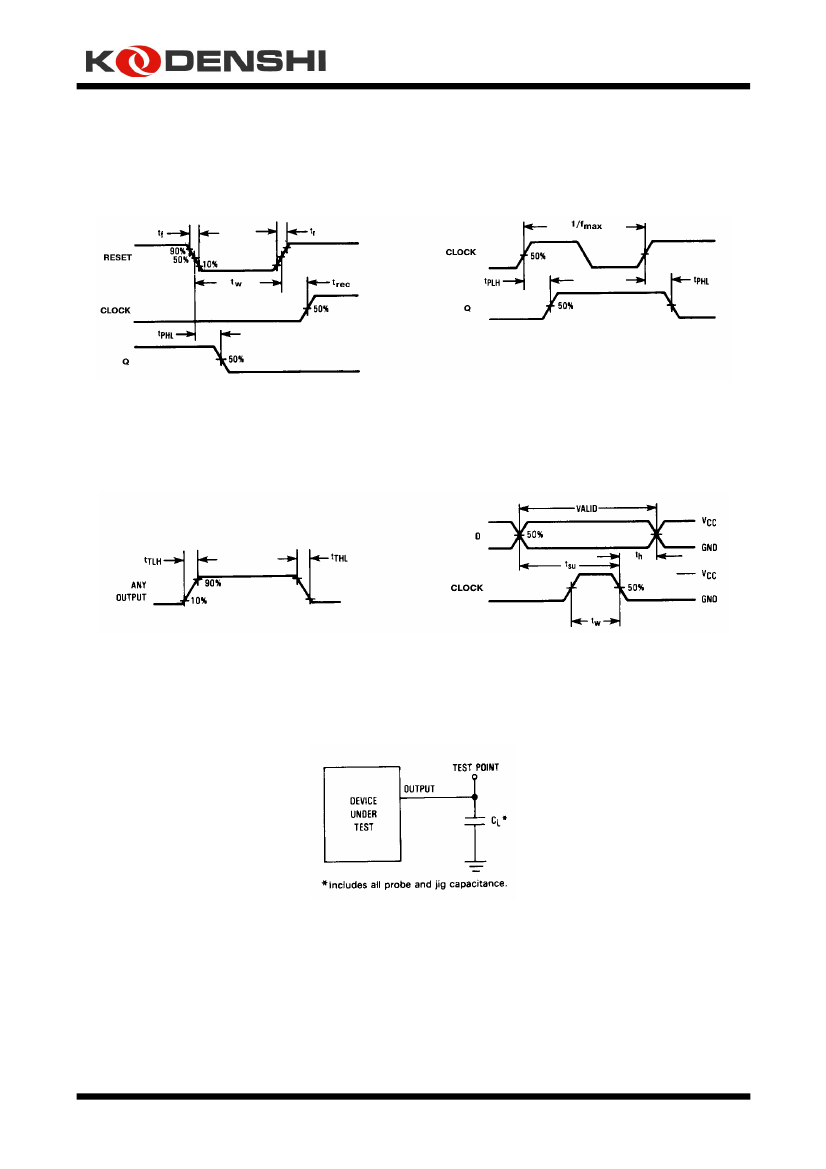

Figure 1. Switching Waveforms
Figure 2. Switching Waveforms
Figure 3. Switching Waveforms
Figure 4. Switching Waveforms
Figure 5. Test Circuit
5
