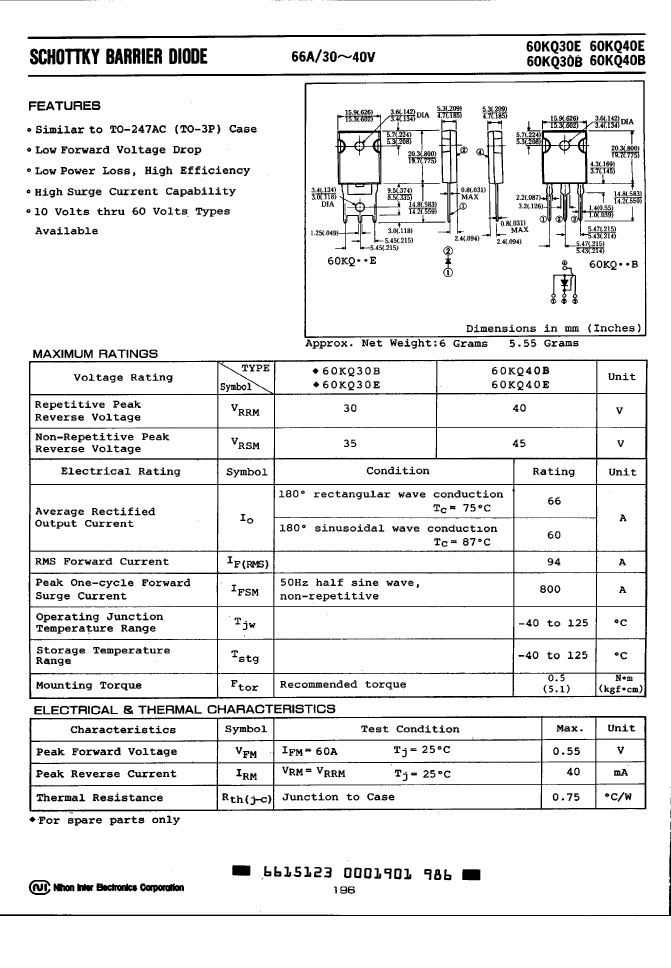

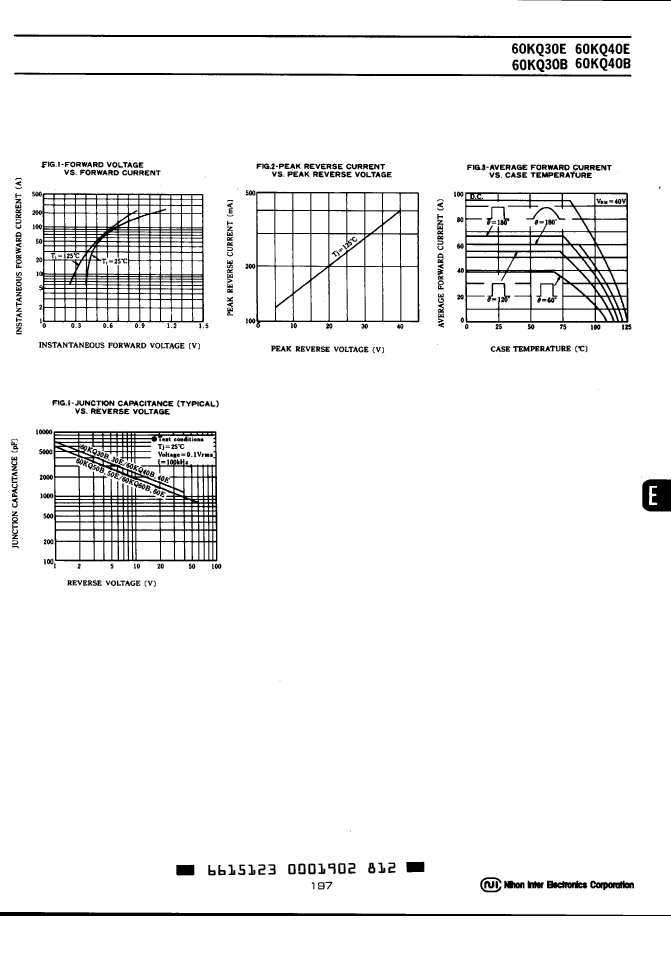

Rectifier Diode, Schottky, 1 Phase, 1 Element, 60A, 30V V(RRM), Silicon, SIMILAR TO TO-247AC (TO-3P), 3 PIN
| Parameter Name | Attribute value |
| Maker | Nihon Inter Electronics Corporation |
| Parts packaging code | TO-3P |
| package instruction | R-PSFM-T3 |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| application | GENERAL PURPOSE |
| Shell connection | CATHODE |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 0.55 V |
| JESD-30 code | R-PSFM-T3 |
| Maximum non-repetitive peak forward current | 800 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -40 °C |
| Maximum output current | 60 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 30 V |
| Maximum reverse current | 40000 µA |
| surface mount | NO |
| technology | SCHOTTKY |
| Terminal form | THROUGH-HOLE |
| Terminal location | SINGLE |
| Base Number Matches | 1 |
| 60KQ30B | 60KQ40B | 60KQ40E | 60KQ30E | |
|---|---|---|---|---|
| Description | Rectifier Diode, Schottky, 1 Phase, 1 Element, 60A, 30V V(RRM), Silicon, SIMILAR TO TO-247AC (TO-3P), 3 PIN | Rectifier Diode, Schottky, 1 Phase, 1 Element, 60A, 40V V(RRM), Silicon, SIMILAR TO TO-247AC (TO-3P), 3 PIN | Rectifier Diode, Schottky, 1 Phase, 1 Element, 60A, 40V V(RRM), Silicon, SIMILAR TO TO-247AC (TO-3P), 1 PIN | Rectifier Diode, Schottky, 1 Phase, 1 Element, 60A, 30V V(RRM), Silicon, SIMILAR TO TO-247AC (TO-3P), 1 PIN |
| Maker | Nihon Inter Electronics Corporation | Nihon Inter Electronics Corporation | Nihon Inter Electronics Corporation | Nihon Inter Electronics Corporation |
| Parts packaging code | TO-3P | TO-3P | TO-3P | TO-3P |
| package instruction | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-X1 | R-PSFM-X1 |
| Contacts | 3 | 3 | 1 | 1 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 |
| application | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Shell connection | CATHODE | CATHODE | CATHODE | CATHODE |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 0.55 V | 0.55 V | 0.55 V | 0.55 V |
| JESD-30 code | R-PSFM-T3 | R-PSFM-T3 | R-PSFM-X1 | R-PSFM-X1 |
| Maximum non-repetitive peak forward current | 800 A | 800 A | 800 A | 800 A |
| Number of components | 1 | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 1 | 1 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C |
| Maximum output current | 60 A | 60 A | 60 A | 60 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 30 V | 40 V | 40 V | 30 V |
| Maximum reverse current | 40000 µA | 40000 µA | 40000 µA | 40000 µA |
| surface mount | NO | NO | NO | NO |
| technology | SCHOTTKY | SCHOTTKY | SCHOTTKY | SCHOTTKY |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | UNSPECIFIED | UNSPECIFIED |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE |
