Part Number

Search

30MF20

Description
Rectifier Diode, 1 Phase, 1 Element, 30A, 200V V(RRM), Silicon,
Categorydiode    Rectifier diode
File Size58KB,2 Pages
ManufacturerNihon Inter Electronics Corporation
Websitehttp://www.niec.co.jp
Download Datasheet Parametric Compare View All

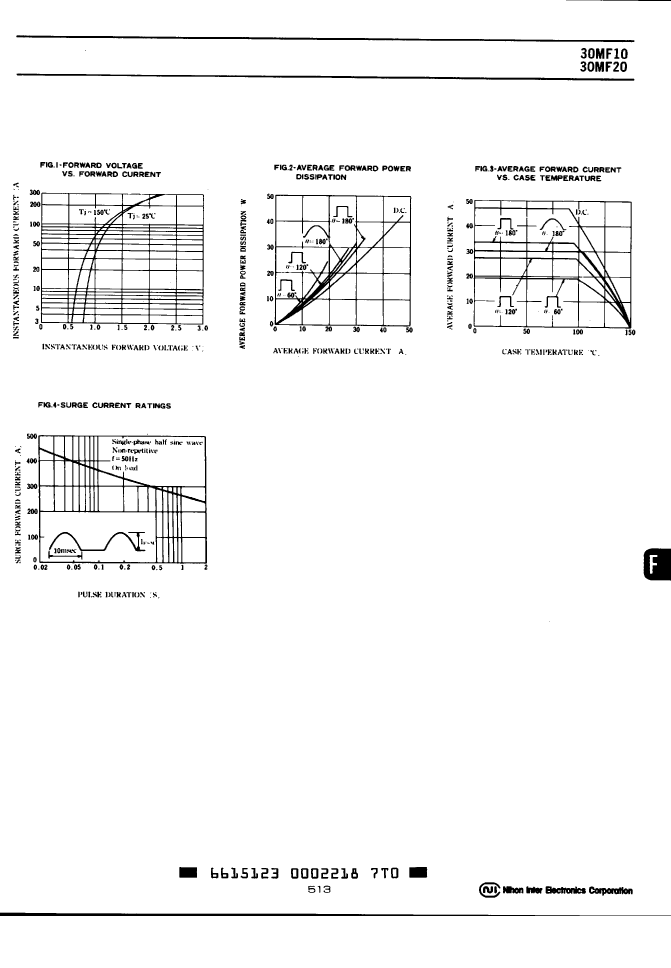

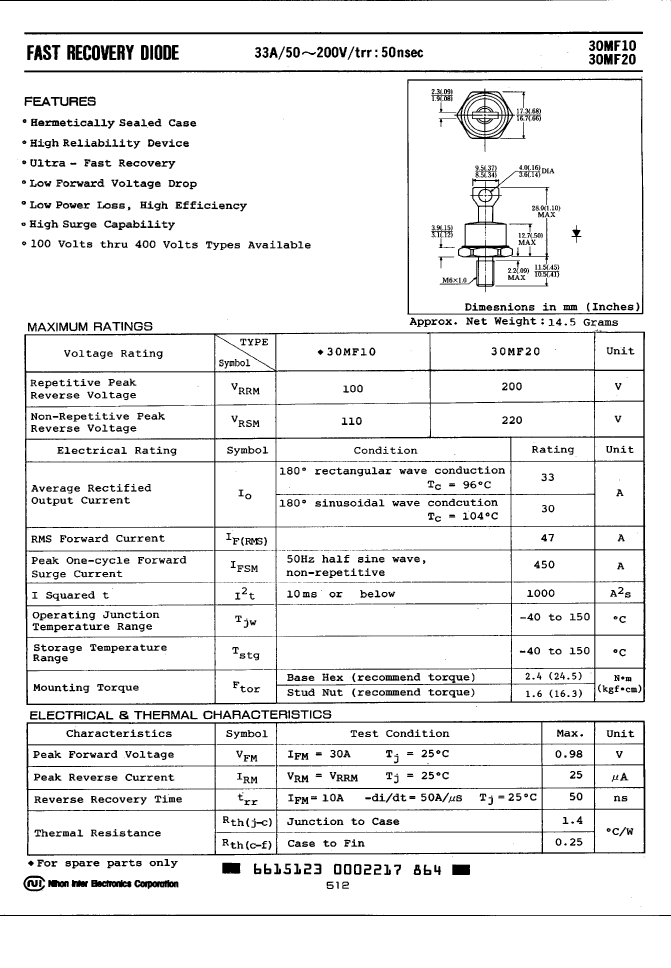

30MF20 Overview

Rectifier Diode, 1 Phase, 1 Element, 30A, 200V V(RRM), Silicon,

30MF20 Parametric

Parameter NameAttribute value
MakerNihon Inter Electronics Corporation
package instructionO-MUPM-D1
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresHIGH RELIABILITY
applicationULTRA FAST RECOVERY
Shell connectionCATHODE
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.98 V
JESD-30 codeO-MUPM-D1
Maximum non-repetitive peak forward current450 A
Number of components1
Phase1
Number of terminals1
Maximum operating temperature150 °C
Minimum operating temperature-40 °C
Maximum output current30 A
Package body materialMETAL
Package shapeROUND
Package formPOST/STUD MOUNT
Certification statusNot Qualified
Maximum repetitive peak reverse voltage200 V
Maximum reverse current25 µA
Maximum reverse recovery time0.05 µs
surface mountNO
Terminal formSOLDER LUG
Terminal locationUPPER
Base Number Matches1
This Material Copyrighted By Its Respective Manufacturer

30MF20 Related Products

30MF20 30MF10
Description Rectifier Diode, 1 Phase, 1 Element, 30A, 200V V(RRM), Silicon, Rectifier Diode, 1 Phase, 1 Element, 30A, 100V V(RRM), Silicon, HERMETIC SEALED PACKAGE-1
package instruction O-MUPM-D1 O-MUPM-D1
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Other features HIGH RELIABILITY HIGH RELIABILITY
application ULTRA FAST RECOVERY ULTRA FAST RECOVERY
Shell connection CATHODE CATHODE
Configuration SINGLE SINGLE
Diode component materials SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 0.98 V 0.98 V
JESD-30 code O-MUPM-D1 O-MUPM-D1
Maximum non-repetitive peak forward current 450 A 450 A
Number of components 1 1
Phase 1 1
Number of terminals 1 1
Maximum operating temperature 150 °C 150 °C
Minimum operating temperature -40 °C -40 °C
Maximum output current 30 A 30 A
Package body material METAL METAL
Package shape ROUND ROUND
Package form POST/STUD MOUNT POST/STUD MOUNT
Certification status Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 200 V 100 V
Maximum reverse current 25 µA 25 µA
Maximum reverse recovery time 0.05 µs 0.05 µs
surface mount NO NO
Terminal form SOLDER LUG SOLDER LUG
Terminal location UPPER UPPER
Base Number Matches 1 1
