30MF40R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > diode> Rectifier diode> 30MF40R

30MF40R: DescriptionRectifier Diode, 1 Phase, 1 Element, 30A, 400V V(RRM), Silicon,; Categorydiode Rectifier diode; File Size63KB，2 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet Parametric Compare View All

30MF40R Overview

Rectifier Diode, 1 Phase, 1 Element, 30A, 400V V(RRM), Silicon,

30MF40R Parametric

Parameter Name	Attribute value
Maker	Nihon Inter Electronics Corporation
package instruction	O-MUPM-D1
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	ULTRA FAST RECOVERY
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	450 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	30 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse current	50 µA
Maximum reverse recovery time	0.06 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

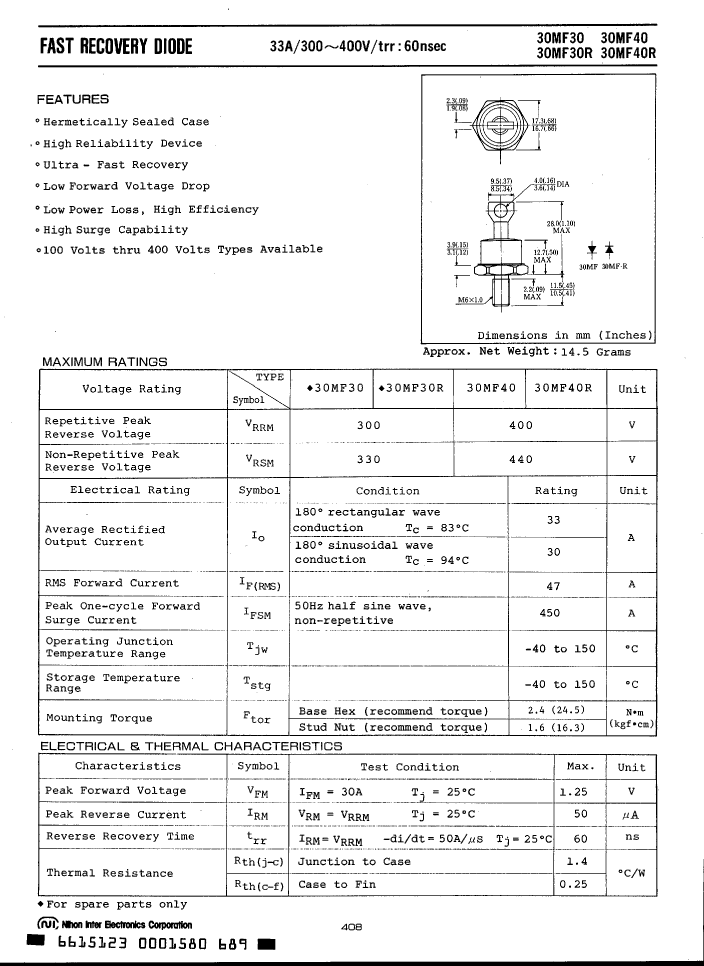

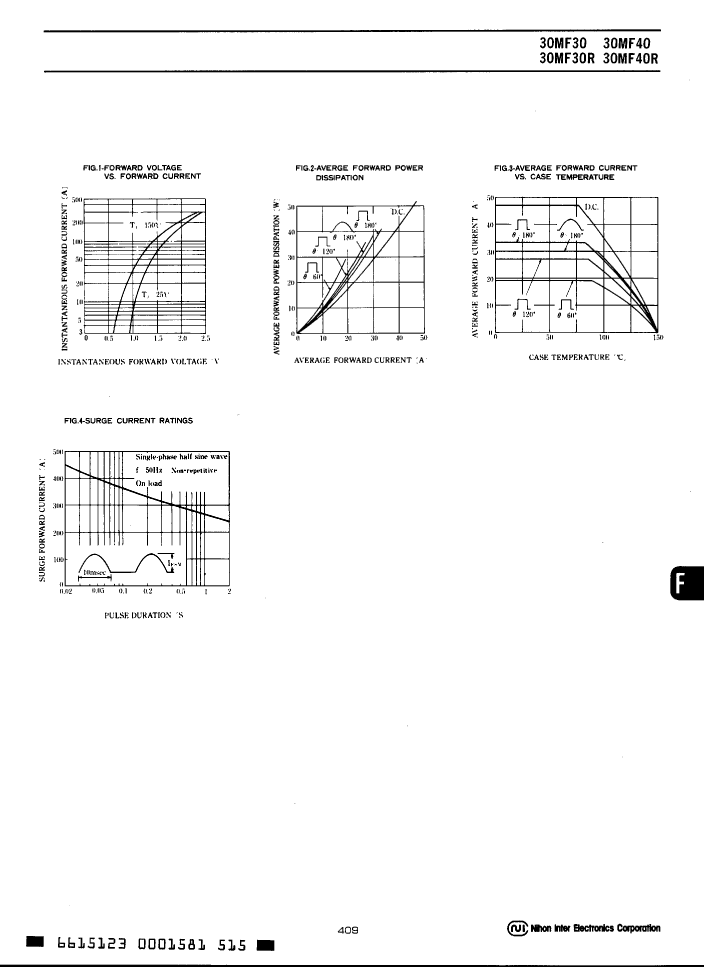

Preview

Download Datasheet

View All

30MF40R Related Products

	30MF40R	30MF30R	30MF40	30MF30
Description	Rectifier Diode, 1 Phase, 1 Element, 30A, 400V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 30A, 300V V(RRM), Silicon, HERMETIC SEALED PACKAGE-1	Rectifier Diode, 1 Phase, 1 Element, 30A, 400V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 30A, 300V V(RRM), Silicon, HERMETIC SEALED PACKAGE-1
Maker	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation	Nihon Inter Electronics Corporation
package instruction	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY
application	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY	ULTRA FAST RECOVERY
Shell connection	ANODE	ANODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V	1.25 V	1.25 V	1.25 V
JESD-30 code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	450 A	450 A	450 A	450 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	30 A	30 A	30 A	30 A
Package body material	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	300 V	400 V	300 V
Maximum reverse current	50 µA	50 µA	50 µA	50 µA
Maximum reverse recovery time	0.06 µs	0.06 µs	0.06 µs	0.06 µs
surface mount	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER
Base Number Matches	1	1	1	-
