87124-8401 datasheet, PDF - EEWORLD Datasheet

87124-8401: DescriptionIC Socket, PLCC84, 84 Contact(s), Solder; Categorysocket; File Size80KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

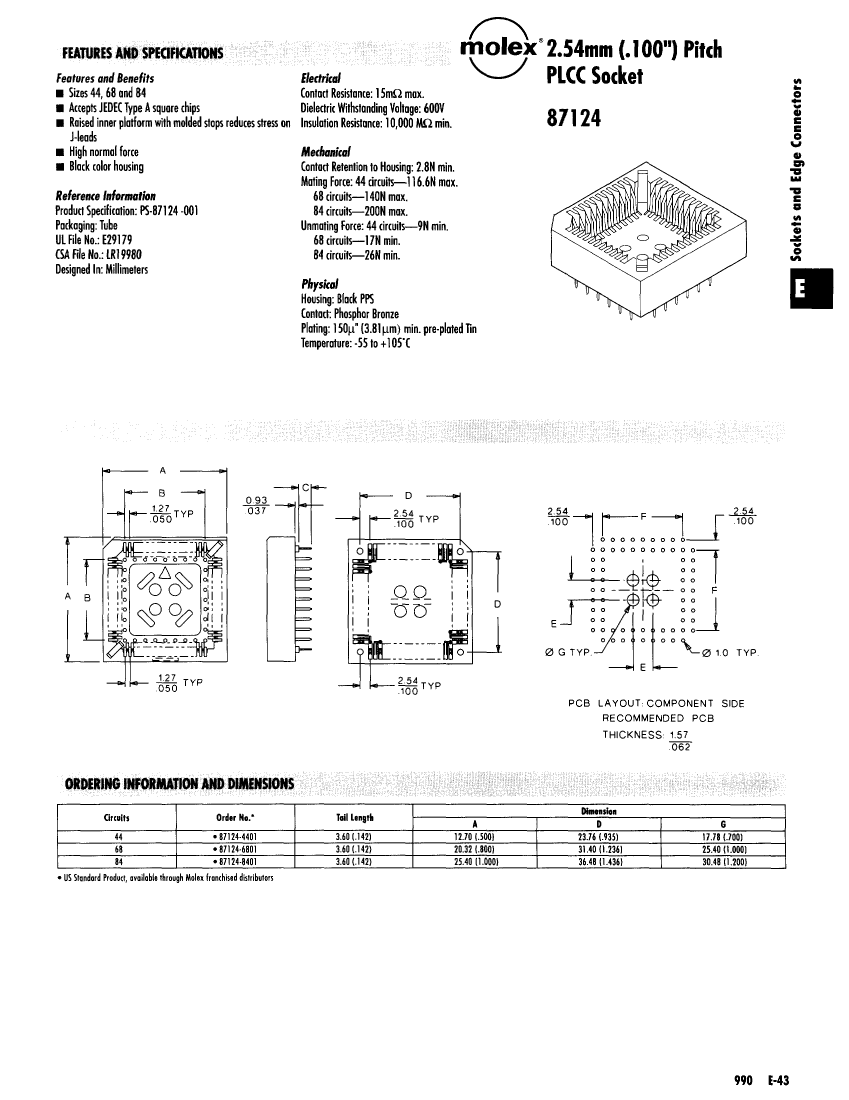

87124-8401 Overview

IC Socket, PLCC84, 84 Contact(s), Solder

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITHOUT PEG, PRE-PLATE
body width	1.436 inch
subject depth	0.32 inch
body length	1.436 inch
Contact structure	21X21
Contact to complete cooperation	NOT SPECIFIED
Contact material	NOT SPECIFIED
Contact style	BELLOWED TYPE
Device slot type	IC SOCKET
Type of equipment used	PLCC84
Dielectric withstand voltage	600VDC V
Shell material	POLYPHENYLENE SULFIDE
Insulation resistance	10000000000 Ω
Manufacturer's serial number	87124
Installation method	STRAIGHT
Number of contacts	84
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Termination type	SOLDER
Base Number Matches	1

	87124-8401	87124-4401	87124-6801
Description	IC Socket, PLCC84, 84 Contact(s), Solder	IC Socket, PLCC44, 44 Contact(s), Solder	IC Socket, PLCC68, 68 Contact(s), Solder
Is it Rohs certified?	conform to	conform to	conform to
Maker	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	WITHOUT PEG, PRE-PLATE	WITHOUT PEG, PRE-PLATE	WITHOUT PEG, PRE-PLATE
body width	1.436 inch	0.935 inch	1.236 inch
subject depth	0.32 inch	0.32 inch	0.32 inch
body length	1.436 inch	0.935 inch	1.236 inch
Contact structure	21X21	11X11	17X17
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	PLCC84	PLCC44	PLCC68
Dielectric withstand voltage	600VDC V	600VDC V	600VDC V
Shell material	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω
Manufacturer's serial number	87124	87124	87124
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	84	44	68
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Termination type	SOLDER	SOLDER	SOLDER
Base Number Matches	1	1	1
