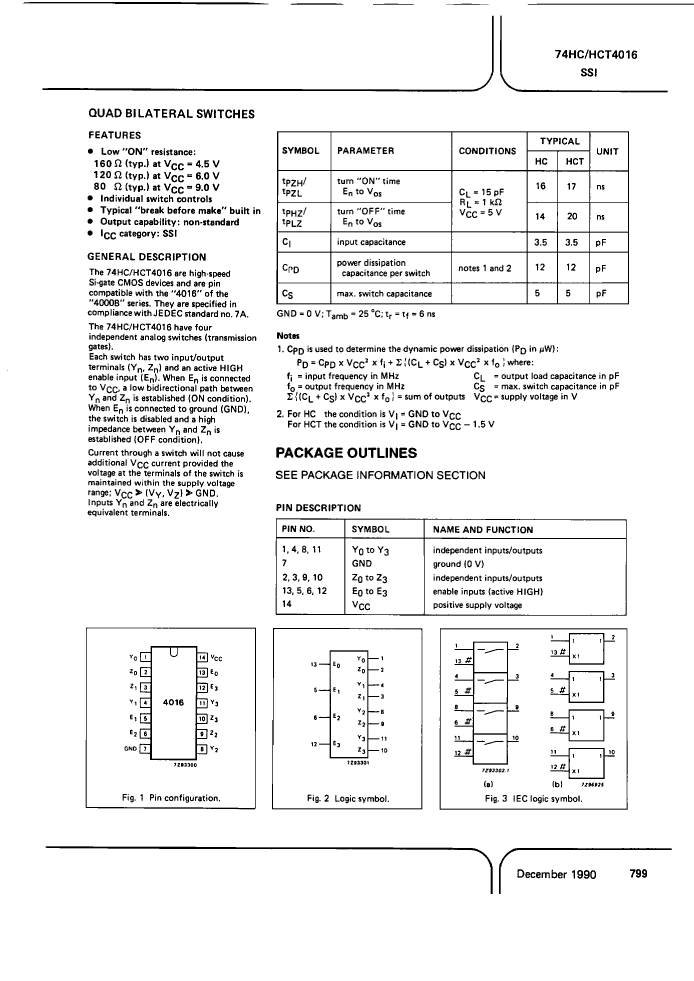

IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14, Multiplexer or Switch

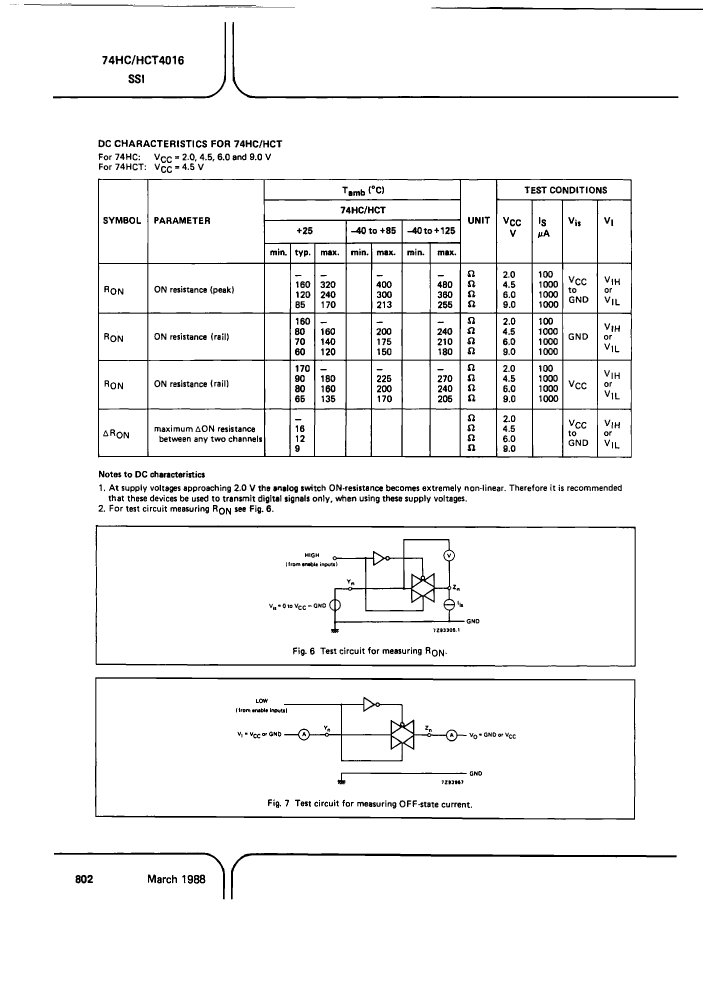

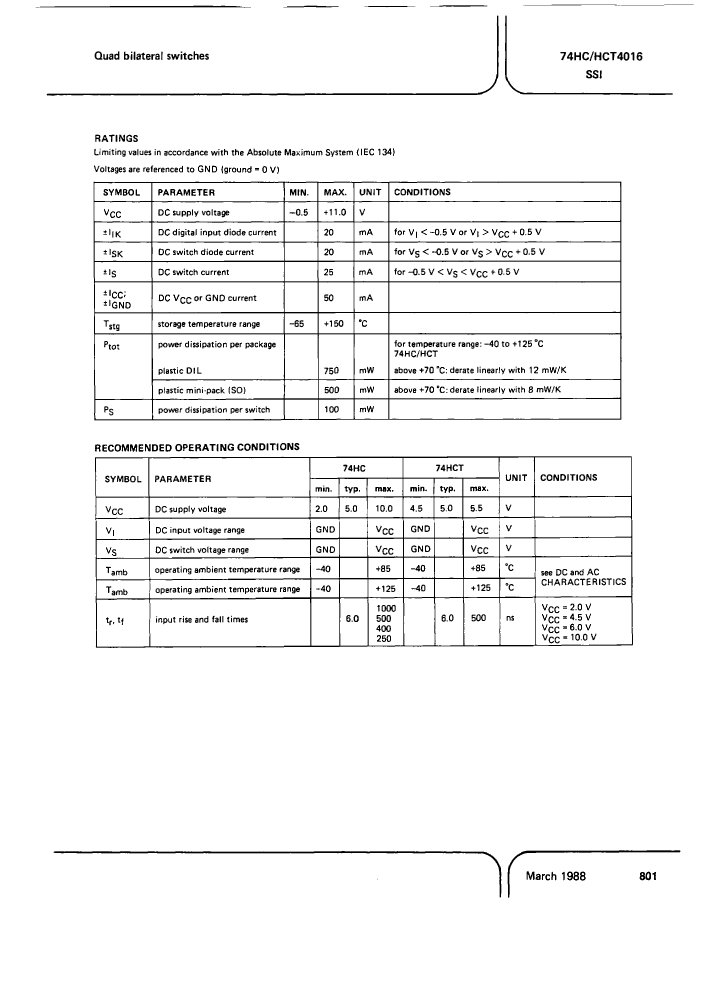

| Parameter Name | Attribute value |
| Maker | NXP |
| package instruction | SSOP, |
| Reach Compliance Code | unknown |
| Analog Integrated Circuits - Other Types | SPST |
| JESD-30 code | R-PDSO-G14 |
| length | 6.2 mm |
| Nominal Negative Supply Voltage (Vsup) | |
| Number of channels | 1 |
| Number of functions | 4 |
| Number of terminals | 14 |
| Nominal off-state isolation | 50 dB |
| On-state resistance matching specifications | 16 Ω |
| Maximum on-state resistance (Ron) | 320 Ω |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SSOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE, SHRINK PITCH |
| Certification status | Not Qualified |
| Maximum seat height | 2 mm |
| Nominal supply voltage (Vsup) | 4.5 V |
| surface mount | YES |
| Maximum disconnect time | 35 ns |
| Maximum connection time | 35 ns |
| technology | CMOS |
| Temperature level | AUTOMOTIVE |
| Terminal form | GULL WING |
| Terminal pitch | 0.65 mm |
| Terminal location | DUAL |
| width | 5.3 mm |
| Base Number Matches | 1 |
| 74HCT4016DB | 74HC4016DB-T | 74HCT4016DB-T | 74HCT4016PW | 74HCT4016PW-T | |
|---|---|---|---|---|---|
| Description | IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14, Multiplexer or Switch | IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14, Multiplexer or Switch | IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14, Multiplexer or Switch | IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14, Multiplexer or Switch | IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO14, Multiplexer or Switch |
| package instruction | SSOP, | SSOP, | SSOP, | SOP, | SOP, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| Analog Integrated Circuits - Other Types | SPST | SPST | SPST | SPST | SPST |
| JESD-30 code | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 | R-PDSO-G14 |
| length | 6.2 mm | 6.2 mm | 6.2 mm | 8.65 mm | 8.65 mm |
| Number of channels | 1 | 1 | 1 | 1 | 1 |
| Number of functions | 4 | 4 | 4 | 4 | 4 |
| Number of terminals | 14 | 14 | 14 | 14 | 14 |
| Nominal off-state isolation | 50 dB | 50 dB | 50 dB | 50 dB | 50 dB |
| On-state resistance matching specifications | 16 Ω | 9 Ω | 16 Ω | 16 Ω | 16 Ω |
| Maximum on-state resistance (Ron) | 320 Ω | 170 Ω | 320 Ω | 320 Ω | 320 Ω |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SSOP | SSOP | SSOP | SOP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE, SHRINK PITCH | SMALL OUTLINE | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 2 mm | 2 mm | 2 mm | 1.75 mm | 1.75 mm |
| Nominal supply voltage (Vsup) | 4.5 V | 9 V | 4.5 V | 4.5 V | 4.5 V |
| surface mount | YES | YES | YES | YES | YES |
| Maximum disconnect time | 35 ns | 22 ns | 35 ns | 35 ns | 35 ns |
| Maximum connection time | 35 ns | 28 ns | 35 ns | 35 ns | 35 ns |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | AUTOMOTIVE | AUTOMOTIVE | AUTOMOTIVE | AUTOMOTIVE | AUTOMOTIVE |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal pitch | 0.65 mm | 0.65 mm | 0.65 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| width | 5.3 mm | 5.3 mm | 5.3 mm | 3.9 mm | 3.9 mm |
| Maker | NXP | - | NXP | NXP | NXP |
| Base Number Matches | 1 | 1 | 1 | - | - |
