D10AA3Z4: Description0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR; CategoryWireless rf/communication Radio frequency and microwave; File Size87KB，2 Pages; ManufacturerAnaren; Websitehttp://www.anaren.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

D10AA3Z4 Overview

0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR

D10AA3Z4 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compli
Nominal attenuation	3 dB
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	40 dBm
JESD-609 code	e3
Maximum operating frequency	3000 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

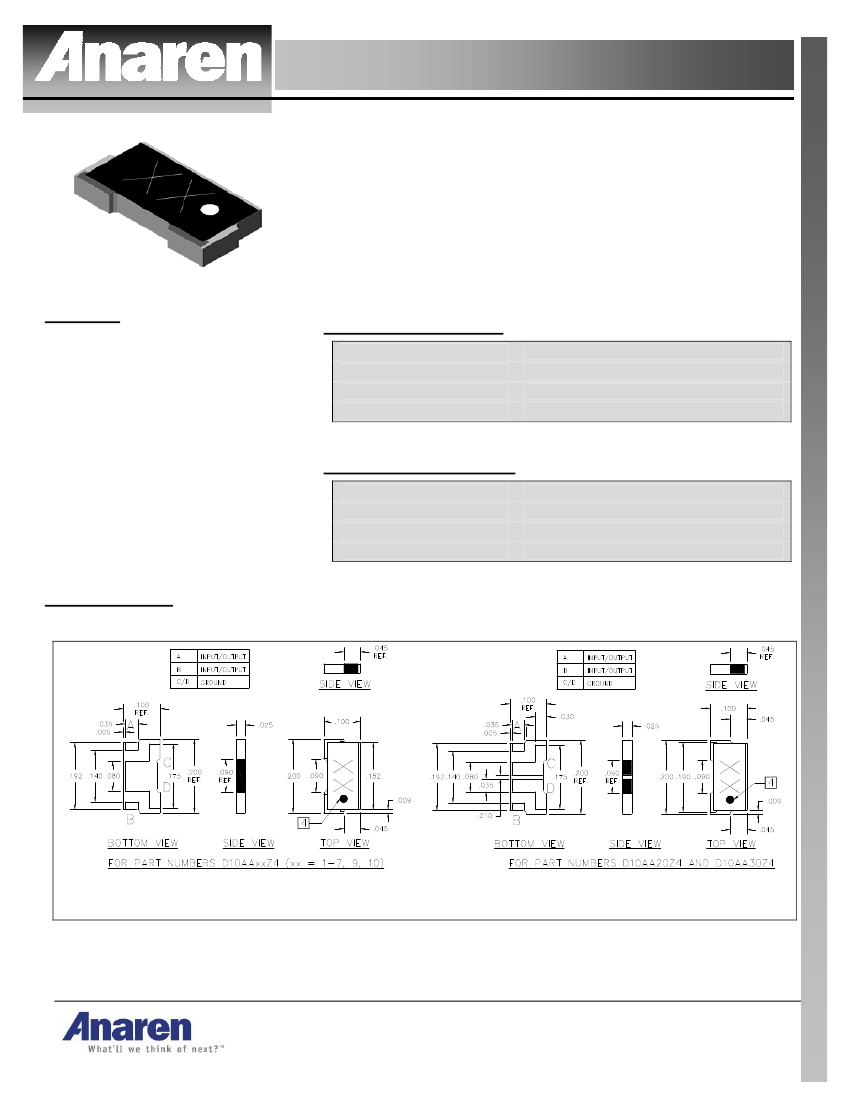

Model D10AAXXZ4

Surface Mount Attenuator

Watts

The D10AAXXZ4 is high performance Alumina (Al

) surface mount

attenuator intended as a lower cost alternative to Aluminum Nitride (AlN)

and Beryllium Oxide (BeO). The attenuator is well suited to all cellular

frequency bands such as; AMPS, GSM, DCS, PCS, PHS and UMTS. The

high power handling makes the part ideal for inter-stage matching,

directional couplers, and for use in isolators.

Features:

•

RoHS Compliant

•

10 Watts

•

Low Cost

•

DC – 3.0GHz

•

Alumina Ceramic

•

Non-Nichrome Resistive

Element

•

Low VSWR

•

100% Tested

General Specifications

Resistive Element

Substrate

Terminal Finish

Operating Temperature

Thick film

Alumina Ceramic

Matte Tin over Sulfamate Nickel

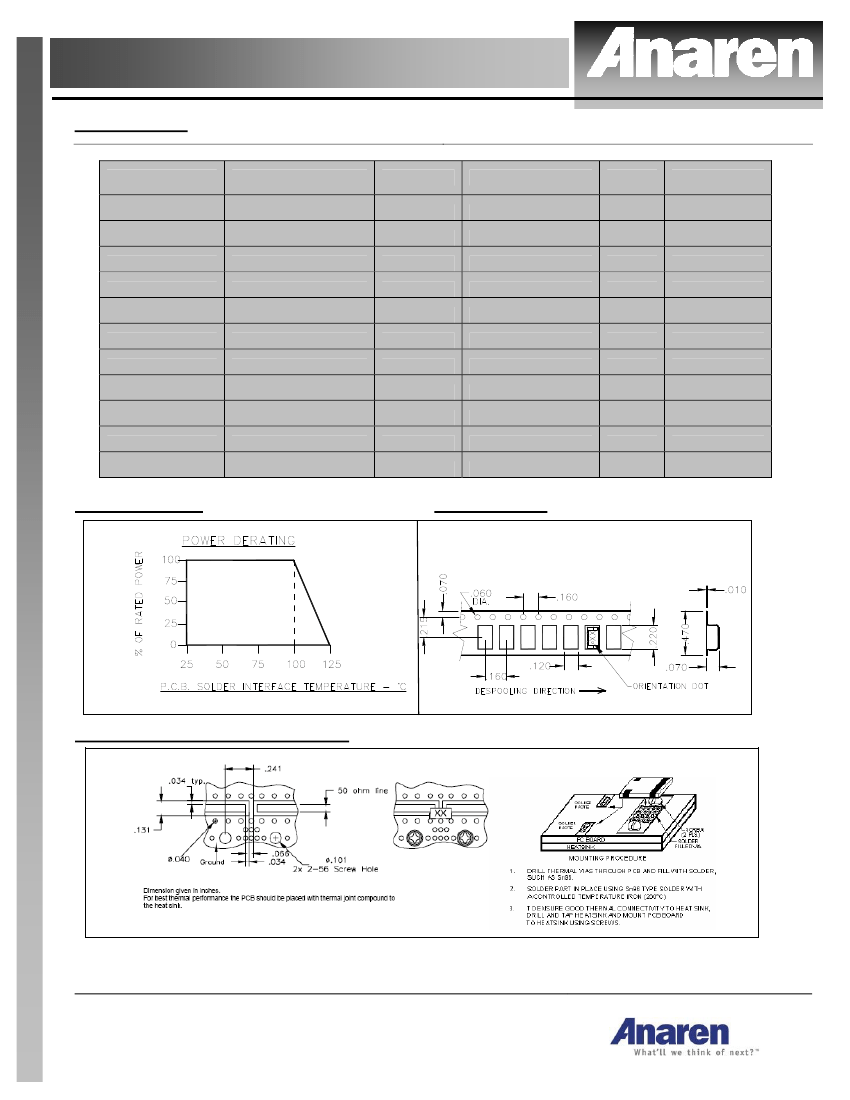

-55 to +125°C (see de rating chart)

Tolerance is

±0.010”,

unless otherwise specified. Designed to meet or exceed

applicable portions of MIL-E-5400.

All dimensions in inches.

Electrical Specifications

Attenuation Value:

Power:

Frequency Range:

VSWR

1 – 7, 9, 10, 20 & 30dB

10 Watts

DC – 3.0GHz

<1.25:1

Specification based on unit properly installed using suggested mounting instructions

and a 50 ohm nominal impedance.

Specifications subject to change.

Outline Drawing

THE D10AAxxZ4 SERIES OF ATTENUATORS ARE SYMMETRICAL

UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE IN INCHES

USA/Canada:

Toll Free:

Europe

(315) 432-8909

(800) 544-2414

+44 2392-232392

D10AA3Z4 Related Products

	D10AA3Z4	D10AA1Z4	D10AA2Z4	D10AAXXZ4	D10AA9Z4	D10AA5Z4	D10AA6Z4	D10AA4Z4
Description	0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR	0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR	0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR	0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR	0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR	0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR	0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR	0 MHz - 3000 MHz RF/MICROWAVE FIXED ATTENUATOR
structure	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT
Maximum operating frequency	3000 MHz	3000 MHz	3000 MHz	3000 MHz	3000 MHz	3000 MHz	3000 MHz	3000 MHz
Maximum operating temperature	125 °C	125 °C	125 °C	125 Cel	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 Cel	-55 °C	-55 °C	-55 °C	-55 °C
Maximum voltage standing wave ratio	1.25	1.25	1.25	1.25	1.25	1.25	1.25	1.25
Is it lead-free?	Lead free	Lead free	Lead free	-	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	conform to	conform to	conform to
Reach Compliance Code	compli	compli	compli	-	compli	compli	compliant	compli
Nominal attenuation	3 dB	1 dB	2 dB	-	9 dB	5 dB	6 dB	4 dB
Characteristic impedance	50 Ω	50 Ω	50 Ω	-	50 Ω	50 Ω	50 Ω	50 Ω
Maximum input power (CW)	40 dBm	40 dBm	40 dBm	-	40 dBm	40 dBm	40 dBm	40 dBm
JESD-609 code	e3	e3	e3	-	e3	e3	e3	e3
RF/Microwave Device Types	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	-	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	-	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrie	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrie
Base Number Matches	1	-	1	-	1	-	1	1
