834-43-003-10-001000: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT; CategoryThe connector; File Size587KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

834-43-003-10-001000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	834-43-003-10-001000	-	-	View	Buy Now

834-43-003-10-001000 Overview

Board Connector, 3 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, Socket, ROHS COMPLIANT

834-43-003-10-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS AND REACH COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

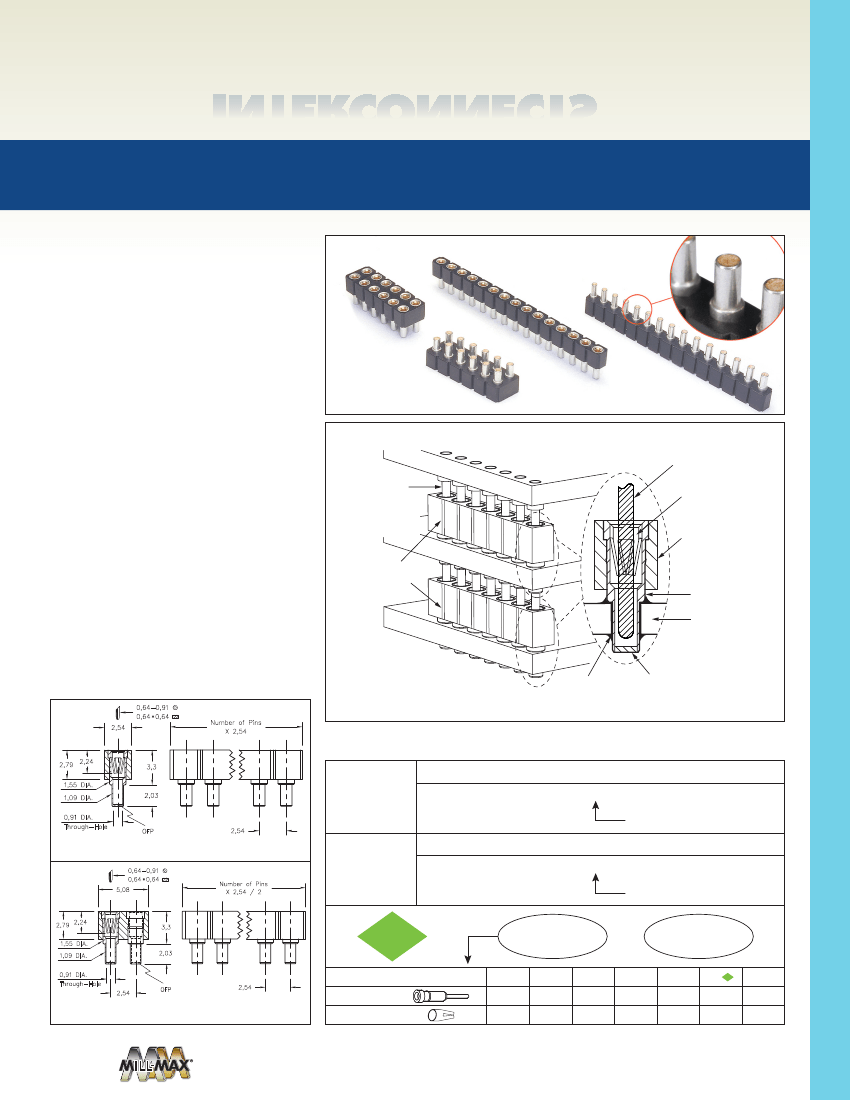

INTERCONNECTS

SERIES 834 & 835 • 2,54 GRID OFP

PASS-THROUGH SOCKETS

Ø0,76

£0,64

PINS• SINGLE AND DOUBLE ROW STRIPS

•

834/835 Series Pass-Through Sockets have a low

•

3,30 profile and will accept Ø 0,76 round pin, as

well as industry standard 0,64 square pin

headers.

They are typically used to interconnect two or

more parallel circuit boards.

Sockets are designed for hand, wave or reflow*

soldering. The high temperature insulator is

compatible with all solder processes.

Unique ORGANIC FIBRE PLUG® barriers prevent

solder, paste or flux from contaminating the

internal spring contacts. After soldering, the

OFP® barriers are pushed out of the socket when

the mating header is inserted.

Mill-Max sockets use a receptacle consisting of a

precision-machined brass sleeve with a press-fit

beryllium copper “multi-finger” spring contact.

Recommended mounting holes are Ø1,17 ±0,08

PTH (1,2 mm drilled prior to plating).

UPPER

CIRCUIT

BOARD

Ø 0,76 or



0,64 PINS

MIDDLE

CIRCUIT

BOARD

Typical Application

INTERCONNECTION

#47 SPRING

CONTACT

*Intrusive

reflow (also called “pin-in-paste”) is a technique

of using conventional through-hole components in a

reflow soldering process. The pass-through socket is placed

into plated through-holes in the circuit board (solder paste

has previously been screen printed on pads adjacent to the

holes) and the board is reflowed in the same pass as other

SMT components. Solder will fill the plated through-holes

and achieve solder joints as reliable as wave soldering. The

OFP® barrier prevents solder paste from being picked up

inside the contact during assembly.

0,64-0,91

0,64 * 0,64

2,54

SOCKET

INSULATOR

PASS THROUGH

SOCKETS

RECEPTACLE

SLEEVE

CIRCUIT

BOARD

LOWER

CIRCUIT

BOARD

SOLDER

JOINT

PUSHED OUT BY INTERCONNECT

PIN AFTER SOLDERING

ORGANIC FIBER PLUG

Number of Pins

X 2,54

US Patent #7,086,870

2,79

2,24

ORDERING INFORMATION

Series 834...001

Single Row OFP

Pass-Through Socket

834-XX-0 _ _-10-001000

Specify number of pins

01-64

3,3

1,55 DIA.

1,09 DIA.

0,91 DIA.

Through-Hole

2,03

FIG. 1

2,54

0,64-0,91

0,64 * 0,64

5,08

Number of Pins

X 2,54 / 2

Specify number of pins

RoHS - 2

04-72

For

Electrical, Mechanical

& Enviromental Data,

See page 264

2,79

2,24

3,3

1,55 DIA.

1,09 DIA.

0,91 DIA.

Through-Hole

2,54

2,03

2011/65/EU

XX=Plating Code

See Below

5,08μm

Sn/Pb

2,54

SPECIFY PLATING CODE XX=

Sleeve

(Pin)

Contact

(Clip)

5,08μm

0,76μm

FIG. 2

0,76μm

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 63 | INTERCONNECTS

FIG. 1

Series 835...001

Double Row OFP

Pass-Through Socket

835-XX-0 _ _-10-001000

FIG. 2
