PNP General Purpose Amplifier
June 2007
BSR18B
PNP General Purpose Amplifier
This device is designed as a general purpose amplifier and switch.
Sourced from Process 23.
3
Marking
2
1
T93
SOT-23
1. Base 2. Emitter 3. Collector
Absolute Maximum Ratings
Symbol
V
CBO
V
CEO
V
EBO
I
C
T
J,
T
STG
NOTES:
* T
a
= 25°C unless otherwise noted
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current (DC)
Junction Temperature, Storage Temperature
Value
40
40
5.0
200
-55 ~ +150
Units
V
V
V
mA
°C
* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
1)
These ratings are based on a maximum junction temperature of 150 degrees C.
2)
These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
Thermal Characteristics
Symbol
P
D
R
θ
JA
Total Device Dissipation
Derate above 25℃
* T
a
= 25°C unless otherwise noted
Characteristic
Max
230
1.84
550
Units
mW
mW/℃
℃/W
Thermal Resistance, Junction to Ambient
*Device mounted on FR-4 PCB 1.6” X 1.6” X 0.06”.
©2007 Fairchild Semiconductor Corporation
1
www.fairchildsemi.com
Rev. A
BSR18B PNP General Purpose Amplifier
Electrical Characteristics
Symbol
Off Characteristics
V
(BR)CEO
V
(BR)CBO
V
(BR)EBO
I
CBO
I
EBO
* T
a
= 25°C unless otherwise noted
Parameter
Test Condition
MIN
MAX
Units
Collector-Emitter Breakdown Voltage
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector-Cutoff Current
Emitter-Cutoff Current
I
C
= 1.0 mA, I
B
= 0
I
C
= 10
μA,
I
E
= 0
I
E
= 10
μA,
I
C
= 0
V
CB
= 30 V
V
CE
= 30 V, V
EB
= 3.0 V
40
40
5.0
50
50
V
V
V
nA
nA
On Characteristics
h
FE
DC Current Gain
I
C
= 0.1 mA, V
CE
= 1.0 V
I
C
= 1.0 mA, V
CE
= 1.0 V
I
C
= 10 mA, V
CE
= 1.0 V
I
C
= 50 mA, V
CE
= 1.0 V
I
C
= 100 mA, V
CE
= 1.0 V
60
80
110
60
30
220
V
CE(
sat
)
V
BE(
sat
)
Collector-Emitter Saturation Voltage
*
I
C
= 10 mA, I
B
= 1.0 mA
I
C
= 50 mA, I
B
= 5.0 mA
Emitter-Base Breakdown Voltage
*
I
C
= 10 mA, I
B
= 1.0 mA
I
C
= 50 mA, I
B
= 5.0 mA
0.65
0.25
0.4
0.85
0.95
V
V
V
V
Small Signal Characteristics
C
cb
C
eb
Collector-Base Capacitance
Emitter-Base Capacitance
V
CB
= 5.0 V, I
E
= 0, f = 100 kHz
V
EB
= 0.5 V, I
C
= 0, f = 100 kHz
4.5
10
pF
pF
Switching Characteristics
t
d
t
r
t
s
t
f
Delay Time
Rise Time
Storage Time
Fall Time
I
C
= 10 mA, I
B
on
= I
B
off
= 1.0 mA
V
cc
= 3.0 V
I
C
= 10 mA, I
B
1
= 1.0 mA,V
cc
= 3.0 V
35
35
225
75
ns
pF
ns
ns
* Pulse Test: Pulse Width≤300μs, Duty Cycle≤2%
NOTE:
All voltages (V) and currents (A) are negative polarity for PNP transistors.

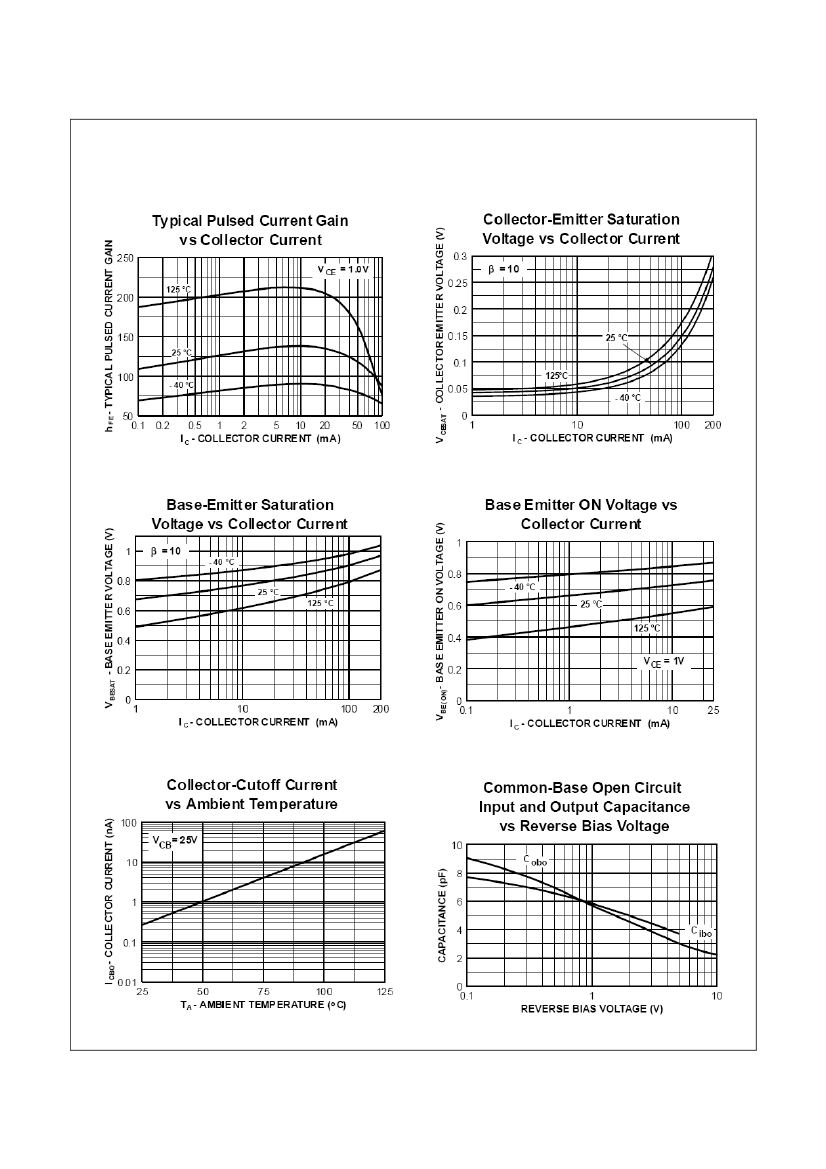

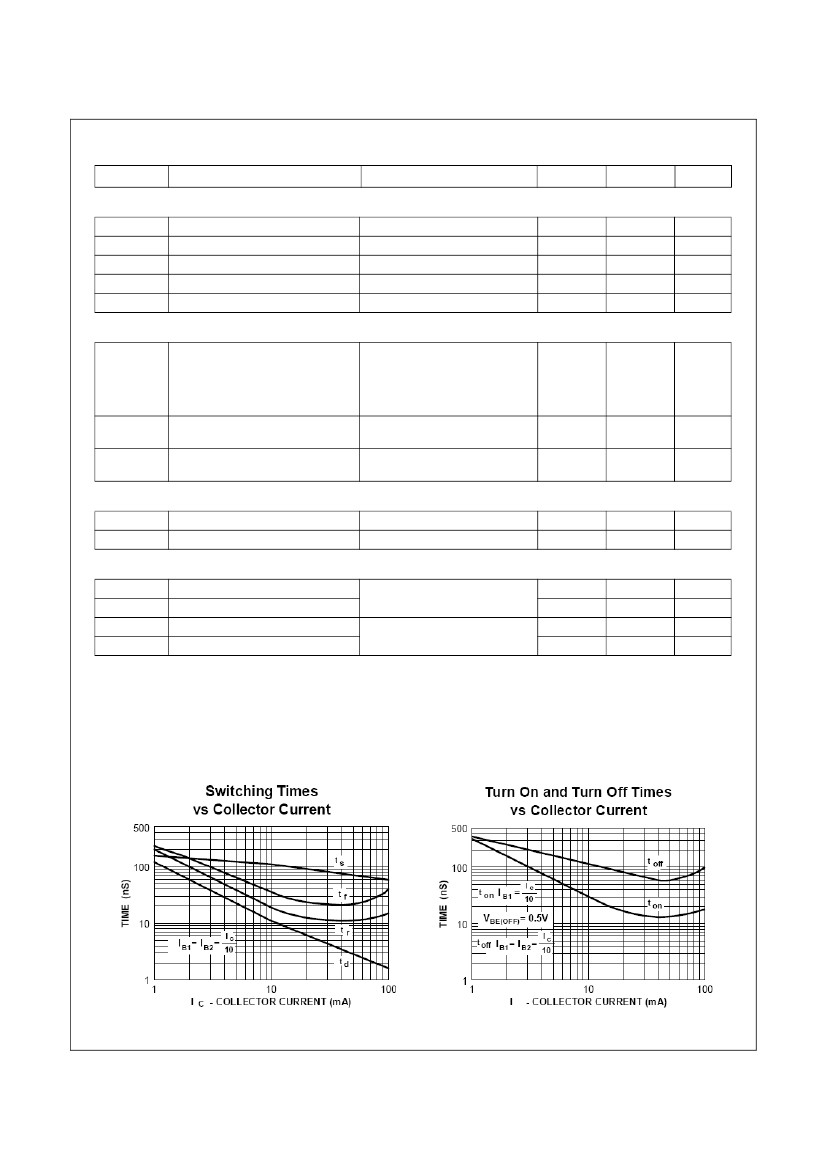

Typical Performance Characteristics
2
BSR18B Rev. A
www.fairchildsemi.com
tm
BSR18B PNP General Purpose Amplifier
