554171-1: Description6 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, IDC, JACK; CategoryThe connector; File Size88KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

554171-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	554171-1	-	-	View	Buy Now

554171-1 Overview

6 CONTACT(S), FEMALE, TELECOM AND DATACOM CONNECTOR, IDC, JACK

554171-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	AMP-BARREL
body width	0.874 inch
subject depth	1.025 inch
body length	1.019 inch
Body/casing type	JACK
Cable type	WIRE, SOLID
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact style	TELCOM, MODULAR
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	554171
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	CABLE AND PANEL
Number of ports	1
Number of rows loaded	1
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYETHYLENE
Termination type	IDC
Total number of contacts	6
UL Flammability Code	94V-0
Maximum wire diameter	22 AWG
Minimum wire diameter	26 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

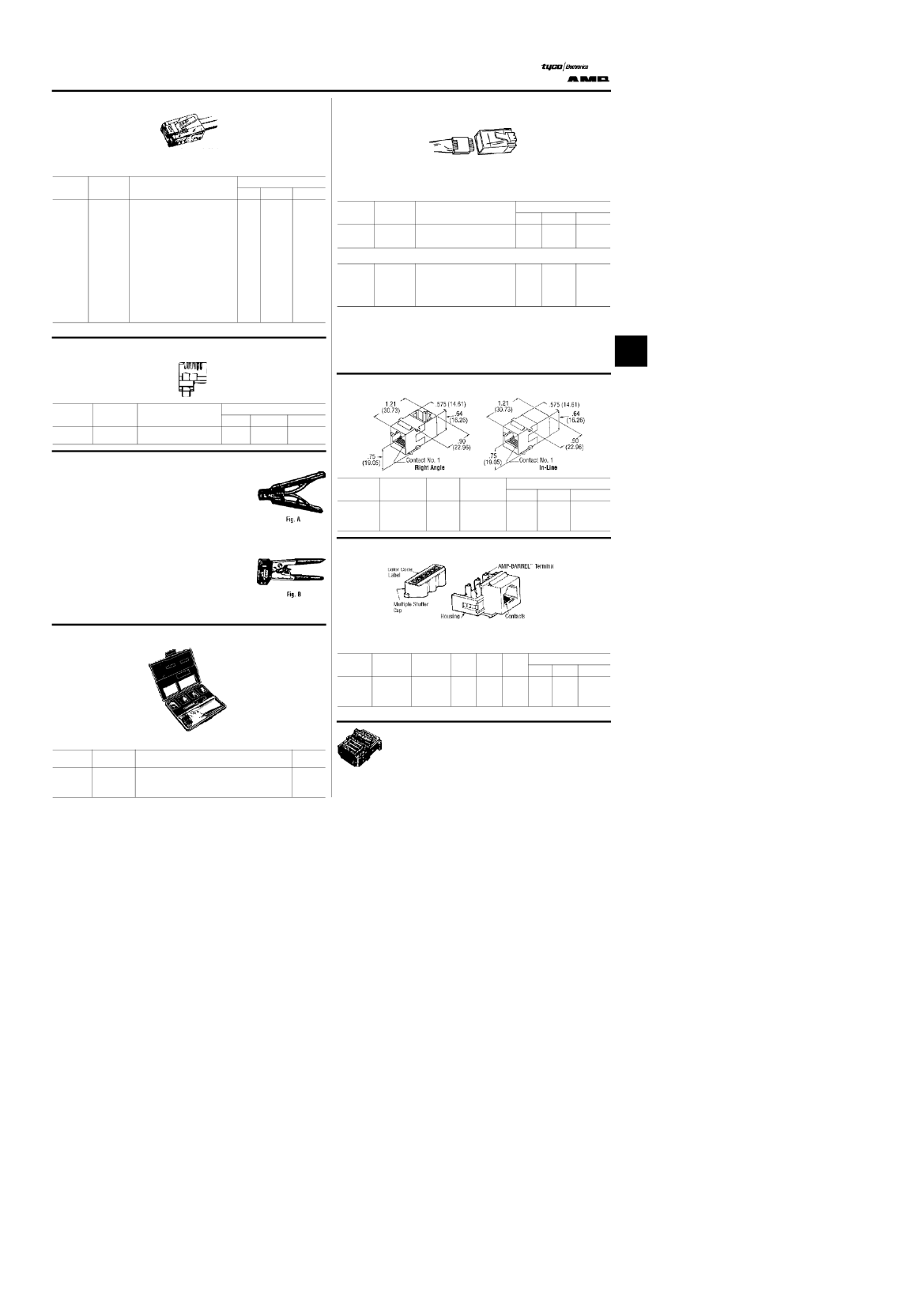

AMP/Tyco
