PhMKP..., PhMKPg..., Cylindrical, LVAC
Vishay ESTA
LVAC Power Capacitors
CAPACITORS IN CYLINDRICAL CASING
APPLICATION
The Vishay ESTA PhMKP/PhMKPg series of power factor
correction capacitors in cylindrical aluminum casing now
provide higher kvar/voltage combinations for use in
low-voltage systems.
The newly available 116 mm and 136 mm diameter
capacitors complete the successful range of compact and
slim cylindrical capacitors of 64 mm and 84.4 mm diameter
design up to the lowest outputs of the triangular can design
of the PhMKDg model.
The 116 mm and 136 mm start where the output of the
84 mm design ends. At the point of change, the customer
has two options: the lower height profile of the 116 mm and
136 mm or the slimmer diameter of the 84.4 mm design.
The Vishay ESTA LVAC capacitors are suitable for use in
both standard PFC applications and in heavy-duty
applications such as wind turbines:
• automatic PFC-equipment
• individual fixed PFC (e.g. motors, transformers, lighting)
• group fixed PFC
• tuned and detuned capacitor banks
• harmonic filters (e.g. UPS, frequency drives, converter)
DESIGN
The Vishay ESTA LVAC MKP capacitors are metallized
polypropylene film capacitors with self-healing properties.
The current carrying metal layer of an MKP capacitor is
vaporised onto one side of the polypropylene film. The front
surface of tubular winding elements are joined by means of
the metal spray method (schooping). Three winding
elements are encapsulated in one aluminum casing and and
connected to form a true 3-phase capacitor. The
overpressure tear-off fuse prevents the capacitor from
bursting at the end of service life, or due to inadmissible
electrical or thermal overloads.
The capacitor is housed in a tubular aluminum container
with a aluminum lid press-rolled onto it (64 mm and
84.4 mm) or welded (116 mm and 136 mm). The current is
supplied via IP00 screw-on (M5) or IP20 block type safety
terminal. A threaded stud (M12) at the bottom of the
container serves for both grounding and mounting.
The Vishay ESTAprop and ESTAdry capacitors will be
delivered together with discharge resistors and hardware for
mounting and connection.
Vishay ESTA standard capacitors of 64 mm, 84.4 mm,
116 mm and 136 mm diameter will be delivered together
with a thickfilm discharge resistor unit and fixing material for
easy mounting and connection. In 84.4 mm diameter IP00
design there is also an option for feed-through (IN-LINE)
connection of the capacitors to the supply.
The entire range of Vishay ESTA LVAC products are offered
in both natural oil-filled ESTAprop PhMKP and gas-filled
ESTAdry PhMKPg versions.
www.vishay.com
12

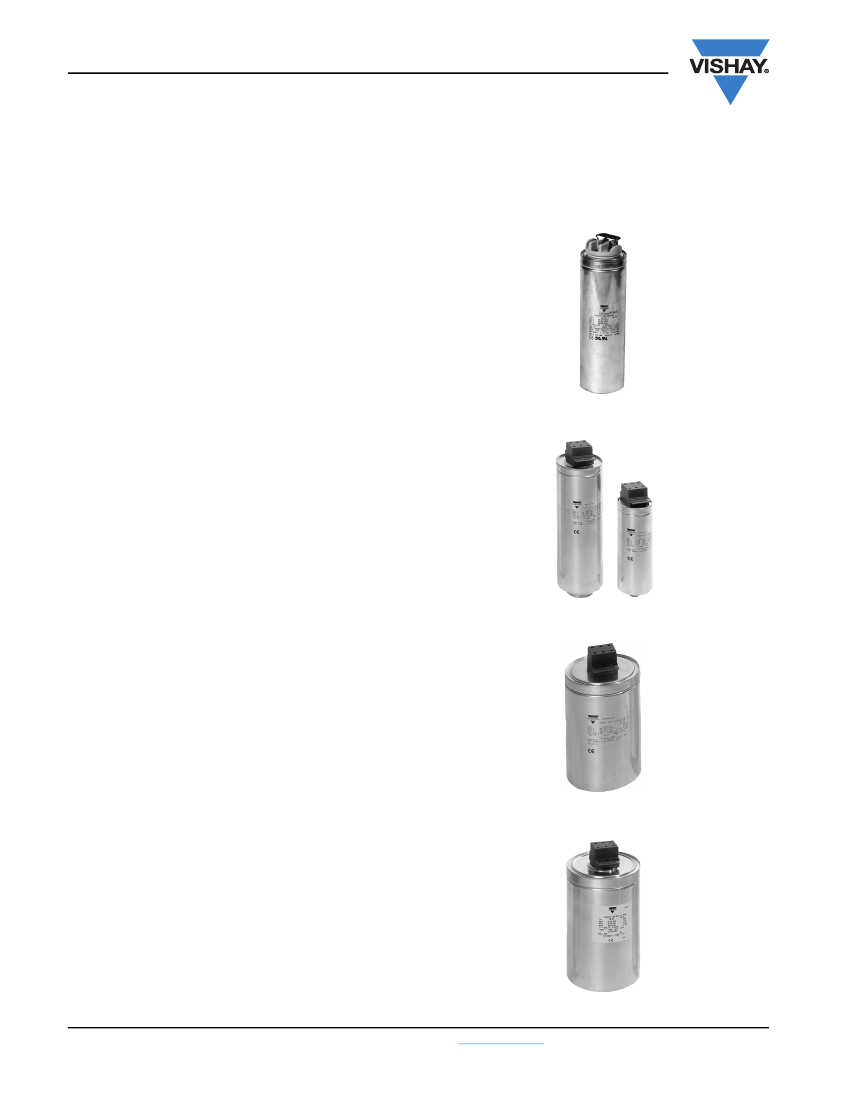

1-/3-PHASE CAPACITOR, IP00 SCREW-TYPE
TERMINALS 84.4 mm DIAMETER
1-/3-PHASE CAPACITOR, IP20 TERMINAL
BLOCK 64 mm/84.4 mm DIAMETER
3-PHASE CAPACITOR, IP20 TERMINAL BLOCK
116 mm DIAMETER
3-PHASE CAPACITOR, IP20 TERMINAL BLOCK
136 mm DIAMETER
For technical questions, contact:
esta@vishay.com
Document Number: 13004
Revision: 29-Oct-10
PhMKP..., PhMKPg..., Cylindrical, LVAC
LVAC Power Capacitors
CAPACITORS IN CYLINDRICAL CASING
TECHNICAL DATA
STANDARDS
IEC 60831-1 + 2, EN 60831- 1 + 2, UL810 LATEST EDITIONS,
UL/ULC - FILE E97723
U
cn
+ 10 % (up to 8 h daily)
U
cn
+ 15 % (up to 30 min daily)
U
cn
+ 20 % (up to 5 min, only 200 times in the life of the capacitor)
U
cn
+ 30 % (up to 1 min, only 200 times in the life of the capacitor)
Please also refer to “Terms and Definitions”.
1.3 x In,
1.5 x In with 10 % overvoltages, 15 % over capacitance and harmonics included,
continuous operation
Please also refer to “Terms and Definitions”.
- 5 %/+ 10 % in accordance with the standards
± 5 % as Vishay ESTA standard
2.15 x U
cn
, VAC , 2 s (routine test)
4800 VAC, 2 s (routine test)
300 times rated current I
n
≤
0.25 W/kvar to 0.45 W/kvar (without discharge resistors)
> 150 000 operating h (ESTAprop)
> 130 000 operating h (ESTAdry)
IP20 clamp terminal with mounted discharge resistor unit or IP00 (terminal cover
for higher protection class upon request), indoor
- 25/D (max. 55 °C) ESTAprop , - 40/D (max. 55 °C) ESTAdry
Max. 65 °C (measured on top of the can)
Naturally air-cooled
Maximum 95 %
2000 m above sea level
Vertical and horizontal
Threaded M12 stud at the bottom of the container
All-phase overpressure tear-off fuse, self-healing
Aluminum can
Polypropylene film, self-healing
Natural oil, non-PCB, biodegradable (ESTAprop) or dry/gas - filled (ESTAdry)
Ø 64 mm
IP20
M4 terminal block
A
(D-351),
3.0 Nm, max. 16 mm
2
drawing 1
max. current, depending on ambient conditions:
34 A (1-phase)/25 A (3-phase)
Ø 84 mm
IP00
M5 screw terminals (D-203),
2.0 Nm, max. 25 mm
2
drawing 2, feed through
max. current, depending on ambient conditions:
57 A (1-phase)/52 A (3-phase)
Terminals per casing Ø
(cross-head screws)
IP20
M4 terminal block
A
(D-351),
3.0 Nm, max. 16 mm
2
drawing 3
max. current, depending on ambient conditions:
57 A (1-phase)/52 A (3-phase)
Ø 116 mm
IP20
M5 terminal block
B
(D-352),
3.0 Nm, max. 25 mm
2
drawing 4
max. current, depending on ambient conditions: 60 A (3-phase)
Ø 136 mm
IP20
M5 terminal block
B
(D-352),
3.0 Nm, max. 25 mm
2
drawing 5
max. current, depending on ambient conditions: 60 A (3-phase)
Vishay ESTA
Overvoltages
(in accordance with the above standards)
Overcurrent
(in accordance with the above standards)
Tolerance on capacitance
Test voltage, terminal/terminal
Test voltage, terminal/casing
Inrush current
Losses
Statistical life expectancy
Degree of protection
Ambient temperature category
Permitted casing temperature
Cooling
Permissible relative humidity
Maximum allowed altitude
Mounting position
Mounting and grounding
Safety features
Casing
Dielectric
Filling agent
Document Number: 13004
Revision: 29-Oct-10
For technical questions, contact:
esta@vishay.com
www.vishay.com
13
PhMKP..., PhMKPg..., Cylindrical, LVAC
Vishay ESTA
3-PHASE CAPACITORS
RATED VOLTAGE 230 V, 50 Hz, DELTA CONNECTION, UL/ULC
TYPE
PhMKP230.3.10,00-84
PhMKP230.3.12,50-84
PhMKP230.3.15,00-84
ARTICLE NO.
(1)
5341-44400-xx
5341-44401-xx
5341-44402-xx
OUTPUT
kvar
10
12.5
15
CAP.
μF
3 x 200.6
3 x 250.7
3 x 300.9
CURRENT
A
25.1
31.4
37.7
DIMENSIONS
ØxH
mm
84.4 x 265
84.4 x 340
84.4 x 340
WEIGHT
kg
1.7
2.0
2.1
DRAWING
NO.
2
2
2
LVAC Power Capacitors
IP00, OIL
RATED VOLTAGE 400 V, 50 Hz, DELTA CONNECTION, UL/ULC
CAN BE USED ALSO FOR 415 V, FULL OVER VOLTAGE RANGE
OUTPUT OUTPUT
(1)
kvar
kvar
TYPE
ARTICLE NO.
415 V
400 V
PhMKP400.3.10,00-84
5341-44403-xx
10
10.8
PhMKP400.3.12,50-84
PhMKP400.3.15,00-84
PhMKP400.3.16,70-84
PhMKP400.3.20,00-84
PhMKP400.3.25,00-84
5341-44404-xx
5341-44405-xx
5341-44406-xx
5341-44407-xx
5341-44408-xx
12.5
15
16.7
20
25
13.5
16.1
18.0
21.5
26.9
CAP.
μF
3 x 66.3
3 x 82.9
3 x 99.5
3 x 110.7
3 x 132.6
3 x 165.8
CURRENT
A
400 V/415 V
14.4/15.0
18.0/18.7
21.6/22.4
24.1/25.0
28.8/30.0
36.1/37.4
DIMENSIONS
ØxH
mm
84.4 x 190
84.4 x 190
84.4 x 190
84.4 x 265
84.4 x 265
84.4 x 265
WEIGHT DRAWING
kg
NO.
1.3
1.3
1.3
1.7
1.7
1.7
2
2
2
2
2
2
RATED VOLTAGE 440 V, 50 Hz, DELTA CONNECTION, UL/ULC
CAN BE USED ALSO FOR 415 V
TYPE
PhMKP440.3.12,50-84
PhMKP440.3.14,10-84
PhMKP440.3.15,00-84
PhMKP440.3.16,90-84
PhMKP440.3.18.80-84
PhMKP440.3.20,00-84
PhMKP440.3.22,50-84
PhMKP440.3.25,00-84
PhMKP440.3.28,10-84
PhMKP440.3.30,00-84
ARTICLE NO.
(1)
5341-44409-xx
5341-44410-xx
5341-44411-xx
5341-44412-xx
5341-44413-xx
5341-44414-xx
5341-44415-xx
5341-44416-xx
5341-44417-xx
5341-44418-xx
OUTPUT OUTPUT
kvar
kvar
440 V
415 V
12.5
11.1
14.1
15
16.9
18.8
20
22.5
25
28.1
30
12.5
13.3
15
16.7
17.8
20
22.2
25
26.7
CAP.
μF
3 x 68.5
3 x 77.0
3 x 82.2
3 x 92.6
3 x 103.0
3 x 109.6
3 x 123.3
3 x 137.0
3 x 154.0
3 x 164.4
CURRENT
A
440 V/415 V
16.4/15.5
18.5/17.5
19.7/18.6
22.2/20.9
24.7/23.3
26.2/24.8
29.5/27.8
32.8/30.9
36.9/34.8
39.4/37.1
DIMENSIONS
ØxH
mm
84.4 x 190
84.4 x 190
84.4 x 190
84.4 x 190
84.4 x 265
84.4 x 265
84.4 x 265
84.4 x 265
84.4 x 265
84.4 x 340
WEIGHT
kg
1.3
1.3
1.3
1.3
1.7
1.7
1.7
1.7
1.7
2.1
DRAWING
NO.
2
2
2
2
2
2
2
2
2
2
RATED VOLTAGE 525 V, 50 Hz, DELTA CONNECTION, UL/ULC
CAN BE USED ALSO FOR 480 V
TYPE
PhMKP525.3.10,00-84
PhMKP525.3.12,50-84
PhMKP525.3.13.80-84
PhMKP525.3.15,00-84
PhMKP525.3.20,00-84
PhMKP525.3.25,00-84
ARTICLE NO.
(1)
5341-44419-xx
5341-44420-xx
5341-44421-xx
5341-44422-xx
5341-44423-xx
5341-44424-xx
OUTPUT OUTPUT
kvar
kvar
525 V
480 V
10
12.5
13.8
15
20
25
8.33
10.4
11.5
12.5
16.7
20
CAP.
μF
3 x 38.5
3 x 48.1
3 x 53.1
3 x 57.7
3 x 77.0
3 x 96.2
CURRENT
A
525 V/480 V
11.0/10.1
13.7/12.6
15.2/13.8
16.5/15.0
22.0/20.1
27.5/24.6
DIMENSIONS
ØxH
mm
84.4 x 190
84.4 x 190
84.4 x 190
84.4 x 190
84.4 x 265
84.4 x 265
WEIGHT
kg
1.3
1.3
1.3
1.3
1.7
1.7
DRAWING
NO.
2
2
2
2
2
2
Notes
• Other voltage ratings, outputs, and frequencies upon request. All PhMKP-type capacitors may be also be applied in 60 Hz networks, output
and current will, however, be 20 % higher in these cases (i.e. additional thermal load and therefore, a lower class of temperature must be
taken into account)
(1)
Version no. xx may differ as it respects small changes, e.g. on the label
www.vishay.com
14
For technical questions, contact:
esta@vishay.com
Document Number: 13004
Revision: 29-Oct-10

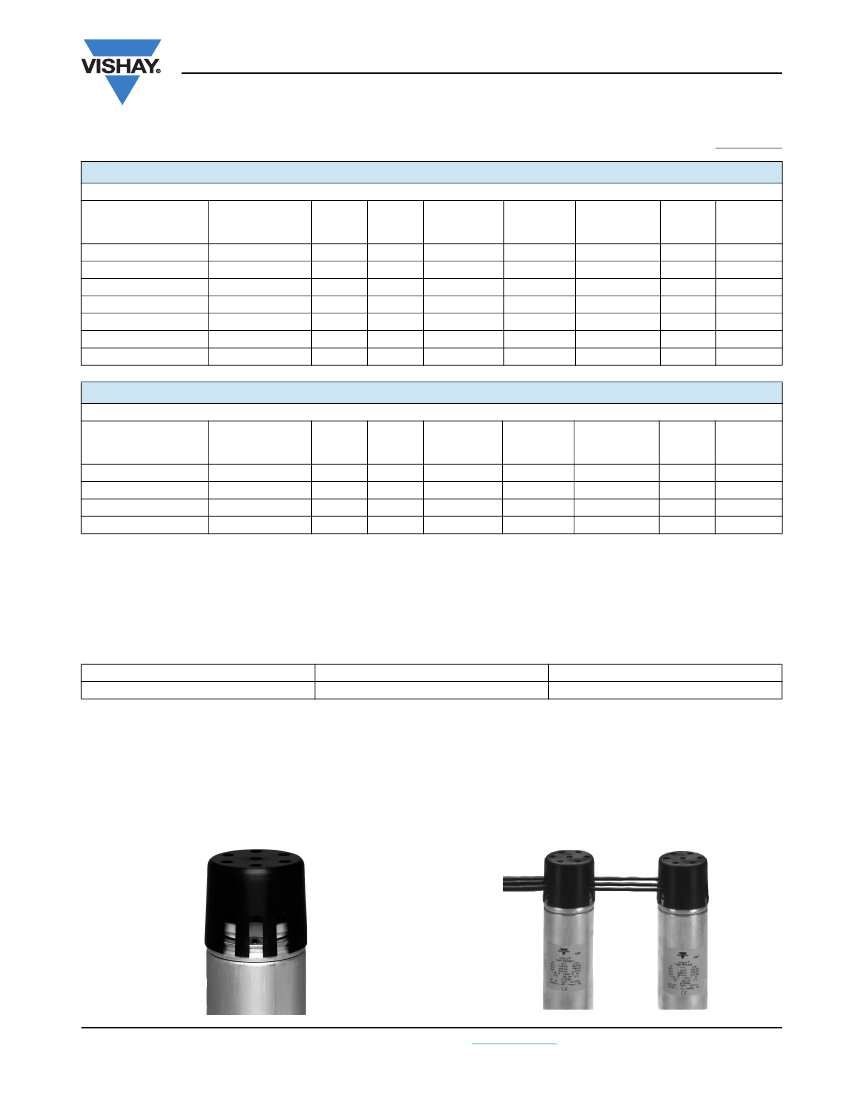

PhMKP..., PhMKPg..., Cylindrical, LVAC
LVAC Power Capacitors
3-PHASE CAPACITORS
RATED VOLTAGE 660 V, 50 Hz, DELTA CONNECTION, UL/ULC UP TO 660 V
CAN BE USED ALSO FOR 690 V, FULL OVER VOLTAGE RANGE
TYPE
PhMKP660.3.08,33-84
PhMKP660.3.10,00-84
PhMKP660.3.12,50-84
PhMKP660.3.15,00-84
PhMKP660.3.16,70-84
PhMKP660.3.20,00-84
PhMKP660.3.22,90-84
ARTICLE NO.
(1)
5341-44425-xx
5341-44426-xx
5341-44427-xx
5341-44428-xx
5341-44429-xx
5341-44430-xx
5341-44431-xx
OUTPUT OUTPUT
kvar
kvar
690 V
660 V
8.33
9.1
10
12.5
15
16.7
20
22.9
10.9
13.7
16.4
18.3
21.9
25.0
CAP.
μF
3 x 20.3
3 x 24.4
3 x 30.4
3 x 36.5
3 x 40.7
3 x 48.7
3 x 55.8
CURRENT
A
660 V/690 V
7.3/7.6
8.7/9.1
10.9/11.5
13.1/13.7
14.6/15.3
17.5/18.3
20.0/20.9
DIMENSIONS
ØxH
mm
84.4 x 190
84.4 x 190
84.4 x 265
84.4 x 265
84.4 x 265
84.4 x 340
84.4 x 340
WEIGHT
kg
1.4
1.9
1.9
2.0
2.0
2.4
2.4
DRAWING
NO.
2
2
2
2
2
2
2
Vishay ESTA
IP00, OIL
RATED VOLTAGE 690 V, 50 Hz, DELTA CONNECTION
CAN BE USED ALSO FOR 660 V
TYPE
PhMKP690.3.12,50-84
PhMKP690.3.15,00-84
PhMKP690.3.20,00-84
PhMKP690.3.25,00-84
ARTICLE NO.
(1)
5341-44432-xx
5341-44433-xx
5341-44434-xx
5341-44435-xx
OUTPUT OUTPUT
kvar
kvar
690 V
660 V
11.4
12.5
13.7
18.3
22.9
15
20
25
CAP.
μF
3 x 27.9
3 x 33.4
3 x 44.6
3 x 55.8
CURRENT
A
690 V/660 V
10.5/10.0
12.6/12.0
16.7/16.0
20.9/20.0
DIMENSIONS
ØxH
mm
84.4 x 265
84.4 x 265
84.4 x 340
84.4 x 340
WEIGHT
kg
1.9
1.9
2.4
2.4
DRAWING
NO.
2
2
2
2
Notes
• Other voltage ratings, outputs, and frequencies upon request. All PhMKP-type capacitors may be also be applied in 60 Hz networks, output
and current will, however, be 20 % higher in these cases (i.e. additional thermal load and therefore, a lower class of temperature must be
taken into account)
(1)
Version no. xx may differ as it respects small changes, e.g. on the label
Terminal cover (IP20), available for 84.4 mm diameter tubular can type capacitors.
(Cable gland not available for use with these covers)
TYPE
CAP84-88-IN-LINE
ARTICLE NO.
5341-COV-84-88-IP20-7
CAPACITOR Ø IN mm
84.4
Type CAP84-88-IN-LINE
• Protection class IP20
• Protective cover prevents unintentional touching of live terminals
• Proper ventilation is provided by use of additional holes in the protective cover’s top
• Six slots located on the cover, three on each side, allow easy IN-LINE connection between two
TERMINAL COVER IP20: CAP84-IN-LINE
IN-LINE CONNECTION BETWEEN TWO CAPACITORS, IP20
Document Number: 13004
Revision: 29-Oct-10
For technical questions, contact:
esta@vishay.com
www.vishay.com
15
PhMKP..., PhMKPg..., Cylindrical, LVAC
Vishay ESTA
3-PHASE CAPACITORS
RATED VOLTAGE 230 V, 50 Hz, DELTA CONNECTION, UL/ULC
TYPE
PhMKP230.3.02,50-A64
PhMKP230.3.05,00-A64
ARTICLE
NO.
(1)
OUTPUT
kvar
2.5
5
CAP.
μF
3 x 50.1
3 x 100.3
CURRENT
A
6.3
12.6
DIMENSIONS
ØxH
mm
64 x 190
64 x 265
WEIGHT
kg
0.8
1.0
DRAWING
NO.
1
1
LVAC Power Capacitors
IP20, OIL
5341-48300-xx
5341-48301-xx
PhMKP230.3.10,00-A84
PhMKP230.3.12,50-A84
PhMKP230.3.15,00-A84
5341-48600-xx
5341-48601-xx
5341-48602-xx
10
12.5
15
3 x 200.6
3 x 250.7
3 x 300.9
25.1
31.4
37.7
84.4 x 265
84.4 x 340
84.4 x 340
1.7
2.0
2.1
3
3
3
PhMKP230.3.10,00-B116
PhMKP230.3.12,50-B116
PhMKP230.3.15,00-B116
PhMKP230.3.16,70-B116
5341-47003-xx
5341-47004-xx
5341-47005-xx
5341-47006-xx
10
12.5
15
16.7
3 x 200.6
3 x 250.7
3 x 300.9
3 x 335.0
25.1
31.4
37.7
41.9
116 x 160
116 x 190
116 x 190
116 x 230
2.1
2.5
2.5
3.1
4
4
4
4
RATED VOLTAGE 400 V, 50 Hz, DELTA CONNECTION, UL/ULC
CAN BE USED ALSO FOR 415 V, FULL OVER VOLTAGE RANGE
TYPE
PhMKP400.3.02,50-A64
PhMKP400.3.05,00-A64
PhMKP400.3.06,67-A64
PhMKP400.3.07,50-A64
PhMKP400.3.08,33-A64
PhMKP400.3.10,00-A64
PhMKP400.3.12,50-A64
ARTICLE NO.
(1)
5341-48302-xx
5341-48303-xx
5341-48304-xx
5341-48305-xx
5341-48306-xx
5341-48307-xx
5341-48308-xx
OUTPUT OUTPUT
kvar
kvar
415 V
400 V
2.5
5
6.67
7.5
8.33
10
12.5
2.7
5.4
7.2
8.1
9.0
10.8
13.5
CAP.
μF
3 x 16.6
3 x 33.2
3 x 44.2
3 x 49.7
3 x 55.2
3 x 66.3
3 x 82.9
CURRENT
A
400 V/415 V
3.6/3.7
7.2/7.5
9.6/10.0
10.8/11.2
12/12.5
14.4/14.9
18/18.7
DIMENSIONS
WEIGHT DRAWING
ØxH
kg
NO.
mm
64 x 190
64 x 190
64 x 190
64 x 190
64 x 190
64 x 265
64 x 265
0.8
0.8
0.8
0.8
0.8
1.0
1.0
1
1
1
1
1
1
1
PhMKP400.3.10,00-A84
PhMKP400.3.12,50-A84
PhMKP400.3.15,00-A84
PhMKP400.3.16,70-A84
PhMKP400.3.20,00-A84
PhMKP400.3.25,00-A84
5341-48603-xx
5341-48604-xx
5341-48605-xx
5341-48606-xx
5341-48607-xx
5341-48608-xx
10
12.5
15
16.7
20
25
10.8
13.5
16.1
18.0
21.5
26.9
3 x 66.3
3 x 82.9
3 x 99.5
3 x 110.7
3 x 132.6
3 x 165.8
14.4/14.9
18/18.7
21.6/22.4
24.1/25.0
28.8/30.0
36.1/37.4
84.4 x 190
84.4 x 190
84.4 x 190
84.4 x 265
84.4 x 265
84.4 x 265
1.3
1.3
1.3
1.7
1.7
1.7
3
3
3
3
3
3
PhMKP400.3.16,70-B116
PhMKP400.3.20,00-B116
PhMKP400.3.25,00-B116
PhMKP400.3.30,00-B136
5341-47010-xx
5341-47011-xx
5341-47012-xx
5341-47601-xx
16.7
20
25
30
18.0
21.5
26.9
32.3
3 x 110.7
3 x 132.6
3 x 165.8
3 x 198.9
24.1/25.0
28.8/29.9
36.1/37.4
43.3/44.9
116 x 160
116 x 160
116 x 190
136 x 190
2.1
2.1
2.5
2.6
4
4
4
5
Notes
• Other voltage ratings, outputs, and frequencies upon request. All PhMKP-type capacitors may be also be applied in 60 Hz networks, output
and current will, however, be 20 % higher in these cases (i.e. additional thermal load and therefore, a lower class of temperature must be
taken into account)
(1)
Version no. xx may differ as it respects small changes, e.g. on the label
www.vishay.com
16
For technical questions, contact:
esta@vishay.com
Document Number: 13004
Revision: 29-Oct-10
PCB Design
京公网安备 11010802033920号
EEWORLD
