SM2A0.09760.5%R datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> SM2A0.09760.5%R

SM2A0.09760.5%R: DescriptionRESISTOR, WIRE WOUND, 2W, 0.5%, 100ppm, 0.0976ohm, SURFACE MOUNT, 5031, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size175KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance; Related ProductsFound4parts with similar functions to SM2A0.09760.5%R

Download Datasheet Parametric View All

SM2A0.09760.5%R Overview

RESISTOR, WIRE WOUND, 2W, 0.5%, 100ppm, 0.0976ohm, SURFACE MOUNT, 5031, CHIP, ROHS COMPLIANT

SM2A0.09760.5%R Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	, 5031
Reach Compliance Code	compli
ECCN code	EAR99
JESD-609 code	e3
Manufacturer's serial number	SM
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	275 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 13 INCH
Rated power dissipation(P)	2 W
Rated temperature	70 °C
resistance	0.0976 Ω
Resistor type	FIXED RESISTOR
size code	5031
surface mount	YES
technology	WIRE WOUND
Temperature Coefficient	100 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WRAPAROUND
Tolerance	0.5%
Operating Voltage	60 V
Base Number Matches	1

Preview

Download Datasheet

View All

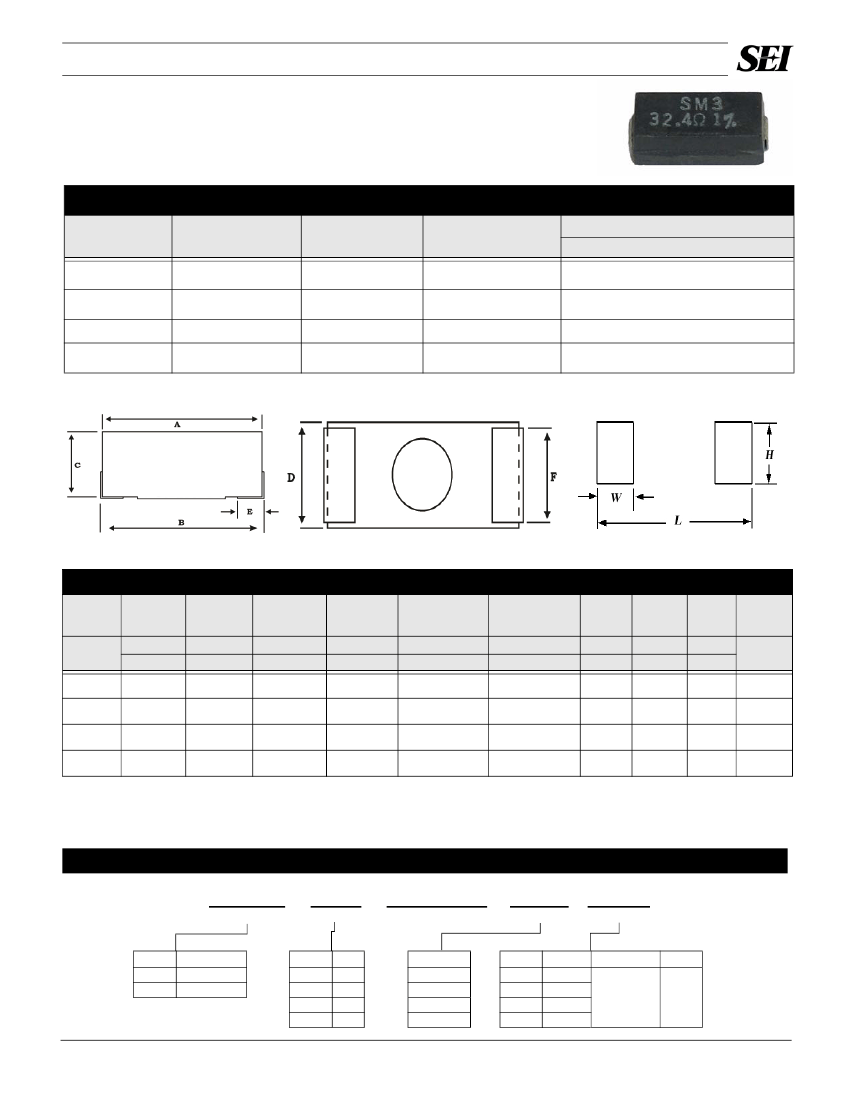

SM Series — Surface Mount Wirewound Resistors

Features

• High temperature molded encapsulation

• Flex termination for absorbing thermal expansion

• All welded construction

• Non-inductive types available as NSM

• RoHS compliant/ lead-free

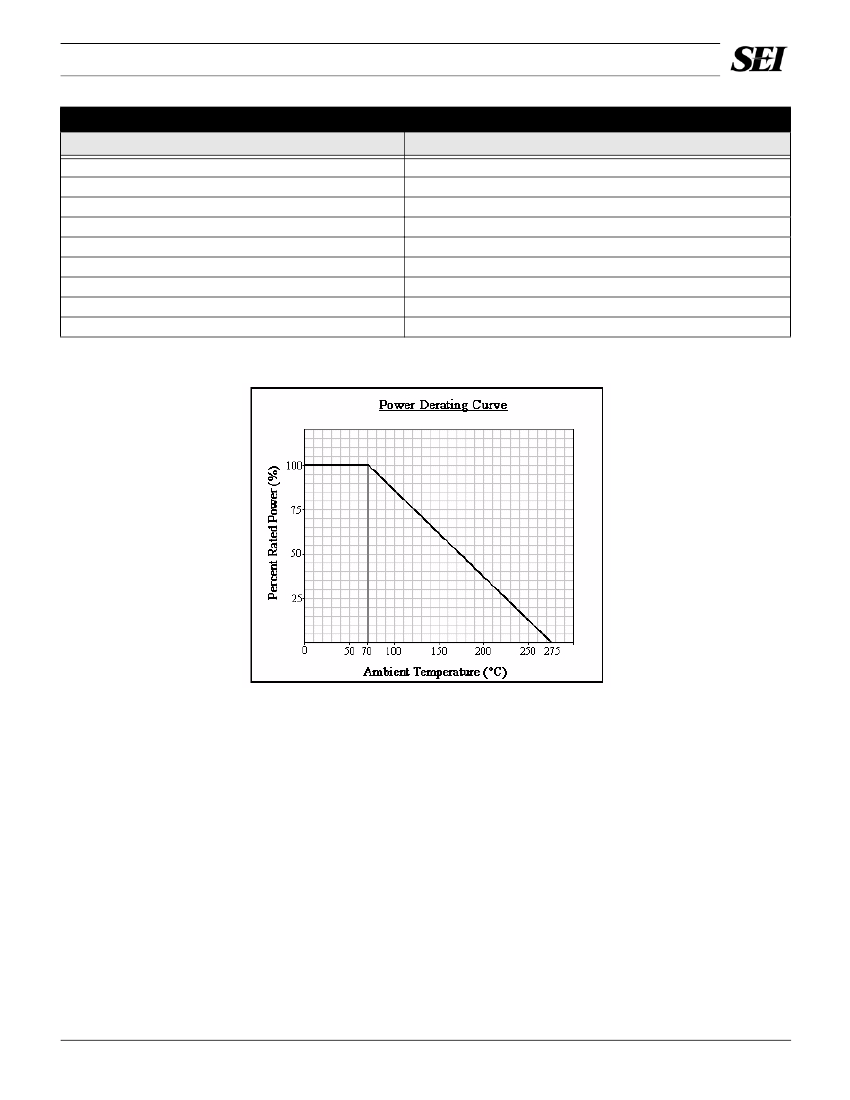

Electrical Specifications

Type

Power Rating

(Watts)

@ 70°C

Maximum Working

Voltage

25V

50V

60V

100V

Resistance Temperature

Coefficient

±100 ppm/°C

± 20 ppm/°C

±100 ppm/°C

± 20 ppm/°C

±100 ppm/°C

± 20 ppm/°C

Ohmic Range and Tolerance

0.1%, 0.5%, 1% & 5%

0.01Ω – 10.0Ω

10.2Ω – 1KΩ

0.01Ω – 10.0Ω

10.2Ω – 2KΩ

0.01Ω – 0.1Ω

0.01Ω – 10.0Ω

10.2Ω – 3.01KΩ

SM 1

SM 2

SM 2A

SM 3

Zero ohm available on all sizes .

Mechanical Specifications

Type

Tolerance

SM 1

SM 2

SM 2A

SM 3

Body

Length

±0.015

±0.4

0.260

6.6

0.410

10.4

0.475

12.1

0.629

16.0

Total

Length

±0.032

±0.81

0.280

7.1

0.435

11.1

0.500

12.7

0.708

18.0

Body

Height

±0.015

±0.4

0.140

3.6

0.180

4.6

0.140

3.6

0.256

6.5

Body

Width

±0.015

±0.4

0.150

3.8

0.240

6.1

0.305

7.8

0.276

7.0

Termination

Width

±0.015

±0.4

0.090

2.3

0.100

2.5

0.110

2.8

0.110

2.8

Termination

Length

±0.015

±0.4

0.100

2.5

0.115

2.9

0.115

2.9

0.115

2.9

0.138

3.5

0.157

4.0

0.161

4.1

0.197

5.0

0.130

3.3

0.157

4.0

0.157

4.0

0.165

4.2

0.350

8.9

0.539

13.7

0.571

14.5

0.850

21.6

Units

inches

How to Order

SEI Type

Code

Nominal Resistance

Tolerance

Packaging

Type

NSM

Description

Standard

Non-inductive

Code

Size

2815

4424

5031

7128

Tolerance

0.1%

0.5%

Type

SM 1

SM 2

SM 2A

SM 3

Pkg Qty

1,500

800

1,200

750

Description

Code

13" Reel

Toll Free: (888) SEI-SEIS

(888) 734-7347

www.seielect.com

email: marketing@seielect.com

Rev 01/08
