5962R9574601VXC

Description
HCT SERIES, 8-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP20, CERAMIC, DFP-20
Categorylogic    Shift register
File Size266KB,12 Pages
ManufacturerRenesas Electronics Corporation
Websitehttps://www.renesas.com/
Download Datasheet Parametric Compare View All

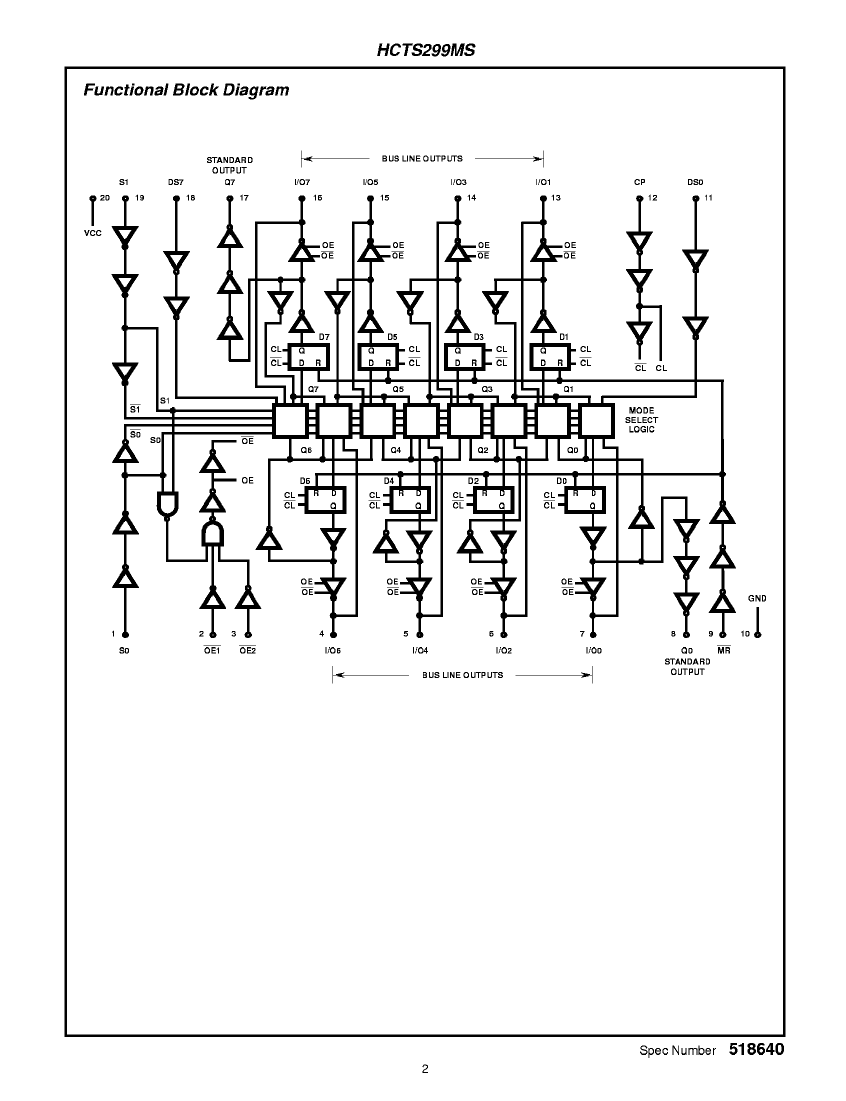

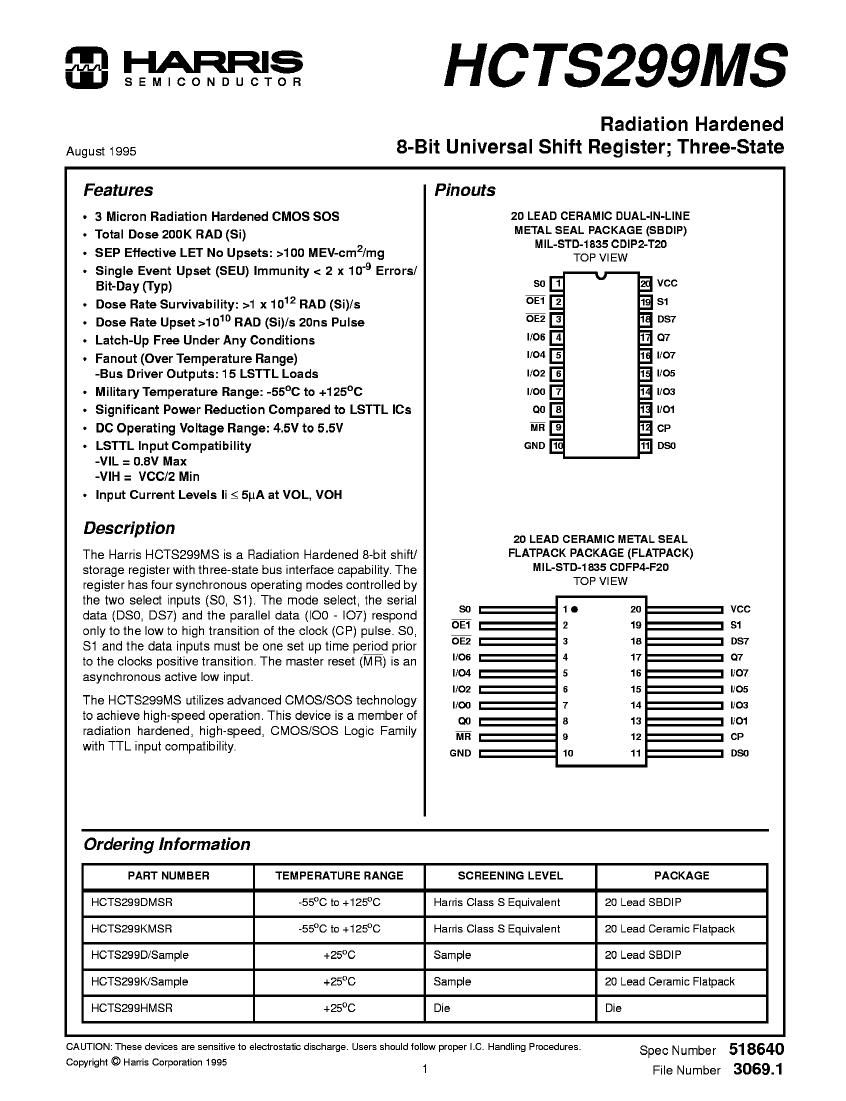

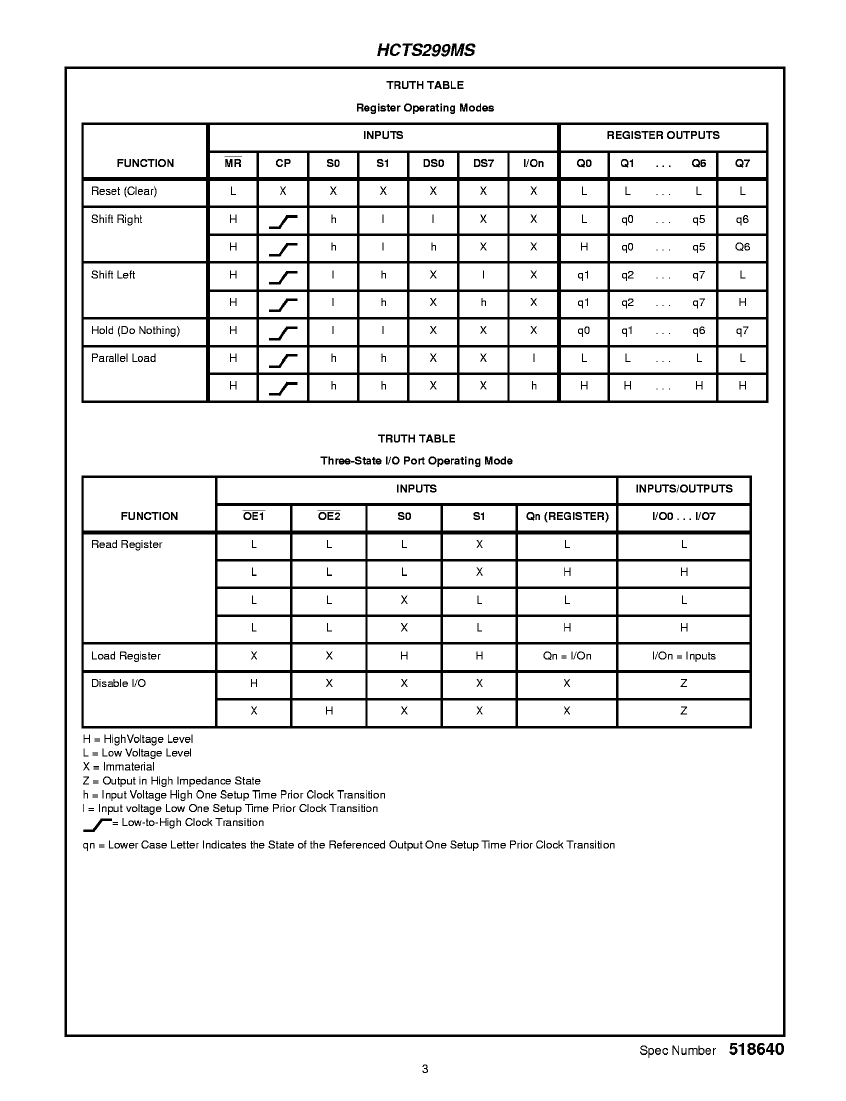

5962R9574601VXC Overview

HCT SERIES, 8-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP20, CERAMIC, DFP-20

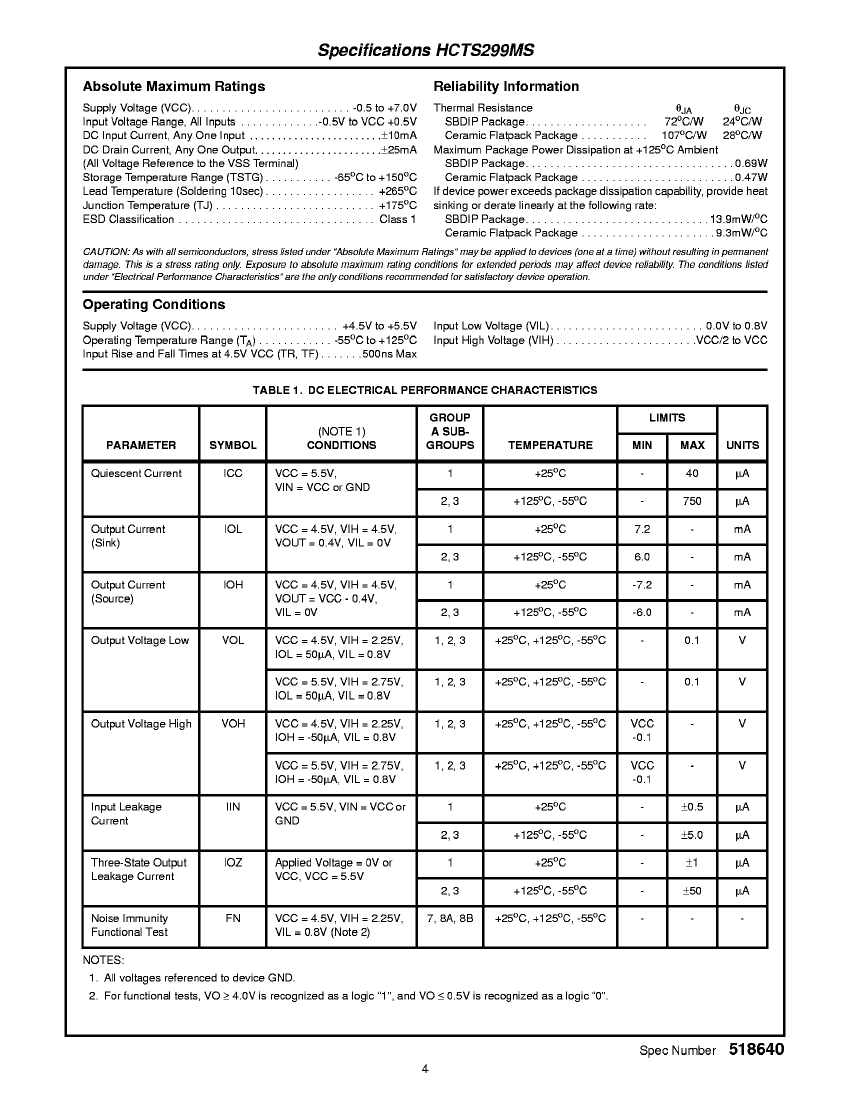

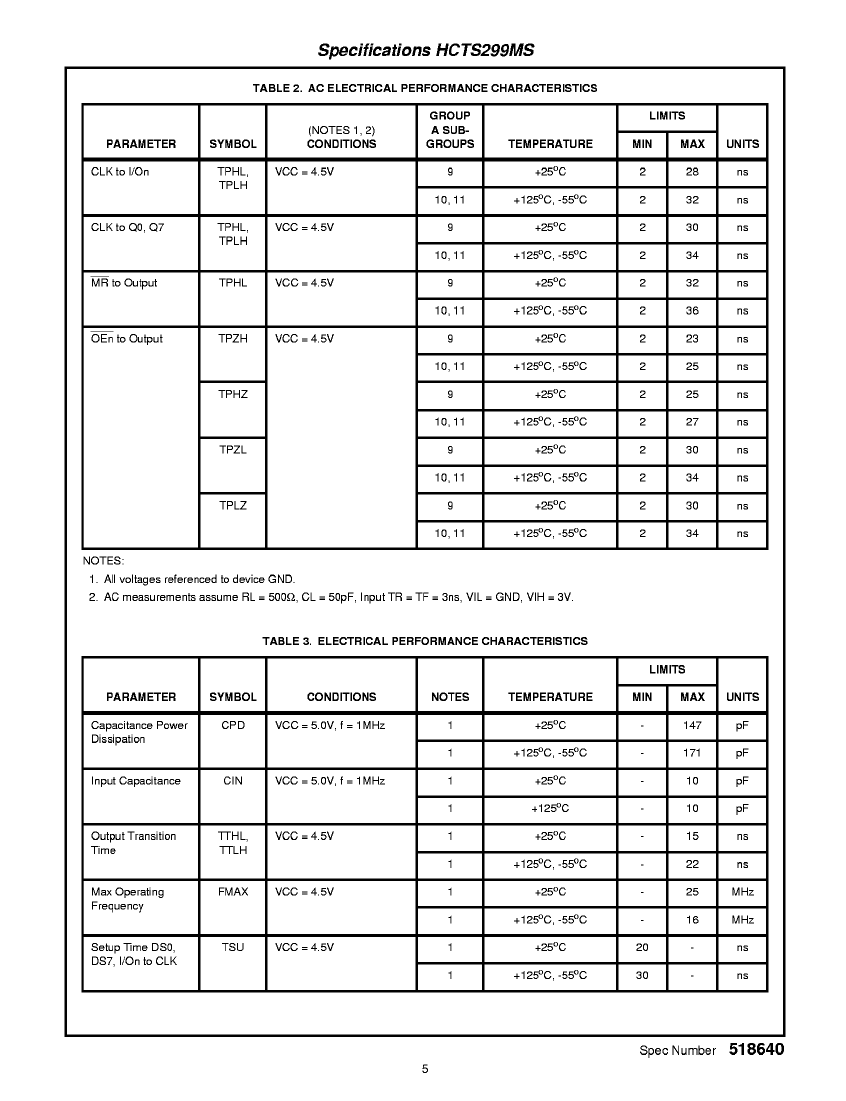

5962R9574601VXC Parametric

Parameter NameAttribute value
MakerRenesas Electronics Corporation
Parts packaging codeDFP
package instructionDFP, FL20,.3
Contacts20
Reach Compliance Codeunknown
Counting directionBIDIRECTIONAL
seriesHCT
JESD-30 codeR-CDFP-F20
JESD-609 codee4
Logic integrated circuit typePARALLEL IN PARALLEL OUT
Maximum Frequency@Nom-Sup16000000 Hz
Number of digits8
Number of functions1
Number of terminals20
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Output polarityTRUE
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDFP
Encapsulate equivalent codeFL20,.3
Package shapeRECTANGULAR
Package formFLATPACK
power supply5 V
propagation delay (tpd)34 ns
Certification statusNot Qualified
Filter level38535V;38534K;883S
Maximum seat height2.92 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelMILITARY
Terminal surfaceGOLD
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
total dose100k Rad(Si) V
Trigger typePOSITIVE EDGE
width6.92 mm
Base Number Matches1

5962R9574601VXC Related Products

5962R9574601VXC 5962R9574601V9A 5962R9574601VRC
Description HCT SERIES, 8-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP20, CERAMIC, DFP-20 HCT SERIES, 8-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, UUC20 HCT SERIES, 8-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDIP20
Parts packaging code DFP DIE DIP
package instruction DFP, FL20,.3 DIE, DIE OR CHIP DIP, DIP20,.3
Contacts 20 20 20
Reach Compliance Code unknown unknown unknown
Counting direction BIDIRECTIONAL BIDIRECTIONAL BIDIRECTIONAL
series HCT HCT HCT
JESD-30 code R-CDFP-F20 R-XUUC-N20 R-CDIP-T20
JESD-609 code e4 e0 e4
Logic integrated circuit type PARALLEL IN PARALLEL OUT PARALLEL IN PARALLEL OUT PARALLEL IN PARALLEL OUT
Maximum Frequency@Nom-Sup 16000000 Hz 16000000 Hz 16000000 Hz
Number of digits 8 8 8
Number of functions 1 1 1
Number of terminals 20 20 20
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Output characteristics 3-STATE 3-STATE 3-STATE
Output polarity TRUE TRUE TRUE
Package body material CERAMIC, METAL-SEALED COFIRED UNSPECIFIED CERAMIC, METAL-SEALED COFIRED
encapsulated code DFP DIE DIP
Encapsulate equivalent code FL20,.3 DIE OR CHIP DIP20,.3
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLATPACK UNCASED CHIP IN-LINE
power supply 5 V 5 V 5 V
propagation delay (tpd) 34 ns 34 ns 34 ns
Certification status Not Qualified Not Qualified Not Qualified
Filter level 38535V;38534K;883S 38535V;38534K;883S 38535V;38534K;883S
Maximum supply voltage (Vsup) 5.5 V 5.5 V 5.5 V
Minimum supply voltage (Vsup) 4.5 V 4.5 V 4.5 V
Nominal supply voltage (Vsup) 5 V 5 V 5 V
surface mount YES YES NO
technology CMOS CMOS CMOS
Temperature level MILITARY MILITARY MILITARY
Terminal surface GOLD TIN LEAD GOLD
Terminal form FLAT NO LEAD THROUGH-HOLE
Terminal location DUAL UPPER DUAL
total dose 100k Rad(Si) V 100k Rad(Si) V 100k Rad(Si) V
Trigger type POSITIVE EDGE POSITIVE EDGE POSITIVE EDGE
Base Number Matches 1 1 1
Maximum seat height 2.92 mm - 5.08 mm
Terminal pitch 1.27 mm - 2.54 mm
width 6.92 mm - 7.62 mm
