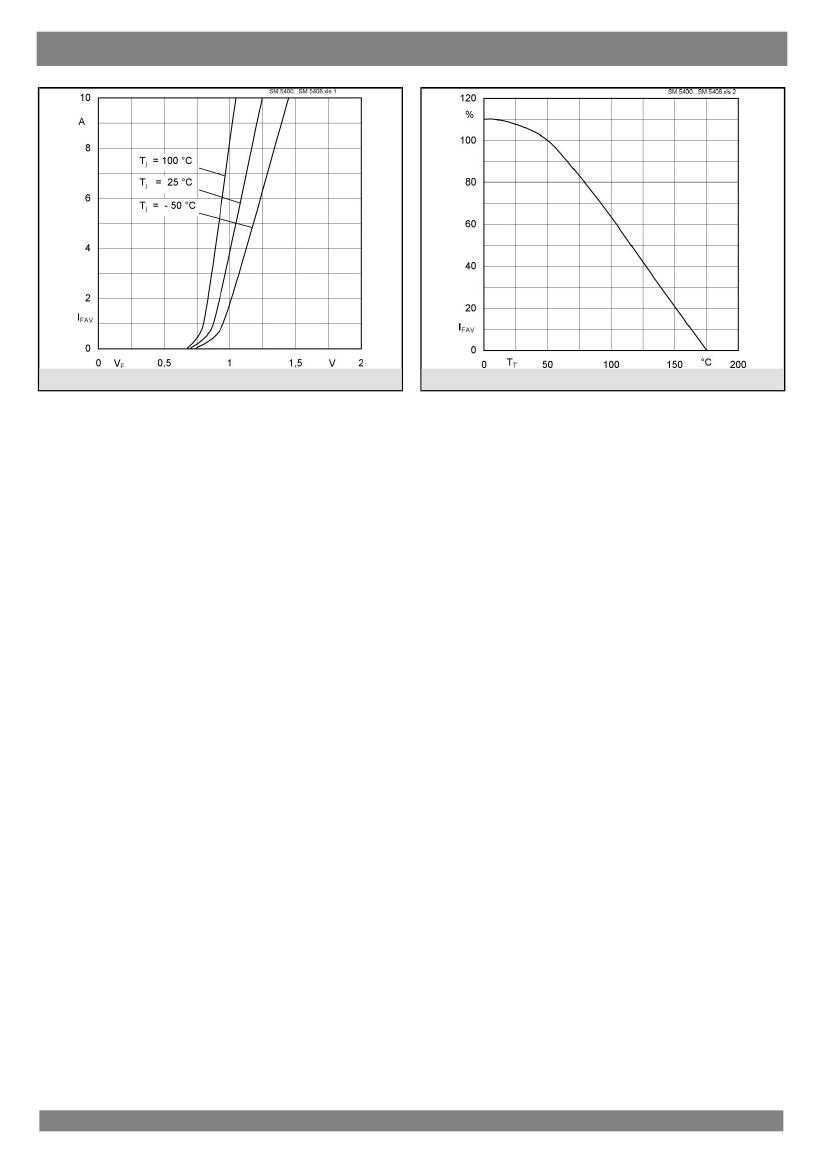

3 A, 100 V, SILICON, RECTIFIER DIODE, DO-213AB

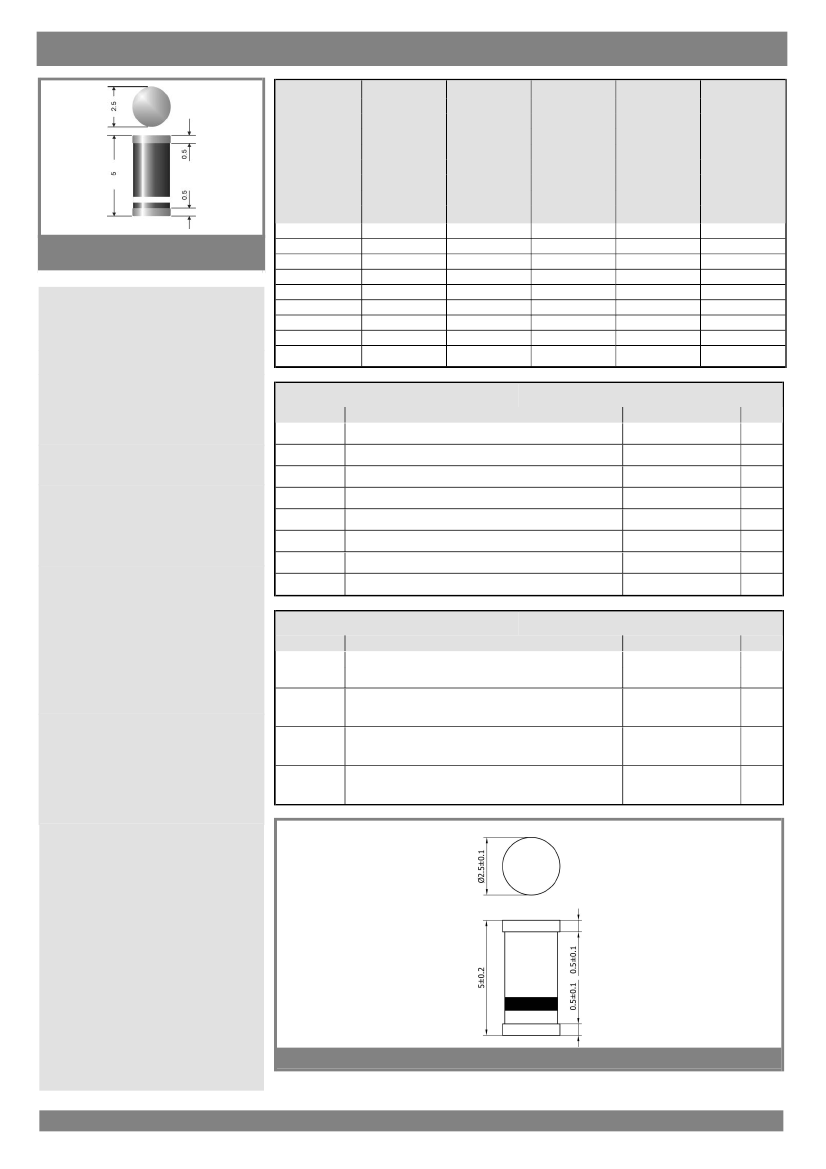

| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | SEMIKRON |
| Parts packaging code | DO-213AB |
| package instruction | PLASTIC, MELF-2 |
| Contacts | 2 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| application | GENERAL PURPOSE |
| Shell connection | ISOLATED |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| JEDEC-95 code | DO-213AB |
| JESD-30 code | O-PELF-R2 |
| JESD-609 code | e2 |
| Maximum non-repetitive peak forward current | 70 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 175 °C |
| Minimum operating temperature | -50 °C |
| Maximum output current | 3 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | ROUND |
| Package form | LONG FORM |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 100 V |
| surface mount | YES |
| Terminal surface | Tin/Silver (Sn/Ag) |
| Terminal form | WRAP AROUND |
| Terminal location | END |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| SM5401 | SM5400 | SM5403 | SM5402 | SM5408 | SM5407 | SM5404 | SM5405 | SM5406 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | 3 A, 100 V, SILICON, RECTIFIER DIODE, DO-213AB | 3 A, 50 V, SILICON, RECTIFIER DIODE, DO-213AB | 3 A, 300 V, SILICON, RECTIFIER DIODE, DO-213AB | 3 A, 200 V, SILICON, RECTIFIER DIODE, DO-213AB | 3 A, 1000 V, SILICON, RECTIFIER DIODE, DO-213AB | 3 A, 800 V, SILICON, RECTIFIER DIODE, DO-213AB | 3 A, 400 V, SILICON, RECTIFIER DIODE, DO-213AB | 3 A, 500 V, SILICON, RECTIFIER DIODE, DO-213AB | 3 A, 600 V, SILICON, RECTIFIER DIODE, DO-213AB |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to | conform to |
| Parts packaging code | DO-213AB | DO-213AB | DO-213AB | DO-213AB | DO-213AB | DO-213AB | DO-213AB | DO-213AB | DO-213AB |
| package instruction | PLASTIC, MELF-2 | PLASTIC, MELF-2 | O-PELF-R2 | O-PELF-R2 | O-PELF-R2 | O-PELF-R2 | O-PELF-R2 | O-PELF-R2 | O-PELF-R2 |
| Contacts | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Reach Compliance Code | compliant | compli | compli | compli | compli | compli | compli | compli | compli |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| application | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Shell connection | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED | ISOLATED |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| JEDEC-95 code | DO-213AB | DO-213AB | DO-213AB | DO-213AB | DO-213AB | DO-213AB | DO-213AB | DO-213AB | DO-213AB |
| JESD-30 code | O-PELF-R2 | O-PELF-R2 | O-PELF-R2 | O-PELF-R2 | O-PELF-R2 | O-PELF-R2 | O-PELF-R2 | O-PELF-R2 | O-PELF-R2 |
| JESD-609 code | e2 | e2 | e2 | e2 | e2 | e2 | e2 | e2 | e2 |
| Maximum non-repetitive peak forward current | 70 A | 70 A | 70 A | 70 A | 70 A | 70 A | 70 A | 70 A | 70 A |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C |
| Minimum operating temperature | -50 °C | -50 °C | -50 °C | -50 °C | -50 °C | -50 °C | -50 °C | -50 °C | -50 °C |
| Maximum output current | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A | 3 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM | LONG FORM |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 100 V | 50 V | 300 V | 200 V | 1000 V | 800 V | 400 V | 500 V | 600 V |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Terminal surface | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) | Tin/Silver (Sn/Ag) |
| Terminal form | WRAP AROUND | WRAP AROUND | WRAP AROUND | WRAP AROUND | WRAP AROUND | WRAP AROUND | WRAP AROUND | WRAP AROUND | WRAP AROUND |
| Terminal location | END | END | END | END | END | END | END | END | END |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maker | SEMIKRON | SEMIKRON | SEMIKRON | - | SEMIKRON | SEMIKRON | SEMIKRON | SEMIKRON | SEMIKRON |
