85_MMCX-50-0-1/111_OM datasheet, PDF

Datasheet> All Categories > The connector> 85_MMCX-50-0-1/111_OM

85_MMCX-50-0-1/111_OM: DescriptionRF MMCX Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Locking, Jack, ROHS COMPLIANT; CategoryThe connector; File Size49KB，1 Pages; ManufacturerHUBER+SUHNER; Environmental Compliance

Download Datasheet Parametric Compare View All

85_MMCX-50-0-1/111_OM Overview

RF MMCX Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Locking, Jack, ROHS COMPLIANT

85_MMCX-50-0-1/111_OM Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	HUBER+SUHNER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TAPE AND REEL PACKAGING
subject depth	0.256 inch
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF MMCX CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
Contact style	COAX
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating frequency	6 GHz
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
Shell surface	GOLD
Shell material	BRASS
Terminal length	0.118 inch
Termination type	SOLDER
Total number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

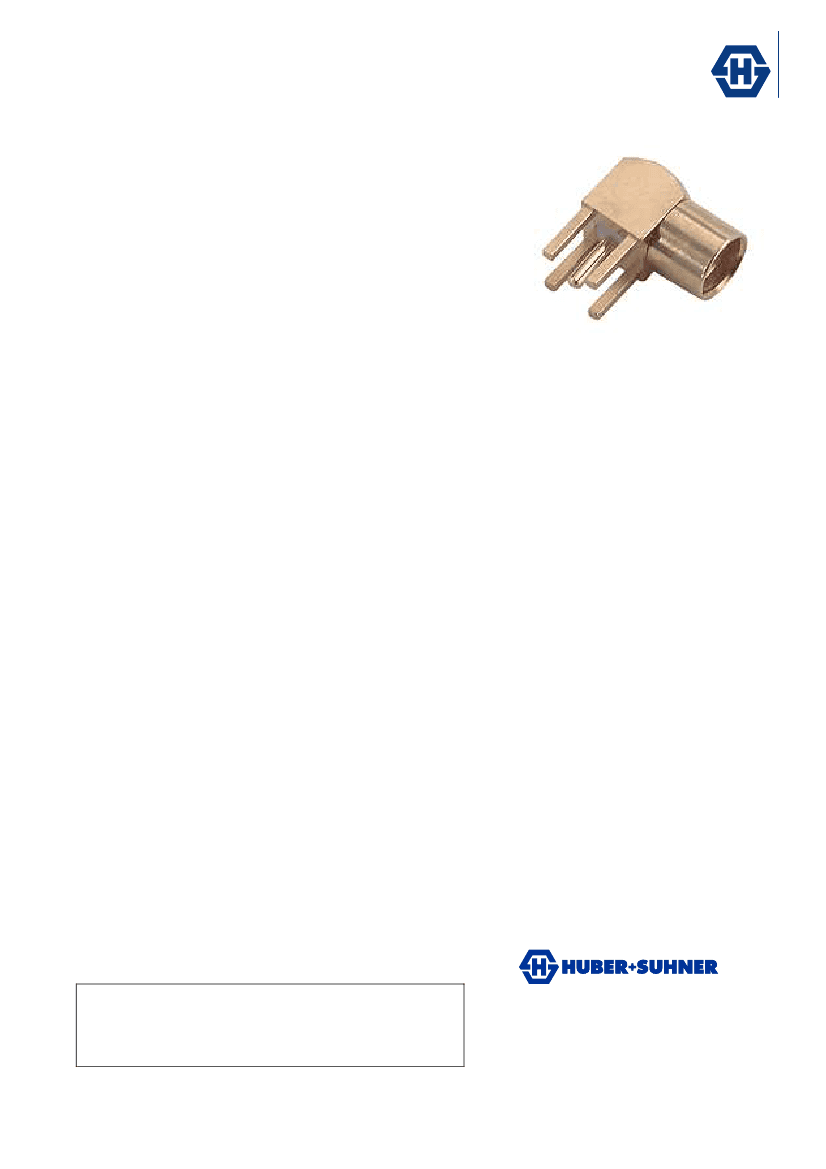

HUBER+SUHNER

DATA SHEET

Coaxial PCB Connector: 85_MMCX-50-0-1/111_O

Description

Rev.: E

Right angle PCB jack

Interface Standards

SUHNER-MMCX

Technical Data

Electrical Data

Impedance

Interface frequency max.

Ω

6 GHz

through holes

0.0006 kg

-55 °C to 155 °C

compliant

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

DOU-00083972

DCA-00012837

DOU-00012639

85_MMCX-50-0-1/111_OH

85_MMCX-50-0-1/111_OE

85_MMCX-50-0-1/111_OM

Surface Plating

Hard Au min. 1.3 m over Ni min. 1.3 m

Hard Au min. 0.8 m

Mechanical Data

Board mounting type

Weight

Environmental Data

Operating Temperature

2002/95/EC (RoHS)

Piece Parts

Centre contact

Outer contact

Body

Insulator

Material Data

85_MMCX-50-0-1/111_OM Related Products

	85_MMCX-50-0-1/111_OM	85_MMCX-50-0-1/111_OH
Description	RF MMCX Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Locking, Jack, ROHS COMPLIANT	RF MMCX Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Locking, Jack, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to
Maker	HUBER+SUHNER	HUBER+SUHNER
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	not_compliant
Other features	TAPE AND REEL PACKAGING	BULK PACKAGING
subject depth	0.256 inch	0.256 inch
Body/casing type	JACK	JACK
Characteristic impedance	50 Ω	50 Ω
Connector type	RF MMCX CONNECTOR	RF MMCX CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE
Contact material	BERYLLIUM COPPER	NOT SPECIFIED
Contact style	COAX	COAX
Coupling type	SNAP	SNAP
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE	PERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
MIL compliance	NO	NO
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of ports	1	1
Maximum operating frequency	6 GHz	6 GHz
Maximum operating temperature	155 °C	155 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO
reliability	COMMERCIAL	COMMERCIAL
Shell surface	GOLD	GOLD
Shell material	BRASS	BRASS
Terminal length	0.118 inch	0.118 inch
Termination type	SOLDER	SOLDER
Total number of contacts	1	1
Base Number Matches	1	1
