82_MMCX-50-0-1/111_QE

Description
RF MMCX Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Jack, ROHS COMPLIANT
CategoryThe connector
File Size49KB,1 Pages
ManufacturerHUBER+SUHNER
Environmental Compliance
Download Datasheet Parametric View All

82_MMCX-50-0-1/111_QE Overview

RF MMCX Connector, 1 Contact(s), Female, Board Mount, Solder Terminal, Jack, ROHS COMPLIANT

82_MMCX-50-0-1/111_QE Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerHUBER+SUHNER
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
subject depth0.137 inch
Body diameter0.138 inch
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF MMCX CONNECTOR
Contact to complete cooperationGOLD
Contact completed and terminatedGOLD
Contact point genderFEMALE
Contact styleCOAX
Coupling typeSNAP
DIN complianceNO
Durability500 Cycles
Filter functionNO
IEC complianceNO
insulator materialPERFLUOROALKOXY/POLYTETRAFLUORO ETHYLENE
JESD-609 codee4
MIL complianceNO
Manufacturer's serial number82_MMCX-50-0-1/111_QE
Installation methodSTRAIGHT
Installation typeBOARD
Number of ports1
Maximum operating frequency6 GHz
Maximum operating temperature155 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Panel mountingNO
reliabilityCOMMERCIAL
Shell surfaceGOLD
Shell materialBRASS
Terminal length0.118 inch
Termination typeSOLDER
Total number of contacts1
Base Number Matches1
HUBER+SUHNER
®
DATA SHEET

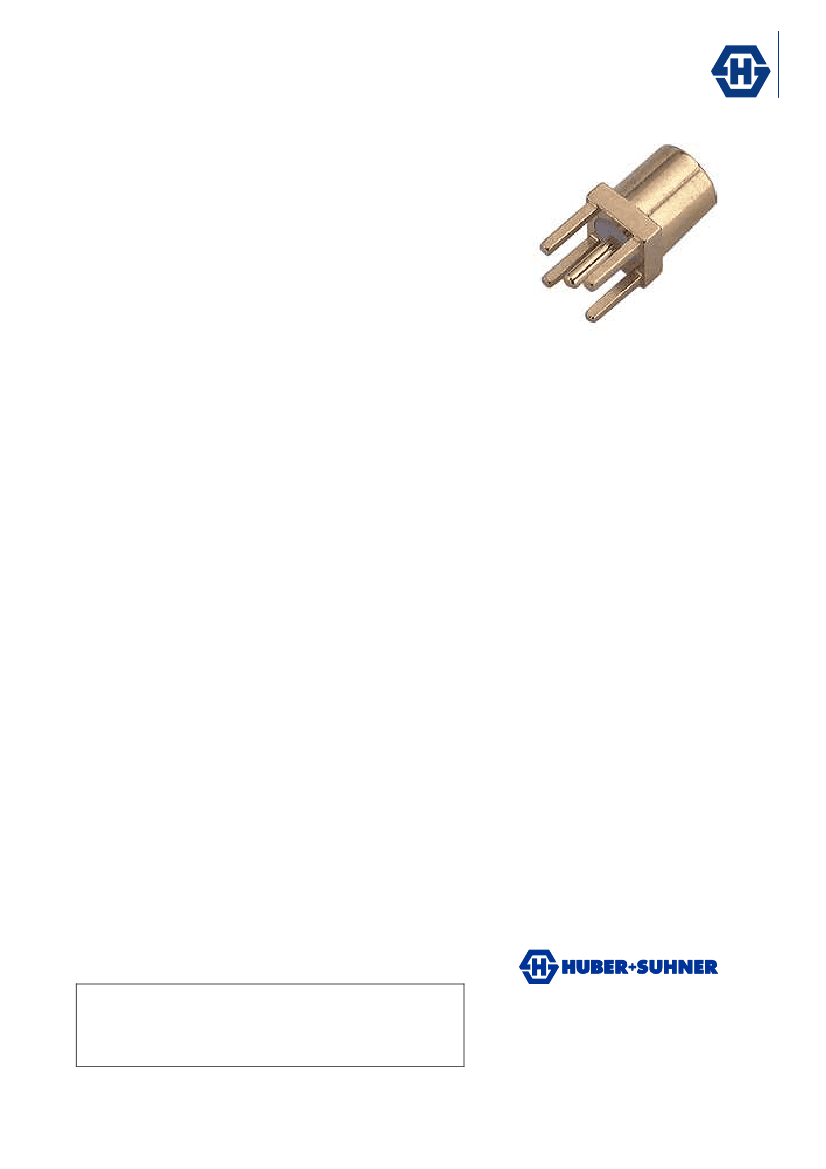

Coaxial PCB Connector: 82_MMCX-50-0-1/111_Q
Description
Rev.: E
Straight PCB jack
Interface Standards
SUHNER-MMCX
Technical Data
Electrical Data
Impedance
Interface frequency max.
50
6 GHz
through holes
0.0002 kg
-55 °C to 155 °C
compliant
Material
Copper Beryllium Alloy
Brass
Brass
PFA / PTFE
DOU-00013145
DCA-00013147
DOU-00012639
82_MMCX-50-0-1/111_QE
Surface Plating
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Gold Plating (without Nickel underplating)
Mechanical Data
Board mounting type
Weight
Environmental Data
Operating Temperature
2002/95/EC (RoHS)
Piece Parts
Centre contact
Outer contact
Body
Insulator
Material Data
Related Documents
Outline drawing
Catalogue drawing
Mounting hole
Single package
Ordering Information
Remarks
PCB connector without stand-offs
HUBER+SUHNER is certified according to ISO 9001 and ISO 14001
WAIVER!
It is exclusively in written agreements that we provide our customers with warrants and
representations as to the technical contained specifications and/or the fitness for any particular
purpose. The facts and figures herein are carefully compiled to the best of our knowledge, but they are
intended for general informational purposes only.
HUBER+SUHNER AG
RF Technology
9100 Herisau, Switzerland
Phone +41 (0)71 353 41 11
Fax
+41 (0)71 353 45 90
www.hubersuhner.com
Uncontrolled Copy
Page 1/1
HUBER+SUHNER – Excellence in Connectivity Solutions
Document: DOC-0000193610 M
Issued: 03.08.11
