804-003-01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 804-003-01

804-003-01: DescriptionCircular Connector, Aluminum Alloy; Stainless Steel, Female; Male, Crimp Terminal, Receptacle; CategoryThe connector; File Size667KB，4 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

804-003-01 Overview

Circular Connector, Aluminum Alloy; Stainless Steel, Female; Male, Crimp Terminal, Receptacle

804-003-01 Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	compliant
Other features	POLARIZED, MAX CONTACT (SERIES)=85
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE; MALE
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION RESISTANT; ENVIRONMENT RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	804-003
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE; PANEL
Options	GENERAL PURPOSE
Shell surface	ANODIZED BLACK; NICKEL PLATED; CADMINUM/ZINC NICKEL WITH CHROMATE PLATED
Shell material	ALUMINUM ALLOY; STAINLESS STEEL
Housing size	5; 6; 7; 8; 9; 10; 12; 14; 15
Termination type	CRIMP
Base Number Matches	1

Preview

Download Datasheet

View All

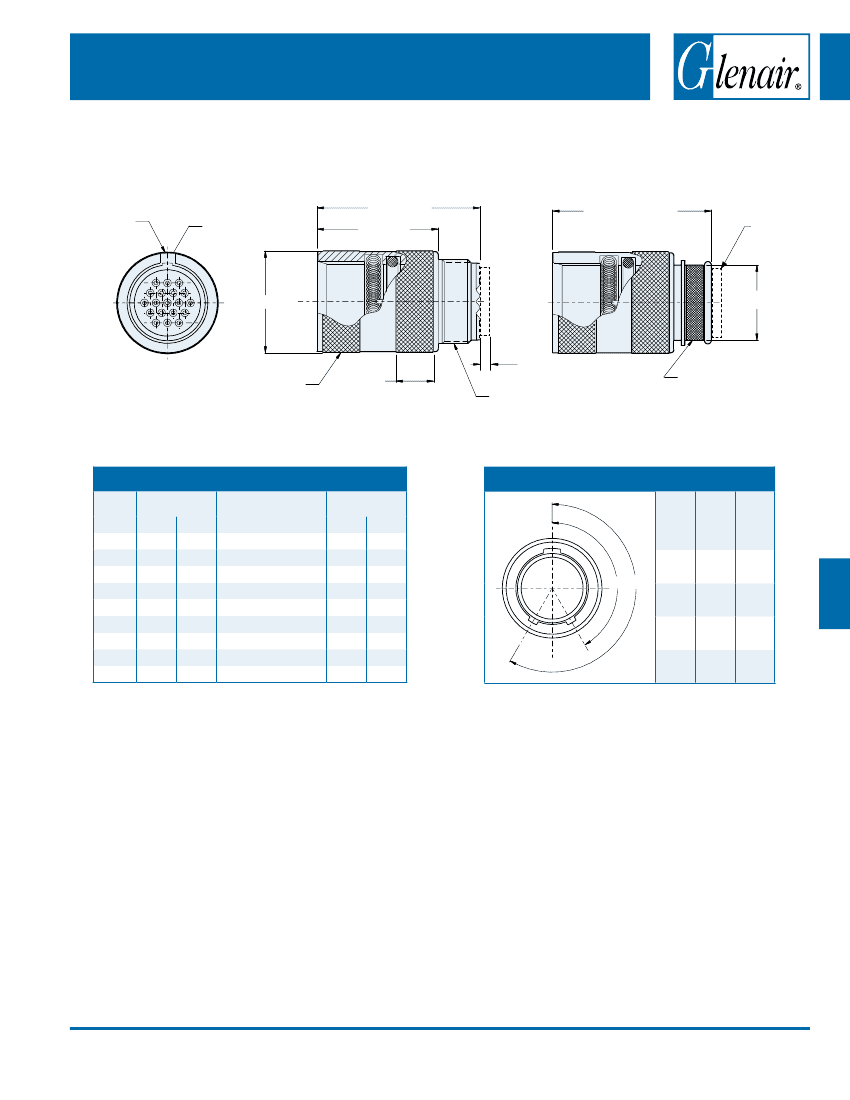

In-Line

804-003-01

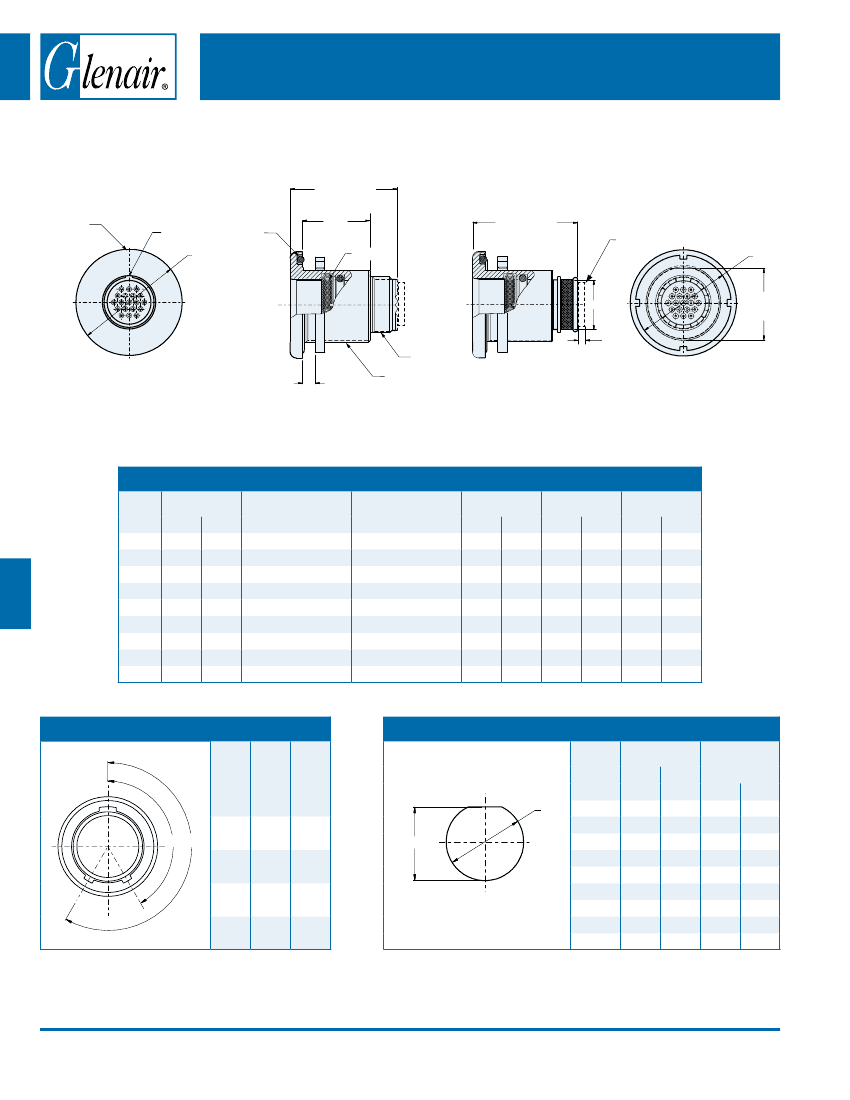

Rear Panel Jam Nut Mount

804-003-07

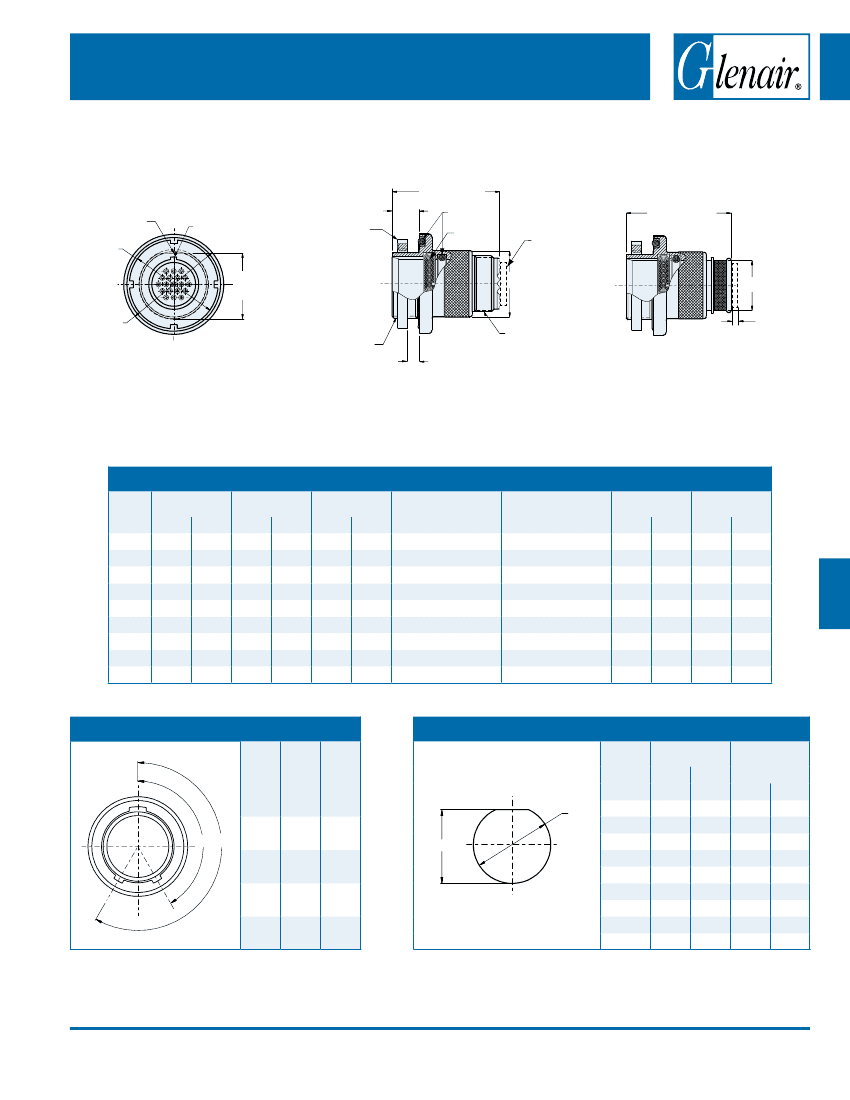

Front Panel Jam Nut Mount

804-003-00

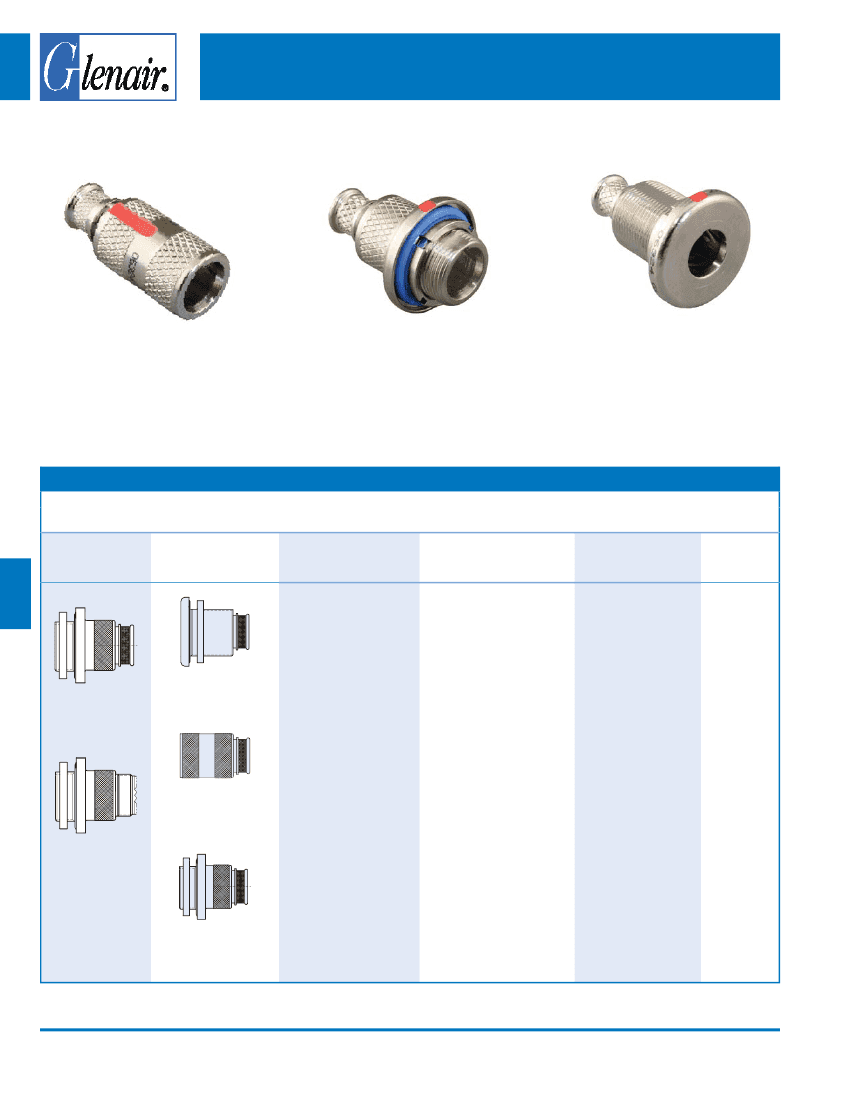

Series 804

Series 804 “Mighty Mouse”

Push-Pull Quick-Disconnect

Series 804 Receptacles – Crimp Termination

Integral Band Platform

for direct attachment of a cable

shield. Install a boot, or overmold a boot over the band

platform. An accessory thread is available for attaching

strain reliefs and backshells.

Three Shell Options:

Jam nut with o-ring for front or rear

panel mounting, or in-line receptacles for free-hanging cables.

HOW TO ORDER

Sample Part Number

80 4- 0 0 3

Series

-01

Shell Style

Shell Material /

Finish

Aluminum / Black

Anodize

7-10

Shell Size- Insert

Arrangement

5-3

6-1

6-4

6-7

7-1

7-10

8-13

9-4

9-19

10-26

12-2

12-37

14-55

15-85

Contact Type

Shell Key

Position

-00

804-003

Receptacle with

Banding Platform

Jam Nut for Front

Panel Mounting

Aluminum / Electroless

Nickel

Aluminum / Cadmium

with Olive Drab

Chromate

-01

In-Line for Free-

Hanging Cable

Aluminum / Zinc-

Nickel with Olive Drab

Chromate

Standard #23 contacts

3 #23 Contacts

Omit

accept #22 through

1 #16 Contact

for Single

#28 AWG wire. Use the

Master Key

4 #23 Contacts

following contact codes

7 #23 Contacts

to specify these contacts:

1 #12 Contact

10 #23 Contacts

13 #23 Contacts

Pos. A

(Normal)

4 #16 Contacts

19 #23 Contacts

Socket

26 #23 Contacts

Special contacts for

2 #12 Contacts

Pos. B

#26 to #30 AWG are

37 #23 Contacts

also available. Use the

55 #23 Contacts

following contact codes

85 #23 Contacts

to specify these contacts:

Pos. C

804-004

Receptacle with

Accessory Thread

ZNU

Aluminum / Zinc-Nickel

with Black Chromate

#23 contacts are packaged

with connectors. #16 and #12

contacts must be ordered

separately.

Pos. D

-07

Jam Nut for Rear

Panel Mounting

Stainless Steel /

Passivated

Socket

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

G-6

Rev. 05-APR-2007

E-Mail: sales@glenair.com
