PEC11L-4215K-S15 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PEC11L-4215K-S15

PEC11L-4215K-S15: DescriptionRotary Position Encoder, Single, 2 Channels, ROHS COMPLIANT PACKAGE-5; CategoryLED optoelectronic/LED photoelectric; File Size215KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

PEC11L-4215K-S15 Overview

Rotary Position Encoder, Single, 2 Channels, ROHS COMPLIANT PACKAGE-5

PEC11L-4215K-S15 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-5
Reach Compliance Code	compli
Configuration	SINGLE, 2 CHANNELS
JESD-609 code	e4
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	ROTARY POSITION ENCODER
Terminal surface	Silver (Ag)
Base Number Matches	1

Preview

Download Datasheet

View All

Features

■

Push switch option

■

Compact, low proﬁle

■

High reliability

■

Metal bushing/shaft

■

RoHS compliant*

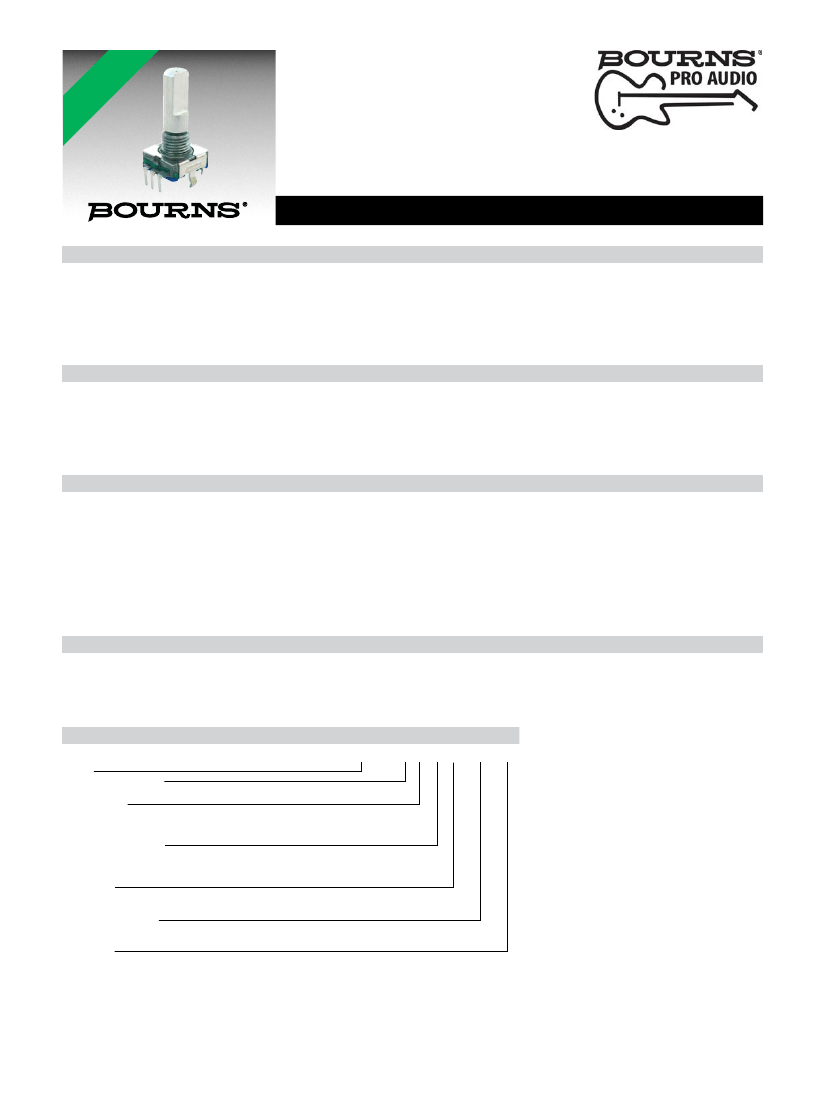

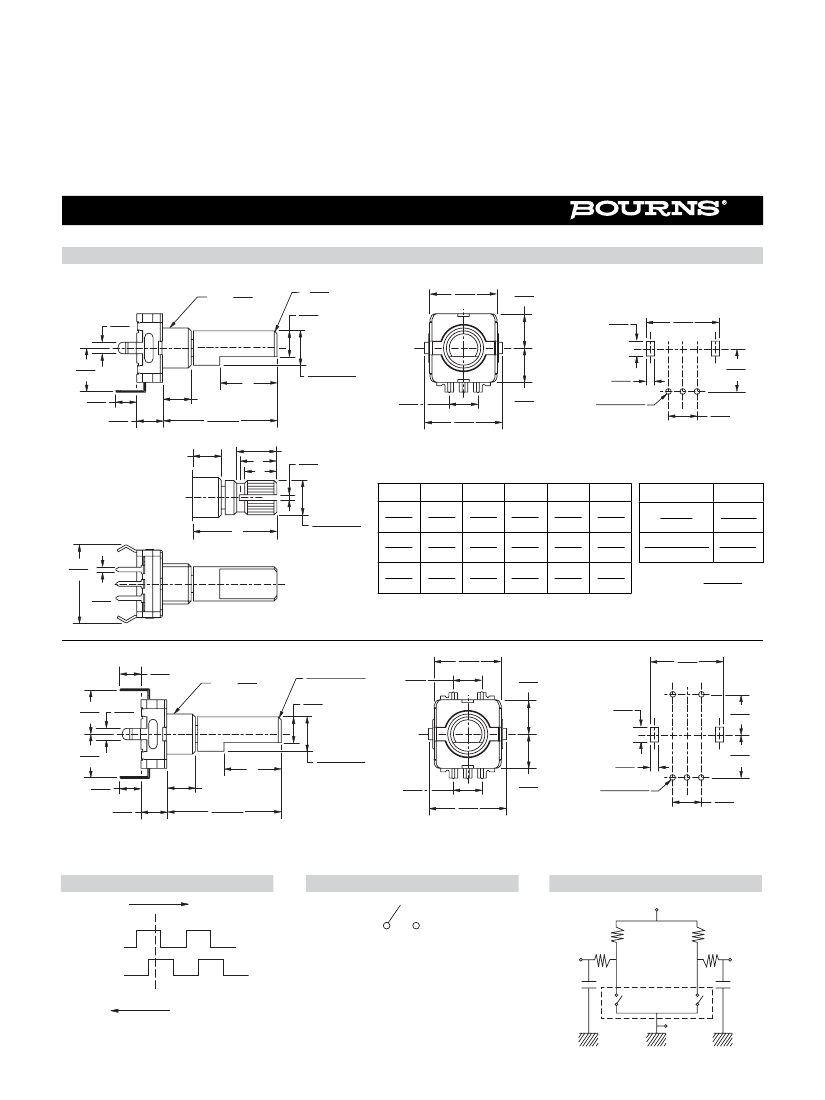

PEC11L Series - 11 mm Low Proﬁle Encoder

Electrical Characteristics

Output ..................................................................................................................................................................................................2-bit quadrature code

Closed Circuit Resistance ................................................................................................................................................................100 milliohms maximum

Contact Rating .............................................................................................................................................................................................. 10 mA @ 5 VDC

Insulation Resistance ....................................................................................................................................................................100 megohms @ 250 VDC

Dielectric Withstanding Voltage

Sea Level ............................................................................................................................................................................................... 300 VAC minimum

Electrical Travel..................................................................................................................................................................................................... Continuous

Contact Bounce (60 RPM)..........................................................................................................................................................................10 ms maximum**

RPM (Operating) .............................................................................................................................................................................................. 60 maximum**

Environmental Characteristics

Operating Temperature Range ......................................................................................................................................-10 °C to +70 °C (+14 °F to +158 °F)

Storage Temperature Range ......................................................................................................................................... -40 °C to +85 °C (-40 °F to +185 °F)

Humidity ............................................................................................................................................................... MIL-STD-202, Method 103B, Condition A

Vibration .......................................................................................................................................................................................................................... 30 G

Contact Bounce............................................................................................................................................... 10~55~10 Hz / 1 min. / Amplitude 1.5 mm

Shock ............................................................................................................................................................................................................................ 100 G

Rotational Life .................................................................................................................................................................................100,000 cycles minimum

IP Rating ..........................................................................................................................................................................................................................IP 40

Mechanical Characteristics

Mechanical Angle .........................................................................................................................................................................................360 ° continuous

Torque

Detent ...............................................................................................................................................................................20-150 gf-cm (0.27 to 2.0 oz-in)

Running ........................................................................................................................................................................ 10 to 150 gf-cm (0.14 to 2.1 oz-in)

Mounting............................................................................................................................................................................... 70 N-cm (6.2 lb-in) maximum

Shaft Side Load (Static)................................................................................................................................................................ 2.04 kgf (4.5 lbs) minimum

Shaft Strength (Push-Pull) ..............................................................................................................................................................................100 N (22.5 lbs)

Weight ............................................................................................................................................................................................. 5 gm (0.17 oz) maximum

Terminals ................................................................................................................................................................................ Printed circuit board terminals

Soldering Condition

Wave Soldering........................................................................... Sn95.5/Ag2.8/Cu0.7 solder with no-clean ﬂux: 260 °C ±5 °C max. for 3-5 seconds

Hand Soldering .................................................................................................................................................................................Not recommended

Hardware ...................................................................................................................... One ﬂat washer and one mounting nut supplied with each encoder

Switch Characteristics

Switch Type ................................................................................................................................................................... Contact Push ON Momentary SPST

Switch Life .........................................................................................................................................................................................20,000 cycles minimum

Power Rating (Resistive Load) ..................................................................................................................................................................... 10 mA at 5 V DC

Switch Travel ......................................................................................................................................................................................................0.5 ± 0.3 mm

Switch Actuation Force ...................................................................................................................................................... 610 ± 306 gf (8.47 ± 4.24 oz.-in.)

How To Order

PEC11L - 4 0 20 F - S 0015

Model

Terminal Conﬁguration

4 = PC Pin Horizontal/Rear Facing

Detent Option

0 = No Detents (15, 20 pulses)

1 = 20 Detents (20 pulses)

2 = 30 Detents (15 pulses)

Standard Shaft Length

15 = 15.0 mm

20 = 20.0 mm

25 = 25.0 mm

Shaft Style

F = Metal Flatted Shaft

K = Metal Knurled Shaft

Switch Conﬁguration

S = Push Momentary Switch

N = No Switch

Resolution

0015 = 15 Pulses per 360 ° Rotation

0020 = 20 Pulses per 360 ° Rotation

*RoHS Directive 2002/95/EC Jan 27, 2003 including Annex.

**Devices are tested using standard noise reduction ﬁlters. For optimum performance, designers should use noise reduction ﬁlters in their circuits.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.
