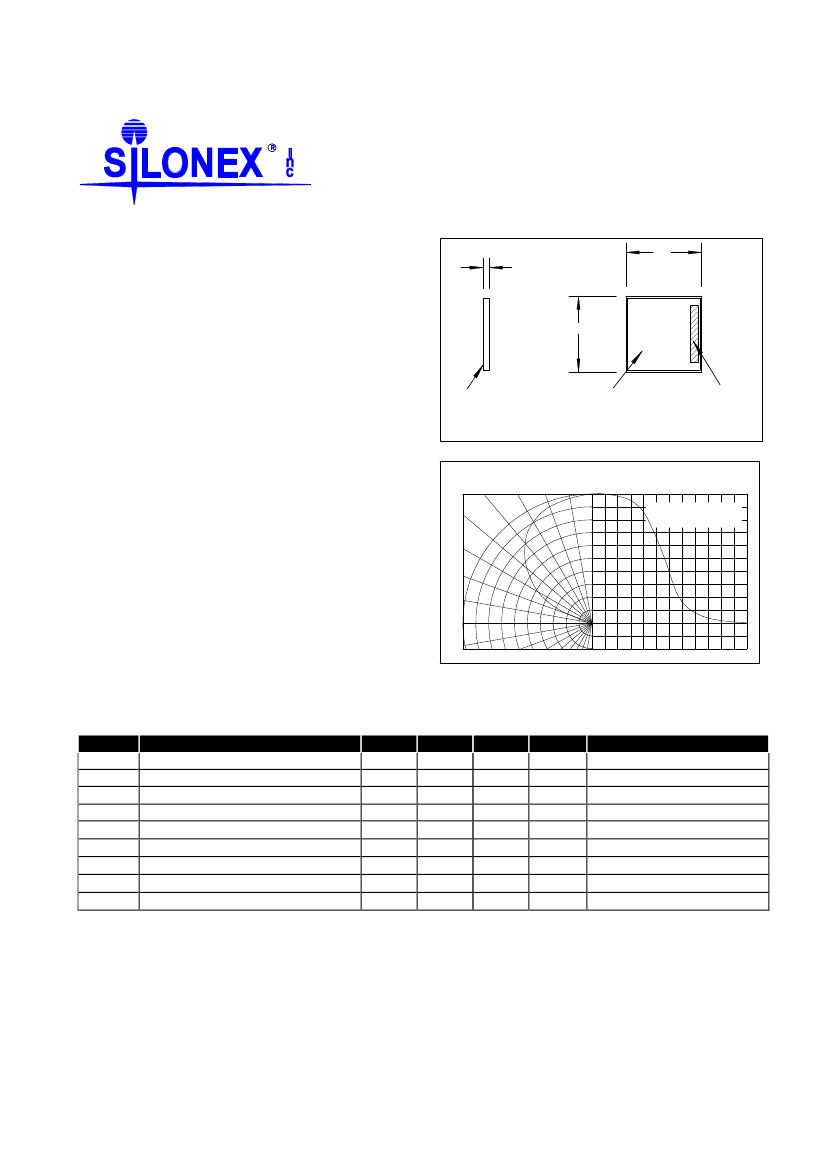

SLCD-61N2
Solderable Planar Photodiode
Features
•
Fast response
•
High reliability, long life
•
Ideal for moderate reverse bias voltage operation
•
Linear short circuit current
•
Low capacitance
Description
The Silonex 5.1 x 5.1 solderable planar photodiodes
chips feature low cost, high reliability, and linear short
circuit current over a wide range of illumination.
These devices are widely used for light sensing and
power generation because of their stability and high
efficiency. They are particularly suited to power
conversion applications due to their low internal
impedance, relatively high shunt impedance, and
stability. These devices also provide a reliable and
inexpensive detector for instrumentation and light
beam sensing applications.
Absolute Maximum Ratings
Storage Temperature
Operating Temperature
5.1
0.4
5.1
Cathode
Sensitive Area
(21.4 sq.mm.)
Solderable
Contact
Dimensions in mm. (+/- 0.13)
Directional Sensitivity Characteristics
40°
50°
30°
20°
10°
1.0
0.8
0.6
0.4
0.2
0.0
Half Angle = 60°
60°
-40°C to +125°C
-40°C to +105°C
70°
80°
90°
100°
1.0
0.8
0.6
0.4
20°
40°
60°
80°
100° 120°
Electrical Characteristics
(T
A
=25°C unless otherwise noted)
Symbol Parameter
Min
Typ
I
SC
Short Circuit Current
1.0
1.25
V
OC
Open Circuit Voltage
0.40
I
D
Reverse Dark Current
1.0
C
J
Junction Capacitance
0.8
Spectral Sensitivity
0.55
S
λ
V
BR
Reverse Breakdown Voltage
20
Maximum Sensitivity Wavelength
930
λ
P
Sensitivity Spectral Range
400
λ
R
Acceptance Half Angle
60
θ
1/2
Notes: (1) Ee = source @ 2854
°K
Specifications subject to change without notice.
Max
10
1100
Units
mA
V
µA
nF
A/W
V
nm
nm
deg
Test Conditions
2
V
R
=0V, Ee=25mW/cm (1)
2
Ee=25mW/cm (1)
V
R
=5V, Ee=0
V
R
=0V, Ee=0, f=1MHz
λ=940nm
I
R
=100µA
(off center-line)
103226 REV 0
5200 St. Patrick St., Montreal
Que., H4E 4N9, Canada
Tel: 514-768-8000
Fax: 514-768-8889
QF-84
The Old Railway, Princes Street
Ulverston, Cumbria, LA12 7NQ, UK
Tel: 01 229 581 551
Fax: 01 229 581 554
