Preview

5KP10: Description5000 W, UNIDIRECTIONAL, SILICON, TVS DIODE; CategoryDiscrete semiconductor diode; File Size146KB，3 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5KP10 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5KP10	-	-	View	Buy Now

5KP10 Overview

5000 W, UNIDIRECTIONAL, SILICON, TVS DIODE

5KP10 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEMIKRON
package instruction	O-PALF-W2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum breakdown voltage	14.1 V
Minimum breakdown voltage	11.1 V
Breakdown voltage nominal value	12.6 V
Shell connection	ISOLATED
Maximum clamping voltage	18.8 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JESD-30 code	O-PALF-W2
JESD-609 code	e2
Maximum non-repetitive peak reverse power dissipation	5000 W
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-50 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Maximum power dissipation	8 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	10 V
surface mount	NO
technology	AVALANCHE
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	WIRE
Terminal location	AXIAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

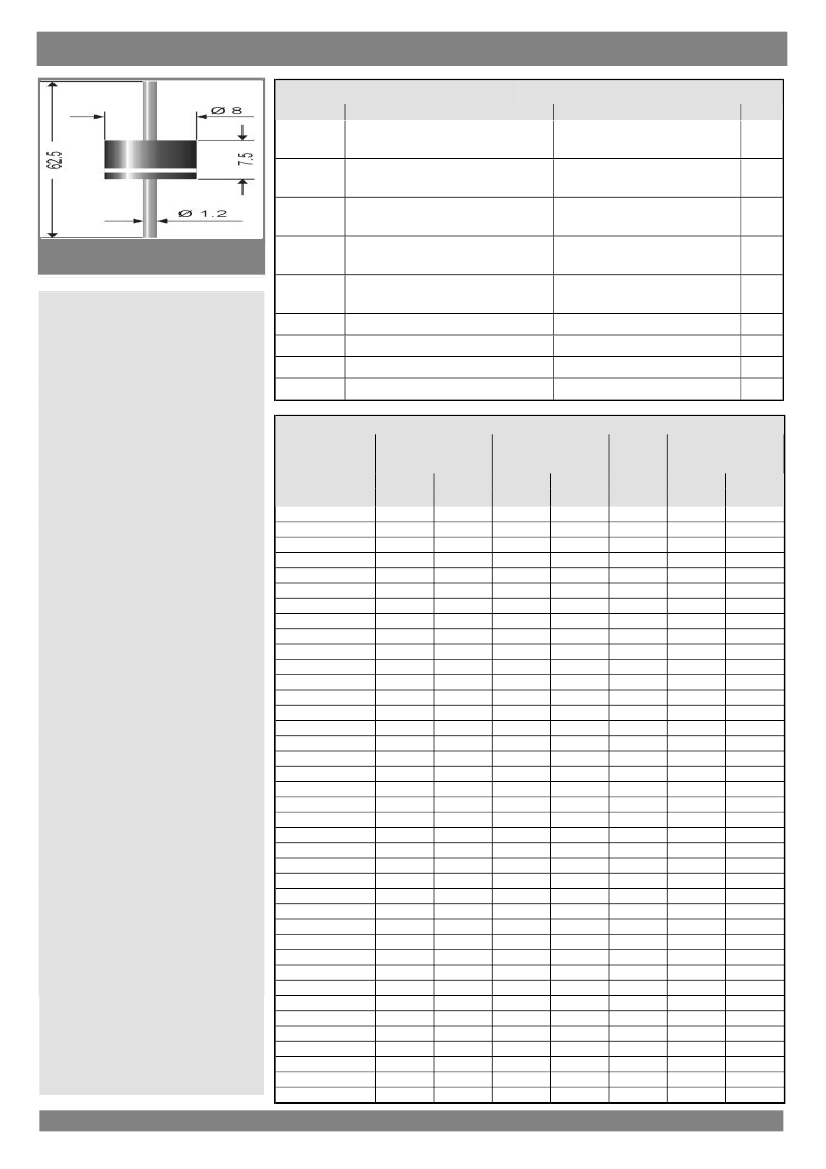

5 KP6,5...5 KP110CA

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Axial lead diode

Unidirectional and

bidirectional Transient

Voltage Suppressor

diodes

5 KP6,5...5 KP110CA

Pulse Power

Dissipation: 5000 W

Maximum Stand-off

voltage: 6,5 ... 110 V

Features

Mechanical Data

1)

2)

3)

1

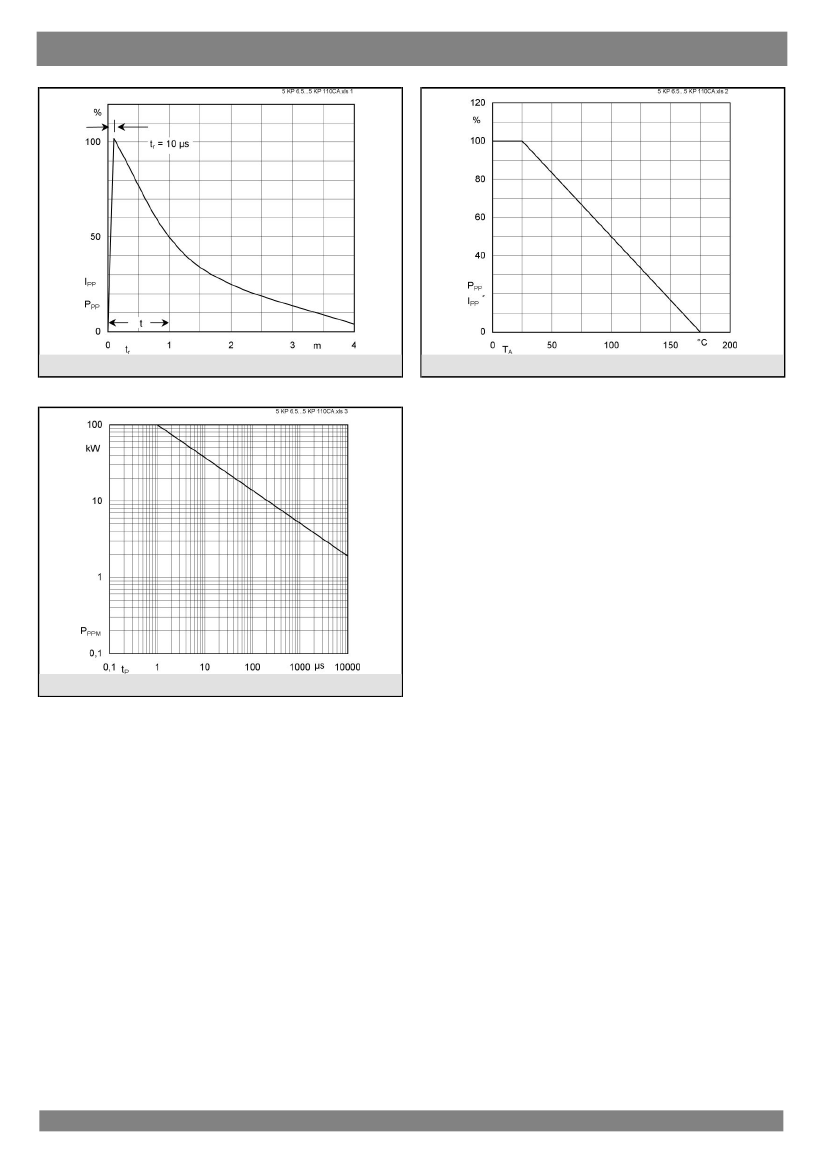

09-03-2007 MAM
