EGL34B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> EGL34B

EGL34B: Description0.5 A, 100 V, SILICON, SIGNAL DIODE, DO-213AA; CategoryDiscrete semiconductor diode; File Size193KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

EGL34B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EGL34B	-	-	View	Buy Now

EGL34B Overview

0.5 A, 100 V, SILICON, SIGNAL DIODE, DO-213AA

EGL34B Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEMIKRON
Parts packaging code	DO-213AA
package instruction	O-PELF-R2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-213AA
JESD-30 code	O-PELF-R2
JESD-609 code	e2
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-50 °C
Maximum output current	0.5 A
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse recovery time	0.05 µs
surface mount	YES
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	WRAP AROUND
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

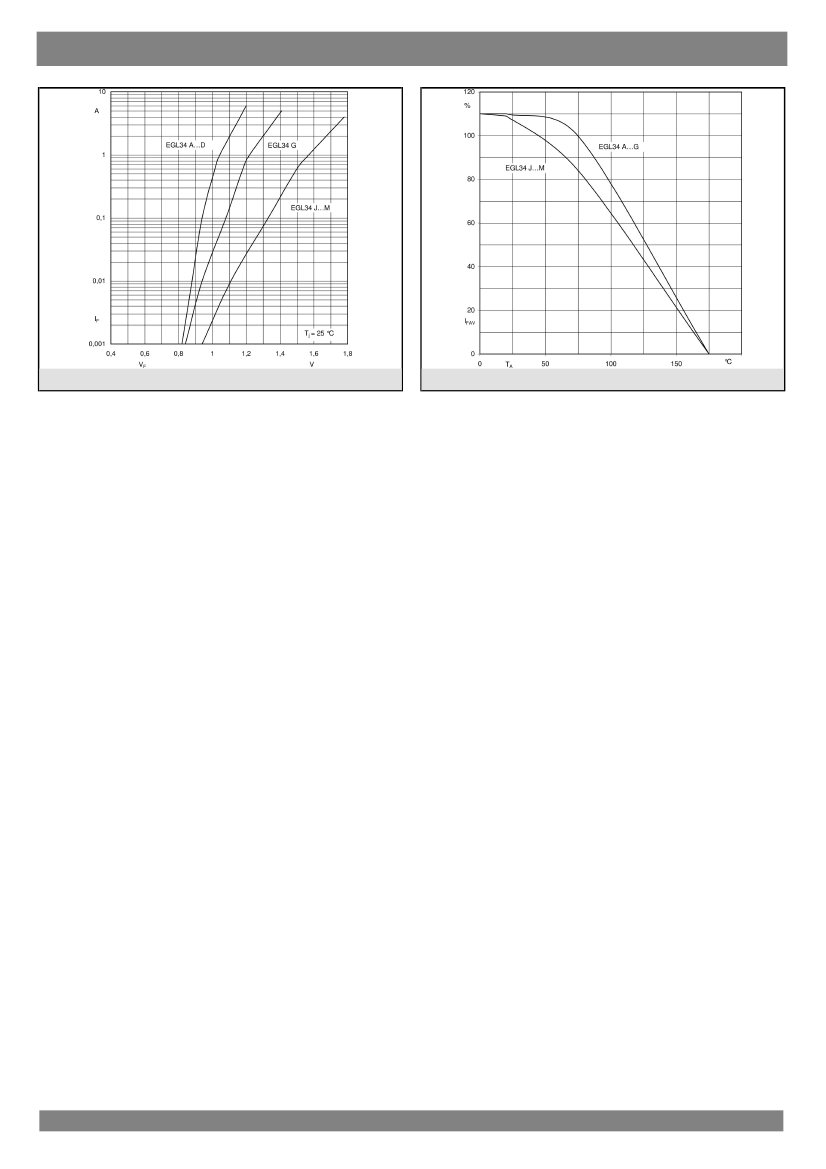

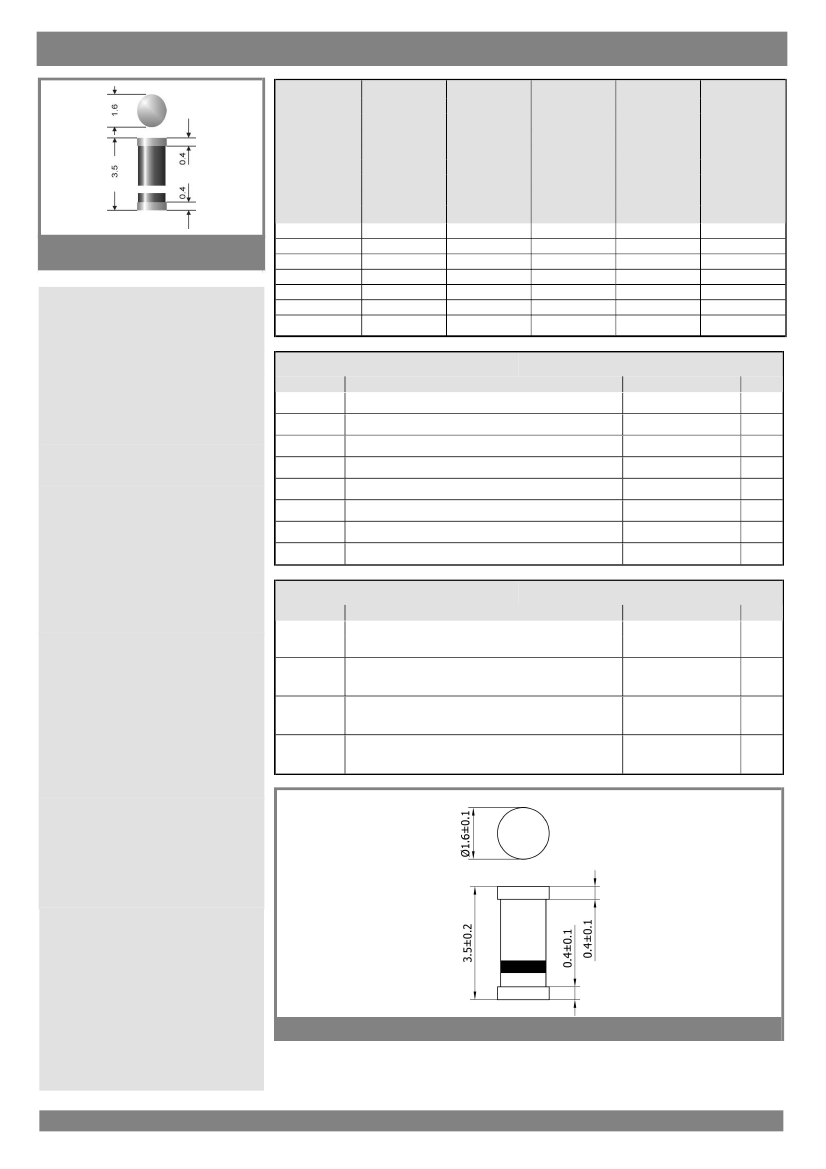

EGL 34A ... EGL 34M

Surface mount diode

Ultrafast silicon rectifier

diodes

EGL 34A ... EGL 34M

Forward Current: 0,5 A

Reverse Voltage: 50 to 1000 V

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Features

Characteristics

Symbol Conditions

Values

Units

Mechanical Data

Dimensions in mm

28-02-2007 MAM

EGL34B Related Products

	EGL34B	EGL34A	EGL34A_07	EGL34D	EGL34M	EGL34K	EGL34J	EGL34G
Description	0.5 A, 100 V, SILICON, SIGNAL DIODE, DO-213AA	0.5 A, 50 V, SILICON, SIGNAL DIODE, DO-213AA	0.5 A, 50 V, SILICON, SIGNAL DIODE, DO-213AA	0.5 A, 200 V, SILICON, SIGNAL DIODE, DO-213AA	0.5 A, 1000 V, SILICON, SIGNAL DIODE, DO-213AA	0.5 A, 800 V, SILICON, SIGNAL DIODE, DO-213AA	0.5 A, 600 V, SILICON, SIGNAL DIODE, DO-213AA	0.5 A, 400 V, SILICON, SIGNAL DIODE, DO-213AA
Maker	SEMIKRON	SEMIKRON	-	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON	SEMIKRON
Parts packaging code	DO-213AA	DO-213AA	-	DO-213AA	DO-213AA	DO-213AA	DO-213AA	DO-213AA
package instruction	O-PELF-R2	PLASTIC, MINIMELF-2	-	O-PELF-R2	O-PELF-R2	O-PELF-R2	O-PELF-R2	O-PELF-R2
Contacts	2	2	-	2	2	2	2	2
Reach Compliance Code	compliant	compliant	-	compliant	unknown	unknown	unknown	compliant
ECCN code	EAR99	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	-	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	-	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	DO-213AA	DO-213AA	-	DO-213AA	DO-213AA	DO-213AA	DO-213AA	DO-213AA
JESD-30 code	O-PELF-R2	O-PELF-R2	-	O-PELF-R2	O-PELF-R2	O-PELF-R2	O-PELF-R2	O-PELF-R2
Number of components	1	1	-	1	1	1	1	1
Number of terminals	2	2	-	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	-	175 °C	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-50 °C	-50 °C	-	-50 °C	-50 °C	-50 °C	-50 °C	-50 °C
Maximum output current	0.5 A	0.5 A	-	0.5 A	0.5 A	0.5 A	0.5 A	0.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	-	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	-	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	50 V	-	200 V	1000 V	800 V	600 V	400 V
Maximum reverse recovery time	0.05 µs	0.05 µs	-	0.05 µs	0.075 µs	0.075 µs	0.075 µs	0.05 µs
surface mount	YES	YES	-	YES	YES	YES	YES	YES
Terminal form	WRAP AROUND	WRAP AROUND	-	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND	WRAP AROUND
Terminal location	END	END	-	END	END	END	END	END
Base Number Matches	1	1	-	1	1	1	1	1
