TV33.3047000M05017AH datasheet, PDF

Datasheet> All Categories > oscillator> TV33.3047000M05017AH

TV33.3047000M05017AH: DescriptionSine Output Oscillator, 33.3047MHz Nom, ROHS COMPLIANT, SMALL, 4 PIN; Categoryoscillator; File Size462KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric Compare View All

TV33.3047000M05017AH Overview

Sine Output Oscillator, 33.3047MHz Nom, ROHS COMPLIANT, SMALL, 4 PIN

TV33.3047000M05017AH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kyocera
Reach Compliance Code	unknown
Ageing	1 PPM/YEAR
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
Frequency Adjustment - Mechanical	YES
Frequency offset/pull rate	5 ppm
frequency stability	2%
Manufacturer's serial number	VC-TCXO-158D
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	33.3047 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Oscillator type	SINE
Output impedance	50 Ω
Output level	0.2 V
physical size	20.5mm x 15.5mm x 7.0mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

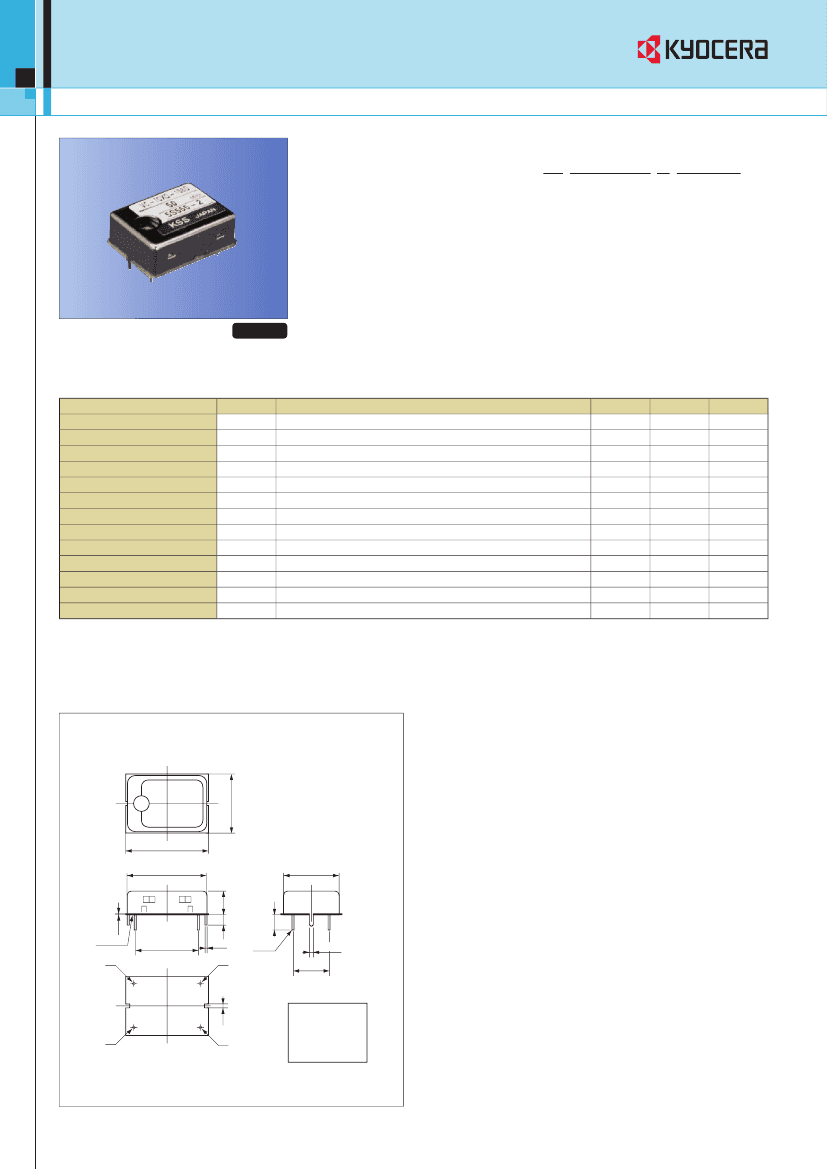

Temperature Compensated Crystal Oscillators

VC-TCXO-158D

Features

• Analog signal processing temperature

compensated crystal oscillator

• Small package & Lower noises

How to Order

TV 74.2500000 M 05017AH

①

②

③

④

①

Function

②

Output Frequency

③

Frequency Unit

MMHz

④

Individual Speciﬁcation

TVVC-TCXO

Standard frequency

• 74.25MHz

• 74.175824MHz

RoHS Compliant

Speciﬁcations

Item

Symbol

Output Frequency

Storage Temperature Range

_stg

Operating Temperature Range

_use

Supply Voltage

Current consumption

Frequency Temperature characteristics

-T

Ref. at

25C

Frequency Aging

_age

1 year

Frequency Adjustment Range

_adjust

Internal Trimmer

Frequency Control Range

_cont

Frequency Deviation

Output Level

Load

Load_R

Harmonics

—

Conditions

—

Min.

30.000

30

10

4.75

—

2.0

1.0

2.0

5.0

0.5

10

—

Max.

100.000

80

60

5.25

2.0

1.0

2.0

5.0

4.5

—

10

Units

MHz

C

10

6

10

6

10

6

10

6

dBm

ohm

dBc

—

Dimensions

(Unit: mm)

N.P.

20.5

0.5

19.0 0.5

15.5

0.5

14.0 0.5

7.0 max.

(0.1)

Insulator

15.24 0.5

t 0.3

2.5

3 0.5

0.5

1 0.5

7.62 0.5

Pin Connection

1 V

2 OUTPUT

3 GND

4 VC

1.3

TV33.3047000M05017AH Related Products

	TV33.3047000M05017AH	TV32.5079000M05017AH	TV45.2769800M05017AH
Description	Sine Output Oscillator, 33.3047MHz Nom, ROHS COMPLIANT, SMALL, 4 PIN	Sine Output Oscillator, 32.5079MHz Nom, ROHS COMPLIANT, SMALL, 4 PIN	Sine Output Oscillator, 45.27698MHz Nom, ROHS COMPLIANT, SMALL, 4 PIN
Is it Rohs certified?	conform to	conform to	conform to
Maker	Kyocera	Kyocera	Kyocera
Reach Compliance Code	unknown	unknown	unknown
Ageing	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR
Maximum control voltage	4.5 V	4.5 V	4.5 V
Minimum control voltage	0.5 V	0.5 V	0.5 V
Frequency Adjustment - Mechanical	YES	YES	YES
Frequency offset/pull rate	5 ppm	5 ppm	5 ppm
frequency stability	2%	2%	2%
Manufacturer's serial number	VC-TCXO-158D	VC-TCXO-158D	VC-TCXO-158D
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Nominal operating frequency	33.3047 MHz	32.5079 MHz	45.27698 MHz
Maximum operating temperature	60 °C	60 °C	60 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C
Oscillator type	SINE	SINE	SINE
Output impedance	50 Ω	50 Ω	50 Ω
Output level	0.2 V	0.2 V	0.2 V
physical size	20.5mm x 15.5mm x 7.0mm	20.5mm x 15.5mm x 7.0mm	20.5mm x 15.5mm x 7.0mm
Maximum supply voltage	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V
surface mount	NO	NO	NO
Base Number Matches	1	1	1
