P4SMAJ12

Description
TVS DIODE, DO-214AC
CategoryDiscrete semiconductor    diode
File Size233KB,3 Pages
ManufacturerSEMIKRON
Websitehttp://www.semikron.com
Environmental Compliance
Download Datasheet Parametric View All

P4SMAJ12 Online Shopping

Suppliers Part Number Price MOQ In stock
P4SMAJ12 - - View Buy Now

P4SMAJ12 Overview

TVS DIODE, DO-214AC

P4SMAJ12 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSEMIKRON
Parts packaging codeDO-214AC
package instructionR-PDSO-C2
Contacts2
Reach Compliance Codecompli
ECCN codeEAR99
Maximum breakdown voltage16.2 V
Minimum breakdown voltage13.3 V
Breakdown voltage nominal value14.75 V
Maximum clamping voltage22 V
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeTRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 codeDO-214AC
JESD-30 codeR-PDSO-C2
JESD-609 codee2
Maximum non-repetitive peak reverse power dissipation400 W
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-50 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
polarityUNIDIRECTIONAL
Maximum power dissipation1 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage12 V
surface mountYES
technologyAVALANCHE
Terminal surfaceTin/Silver (Sn/Ag)
Terminal formC BEND
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED

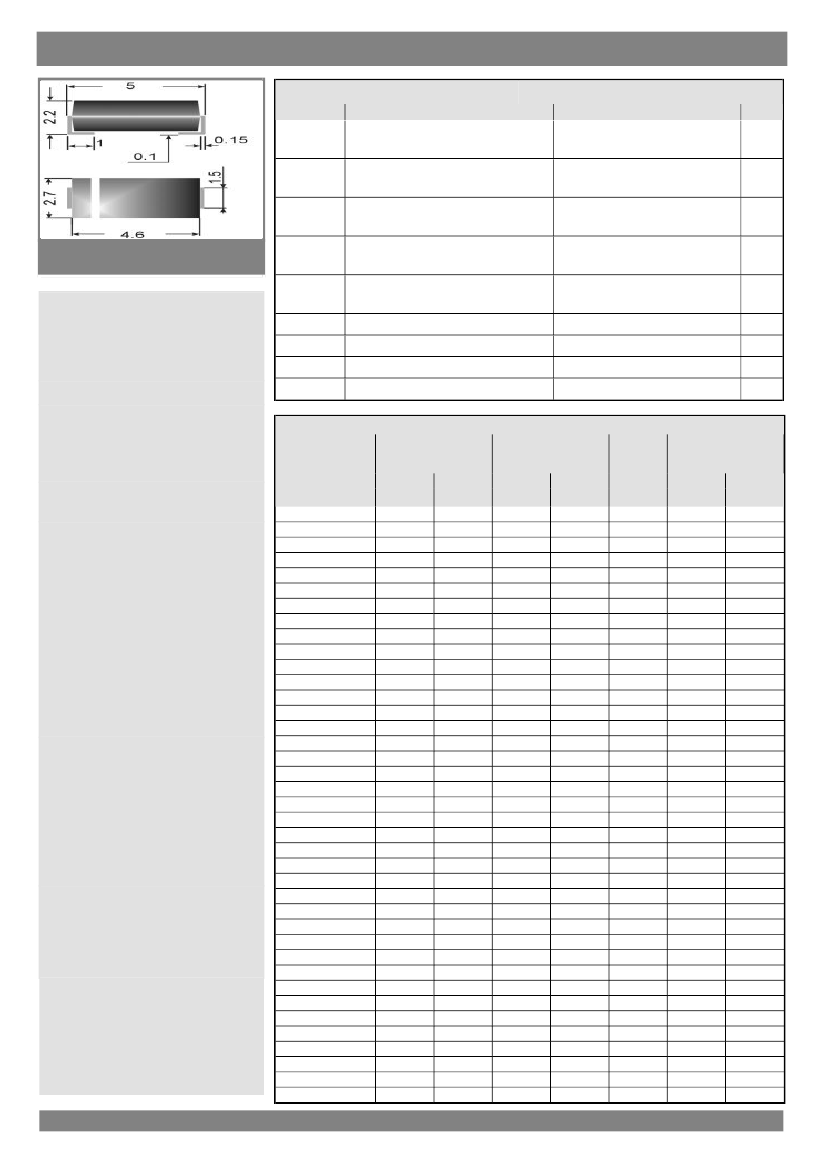

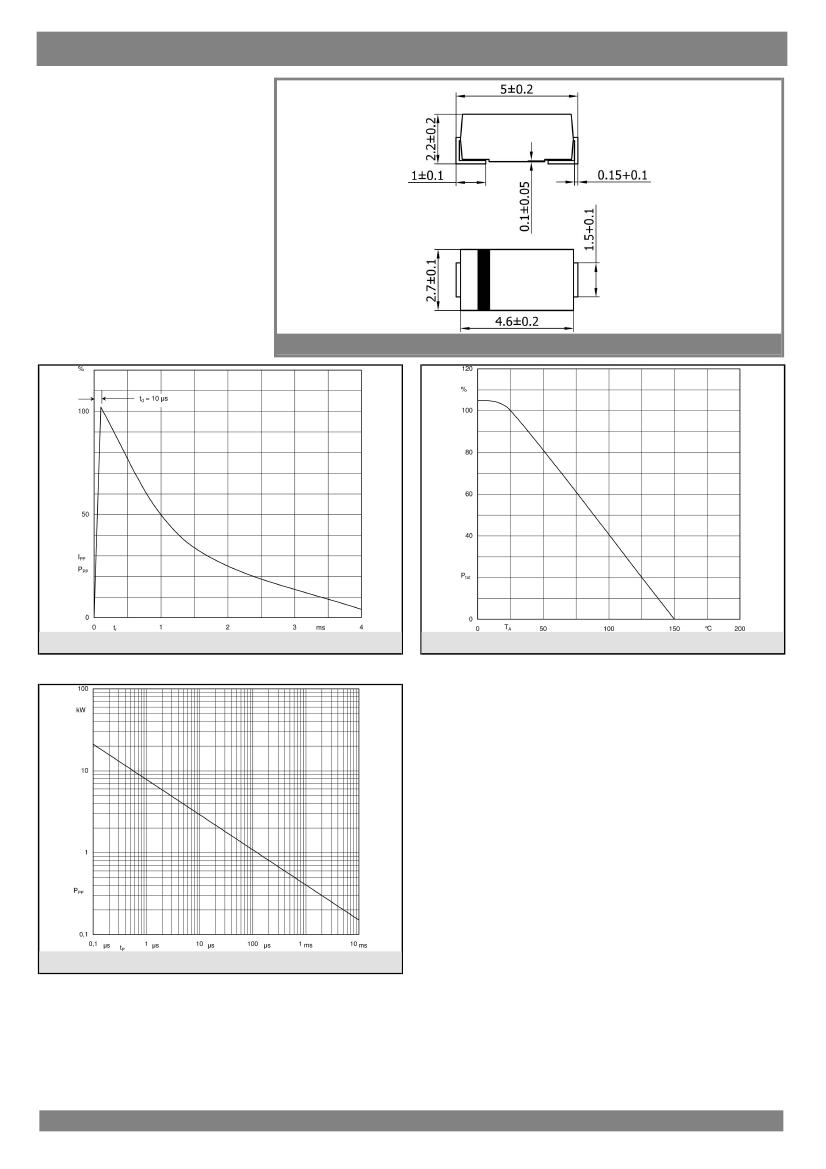

P4 SMAJ 6,5...P4 SMAJ 130CA
Absolute Maximum Ratings
Symbol Conditions
Values
Units
Surface mount diode
Unidirectional and
bidirectional Transient
Voltage Suppressor
diodes
P4 SMAJ 6,5...P4 SMAJ 130CA
Pulse Power
Dissipation: 400 W
Maximum Stand-off
voltage: 6,5...130 V
Features
Mechanical Data
1)
2)
3)
1
09-03-2007 MAM
© by SEMIKRON
