74FCT162511CTEPAG

Description
Bus Driver/Transceiver
Categorylogic
File Size233KB,11 Pages
ManufacturerIDT (Integrated Device Technology)
Download Datasheet Parametric View All

74FCT162511CTEPAG Overview

Bus Driver/Transceiver

74FCT162511CTEPAG Parametric

Parameter NameAttribute value
MakerIDT (Integrated Device Technology)
Reach Compliance Codecompliant
Base Number Matches1
IDT54/74FCT162511AT/CT
FAST CMOS 16-BIT REGISTERED/LATCHED TRANSCEIVER
MILITARY AND INDUSTRIAL TEMPERATURE RANGES
FAST CMOS 16-BIT
IDT54/74FCT162511AT/CT
REGISTERED/LATCHED
TRANSCEIVER WITH PARITY
FEATURES:
0.5 MICRON CMOS Technology
Typical t
sk(o)
(Output Skew) < 250ps, clocked mode
Low input and output leakage
1µA (max)
ESD > 2000V per MIL-STD-883, Method 3015; > 200V using
machine model (C = 200pF, R = 0)
V
CC
= 5V ±10%
Balanced Output Drivers:
– ±24mA (industrial)
– ±16mA (military)
Series current limiting resistors
Generate/Check, Check/Check modes
Open drain parity error allows wire-OR
Available in the following packages:
– Industrial: SSOP, TSSOP
– Military: CERPACK
DESCRIPTION:
The FCT162511T 16-bit registered/latched transceiver with parity is built
using advanced dual metal CMOS technology. This high-speed, low-power
transceiver combines D-type latches and D-type flip-flops to allow data flow in
transparent, latched, or clocked modes. The device has a parity generator/
checker in the A-to-B direction and a parity checker in the B-to-A direction. Error
checking is done at the byte level with separate parity bits for each byte. Separate
error flags exits for each direction with a single error flag indicating an error for
either byte in the A-to-B direction and a second error flag indicating an error for
either byte in the B-to-A direction. The parity error flags are open drain outputs
which can be tied together and/or tied with flags from other devices to form a single
error flag or interrupt. The parity error flags are enabled by the
OExx
control
pins allowing the designer to disable the error flag during combinational
transitions.
The control pins LEAB, CLKAB, and
OEAB
control operation in the A-to-B
direction while LEBA, CLKBA, and
OEBA
control the B-to-A direction.
GEN/
CHK is only for the selection of A-to-B operation. The B-to-A direction is always
in checking mode. The ODD/EVEN select is common between the two directions.
Except for the ODD/EVEN control, independent operation can be achieved
between the two directions by using the corresponding control lines.

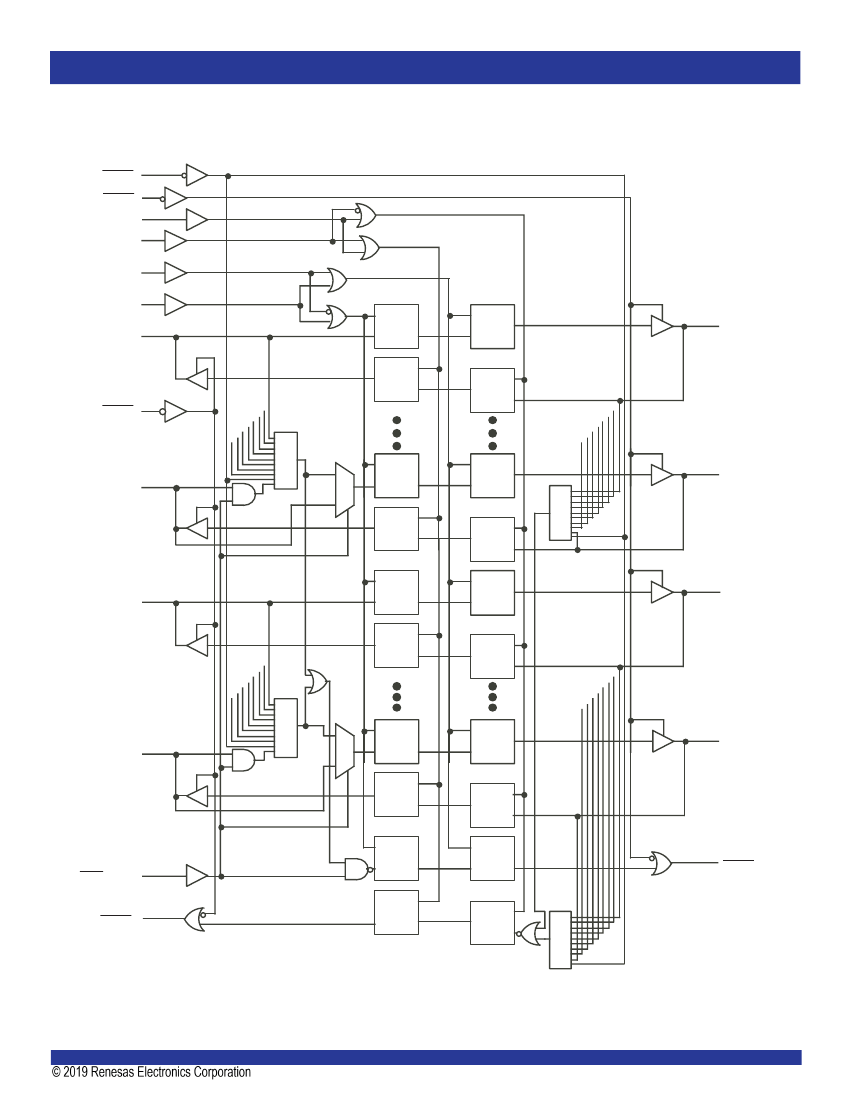

FUNCTIONAL BLOCK DIAGRAM
LEAB
CLKAB
Data
16
Parity
GEN/CHK
Byte
Parity
Generator/
Checker
2
Latch/
Register
Parity, data
18
OEAB
B0-15
PB1,2
PERB
(Open Drain)
A0-15
PA1,2
ODD/EVEN
LEBA
CLKBA
Parity, data
18
OEBA
PERA
(Open Drain)
Latch/
Register
Byte
Parity
Checking
Parity, Data
18
The IDT logo is a registered trademark of Integrated Device Technology, Inc.
MILITARY AND INDUSTRIAL TEMPERATURE RANGES
1
© 2009 Integrated Device Technology, Inc.
SEPTEMBER 2009
DSC-2916/4
