74ALVCH162374
LOW VOLTAGE CMOS 16-BIT D-TYPE FLIP-FLOP (3-STATE)
WITH 3.6V TOLERANT INPUTS AND OUTPUTS
PRELIMINARY DATA
s
s
s
s
s
s
s
s
s
s
3.6V TOLERANT INPUTS AND OUTPUTS
HIGH SPEED :
t
PD
= 4.6 ns (MAX.) at V
CC
= 3.0 to 3.6V
t
PD
= 5.4 ns (MAX.) at V
CC
= 2.3 to 2.7V
t
PD
= 6.5 ns (MAX.) at V
CC
= 1.65V
POWER DOWN PROTECTION ON INPUTS
AND OUTPUTS
SYMMETRICAL OUTPUT IMPEDANCE:
|I
OH
| = I
OL
= 24mA (MIN) at V
CC
= 3.0V
|I
OH
| = I
OL
= 18mA (MIN) at V
CC
= 2.3V
|I
OH
| = I
OL
= 4mA (MIN) at V
CC
= 1.65V
BUS HOLD PROVIDED ON DATA INPUTS
26Ω SERIE RESISTORS IN OUTPUTS
OPERATING VOLTAGE RANGE:
V
CC
(OPR) = 1.65V to 3.6V
PIN AND FUNCTION COMPATIBLE WITH
74 SERIES 16374
LATCH-UP PERFORMANCE EXCEEDS
300mA (JESD 17)
ESD PERFORMANCE:
HBM > 2000V (MIL STD 883 method 3015);
MM > 200V
TSSOP
ORDER CODES
PACKAGE
TSSOP
TUBE
T&R
74ALVCH162374T
PIN CONNECTION
DESCRIPTION
The 74ALVCH162374 is a low voltage CMOS 16
BIT D-TYPE LATCH with 3 STATE OUTPUTS
NON INVERTING fabricated with sub-micron
silicon gate and five-layer metal wiring C
2
MOS
technology. It is ideal for low power and very high
speed 1.65 to 3.6V applications; it can be
interfaced to 3.6V signal environment for both
inputs and outputs.
These flip-flops are controlled by two clock inputs
(nCK) and two output enable inputs (nOE).
On the positive transition of the (nCK), the nQ
outputs will be set to the logic state that were
setup at the nD inputs.
While the (nOE) input is low, the outputs (nQ) will
be in a normal state (HIGH or LOW logic level)
and while high level the outputs will be in a high
impedance state.
Any output control does not affect the internal
operation of flip flops; that is, the old data can be
retained or the new data can be entered even
while the outputs are off.The device circuits is
including 26Ω series resistance in the outputs.
These resistors permit to reduce line noise in high
speed applications.
All inputs and outputs are equipped with
protection circuits against static discharge, giving
them 2KV ESD immunity and transient excess
voltage.
October 2002
1/10
This is preliminary information on a new product now in development are or undergoing evaluation. Details subject to change without notice.
74ALVCH162374

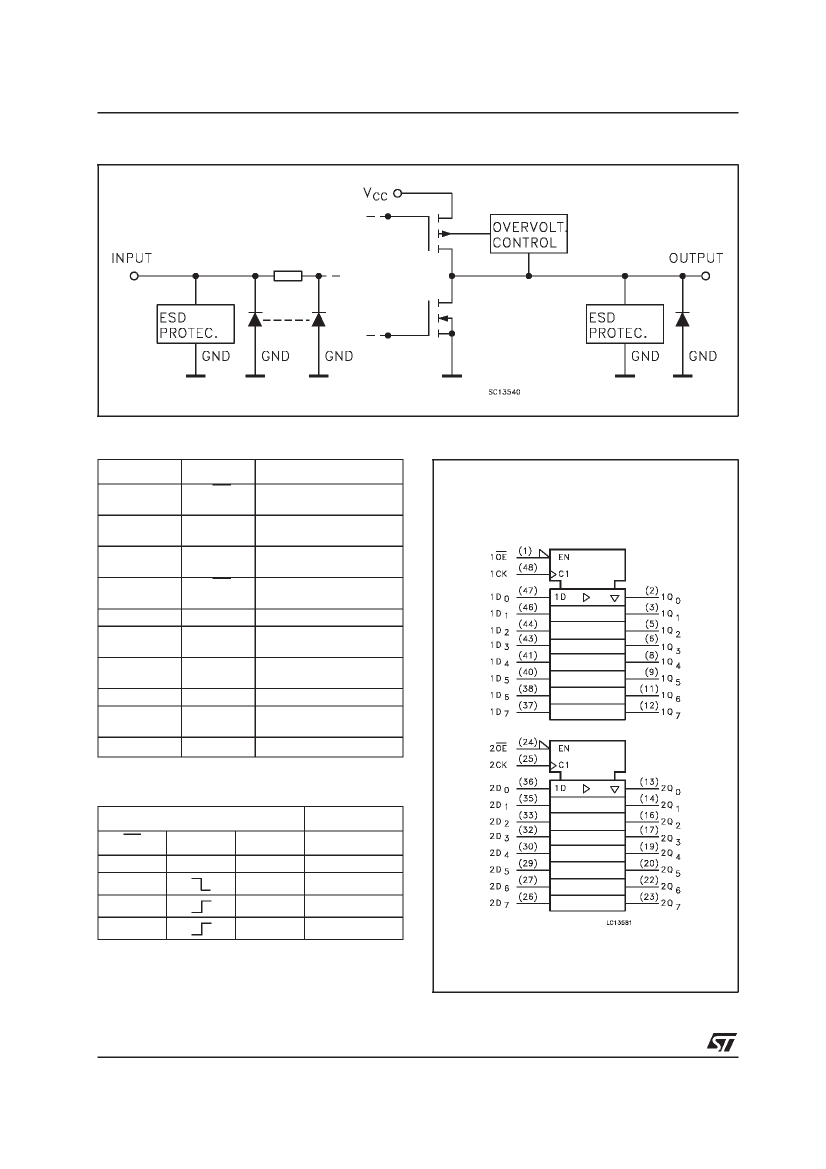

INPUT AND OUTPUT EQUIVALENT CIRCUIT
PIN DESCRIPTION
PIN No
1
SYMBOL
1OE
NAME AND FUNCTION
IEC LOGIC SYMBOLS
3 State Output Enable
Input (Active LOW)
2, 3, 5, 6, 8, 9, 1Q0 to 1Q7 3-State Outputs
11, 12
13, 14, 16, 17, 2Q0 to 2Q7 3-State Outputs
19, 20, 22, 23
24
2OE
3 State Output Enable
Input (Active LOW)
25
2CK
Clock Input
36, 35, 33, 32, 2D0 to 2D7 Data Inputs
30, 29, 27, 26
47, 46, 44, 43, 1D0 to 1D7 Data Inputs
41, 40, 38, 37
48
1CK
Clock Input
4, 10, 15, 21,
GND
Ground (0V)
28, 34, 39, 45
7, 18, 31, 42
V
CC
Positive Supply Voltage
TRUTH TABLE
INPUTS
OE
H
L
L
L
X : Don‘t Care
Z : High Impedance
OUTPUT
D
X
X
L
H
Q
Z
NO CHANGE
L
H
CK
X
2/10
74ALVCH162374
LOGIC DIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symbol
V
CC
V
I
V
O
V
O
I
IK
I
OK
I
O
Supply Voltage
DC Input Voltage
DC Output Voltage (OFF State)
DC Output Voltage (High or Low State) (note 1)
DC Input Diode Current
DC Output Diode Current (note 2)
DC Output Current
Parameter
Value
-0.5 to +4.6
-0.5 to +4.6
-0.5 to +4.6
-0.5 to V
CC
+ 0.5
- 50
- 50
±
50
±
100
400
-65 to +150
300
Unit
V
V
V
V
mA
mA
mA
mA
mW
°C
°C
I
CC
or I
GND
DC V
CC
or Ground Current per Supply Pin
Power Dissipation
P
D
T
stg
T
L
Storage Temperature
Lead Temperature (10 sec)
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is
not implied
1) I
O
absolute maximum rating must be observed
2) V
O
< GND, V
O
> V
CC
RECOMMENDED OPERATING CONDITIONS
Symbol
V
CC
V
I
V
O
V
O
I
OH
, I
OL
I
OH
, I
OL
I
OH
, I
OL
T
op
dt/dv
Supply Voltage
Input Voltage
Output Voltage (OFF State)
Output Voltage (High or Low State)
High or Low Level Output Current (V
CC
= 3.0 to 3.6V)
High or Low Level Output Current (V
CC
= 2.3 to 2.7V)
High or Low Level Output Current (V
CC
= 1.65V)
Operating Temperature
Input Rise and Fall Time (note 1)
Parameter
Value
1.65 to 3.6
-0.3 to 3.6
0 to 3.6
0 to V
CC
±
12
±
6
±
2
-55 to 125
0 to 10
Unit
V
V
V
V
mA
mA
mA
°C
ns/V
1) V
IN
from 0.8V to 2V at V
CC
= 3.0V
3/10
