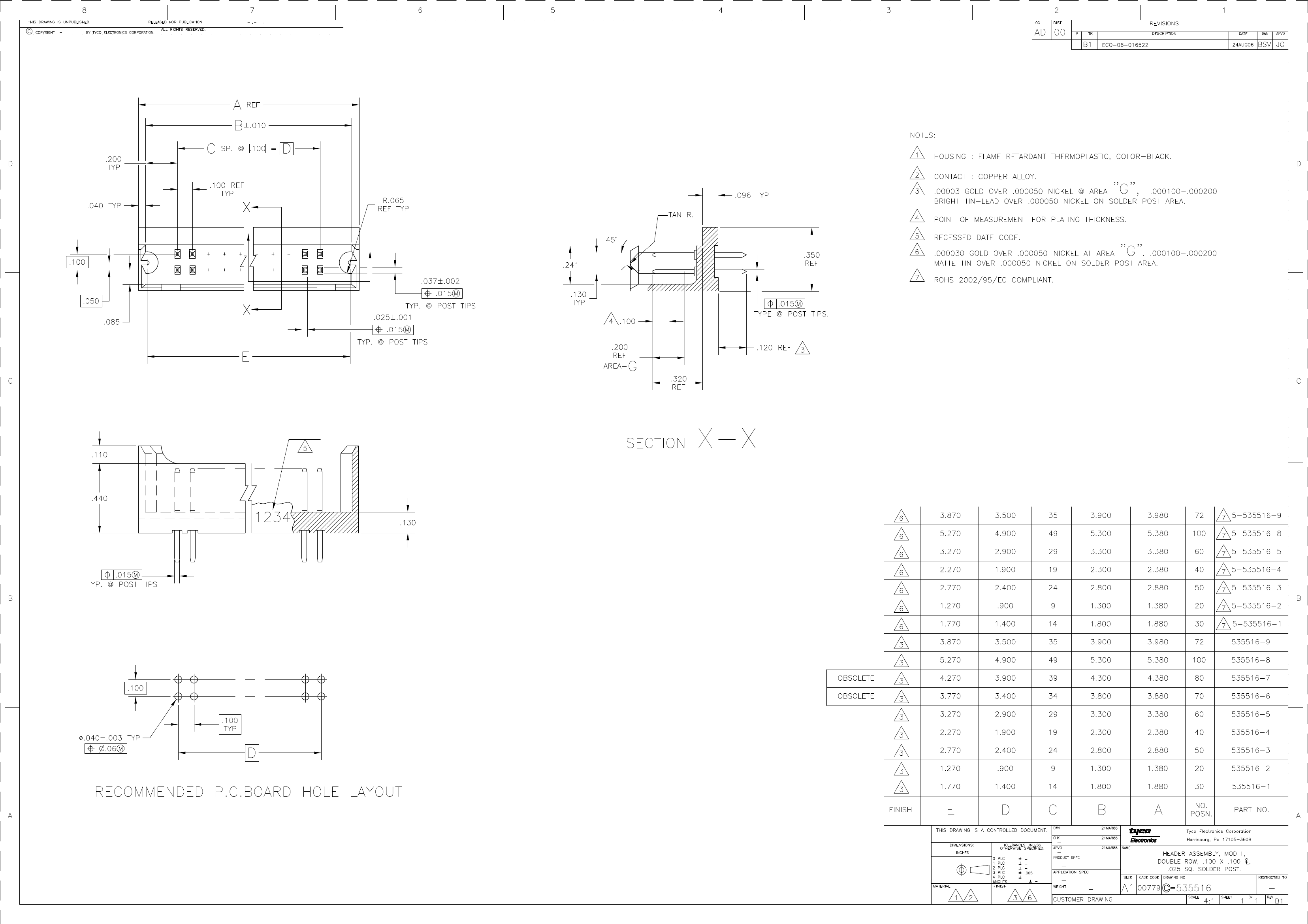

535516-6 |
535516-4 |
535516-7 |
535516-1 |
535516-3 |
| Description |
TWO PART BOARD CONNECTOR |
40 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER |
TWO PART BOARD CONNECTOR |
30 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER |
50 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SOLDER |
| Maker |
TE Connectivity |
TE Connectivity |
TE Connectivity |
TE Connectivity |
TE Connectivity |
| Reach Compliance Code |
unknown |
unknown |
unknown |
unknown |
unknown |
| Connector type |
BOARD CONNECTOR |
BOARD CONNECTOR |
BOARD CONNECTOR |
BOARD CONNECTOR |
BOARD CONNECTOR |
| DIN compliance |
NO |
NO |
NO |
NO |
NO |
| IEC compliance |
NO |
NO |
NO |
NO |
NO |
| MIL compliance |
NO |
NO |
NO |
NO |
NO |
| Manufacturer's serial number |
535516 |
535516 |
535516 |
535516 |
535516 |
| Options |
GENERAL PURPOSE |
GENERAL PURPOSE |
GENERAL PURPOSE |
GENERAL PURPOSE |
GENERAL PURPOSE |
| Base Number Matches |
1 |
1 |
1 |
1 |
1 |
| Is it Rohs certified? |
- |
incompatible |
- |
incompatible |
incompatible |
| ECCN code |
- |
EAR99 |
- |
EAR99 |
EAR99 |
| Other features |
- |
0.025 SQ SOLDER POST |
- |
0.025 SQ SOLDER POST |
0.025 SQ SOLDER POST |
| Body/casing type |
- |
RECEPTACLE |
- |
RECEPTACLE |
RECEPTACLE |
| Contact to complete cooperation |
- |
NOT SPECIFIED |
- |
GOLD (30) OVER NICKEL (50) |
GOLD (30) OVER NICKEL (50) |
| Contact point gender |
- |
MALE |
- |
MALE |
MALE |
| Contact material |
- |
NOT SPECIFIED |
- |
COPPER ALLOY |
COPPER ALLOY |
| contact mode |
- |
RECTANGULAR |
- |
RECTANGULAR |
RECTANGULAR |
| Contact resistance |
- |
12 mΩ |
- |
12 mΩ |
12 mΩ |
| Contact style |
- |
SQ PIN-SKT |
- |
SQ PIN-SKT |
SQ PIN-SKT |
| Dielectric withstand voltage |
- |
750VAC V |
- |
750VAC V |
750VAC V |
| Durability |
- |
200 Cycles |
- |
200 Cycles |
200 Cycles |
| Filter function |
- |
NO |
- |
NO |
NO |
| maximum insertion force |
- |
2.224 N |
- |
2.224 N |
2.224 N |
| Insulation resistance |
- |
1000000000 Ω |
- |
1000000000 Ω |
1000000000 Ω |
| Insulator color |
- |
BLACK |
- |
BLACK |
BLACK |
| insulator material |
- |
THERMOPLASTIC |
- |
THERMOPLASTIC |
THERMOPLASTIC |
| Plug contact pitch |
- |
0.1 inch |
- |
0.1 inch |
0.1 inch |
| Match contact row spacing |
- |
0.1 inch |
- |
0.1 inch |
0.1 inch |
| Mixed contacts |
- |
NO |
- |
NO |
NO |
| Installation option 1 |
- |
GUIDE PIN |
- |
GUIDE PIN |
GUIDE PIN |
| Installation method |
- |
STRAIGHT |
- |
STRAIGHT |
STRAIGHT |
| Installation type |
- |
BOARD |
- |
BOARD |
BOARD |
| Number of connectors |
- |
ONE |
- |
ONE |
ONE |
| PCB row number |
- |
2 |
- |
2 |
2 |
| Number of rows loaded |
- |
2 |
- |
2 |
2 |
| Maximum operating temperature |
- |
105 °C |
- |
105 °C |
105 °C |
| Minimum operating temperature |
- |
-65 °C |
- |
-65 °C |
-65 °C |
| PCB contact pattern |
- |
RECTANGULAR |
- |
RECTANGULAR |
RECTANGULAR |
| PCB contact row spacing |
- |
2.54 mm |
- |
2.54 mm |
2.54 mm |
| Plating thickness |
- |
30u inch |
- |
30u inch |
30u inch |
| polarization key |
- |
HOUSING SIDE |
- |
HOUSING SIDE |
HOUSING SIDE |
| Guideline |
- |
UL, CSA |
- |
UL, CSA |
UL, CSA |
| reliability |
- |
COMMERCIAL |
- |
COMMERCIAL |
COMMERCIAL |
| Terminal pitch |
- |
2.54 mm |
- |
2.54 mm |
2.54 mm |
| Termination type |
- |
SOLDER |
- |
SOLDER |
SOLDER |
| Total number of contacts |
- |
40 |
- |
30 |
50 |
| Evacuation force-minimum value |
- |
.2085 N |
- |
.2085 N |
.2085 N |
