54603-0951: DescriptionBoard Connector, 95 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle,; CategoryThe connector; File Size237KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

54603-0951 Overview

Board Connector, 95 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle,

54603-0951 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	compliant
Other features	MZP
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	54603
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	5
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	95
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

s

95 Circuits—5 rows by 19 columns

110 Circuits—5 rows by 22 columns

125 Circuits—5 rows by 25 columns

s

Split-beam receptacle contact design provides smooth

insertion and strong contact retention

s

M style press-ﬁt pin contact design creates four points of

contact for a gas-tight connection

s

Surface Mount Compatible

Reference Information

Product Specification: PS-55357-011

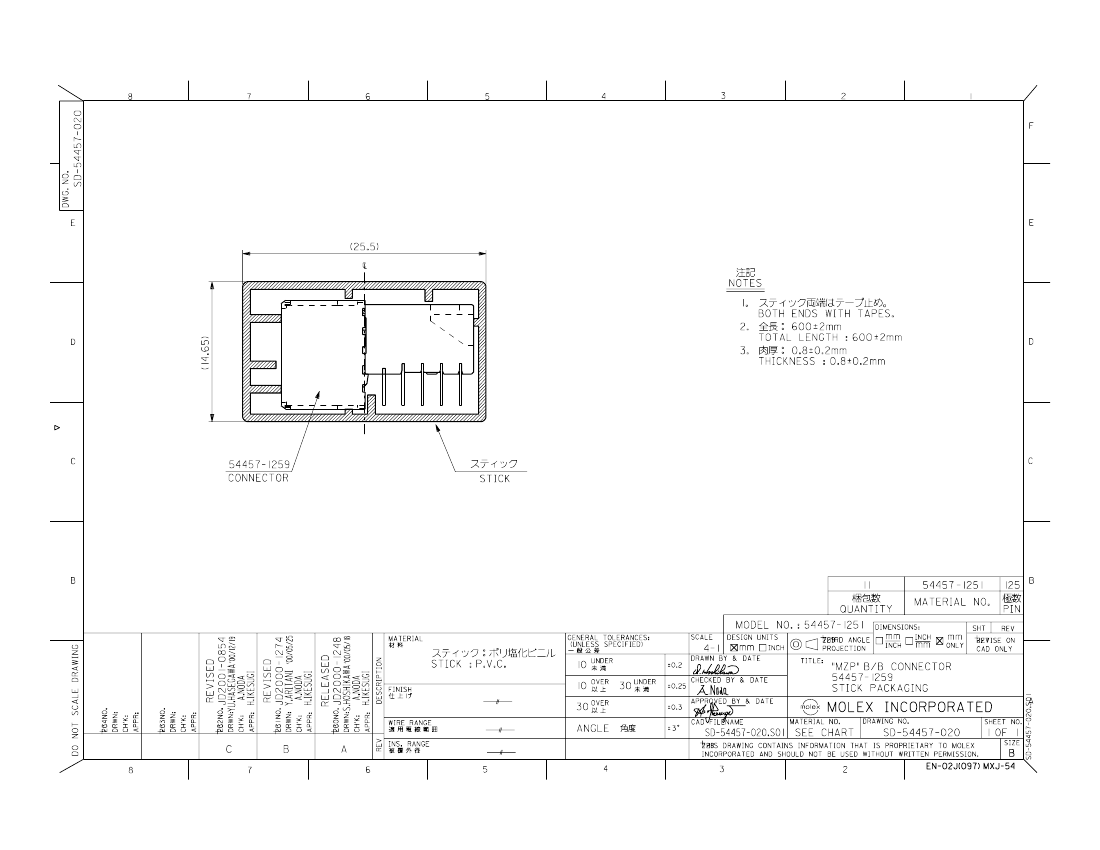

Packaging: Tube

UL File No.: E29179

CSA File No.: LR19980

Mates With:

55351, 55357

and

55376

Type B 5-row plugs

Use With:

59105

lower shield

Designed In: Millimeters

Electrical

Voltage: 500V

Current: 1.0A

Contact Resistance: 30 milliohms max.

Dielectric Withstanding Voltage: 750V AC/1 min.

Insulation Resistance: 10,000 Megohms min.

Physical

Housing: White glass-filled LCP, UL 94V-0

Contact: Phosphor Bronze

Plating:

Contact Area—0.8

µ

m (31

µ

") min. Gold

over Nickel

Press-Fit Area—0.5

µ

m (20

µ

") min. Tin/Lead over Nickel

Cover: White glass-filled LCP, UL 94V-0

Operating Temperature: -55 to +125˚C

2.00mm (.079") Pitch

MZP

™

Hard Metric

Board-to-Board

PCB Receptacle

54457/54603

Type B, Right Angle

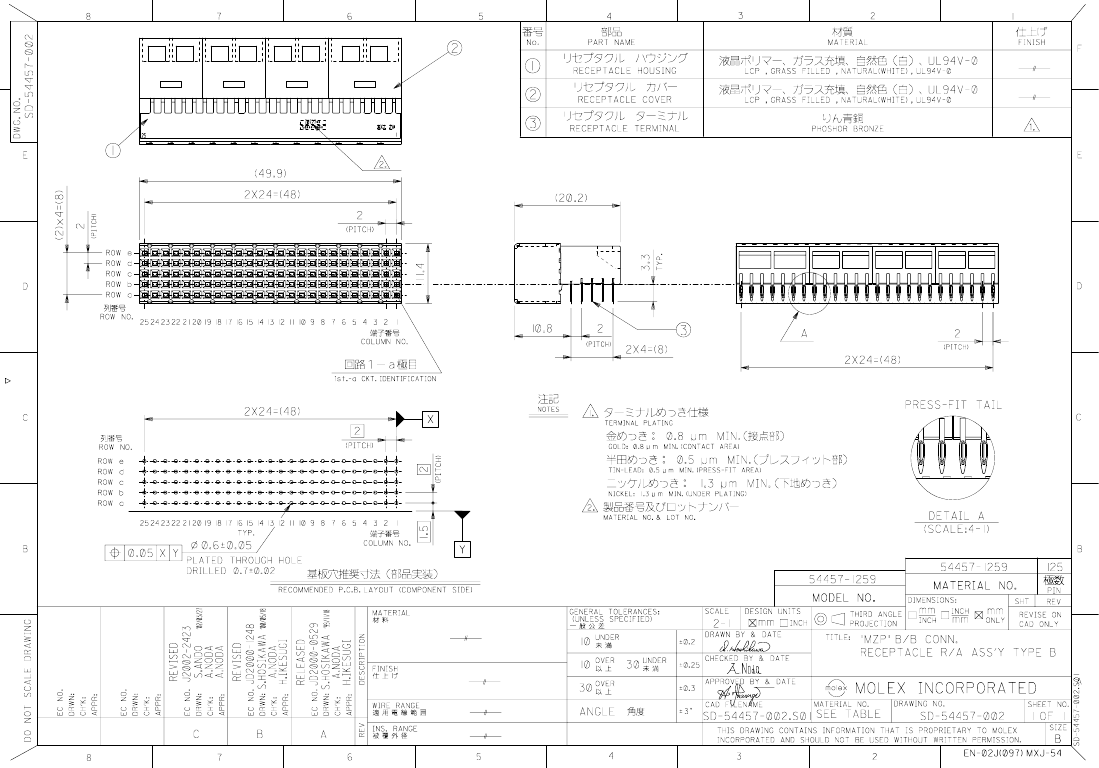

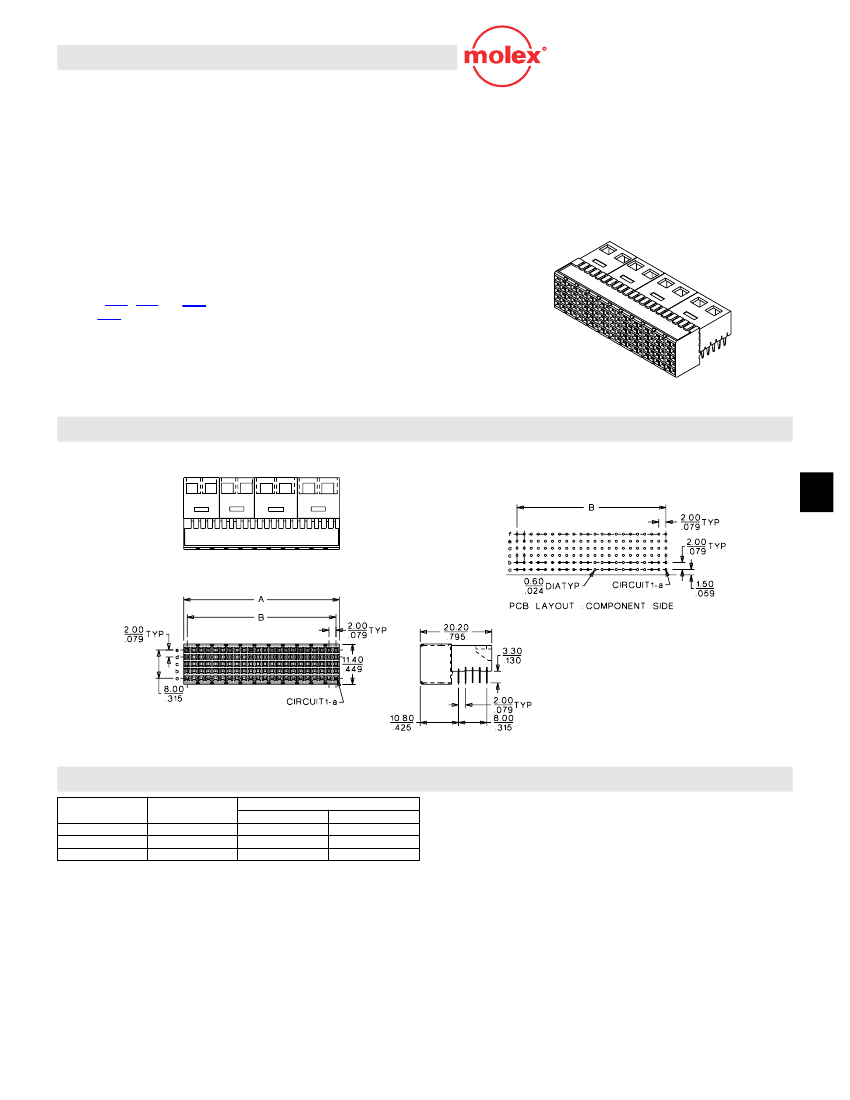

CATALOG DRAWING (FOR REFERENCE ONLY)

Drawing shown is 54603-1101

ORDERING INFORMATION AND DIMENSIONS

Circuits

125

110

95

Order No.

54457-1251

54603-1101

54603-0951

Dimension

A

49.90 (1.965)

43.90 (1.728)

37.90 (1.492)

B

48.00 (1.890)

42.00 (1.654)

36.00 (1.417)

MX01

J-59

Backplane Connector Systems

J

54603-0951 Related Products

	54603-0951	54603-1101	54457-1259
Description	Board Connector, 95 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle,	Board Connector, 110 Contact(s), 5 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle,	Board Connector, 125 Contact(s), 5 Row(s), Female, Right Angle, 0.079 inch Pitch, Press Fit Terminal, White Insulator, Receptacle,
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Molex	Molex	Molex
Reach Compliance Code	compliant	compliant	unknown
Other features	MZP	MZP	MZP
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Manufacturer's serial number	54603	54603	54457
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	95	110	125
UL Flammability Code	94V-0	94V-0	94V-0
Is it lead-free?	Contains lead	Contains lead	-
Base Number Matches	1	1	-
ECCN code	-	EAR99	EAR99
