TERMINATION
FLANGE MOUNT 150 WATT
DATA SHEET
FEATURES
Tab Launch
High Power
Low VSWR
Integrated Heat Sink
PART NUMBER: 32P7198F
APPLICATIONS
Telecom Base Stations
Broadcast
High Power Filters
High Power Amplifiers
Instrumentation
SHEET 1 OF 2
EN 11-0752
07/20/2011
GENERAL DESCRIPTION
Florida RF Labs offers the widest selection of flange mount terminations worldwide. High power flange mount components offer excellent
performance and the convenience of bolt-in installation. The flanged mounted devices deliver power ratings up to 1000 watts and
frequency ranges from DC to 18 GHz. The packages are available in single hole, double hole and four hole flange configurations. This
series of products is specifically designed for high power "Low PIM" applications.
SPECIFICATIONS
1.0 ELECTRICAL
Nominal Impedance:
Frequency Range:

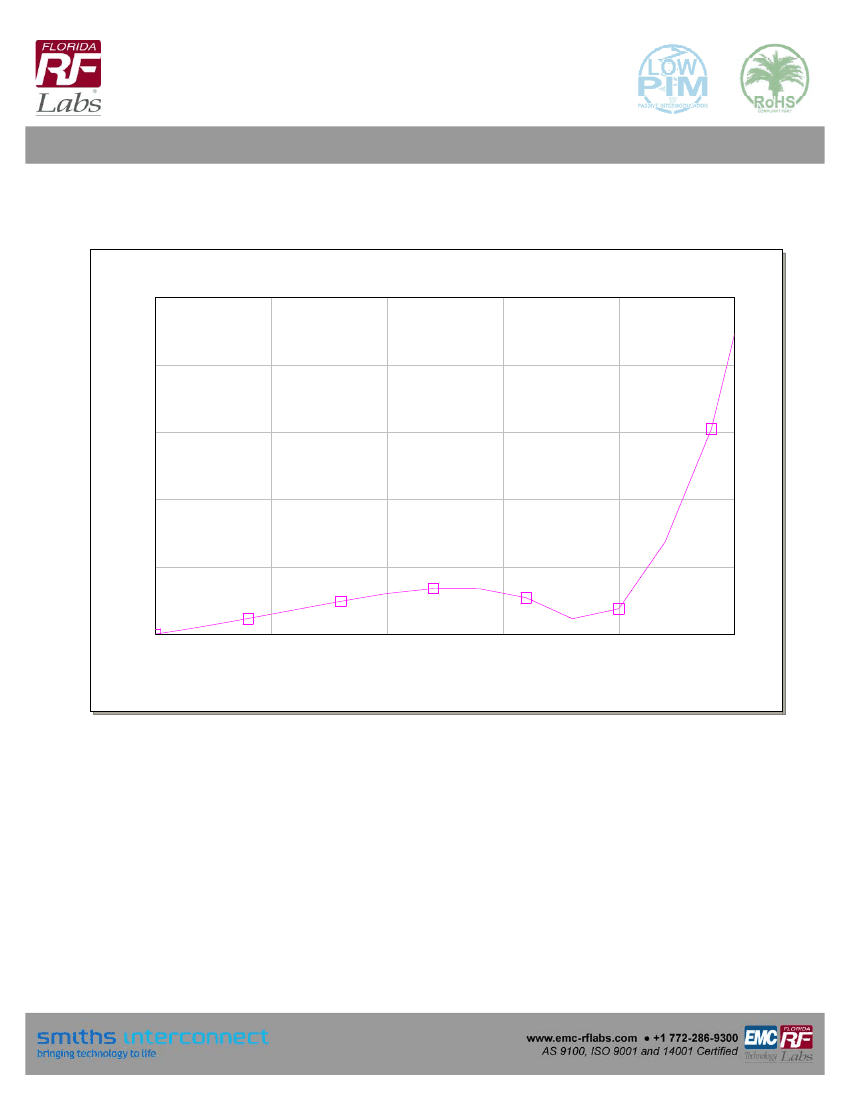

VSWR:
Temperature Coefficient:
Power Rating:
Operating Temperature:
DC Resistance:
PIM:
50
Ω
DC – 2.3 GHz
1.20 (DC - 2.3 GHz) Max
1.06 (1.8 - 1.9 GHz) Typ
±200 PPM/°C Max
150 Watts
-55 °C To +150 °C
50
Ω
±5%
-123 dBc With Two
20 Watt Tones, Typical
POWER RATING AND DERATING
100%
RATED
POWER
50%
SAFE OPERATING AREA
0%
-55
0
75
100
125
150
TEMPERATURE IN °C

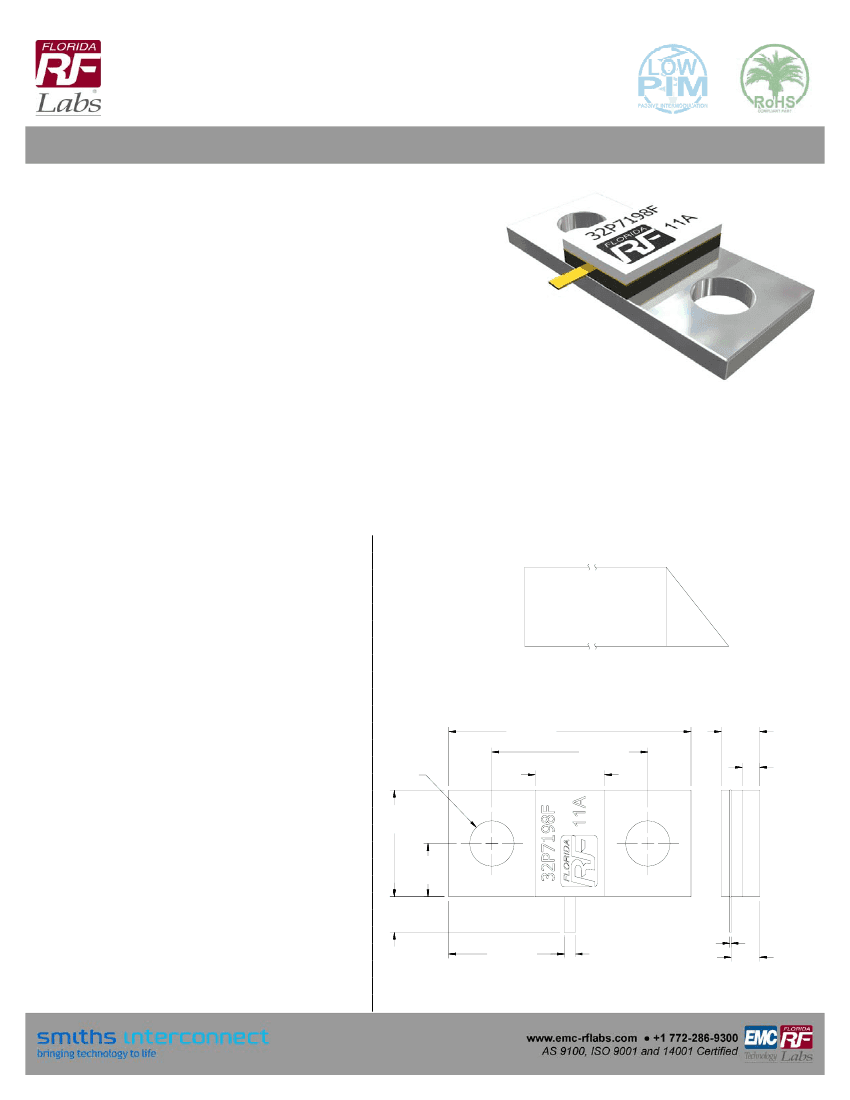

MECHANICAL OUTLINE
0.870
[22.10 mm]
0.560
[14.22 mm]
2X Ø0.160
[4.06 mm]
0.250
[6.35 mm]
0.137
[3.48 mm]
MAX
0.062
[1.57 mm]
2.0 MECHANICAL
Flange:
Substrate
Cover:
Tab:
Resistive Film:
Copper, Nickel Plated
Aluminum Nitride
Alumina
Copper, Gold Plated
Thin Film
0.375
[9.53 mm]
3.0 UNIT MARKING
Logo And Part Number
0.188
[4.76 mm]
4.0 PACKAGING
Standard:
Optional:
Tray Packaging
Available Upon Request
0.125
[3.17 mm]
MIN
0.415
[10.54 mm]
0.040
[1.02mm]
0.005
[0.13 mm]
0.102
[2.59 mm]
5.0 PART NUMBERING
Part Identifier:
32P7198F
Note: Specifications are subject to change without notice.
TOLERANCE: .XX =
.XXX =
± .02
± .010
