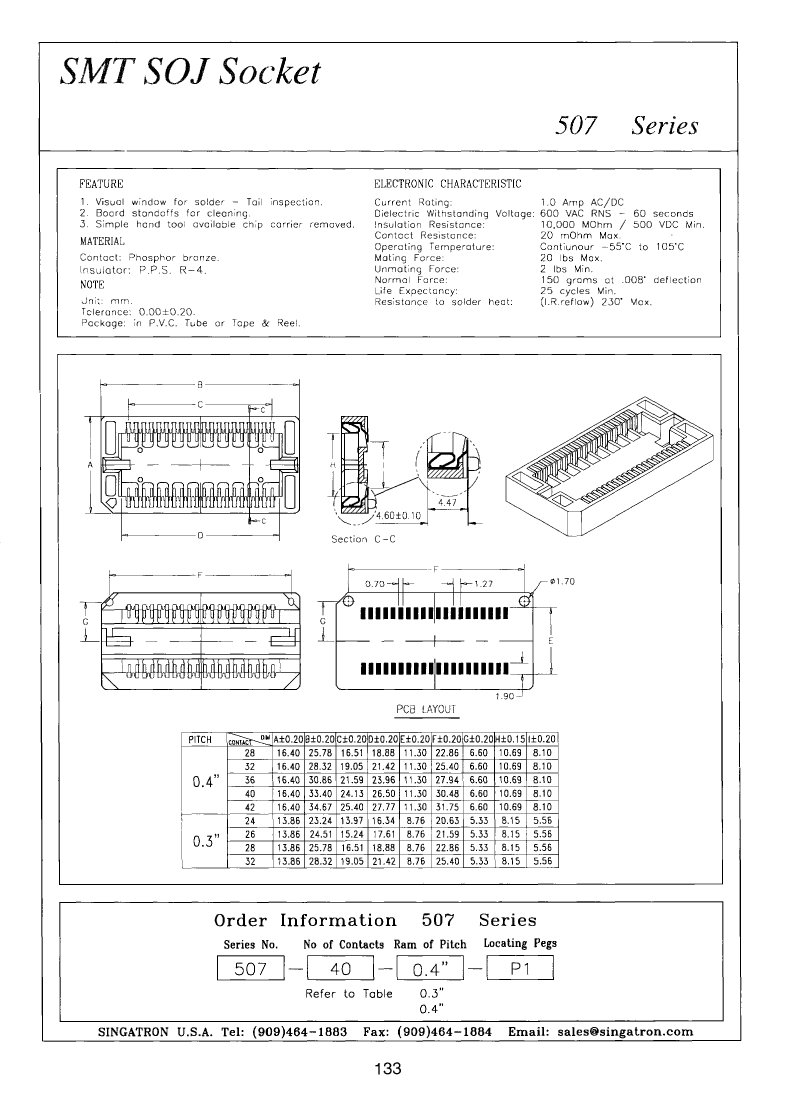

507-28-0.4-P1: DescriptionIC Socket, SOJ28, 28 Contact(s), 1.27mm Term Pitch, 0.37inch Row Spacing, Surface Mount; Categorysocket; File Size48KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric Compare View All

507-28-0.4-P1 Overview

IC Socket, SOJ28, 28 Contact(s), 1.27mm Term Pitch, 0.37inch Row Spacing, Surface Mount

507-28-0.4-P1 Parametric

Parameter Name	Attribute value
Maker	Singatron Enterprises Co
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	0.400 INCHES RAM OF PITCH
body width	0.646 inch
subject depth	0.181 inch
body length	1.015 inch
Contact material	P-CUSN
Contact style	BELLOWED TYPE
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	SOJ28
Dielectric withstand voltage	600VAC V
Shell material	POLYPHENYLENE SULPHIDE
Insulation resistance	10000000000 Ω
Manufacturer's serial number	507
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Number of contacts	28
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact row spacing	0.37 mm
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Base Number Matches	1

Preview

Download Datasheet

View All

507-28-0.4-P1 Related Products

	507-28-0.4-P1	507-26-0.3-P1	507-24-0.3-P1	507-42-0.4-P1	507-36-0.4-P1	507-40-0.4-P1	507-32-0.3-P1	507-28-0.3-P1	507-32-0.4-P1
Description	IC Socket, SOJ28, 28 Contact(s), 1.27mm Term Pitch, 0.37inch Row Spacing, Surface Mount	IC Socket, SOJ26, 26 Contact(s), 1.27mm Term Pitch, 0.272inch Row Spacing, Surface Mount	IC Socket, SOJ24, 24 Contact(s), 1.27mm Term Pitch, 0.272inch Row Spacing, Surface Mount	IC Socket, SOJ42, 42 Contact(s), 1.27mm Term Pitch, 0.37inch Row Spacing, Surface Mount	IC Socket, SOJ36, 36 Contact(s), 1.27mm Term Pitch, 0.37inch Row Spacing, Surface Mount	IC Socket, SOJ40, 40 Contact(s), 1.27mm Term Pitch, 0.37inch Row Spacing, Surface Mount	IC Socket, SOJ32, 32 Contact(s), 1.27mm Term Pitch, 0.272inch Row Spacing, Surface Mount	IC Socket, SOJ28, 28 Contact(s), 1.27mm Term Pitch, 0.272inch Row Spacing, Surface Mount	IC Socket, SOJ32, 32 Contact(s), 1.27mm Term Pitch, 0.37inch Row Spacing, Surface Mount
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	0.400 INCHES RAM OF PITCH	0.300 INCHES RAM OF PITCH	0.300 INCHES RAM OF PITCH	0.400 INCHES RAM OF PITCH	0.400 INCHES RAM OF PITCH	0.400 INCHES RAM OF PITCH	0.300 INCHES RAM OF PITCH	0.300 INCHES RAM OF PITCH	0.400 INCHES RAM OF PITCH
body width	0.646 inch	0.546 inch	0.546 inch	0.646 inch	0.646 inch	0.646 inch	0.546 inch	0.546 inch	0.646 inch
subject depth	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch	0.181 inch
body length	1.015 inch	0.965 inch	0.915 inch	1.365 inch	1.215 inch	1.315 inch	1.115 inch	1.015 inch	1.115 inch
Contact material	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
current rating	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	SOJ28	SOJ26	SOJ24	SOJ42	SOJ36	SOJ40	SOJ32	SOJ28	SOJ32
Dielectric withstand voltage	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V
Shell material	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE	POLYPHENYLENE SULPHIDE
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
Manufacturer's serial number	507	507	507	507	507	507	507	507	507
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	28	26	24	42	36	40	32	28	32
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact row spacing	0.37 mm	0.272 mm	0.272 mm	0.37 mm	0.37 mm	0.37 mm	0.272 mm	0.272 mm	0.37 mm
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maker	Singatron Enterprises Co	-	-	Singatron Enterprises Co	Singatron Enterprises Co	Singatron Enterprises Co	Singatron Enterprises Co	Singatron Enterprises Co	Singatron Enterprises Co
Base Number Matches	1	1	1	1	1	1	1	1	-
