B40C5000-3300 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B40C5000-3300

B40C5000-3300: Description4 A, 600 V, SILICON, BRIDGE RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size180KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

B40C5000-3300 Overview

4 A, 600 V, SILICON, BRIDGE RECTIFIER DIODE

B40C5000-3300 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SEMIKRON
package instruction	R-PSIP-W4
Contacts	4
Reach Compliance Code	compli
ECCN code	EAR99
Other features	UL RECOGNIZED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PSIP-W4
JESD-609 code	e2
Maximum non-repetitive peak forward current	150 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	4 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	80 V
surface mount	NO
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	WIRE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

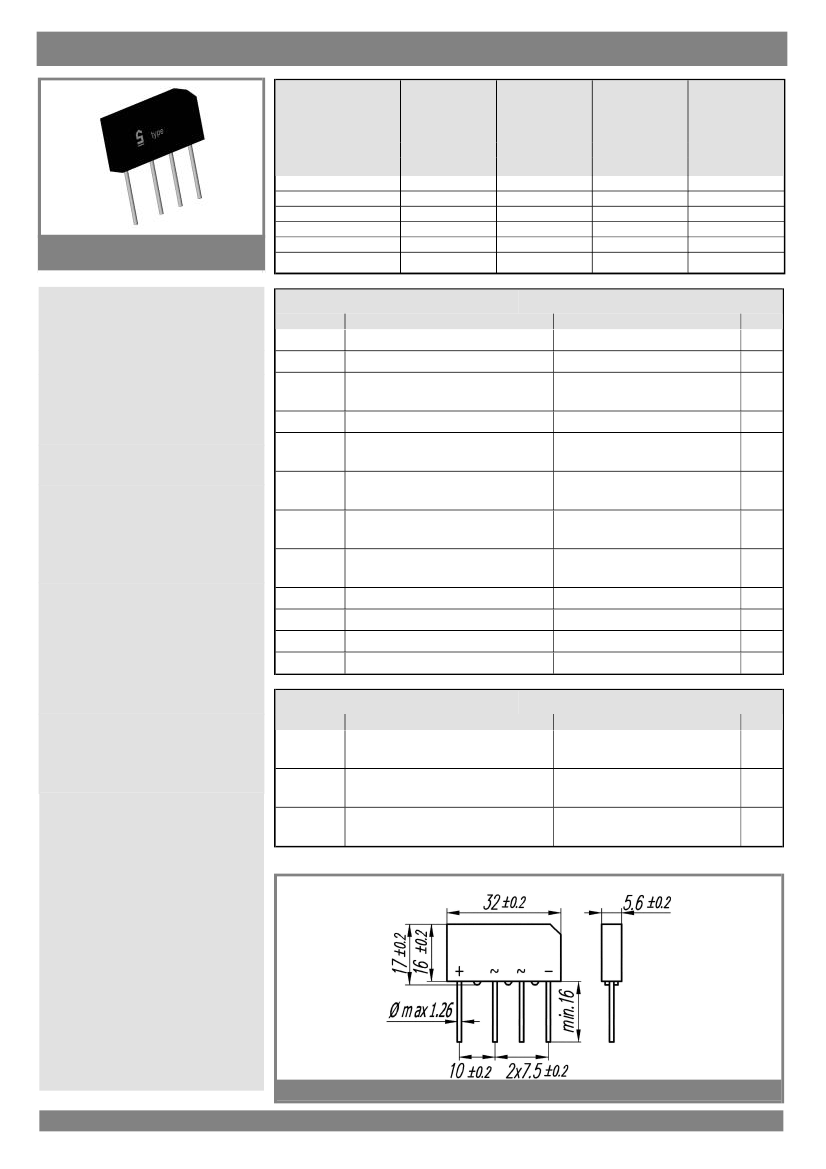

B ...C5000-3300

Inline bridge

Silicon-Bridge Rectifiers

B ...C5000-3300

Forward Current: 5 / 3,3 A

Reverse Voltage: 80 to 1000 V

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Publish Data

Features

Mechanical Data

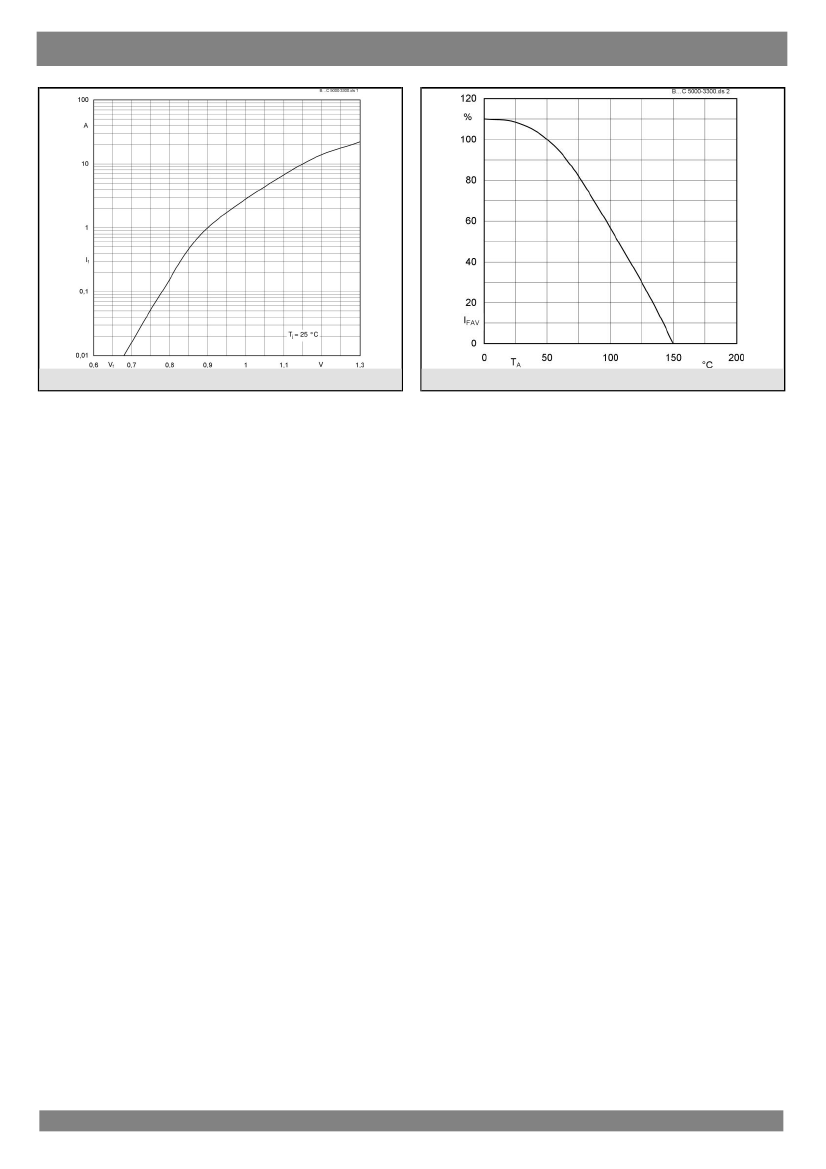

Characteristics

Symbol Conditions

Values

Units

Dimensions in mm

10-04-2006 SCT

B40C5000-3300 Related Products

	B40C5000-3300	B80C5000-3300	B125C5000-3300	B40C5000-3300_06	B500C5000-3300	B380C5000-3300	B250C5000-3300
Description	4 A, 600 V, SILICON, BRIDGE RECTIFIER DIODE	4 A, 600 V, SILICON, BRIDGE RECTIFIER DIODE	4 A, 600 V, SILICON, BRIDGE RECTIFIER DIODE	4 A, 600 V, SILICON, BRIDGE RECTIFIER DIODE	4 A, 600 V, SILICON, BRIDGE RECTIFIER DIODE	4 A, 600 V, SILICON, BRIDGE RECTIFIER DIODE	4 A, 600 V, SILICON, BRIDGE RECTIFIER DIODE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum non-repetitive peak forward current	150 A	150 A	150 A	150 A	150 A	150 A	150 A
Number of components	4	4	4	4	4	4	4
Phase	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4
Maximum repetitive peak reverse voltage	80 V	160 V	250 V	600 V	1000 V	800 V	600 V
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Is it lead-free?	Lead free	-	Lead free	-	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	-	conform to	conform to	conform to
Maker	SEMIKRON	SEMIKRON	-	-	SEMIKRON	SEMIKRON	SEMIKRON
package instruction	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	-	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4
Contacts	4	4	4	-	4	4	4
Reach Compliance Code	compli	unknow	compli	-	compli	compli	compli
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	-	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	-	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
JESD-30 code	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	-	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4
JESD-609 code	e2	e2	e2	-	e2	e2	e2
Maximum operating temperature	150 °C	150 °C	150 °C	-	150 °C	150 °C	150 °C
Minimum operating temperature	-50 °C	-	-50 °C	-	-50 °C	-50 °C	-50 °C
Maximum output current	4 A	4 A	4 A	-	4 A	4 A	4 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	-	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	-	NO	NO	NO
Terminal surface	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	-	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
